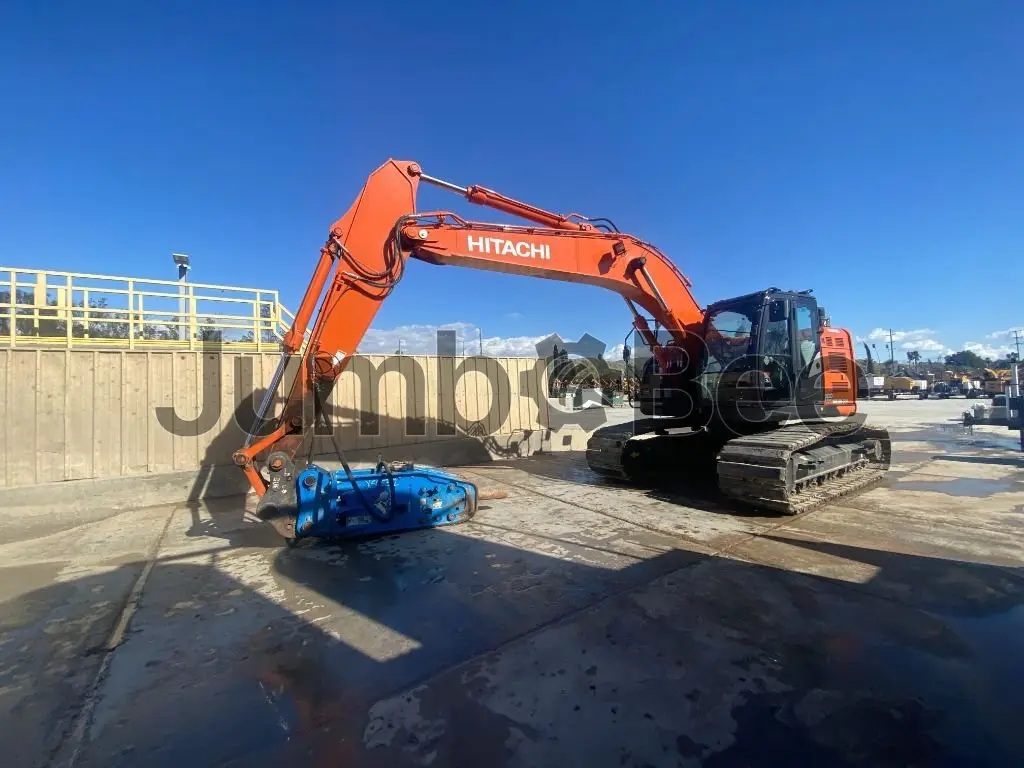

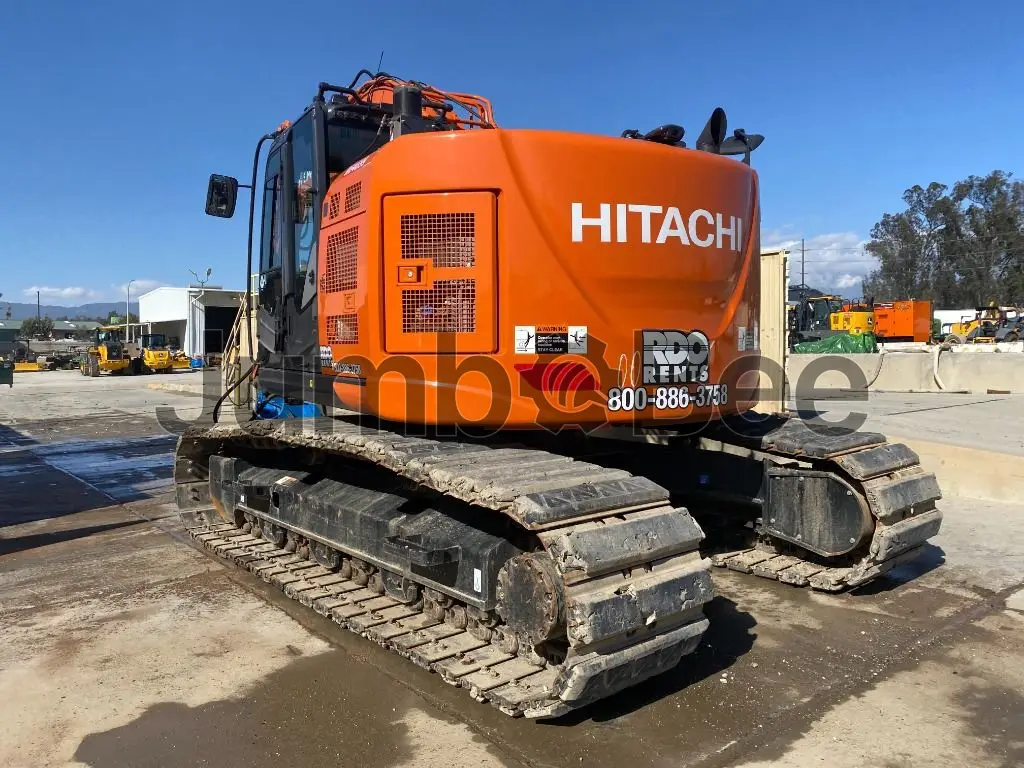

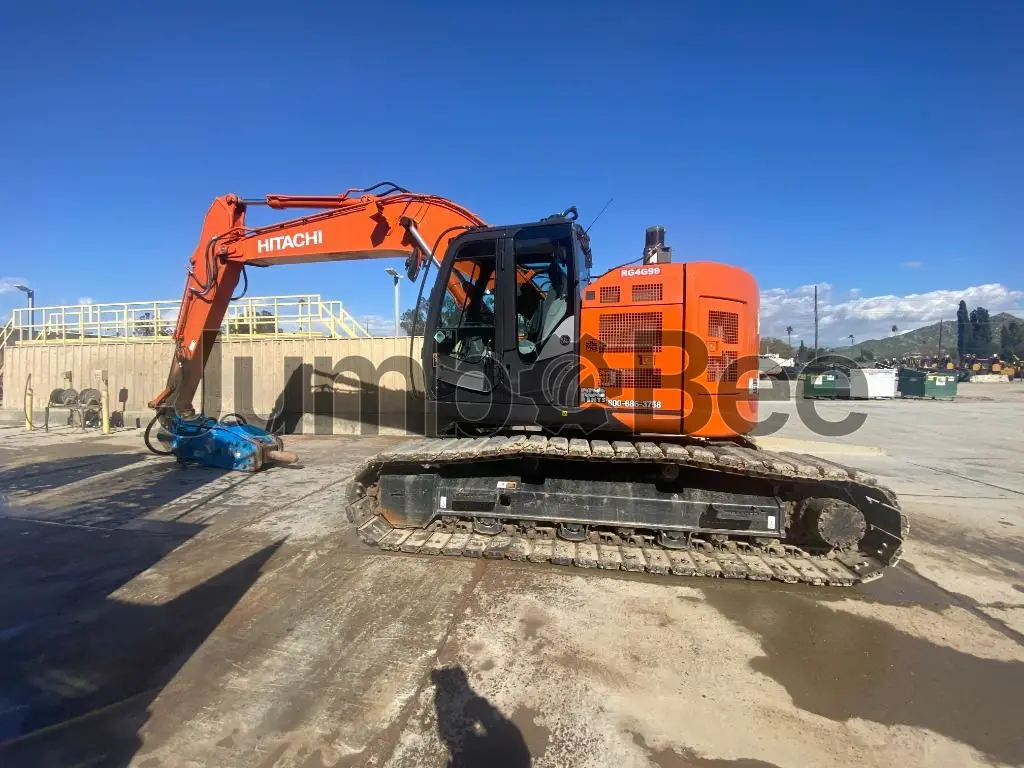

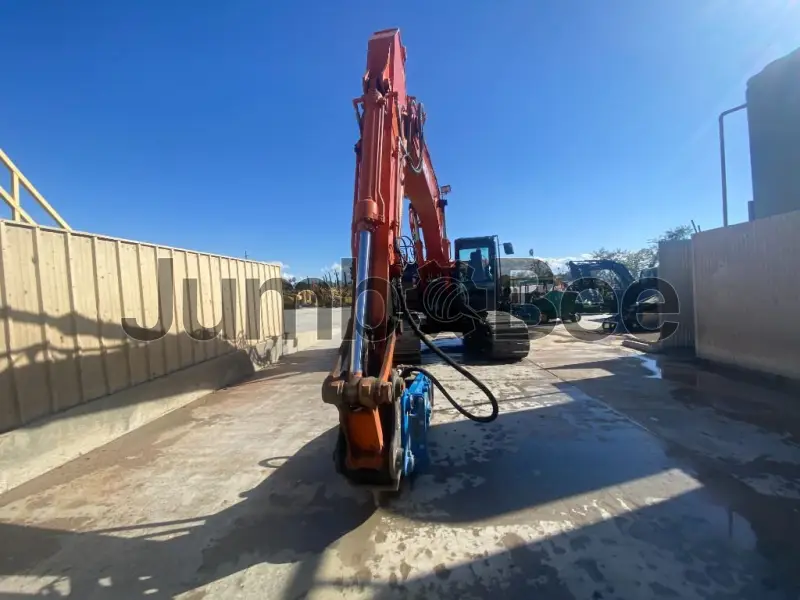

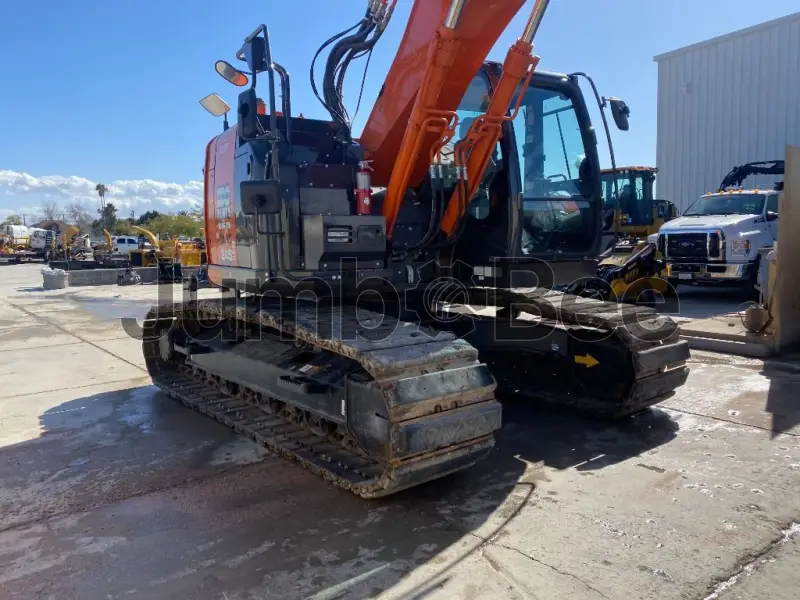

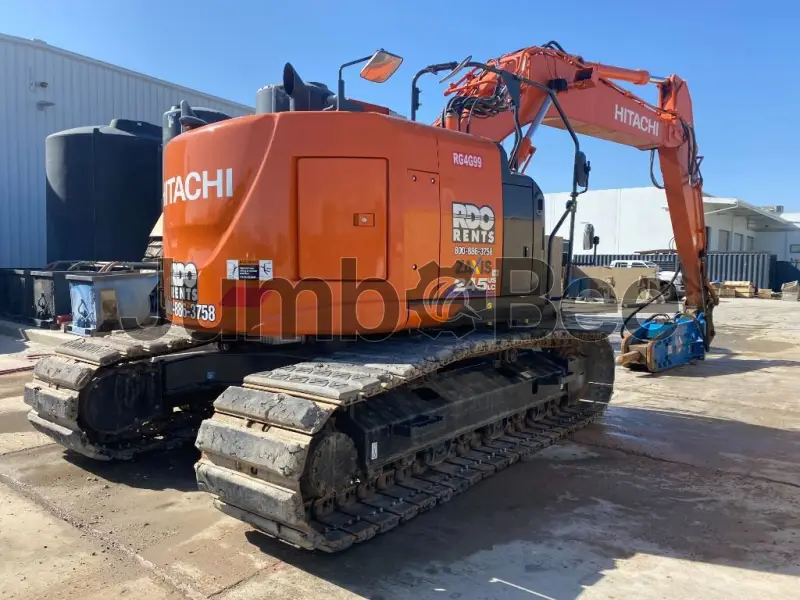

Hitachi 245G Tracked Excavators
Hitachi 245G
Average price
$188,580
5+
sold in last year
General overview
The Hitachi 245G is an excavator manufactured in Japan between 2019 and 2021. Powered by an Isuzu 4HK1 engine rated at 121 kW (164 hp), it has an operating weight of 25,400 kg (56,000 lb) and is positioned for construction work that requires substantial digging capability.
It uses a 4-cylinder, 5 L engine meeting Stage IV emissions requirements, a hydraulic system with 1 gear pump and maximum rated flow of 613 L/min (161.9 gpm), and system relief pressure of 324 bar (4,700 psi). The working group includes a 5,600 mm (18 ft 4 in) boom and 2,910 mm (9 ft 7 in) stick, with maximum digging depth of 6,620 mm (21 ft 9 in), maximum reach at ground level of 9,990 mm (32 ft 9 in), maximum loading height of 8,290 mm (27 ft 2 in), bucket digging force of 158 kN (35,520 lbf), and stick digging force of 114 kN (25,630 lbf).
Year
2019, 2021
Country of manufacturing
Japan
General specifications
Dimensions
Length
Height
Width
9,110 mm
~358.7 in
2,950 mm
~116.1 in
3,190 mm
~125.6 in
Engine Power
164 hp
Emission standard level
Stage IV
Displacement
5 cu(m)
Fuel tank
380 L
Alternator output
88
Number of batteries
2
Cooling system
28 L
Number of Cylinders
4
Dimensions
mm
Width
3,190 mm
Operating Weight
25,400 kg
Reference Bucket Capacity
cu(m)
Drawbar Pull
203 kN
Maximum Rated Flow
613 L/min
System Relief Pressure
32,400 kPa
Hydraulic Pumps
cu(cm)
Hydraulic Capacity
130 L
Engine Model
Isuzu 4HK1
Maximum Travel Speed - Low
3 km/h
Maximum Travel Speed - High
5 km/h
Maximum Pressure - Equipment
38,000 kPa
Maximum Pressure - Travel
34,300 kPa
Maximum Pressure - Swing
32,400 kPa
Battery Capacity
126
Engine Oil
23 L
Hydraulic System - Including Tank
240 L
Shipping Height - Top of Cab
2,950 mm
Handrail Height
3,030 mm
Tail Swing Radius
1,680 mm
Track Gauge
2,390 mm
Maximum Digging Depth
6,620 mm
Maximum Reach at Ground Level
9,990 mm
Maximum Cutting Height
11,230 mm
Maximum Loading Height
8,290 mm
Maximum Vertical Wall Digging Depth
5,780 mm
Bucket Digging Force - ISO
158 kN
Stick Digging Force - ISO
114 kN
Boom length
5,600 mm
Stick length
2,910 mm
Net Power (ISO 9249)
164 hp
Hydraulic Pump
1 gear pump
Maximum Operating Pressure
32,400 kPa
Additional specifications
Rated power
119 kW
Axles
-
Header
-
Ground Pressure
42 kPa
Additional Options
-
Hitachi 245G Tracked Excavators Listings
$183,930
164 hp
25400 kg
Stage IV
3042 hours
Riverside, United States
Compare Hitachi 245G Tracked Excavator to other tracked excavators
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Hitachi 245G?
No confirmed market price is supplied. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Hitachi 245G?
The supplied specifications list 122.3 kW (164 hp) of engine power, 158 kN (35,520 lbf) bucket digging force, 114 kN (25,628 lbf) stick digging force, and a maximum digging depth of 6,620 mm (260.6 in).
What type of engine does the 245G use?
The 245G uses an Isuzu 4HK1 engine with 4 cylinders and a Stage IV emission standard level.
How much horsepower does the 245G have?
The 245G has 164 hp of engine power. Its net power under ISO 9249 is also listed as 122.3 kW (164 hp).
What fuel does the Hitachi 245G use?
The supplied specifications do not confirm the fuel type. They list a fuel tank capacity of 380 L (100.4 US gal).
What jobs is this Excavators best suited for?
The supplied data supports use where digging reach and depth are needed, with a maximum digging depth of 6,620 mm (260.6 in), maximum reach at ground level of 9,990 mm (393.3 in), and maximum loading height of 8,290 mm (326.4 in).
What is the expected lifespan of the 245G?
The supplied data does not provide an expected lifespan. For a used machine, assess maintenance records, operating hours, hydraulic condition, engine performance, undercarriage wear, and structural damage.
What should a buyer check when purchasing a used Excavators?
Check maintenance records, operating hours, engine performance, hydraulic leaks and function, boom and stick wear, bucket condition, undercarriage wear, tracks, cab controls, and signs of structural damage or repairs. Confirm that the machine’s configuration matches the intended work.
