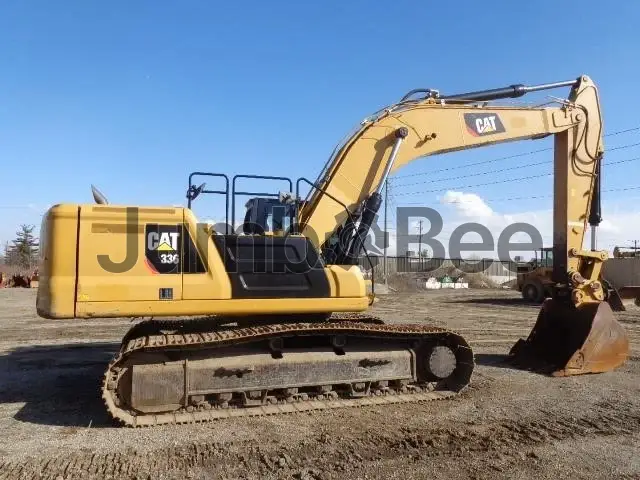

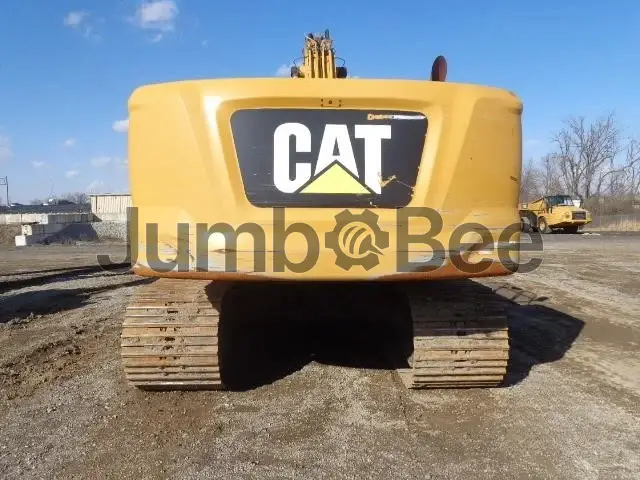

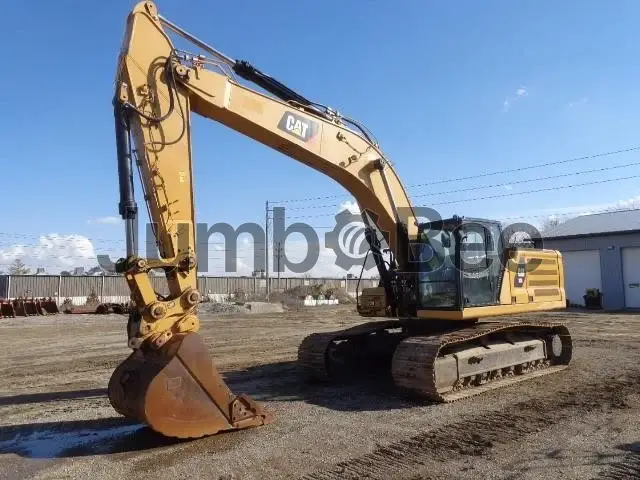

Caterpillar 336 Tracked Excavators
Caterpillar 336
5+
sold in last year
General overview
The Caterpillar 336 is a construction excavator produced from 2017 to 2020 and manufactured in the United States. It is intended for earthmoving and digging work on construction sites, combining a rated power of 311 with an operating weight of 37,200 and a reference bucket capacity of 2.27. The model uses Caterpillar’s C9.3B six-cylinder engine and is listed with a Tier 4f emissions standard.
Its working range supports excavation, loading, and general material handling around the jobsite. Key dimensions include a maximum digging depth of 8.2, a maximum reach at ground level of 11.7, and a maximum cutting height of 10.7. Bucket and stick digging forces are listed at 210 and 144, with boom and stick lengths of 6.5 and 3.9.
Year
2017, 2018, 2019, 2020
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
3,440 mm
~135.4 in
3,700 mm
~145.7 in
11,200 mm
~440.9 in
37,200 kg
~82,012 lb
Rated power
311 hp
Operating Weight
37,200 kg
Reference Bucket Capacity
2.27 cu(m)
Additional specifications
Emission standard level
Tier 4f
Displacement
550 cu(in)
Fuel tank
600 L
Alternator output
115 A
Number of batteries
2 × 12V
Cooling system
40 L
Brand and Model of The Engine
C9.3B
Number of Cylinders
6
Drawbar Pull
275 kN
Main Pumps
558 L/min
Maximum Rated Flow
700 L/min
Hydraulic Capacity
153 L
Ground Pressure
50.5 kPa
Maximum Travel Speed - Low
4 km/h
Maximum Travel Speed - High
9 km/h
Maximum Pressure - Equipment
5.076 kPa
Maximum Pressure - Travel
5.076 kPa
Maximum Pressure - Swing
4.264 kPa
Battery Capacity
1,000 CCA
Engine Oil
32 L
Hydraulic System - Including Tank
373 L
Shipping Height - Top of Cab
3.1 m
Handrail Height
3.1 m
Tail Swing Radius
3.5 m
Track Gauge
2.5 m
Maximum Digging Depth
8.2 m
Boom working ranges
6.5 m
Stick working ranges
3.9 m
Bucket working ranges
1.54 m
Maximum Reach at Ground Level
11.7 m
Maximum Cutting Height
10.7 m
Maximum Loading Height
7.4 m
Minimum Loading Height
1.9 m
Maximum Vertical Wall Digging Depth
6.3 m
Bucket Digging Force - ISO
210 lbf
Stick Digging Force - ISO
144 lbf
Boom length
6.5 m
Stick length
3.9 m
Caterpillar 336 Tracked Excavators Listings
$144,500
2.27 cu(m)
37200 kg
311 hp
6707 hours
Indiana, United States
Compare Caterpillar 336 Tracked Excavator to other tracked excavators
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Caterpillar 336 Tracked Excavator
2.27 cu(m)
37200 kg
11200 mm × 3440 mm × 3700 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Caterpillar 336?
No confirmed market price is supplied. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Caterpillar 336?
Supplied specifications include 231.9 kW (311 hp) rated power, a 2.27 m³ (2.97 cu yd) reference bucket capacity, 8.2 m (26.9 ft) maximum digging depth, and 11.7 m (38.39 ft) maximum reach at ground level.
What type of engine does the 336 use?
The 336 uses a C9.3B engine with 6 cylinders and a Tier 4f emission standard level.
How much horsepower does the 336 have?
The 336 has 231.9 kW (311 hp) of rated power.
What fuel does the Caterpillar 336 use?
The supplied specifications do not confirm the fuel type. They list a fuel tank capacity of 600 L (158.5 US gal).
What jobs is this Excavators best suited for?
The supplied data does not specify intended job types. Its listed working capabilities include 8.2 m (26.9 ft) maximum digging depth, 11.7 m (38.39 ft) maximum reach at ground level, and 2.27 m³ (2.97 cu yd) reference bucket capacity.
What is the expected lifespan of the 336?
The supplied data does not provide an expected lifespan. Evaluate service records, operating condition, fluid leaks, undercarriage wear, hydraulic performance, engine operation, and structural condition.
What should a buyer check when purchasing a used Excavators?
Check service records, engine operation, hydraulic function, fluid leaks, undercarriage and track wear, boom and stick condition, bucket wear, cab controls, and signs of structural damage. Confirm that the machine’s configuration and working ranges match the intended work.
