Case IH PATRIOT 4420 Self-Propelled Sprayers
Case IH PATRIOT 4420
5+
sold in last yearGeneral overview

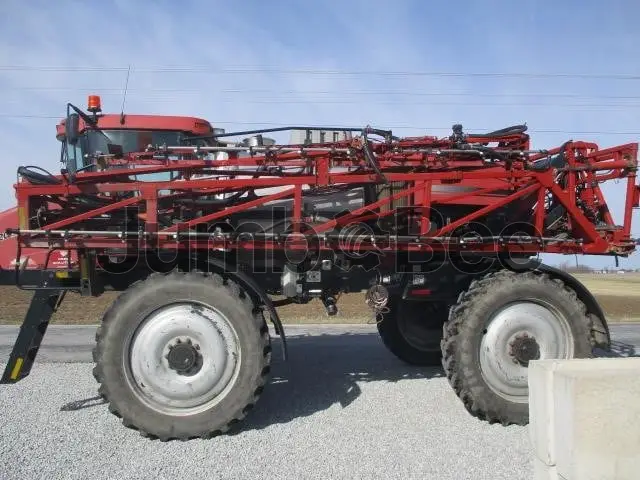

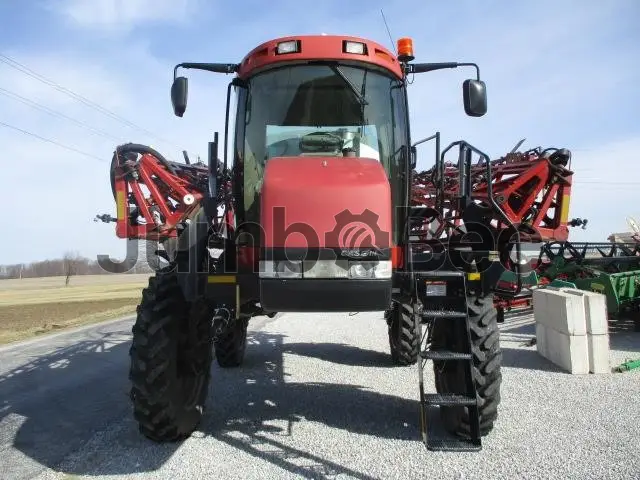

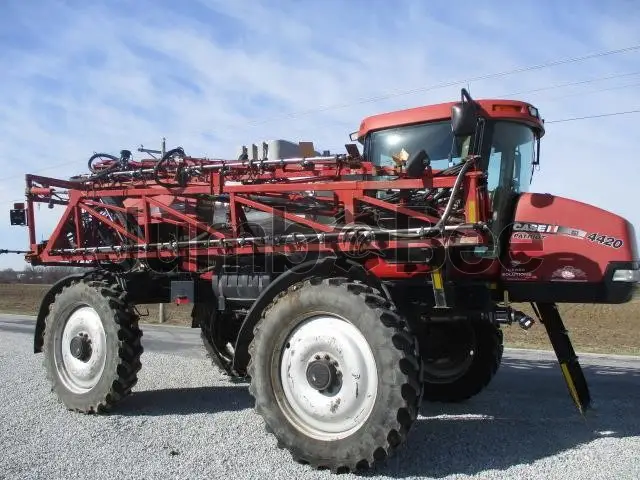

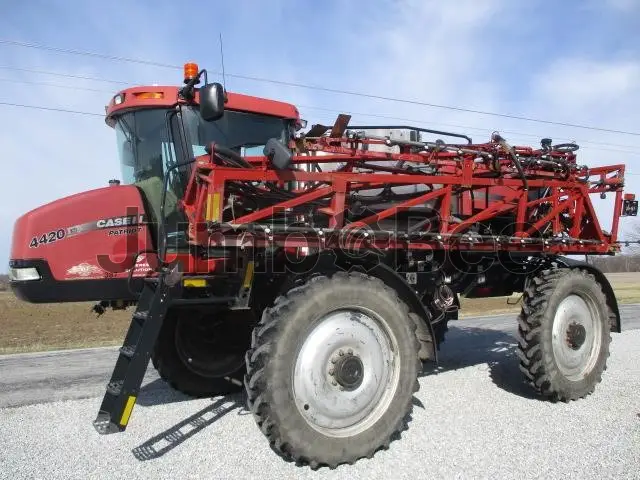

Case IH PATRIOT 4420 is a self-propelled sprayer built for in-field liquid application in crop production. It is powered by 228 kW (310 hp) and carries a 4,542 L (1,200 US gal) solution system, giving it the capacity needed for extended spraying passes in large field operations.
The model uses hydrostatic drive with 3 forward, 3 reverse shifting for controlled movement across fields and between passes. A 265 L (70 US gal) rinse tank supports cleanout, while 508 mm (20 in) nozzle spacing, 7,090 mm (23 ft 3 in) turning radius, and 48.3 km/h (30 mph) transport speed describe its operating layout and mobility.
Year
2011
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
mm
~ in
mm
~ in
mm
~ in
Fuel capacity
530 L
Rated power
310 hp
Solution System Capacity
4,542 L
Rinse tank capacity
265 L
Length Options
27.43 m
Ground clearance with standard tires
1,347 mm
Nozzle Spacing
508 mm
Additional specifications
Displacement
8 cu(m)
Transport speed
48,3 km/h
Drive type
hydrostatic
Shifting
3 forward, 3 reverse
Factory-installed
380/90 R46
Turning radius
7,090 mm
Air Boom length options
60 mm
Tire width
380 mm
Case IH PATRIOT 4420 Self-Propelled Sprayers Listings
Looking for Case IH PATRIOT 4420 Self-Propelled Sprayers?
See similar listingsCompare Case IH PATRIOT 4420 Self-Propelled Sprayer to other self-propelled sprayers
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Case IH PATRIOT 4420?
No confirmed market price is supplied. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Case IH PATRIOT 4420?
Listed features include 231.2 kW (310 hp) rated power, a hydrostatic drive with 3 forward and 3 reverse ranges, 4,542 L (1,199.9 US gal) solution capacity, 1,347 mm (53 in) ground clearance, and a 48.3 km/h (30 mph) transport speed.
What type of engine does the PATRIOT 4420 use?
The supplied specifications do not confirm the engine type or engine model for the PATRIOT 4420.
How much horsepower does the PATRIOT 4420 have?
The PATRIOT 4420 has rated power of 231.2 kW (310 hp).
What fuel does the Case IH PATRIOT 4420 use?
The supplied specifications do not confirm the fuel type used by the Case IH PATRIOT 4420.
What jobs is this Sprayers best suited for?
As a farm sprayer, it is suited to applying spray solutions in agricultural fields. Its 4,542 L (1,199.9 US gal) solution system capacity, 508 mm (20 in) nozzle spacing, and 1,347 mm (53 in) ground clearance are relevant to field spraying work.
What is the expected lifespan of the PATRIOT 4420?
No expected service-life figure is supplied. Assess maintenance records, operating hours, spray-system condition, tire wear, hydrostatic drive operation, and structural condition when evaluating a machine.
What should a buyer check when purchasing a used Sprayers?
Check maintenance records, operating hours, leaks and corrosion in tanks and plumbing, pump and nozzle operation, boom condition, tire wear, steering, brakes, and hydrostatic drive function. Confirm that the solution system, rinse tank, controls, and safety equipment operate properly.
