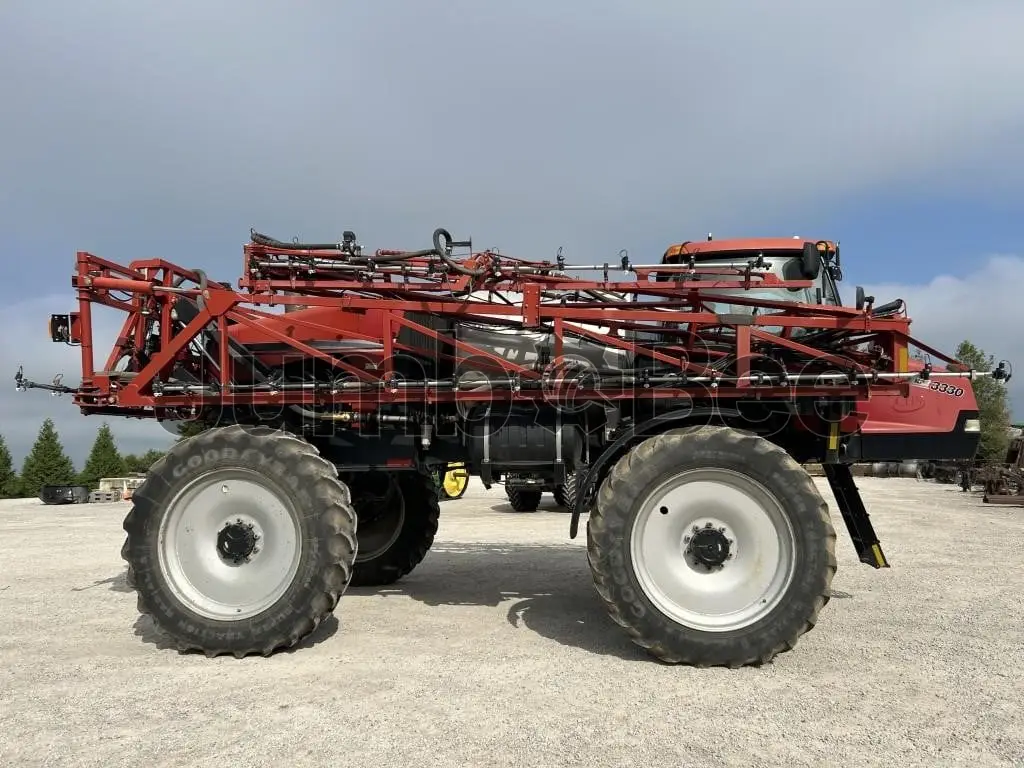

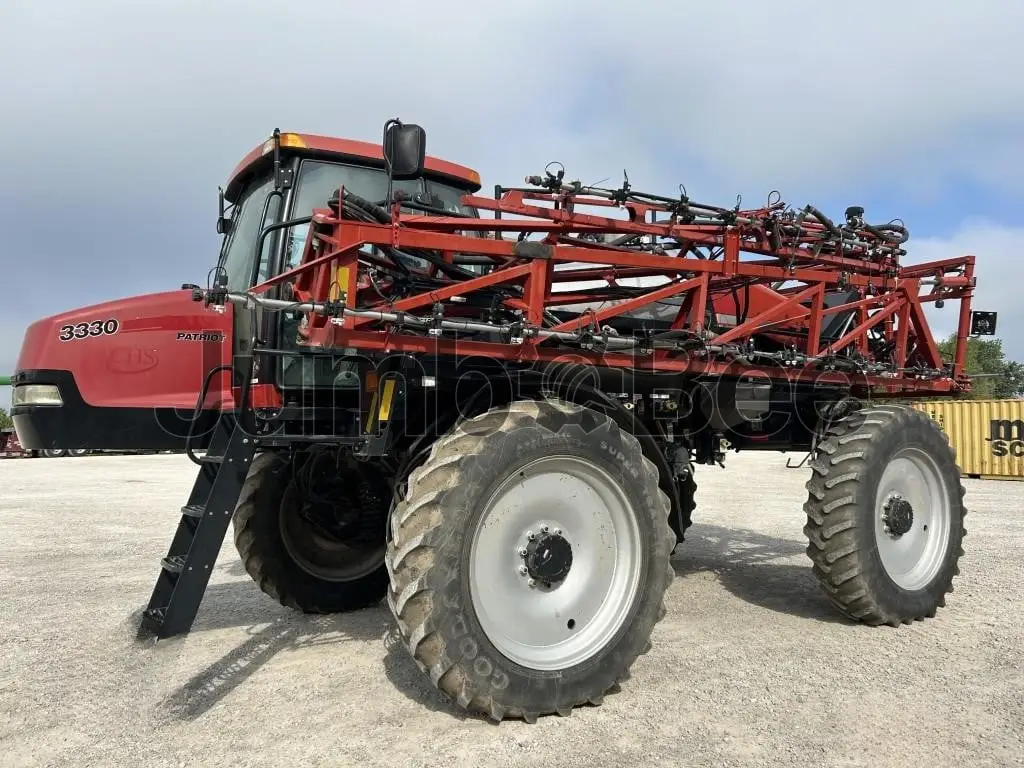

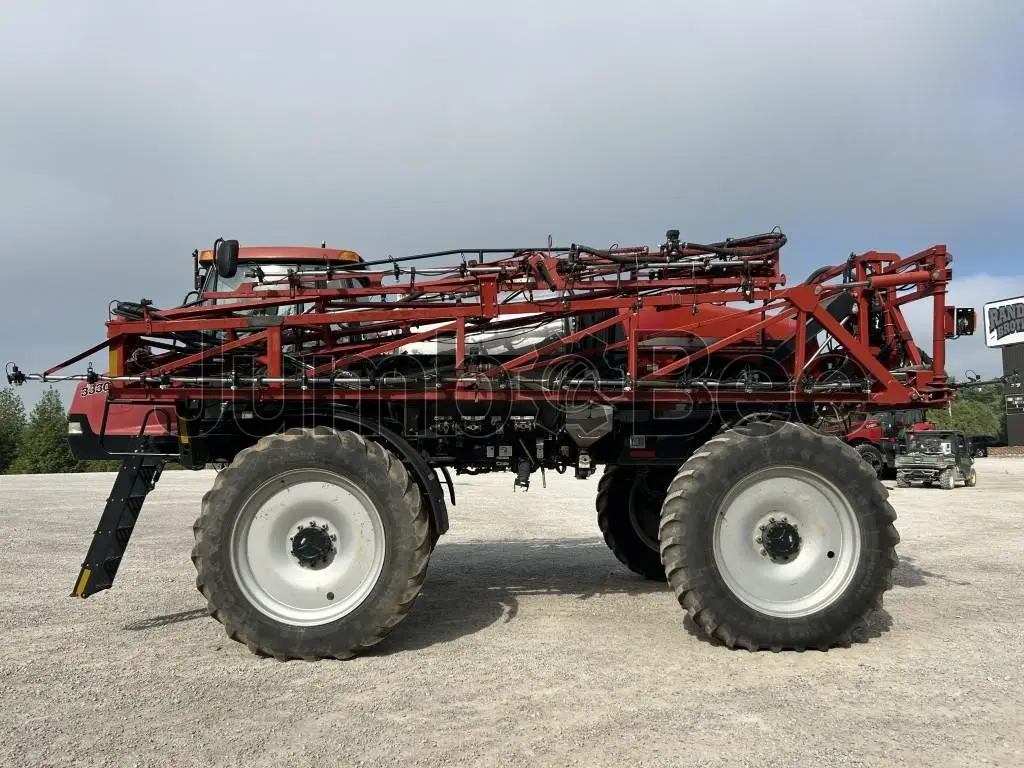

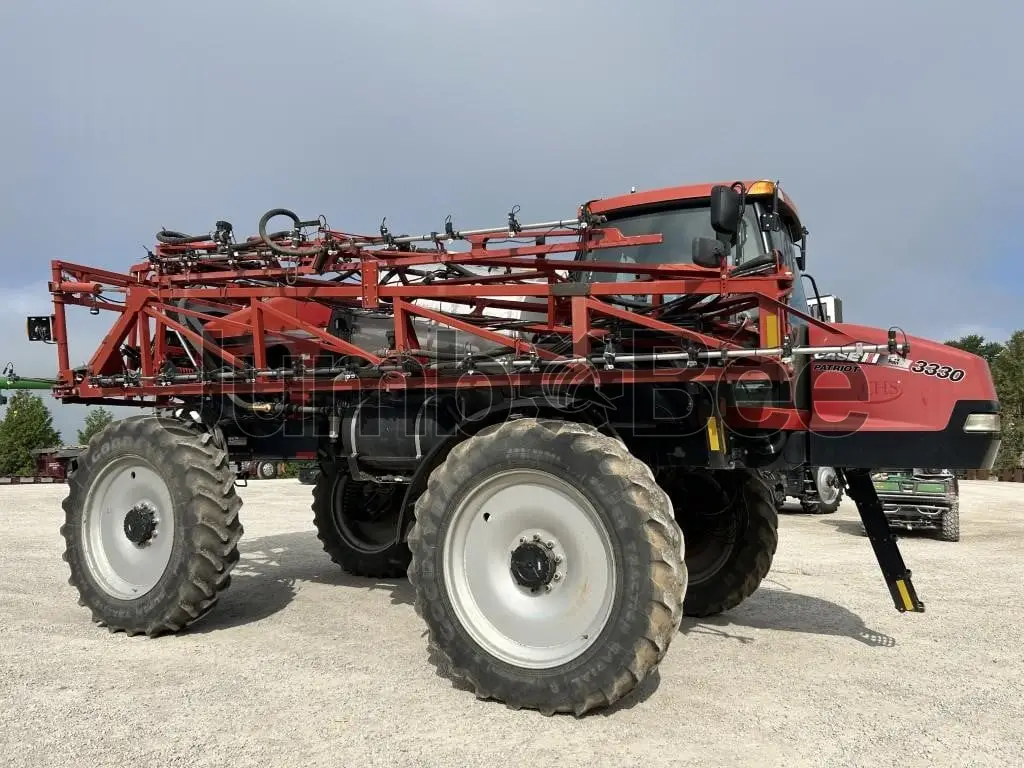

Case IH Patriot 3330 Self-Propelled Sprayers
Case IH Patriot 3330
5+
sold in last yearGeneral overview
Case IH Patriot 3330 is a self-propelled sprayer designed for field spraying in crop production. It is built around a 3,785 L (1,000 US gal) solution system capacity and offers 18.3 m (60 ft) length options, giving it the working range needed for large-acreage application work.
This model is powered by a 250 kW (340 hp) 6.7 L (411 cu in) six-cylinder engine and meets Tier 3 emissions standards. It uses a hydrostatic drive with infinitely variable shifting, and the spraying system includes a centrifugal-hydraulic motor driven solution pump. Operator features include an Optima Air w/ swivel seat, while control options include Case IH SCS 5000, Case IH AFS Pro 700, or Case IH Viper 4. The chassis is equipped with Trailing-link w/coil spring & shock std; Active susp. opt., and ground clearance with standard tires is 132 cm (4 ft 4 in).
Year
2009, 2010, 2011, 2012, 2013, 2014
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
3,500 mm
~137.8 in
3,700 mm
~145.7 in
8,500 mm
~334.6 in
11,113 kg
~24,500 lb
Solution System Capacity
3,785 L
Length Options
18.3 m
Additional specifications
Emission standard level
Tier 3
Displacement
411 cu(in)
Fuel tank
454
Number of Cylinders
6
Transport speed
48 psi
Rated power
250 kW
Rinse tank capacity
424
Breakaway length
6 m
Type Drive
Hydrostatic
Shifting
Infinitely variable
Hydraulic reservoir capacity
110 L
Operator seat description
Optima Air w/ swivel
Sprayer control
Case IH SCS 5,000, Case IH AFS Pro 700, or Case IH Viper 4
Suspension
Trailing-link w/coil spring & shock std; Active susp. opt.
Ground clearance with standard tires
132 cm
Factory-installed
380/90R46
Tire Options
320/90R46
Turning radius
7.1 m
Solution pump
Centrifugal-hydraulic motor driven
Case IH Patriot 3330 Self-Propelled Sprayers Listings
Looking for Case IH Patriot 3330 Self-Propelled Sprayers?
See similar listingsCompare Case IH Patriot 3330 Self-Propelled Sprayer to other self-propelled sprayers
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Case IH Patriot 3330 Self-Propelled Sprayer
3785 L
11113 kg
8500 mm × 3500 mm × 3700 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Case IH Patriot 3330?
No confirmed market price is supplied. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Case IH Patriot 3330?
Listed features include 250 kW (335.3 hp) rated power, hydrostatic drive with infinitely variable shifting, 3,785 L (999.9 US gal) solution capacity, 132 cm (52 in) ground clearance, and a 7.1 m (23.29 ft) turning radius. Available sprayer controls include Case IH SCS 5000, Case IH AFS Pro 700, and Case IH Viper 4.
What type of engine does the Patriot 3330 use?
The supplied specifications do not identify an engine make or model. They list a 6-cylinder engine with 411 cu in displacement and a Tier 3 emission standard level.
How much horsepower does the Patriot 3330 have?
The Patriot 3330 is listed with rated power of 250 kW (335.3 hp).
What fuel does the Case IH Patriot 3330 use?
The supplied specifications do not confirm the fuel type for the Case IH Patriot 3330.
What jobs is this Sprayers best suited for?
As a farm sprayer, the Patriot 3330 is suited to agricultural solution application. Its listed 3,785 L (999.9 US gal) solution capacity, centrifugal hydraulic-motor-driven solution pump, and available sprayer control systems support field spraying work.
What is the expected lifespan of the Patriot 3330?
The supplied data does not provide an expected service life. For a used unit, assess maintenance records, overall condition, the solution system, hydraulic components, suspension, tires, and sprayer controls.
What should a buyer check when purchasing a used Sprayers?
Check maintenance records, solution tank and pump condition, hydraulic system leaks, tire condition, suspension operation, steering and turning performance, and sprayer-control functions. Verify the installed tire size, configuration, and whether the suspension is standard or active.
