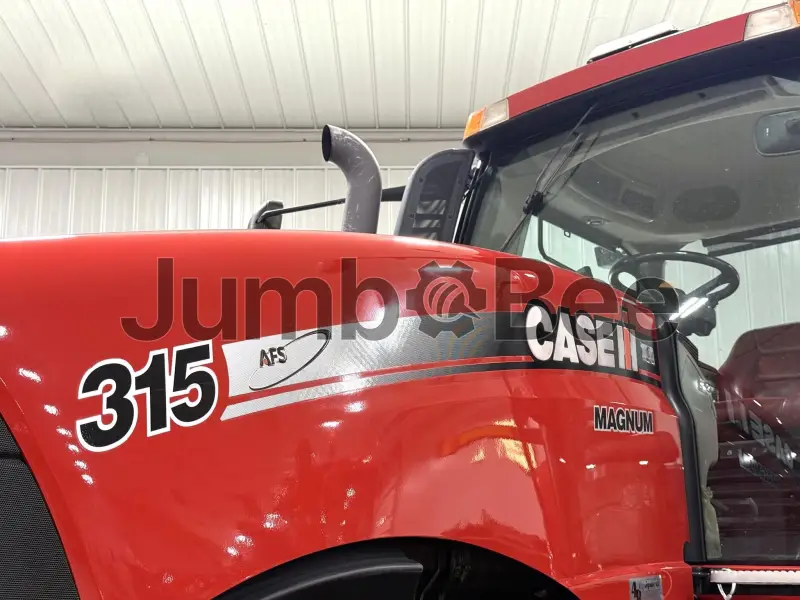

Case IH MAGNUM 315 Row Crop Tractors
Case MAGNUM 315
Average price
$139,500
5+
sold in last year
General overview
Case IH MAGNUM 315 is a wheeled tractor built for farm work in crop production and other field operations. It uses a diesel engine with 229 kW (312 hp) and an 8 L displacement, placing it in a high-horsepower class for demanding tractor applications.
The model’s powertrain and rear implement system support a wide range of tasks. Available transmission options include 18- / 19-speed Full Power Shift; 23-speed creeper; continuously variable transmission (CVT) available. It also features a rear PTO with independent operation, PTO speeds of 540, 1000, and a rear 3-Point Hitch: 3/3N (4N/3 optional) with a maximum lift capacity behind lift points of 6,520 kg (14,370 lb). The hydraulic system type is pressure-flow compensating with a pump rated output of 166 L/min (43.9 gpm), and rated PTO power is 195 kW (265 hp).
Year
2011, 2012, 2013
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
Weight
6,420 mm
~252.8 in
3,370 mm
~132.7 in
2,550 mm
~100.4 in
12,610 kg
~27,800.3 lb

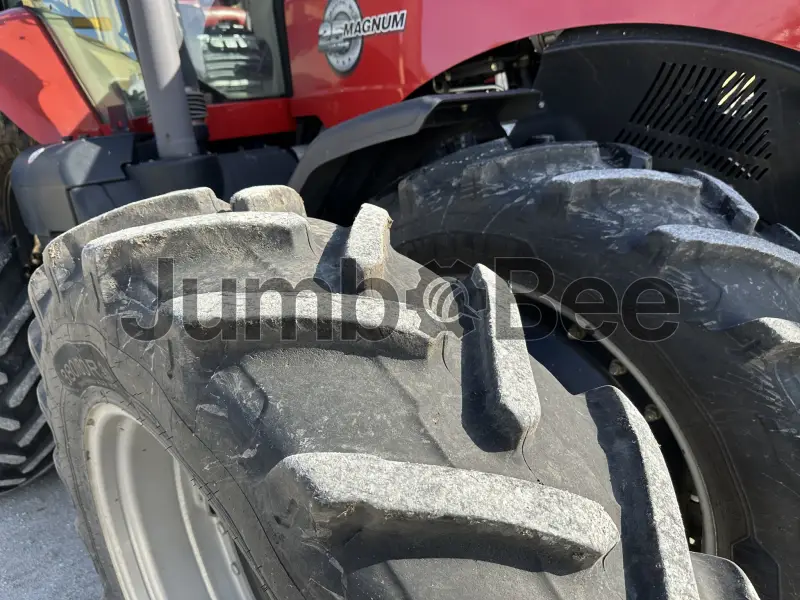

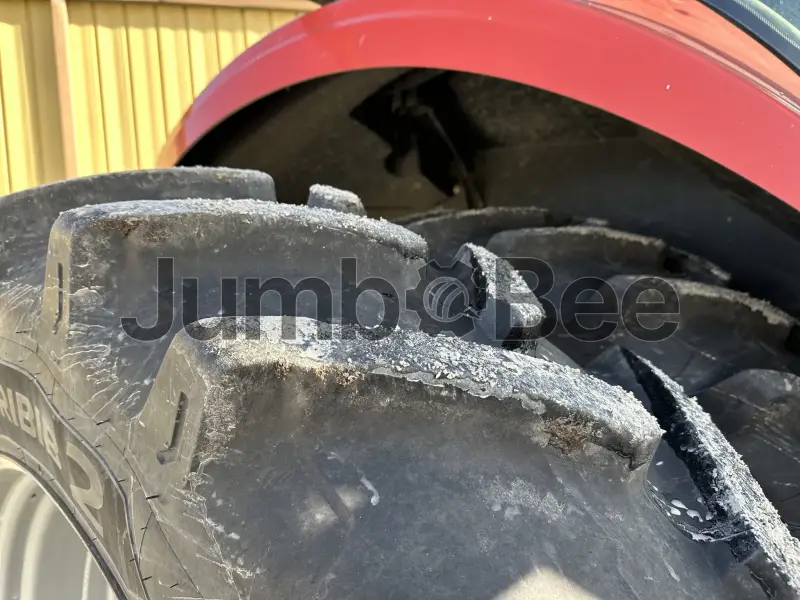

Tire or Track Type
wheels
Engine Power
312 hp
Additional specifications
Engine type
diesel
Displacement
8 cu(m)
Maximum PTO power
315 hp
Rated PTO power
265 hp
Transmission type
18- / 19-speed Full Power Shift; 23-speed creeper; continuously variable transmission (CVT) available
Maximum lift capacity behind lift points
6,520 kg
Fuel tank
635 L
Hydraulic system type
pressure-flow compensating
Pump rated output
166 L/min
Hitch type
3N
Rear PTO
independent

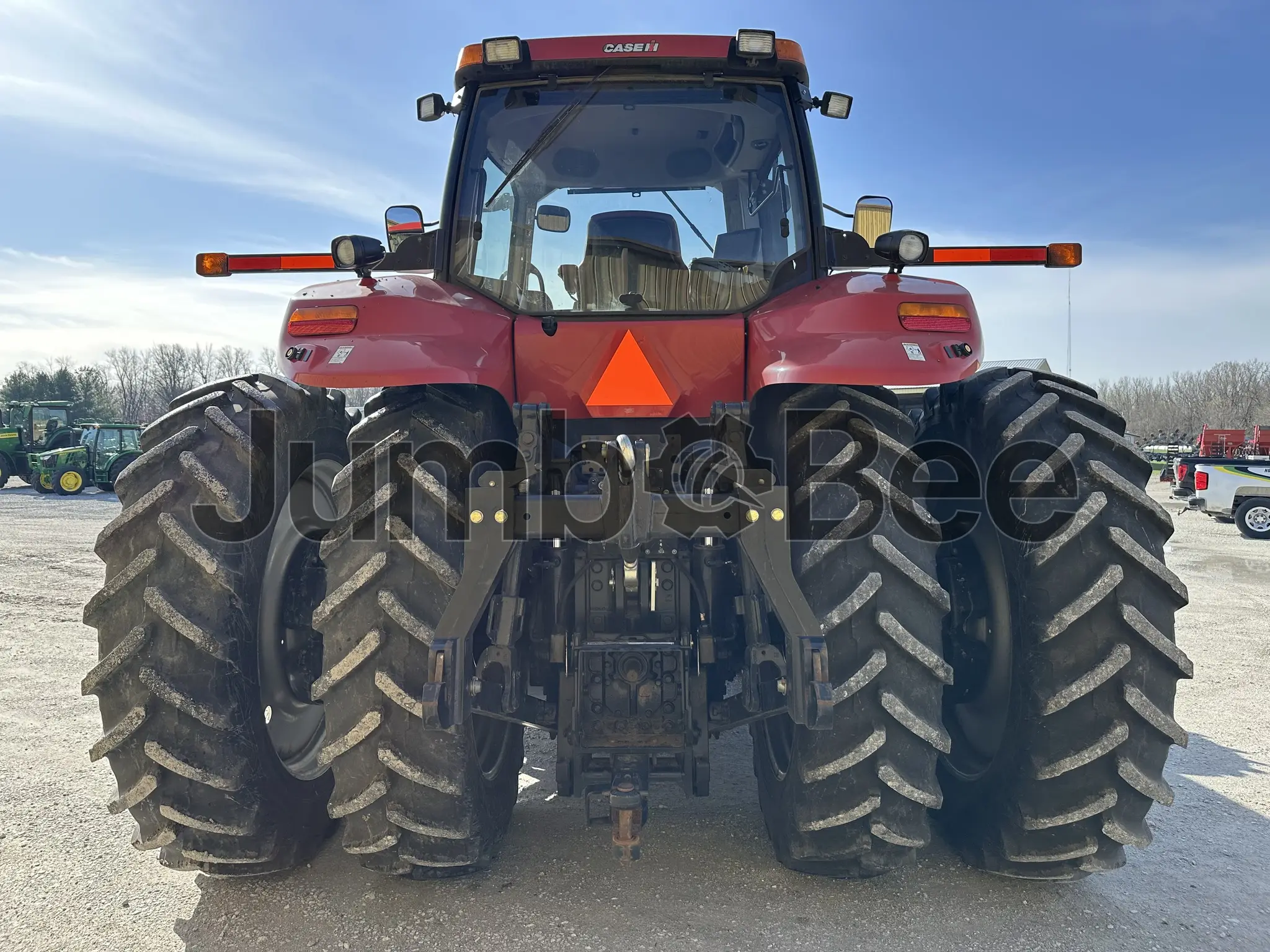

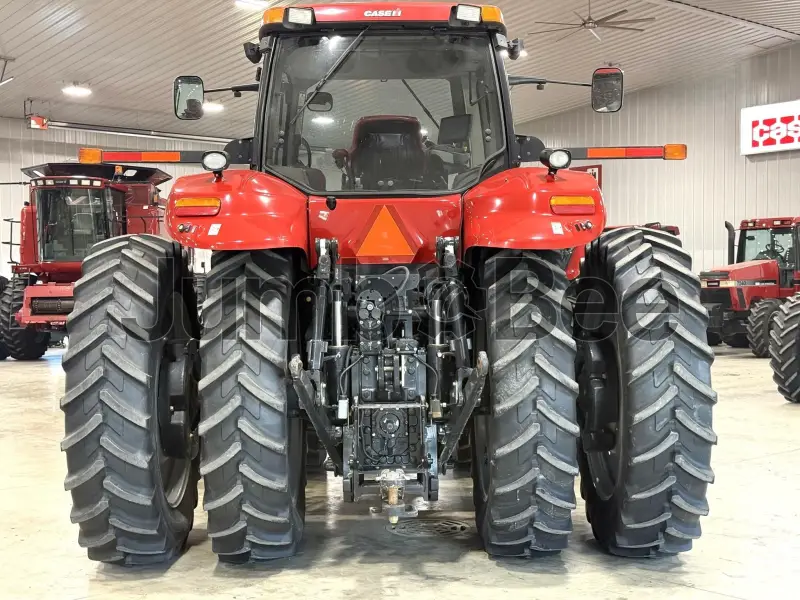

Rear 3-Point Hitch
3/3N (4N/3 optional)
PTO speed
540, 1,000
Case IH MAGNUM 315 Row Crop Tractors Listings
$119,500
312 hp
Diesel
8 cu(m)
4341 hours
Holland, United States
Compare Case IH MAGNUM 315 Row Crop Tractor to other row crop tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Case IH MAGNUM 315 Row Crop Tractor
wheels
12610 kg
6420 mm × 2550 mm × 3370 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Case IH MAGNUM 315?
No confirmed market price is supplied for the Case IH MAGNUM 315. Check current listings and compare condition, location, hours, and configuration.
What are the key advantages of the Case IH MAGNUM 315?
Key listed features include 232.7 kW (312 hp) engine power, independent rear PTO with 540 and 1000 speeds, pressure-flow compensating hydraulics, and a 6,520 kg (14,374 lb) maximum lift capacity behind the lift points. Transmission options include Full Power Shift, creeper, and CVT.
What type of engine does the MAGNUM 315 use?
The MAGNUM 315 uses a diesel engine.
How much horsepower does the MAGNUM 315 have?
The MAGNUM 315 has 232.7 kW (312 hp) of engine power. Its rated PTO power is 197.6 kW (265 hp), and maximum PTO power is 234.9 kW (315 hp).
What fuel does the Case IH MAGNUM 315 use?
The Case IH MAGNUM 315 uses diesel fuel.
What jobs is this Tractors best suited for?
The supplied specifications support use with rear-mounted and PTO-driven implements. Relevant features include an independent rear PTO, rear 3-point hitch, pressure-flow compensating hydraulic system, and 6,520 kg (14,374 lb) lift capacity behind the lift points. Specific best-suited jobs are not confirmed.
What is the expected lifespan of the MAGNUM 315?
The supplied data does not confirm an expected service life for the MAGNUM 315. For a used tractor, inspect maintenance records, engine condition, transmission operation, hydraulics, PTO function, hitch operation, and tire condition.
What should a buyer check when purchasing a used Tractors?
Check service records, engine starting and operation, transmission shifting, hydraulic performance, PTO engagement, rear hitch function, tire condition, fluid leaks, and overall wear. Confirm that the tractor’s transmission, PTO, hitch, and hydraulic configuration match the intended implements.
