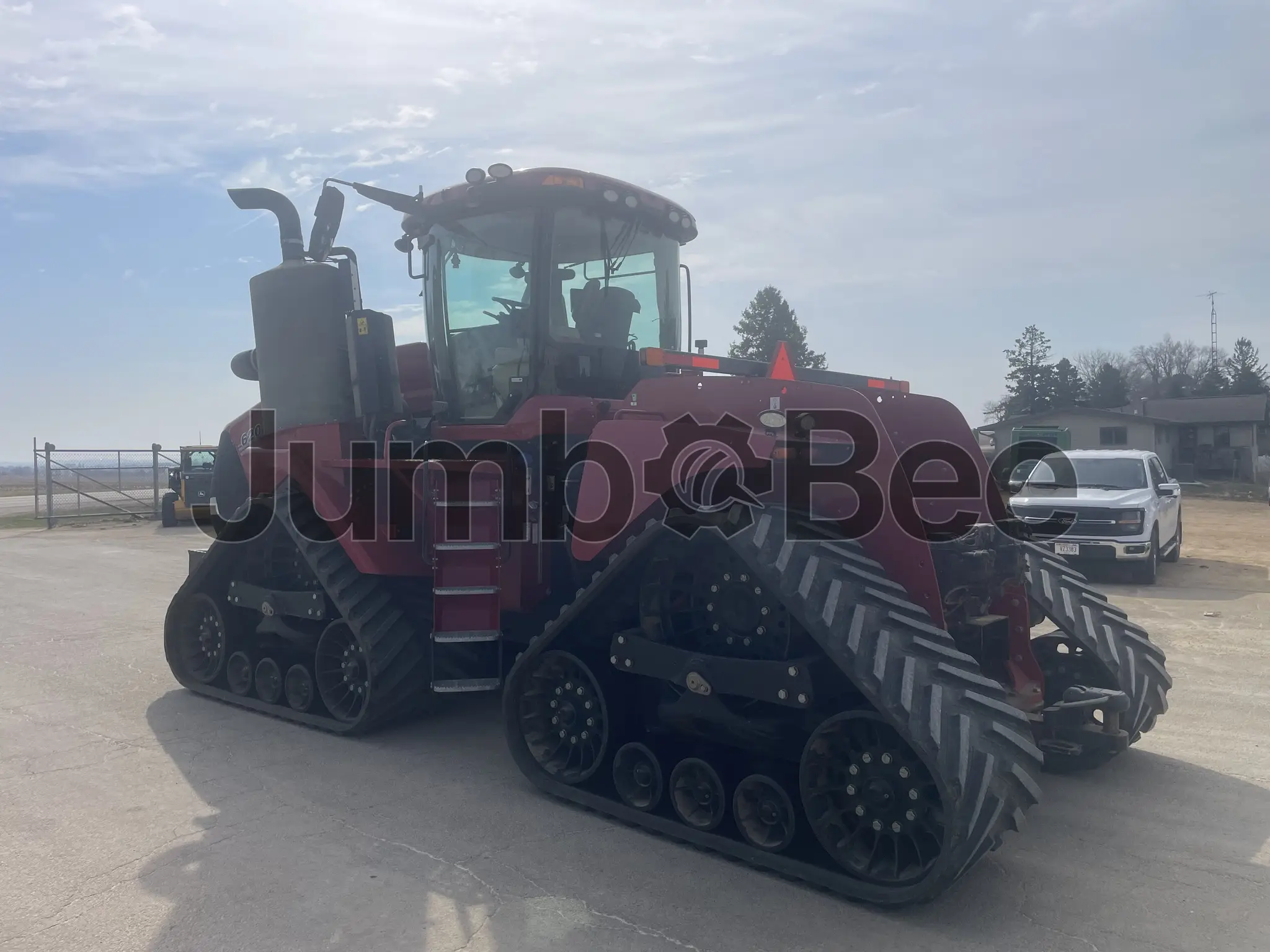

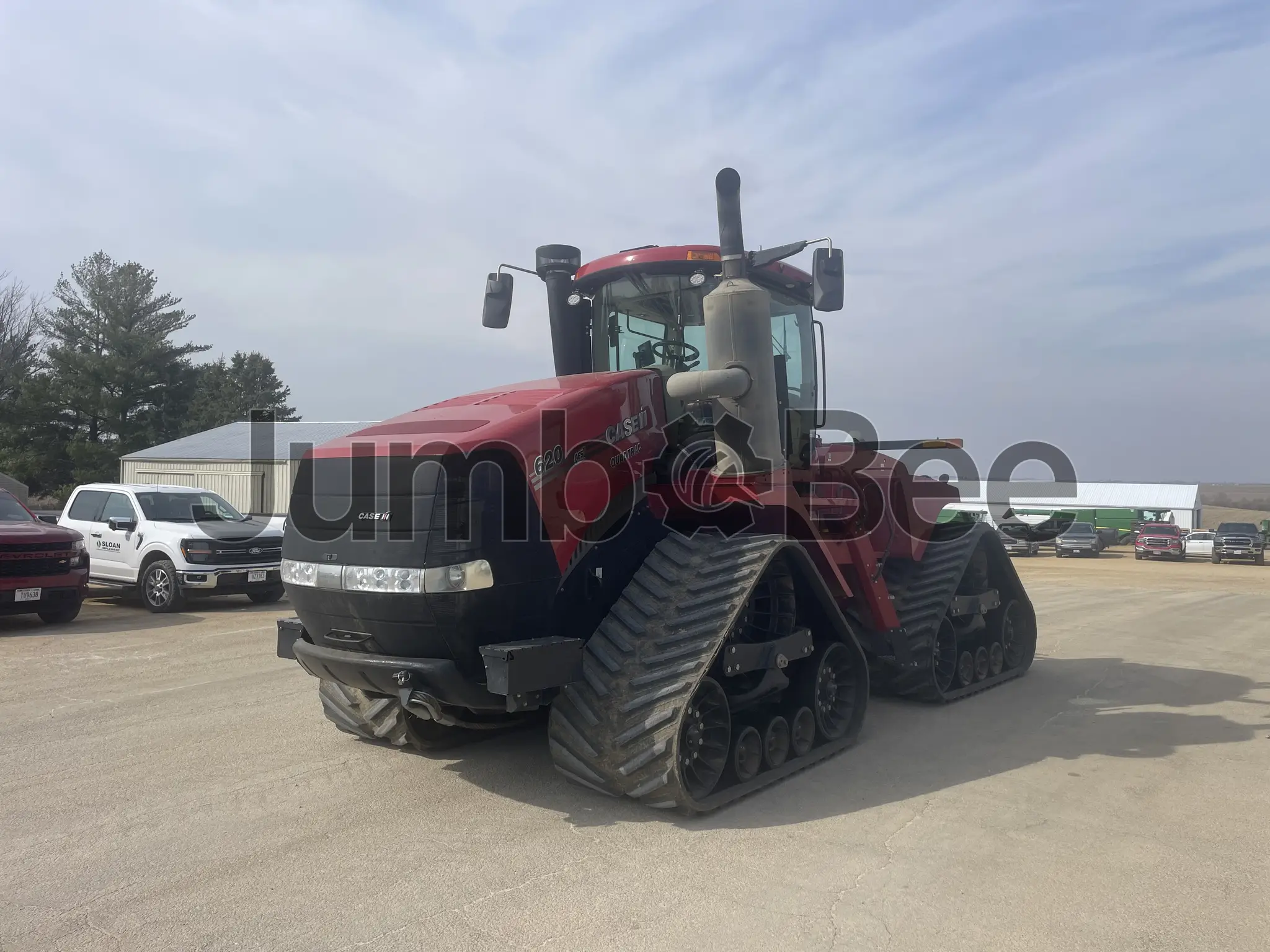

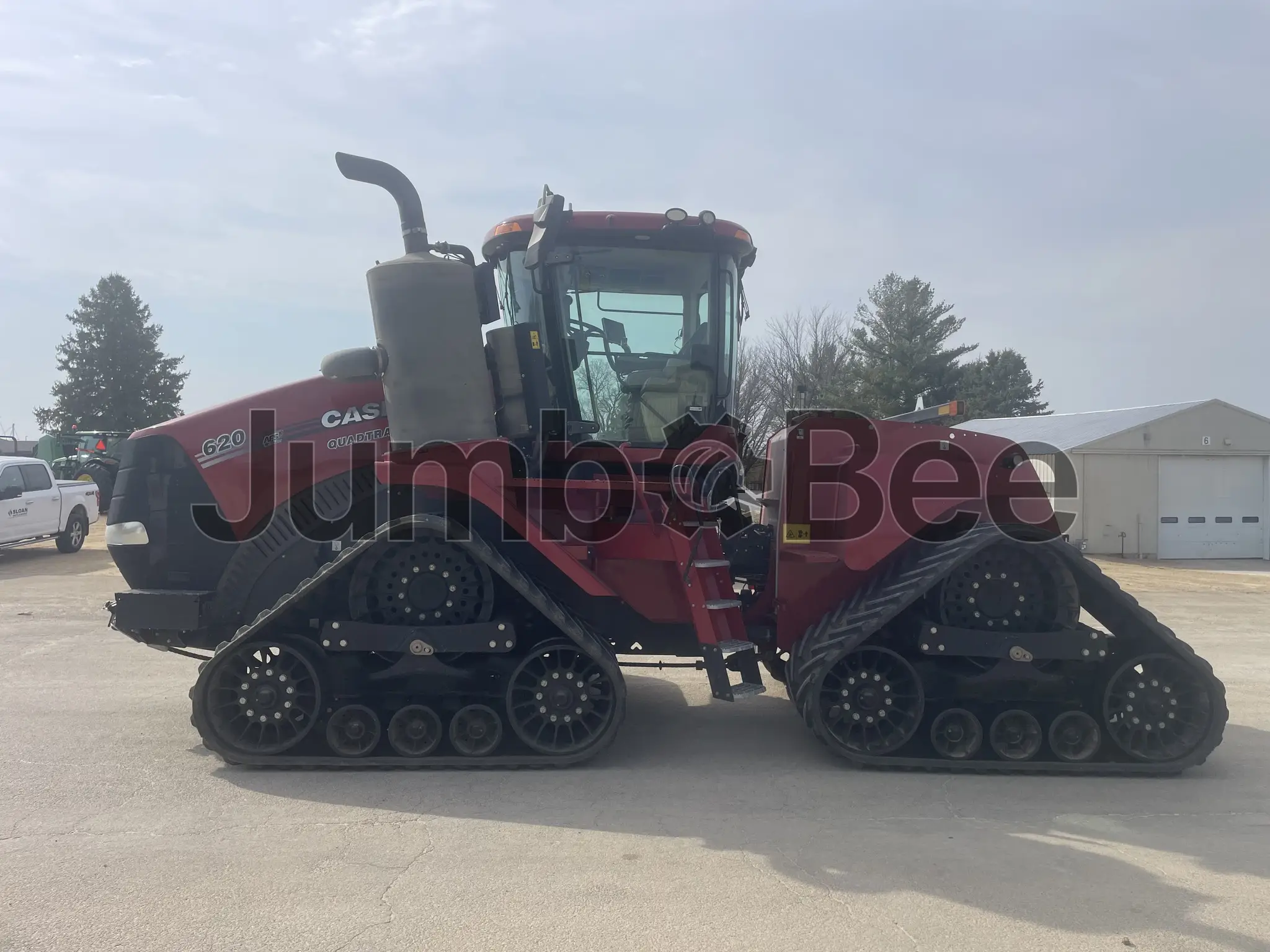

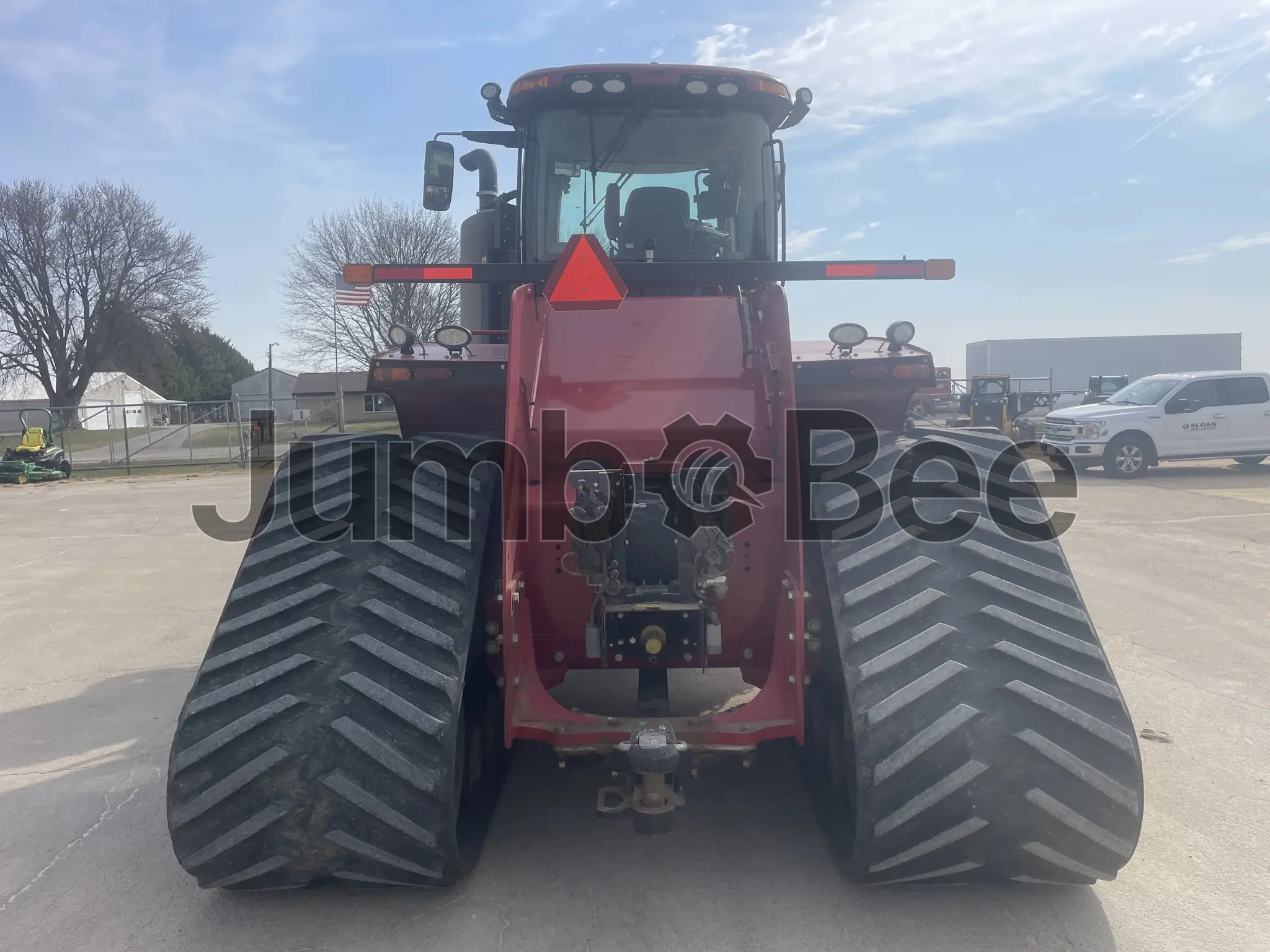

Case IH 620 Articulated 4WD Tractors
Case IH 620
5+
sold in last yearGeneral overview
The Case IH 620 is a tractor for large-scale farm work, combining 456 kW (620 hp) engine power with a 12.9 L (787 cu in) diesel engine. Built in the United States and produced from 2014 to 2020, it is configured as a 4 Tracks machine with hydraulic articulated steering.
This model is built for sustained field performance and uses a 16-speed full power shift transmission with Final Tier 4B emissions compliance. PTO output is listed at 396 kW (539 hp) rated PTO power and 348 kW (473 hp) maximum PTO power, supporting demanding PTO-driven operations as well as high-drawbar work in a tracked tractor layout.
Year
2014, 2020
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
2,997 mm
~118 in
3,866 mm
~152.2 in
7,615 mm
~299.8 in
24,268 kg
~53,501.8 lb
Tire or Track Type
4 Tracks
Engine Power
620 hp
Additional specifications
Emission standard level
Final Tier 4B
Engine type
Diesel
Displacement
787 cu(in)
Maximum PTO power
473 hp
Rated PTO power
539 hp
Speeds
540@ 2,414
Transmission type
16-speed full power shift
Fuel tank
1,778 L
Tires
762 mm
Front Axle
Articulated crawler drive; hydraulic articulated steering
Rear Tires
