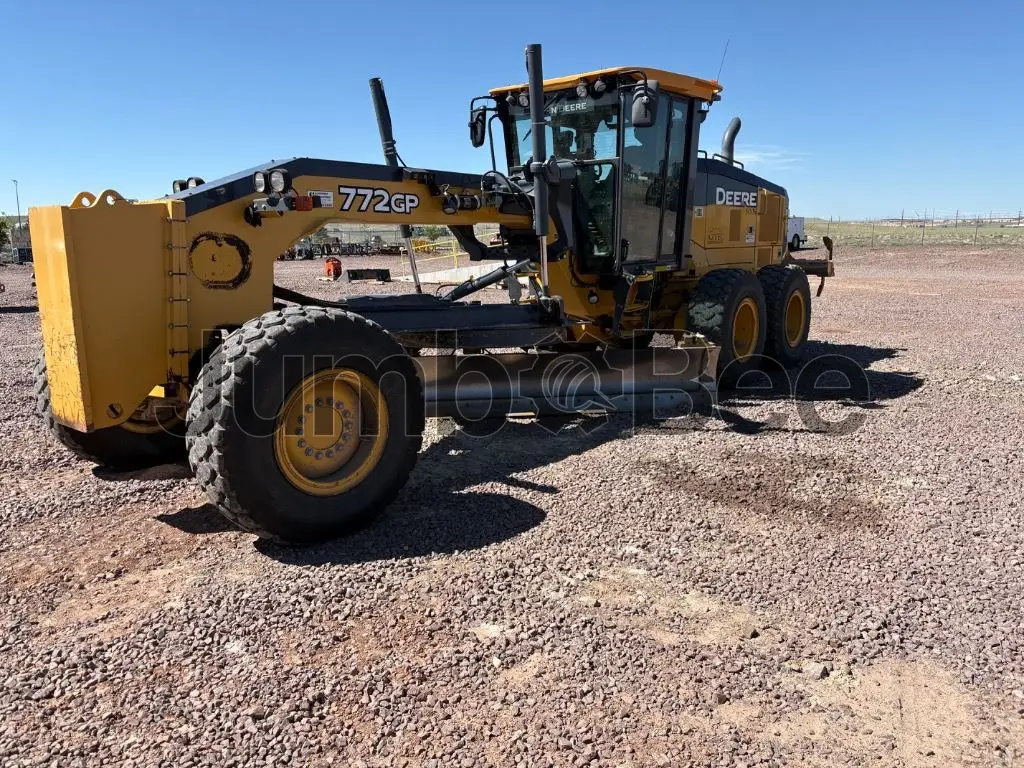

2018 John Deere 772G - Used, 7,168 Hours for Sale

275 hp

Wyoming, United States

Item price

$161,970

2018 John Deere 772G - Used, 7,168 Hours for Sale

Used

ID:BVFQQBWT
Wyoming, United States
Shipping to 150+ countries

Instant Rate Calculation

Usage

7,168 hr

Power

275 hp

Year

2018

Item price

$161,970

Verified Sellers Only

All sellers are screened for legitimacy via Sumsub

Pre-Sale Inspection

Request an independent inspection before you buy.

Purchase Protection

Transactions protected for both buyers and sellers.

Full-Service Shipping

Worldwide heavy equipment shipping by trusted logistics experts.

Not ready to create an account?

You can still contact us and request shipping rates.

New to JumboBee?

Watch a short guide to learn how to browse equipment, check shipping costs, and buy with confidence.

Verified Sellers

Instant Shipping Rates

Guarantees Every Transaction

Pre-sale inspections

Item description

MOTOR GRADERS - LOW CAB - AIR SEAT - CLOTH SEAT - PS TRANS - DIFF LOC - 17.5X25 RADIALS - 3 PIECE RIMS - 14' BLD - PUSH BLK - RIPP/SCAR - CIRCLE SLIP CLU - RADIO - AFTERMARKET TECHNOLOGY

Specifications

Engine Power

275 hp

(205.1 kW)

Operating Weight

17,502 kg

Moldboard Width

12 ft

(3.7 m)

Engine hours

7,168 hr

Dimensions L×W×H

350 × 98 × 125.2 in

(8,890 × 2,490 × 3,180 mm)
Width

98 in

(2,490 mm)
Length

350 in

(8,890 mm)
Height

125.2 in

(3,180 mm)
Fuel tank

416 L

(109.9 ga)
Cooling system

45 L

(11.9 ga)
Hydraulic System

60 L

(15.9 ga)
Engine Oil

29 L

(7.7 ga)
Wheelbase

20.2 ft

(6.2 m)
Overall length w/header

29.2 ft

(8.9 m)
Blade Base

8.4 ft

(2.6 m)
Height to top of cab

3,180 mm

Battery Voltage

24

Alternator Rating

55

Overall width

98 in

(2.5 m)
Tires

17.5 Tires, Radials

Net Power (ISO 9249)

275 hp

(205.1 kW)
Displacement

549,215.8 cu(in)

(< 0.1 L)
Manufacturer and Model

John Deere PowerTech PSS 9.0L

Number of Cylinders

6

Net Peak Torque

1,375 Nm

(1,014.1 ft-lb)
Main Pump Type

Closed center variable displacement

Powertrain Type

John Deere powershift (8F/8R)

Maximum Pump Flow

212 L/min

(56 gpm)
Maximum System Pressure

18,961 kPa

(2,750.1 psi)
Gears Forward

8

Gears Reverse

8

Front Axle Oscillation (total)

32 deg

Front Axle Wheel Lean Angle (each direction)

20 deg

Maximum Travel Speed - High

45 km/h

Steering (Turning Radius)

< 0.1 ft

(< 0.1 m)
Steering (Articulation)

22 deg

Blade Range - Lift Above Ground

490 mm

(19.3 in)
Blade Range - Blade Side Shift (right or left)

683 mm

(26.9 in)
Pitch at Ground Line - Forward

42 deg

(< 0.1 deg)
Pitch at Ground Line - Back

5 deg

(< 0.1 deg)
Shoulder Reach Outside Wheels (frame straight, right or left)

2,083 mm

(82 in)
Bank Cut Angle (right or left)

90 deg

(< 0.1 deg)
Blade Pull At Maximum Operating Weight

22,453 kg

(49,500.4 lb)
Base Length

12 ft

(3.7 m)
Height (measured along arc, including cutting edge)

610 mm

(24 in)
Moldboard Thickness

22 mm

(0.9 in)
Cutting Edge - Thickness

16 mm

(0.6 in)
Cutting Edge - Width

152 mm

(6 in)
Ground Clearance (front axle)

587 mm

(23.1 in)
Operating Weight - Front

4,881 kg

(10,760.8 lb)
Operating Weight - Rear

12,501 kg

(27,560 lb)
Operating Weights - Total

17,502 kg

(38,585.3 lb)
Circle Diameter

1,524 mm

(60 in)
Circle Rotation

360 deg

(< 0.1 deg)
Circle Side Shift (right)

683 mm

(26.9 in)
Operators Station

Cab w/ AC

Attachments

Ripper/Scarifier
