Westfield S10-9 Grain Auger
Westfield S10-9
5+
sold in last yearGeneral overview

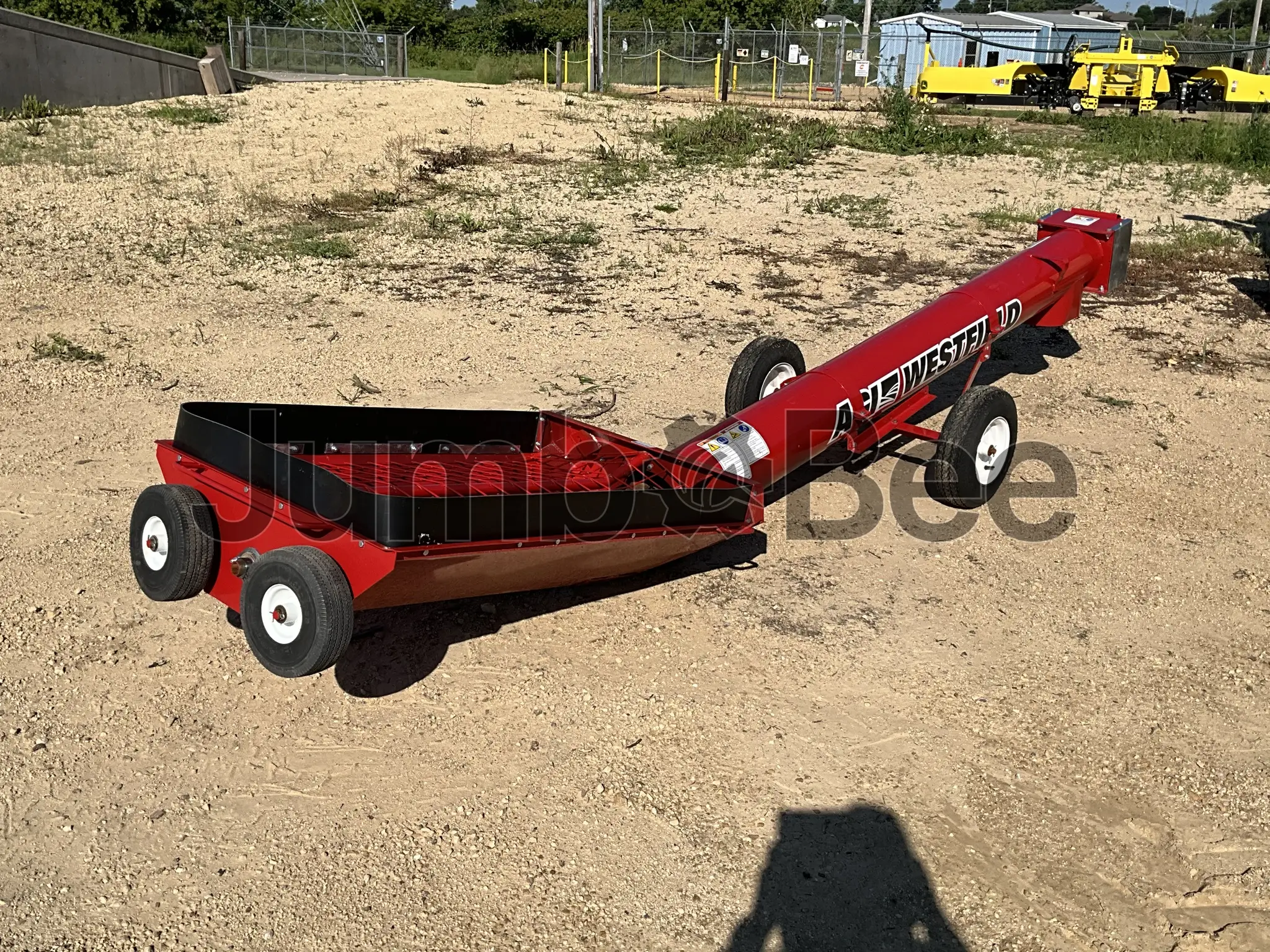

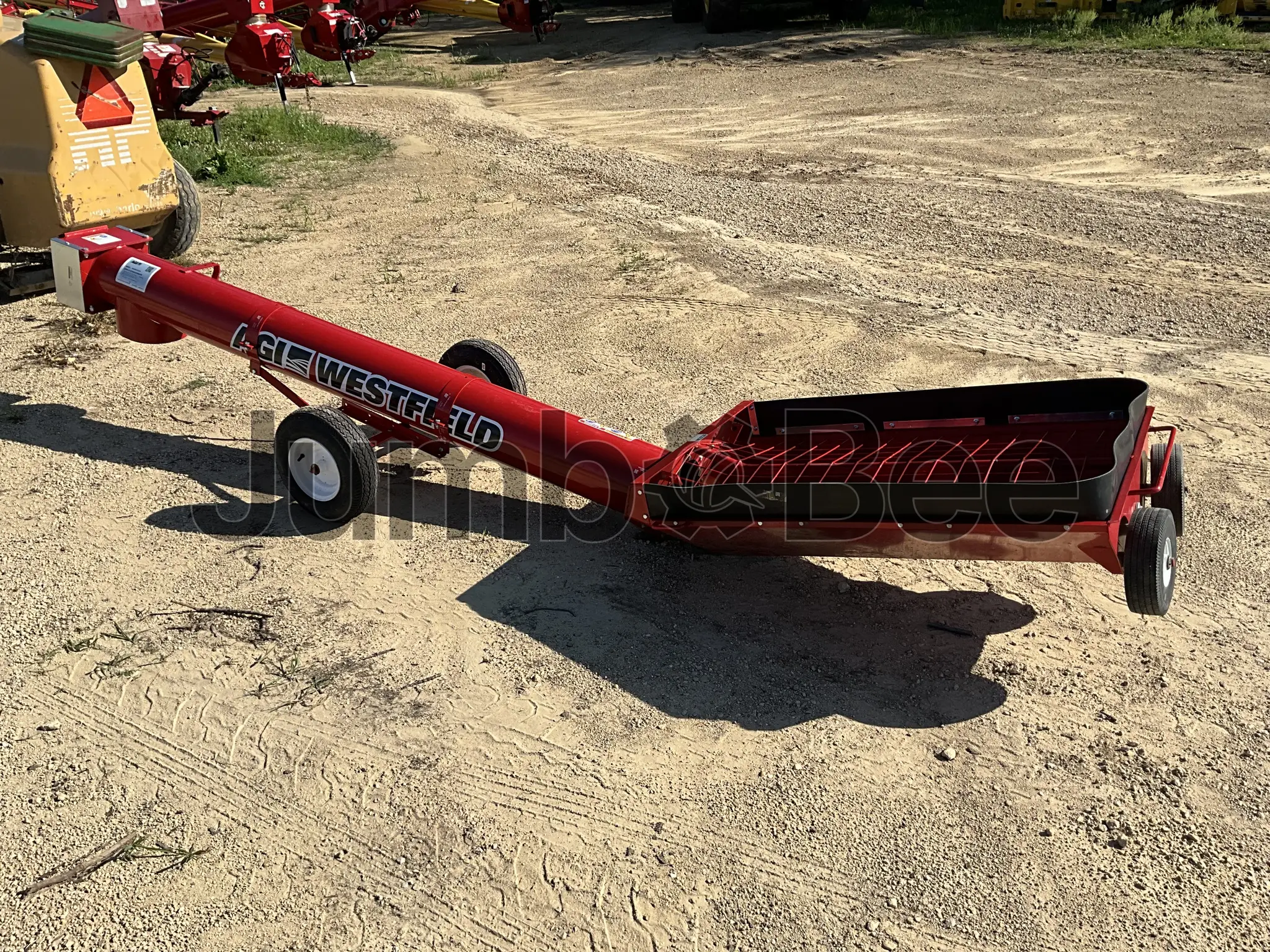

Westfield S10-9 is a grain auger for farm grain handling, used to move grain during unloading, transfer, and storage work. It is configured around a 540 RPM tractor PTO and is rated at 5,400 bph, giving it a defined role in routine grain movement where steady flow and short-distance transfer are required.
The auger has a 254 mm (10 in) intake diameter, a raised reach of 3,760 mm (12 ft 4 in), and an intake reach of 812 mm (32 in). Construction details include 12 GA tube thickness, 10 gauge welded standard intake flighting, 12 gauge steel main flighting, and a #80 roller chain, with hydraulic requirements of 1,500 PSI.
Year
2024
Country of manufacturing
Canada
General specifications
Dimensions
Width
Height
Length
Weight
812 mm
~32 in
311 mm
~12.2 in
3,760 mm
~148 in
240 kg
~529.1 lb
Capacity (bushels per hour)
5,400 bph
Recommended PTO Horsepower
35
Tractor PTO RPM
540 RPM
Additional specifications
Drive type
Electric motor, hydraulic motor, or PTO/angle-drive depending on configuration
Wheel Size
4.00×8″ pneumatic tires
Recommended Horsepower - Electric
7.5 hp
HP Intake Diameter
254 mm
Height - Raised
1.06 mm
Reach - Lowered
1.22 mm
Reach - Raised
3,760 mm
Reach - Intake
812 mm
Tube Thickness
12 GA
Flighting - Standard Intake
10 gauge welded
Flighting - Main
12 gauge steel
Top Drive Chain
#80 roller chain
Wheel Track Width
1,524 mm
Undercarriage Axle
1¾″ solid axle
Hydraulic Requirements
1,500 PSI
Tire Size
4.00 × 8” pneumatic tires
Length x Width x Height
48″ × 32″ × ~16″
Westfield S10-9 Grain Auger Listings
Looking for Westfield S10-9 Grain Auger?
See similar listingsCompare Westfield S10-9 Grain Auger to other grain auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Westfield S10-9?
No confirmed market price is supplied for the Westfield S10-9. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Westfield S10-9?
Listed features include 5,400 bph capacity, a 254 mm (10 in) intake diameter, 12 GA tube thickness, 12 gauge steel main flighting, and #80 roller chain top drive. It also has 4.00 × 8” pneumatic tires and a 1¾″ solid axle.
What type of engine does the S10-9 use?
The supplied specifications do not identify an engine for the S10-9. They list a tractor PTO requirement of 540 RPM and an electric recommendation of 5.6 kW (7.5 hp).
How much horsepower does the S10-9 have?
The listed electric recommendation is 5.6 kW (7.5 hp). The supplied specifications do not state a separate engine horsepower rating.
What fuel does the Westfield S10-9 use?
The supplied specifications do not confirm a fuel type for the Westfield S10-9. They reference tractor PTO operation and an electric recommendation.
What jobs is this Grain Auger best suited for?
As a grain auger, the Westfield S10-9 is suited to grain-handling tasks. Its listed capacity is 5,400 bph, with a 254 mm (10 in) intake diameter. The supplied data does not identify specific crop types or applications.
What is the expected lifespan of the S10-9?
The supplied data does not provide an expected lifespan for the S10-9. Service life will depend on operating conditions, maintenance, wear of flighting and drive components, and storage practices.
What should a buyer check when purchasing a used Grain Auger?
Inspect the tube and flighting for wear or damage, check the intake and discharge areas, and examine the #80 roller chain, axle, tires, and hydraulic components. Confirm that the PTO or electric drive arrangement matches the intended setup and verify smooth operation.
