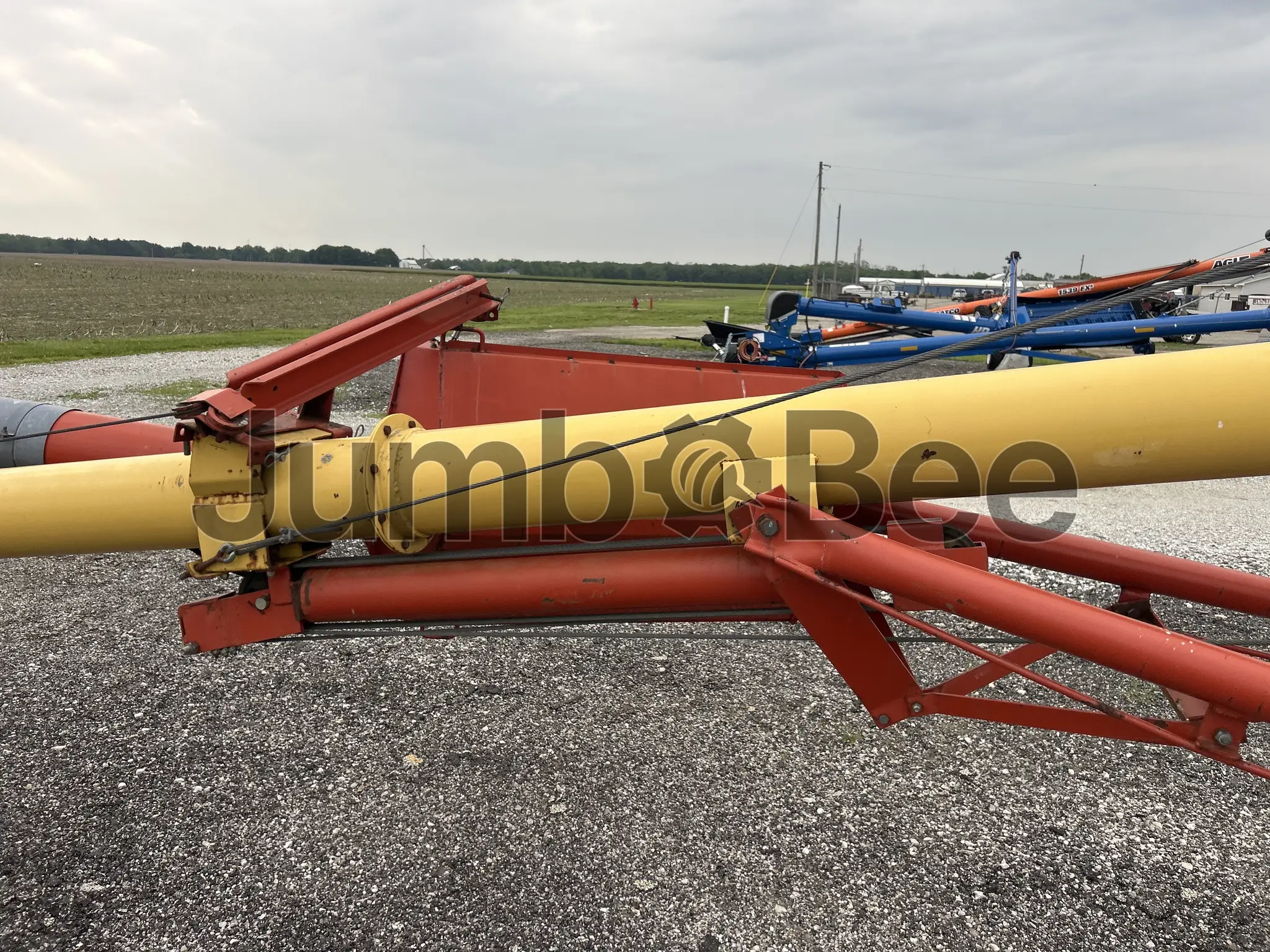

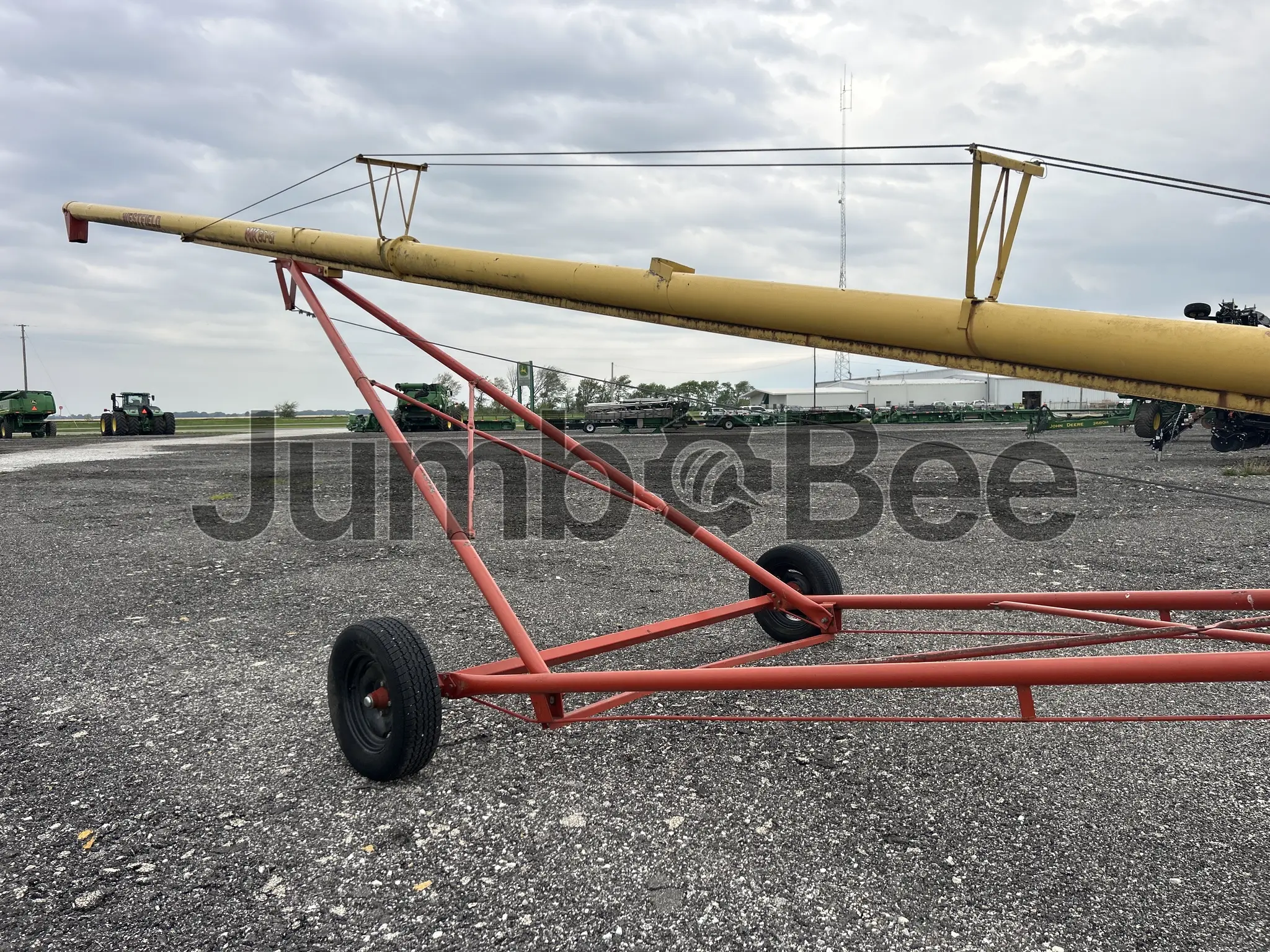

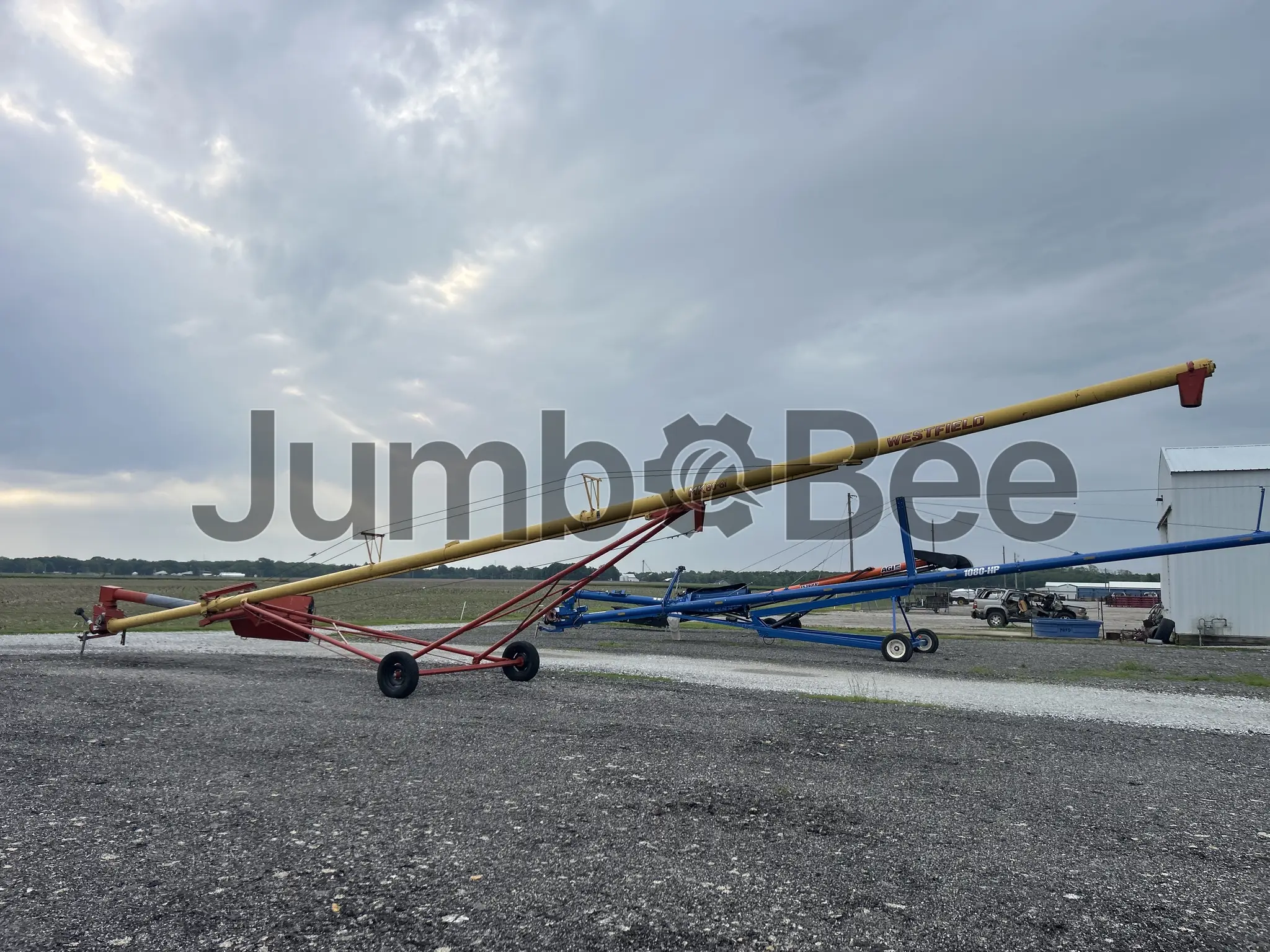

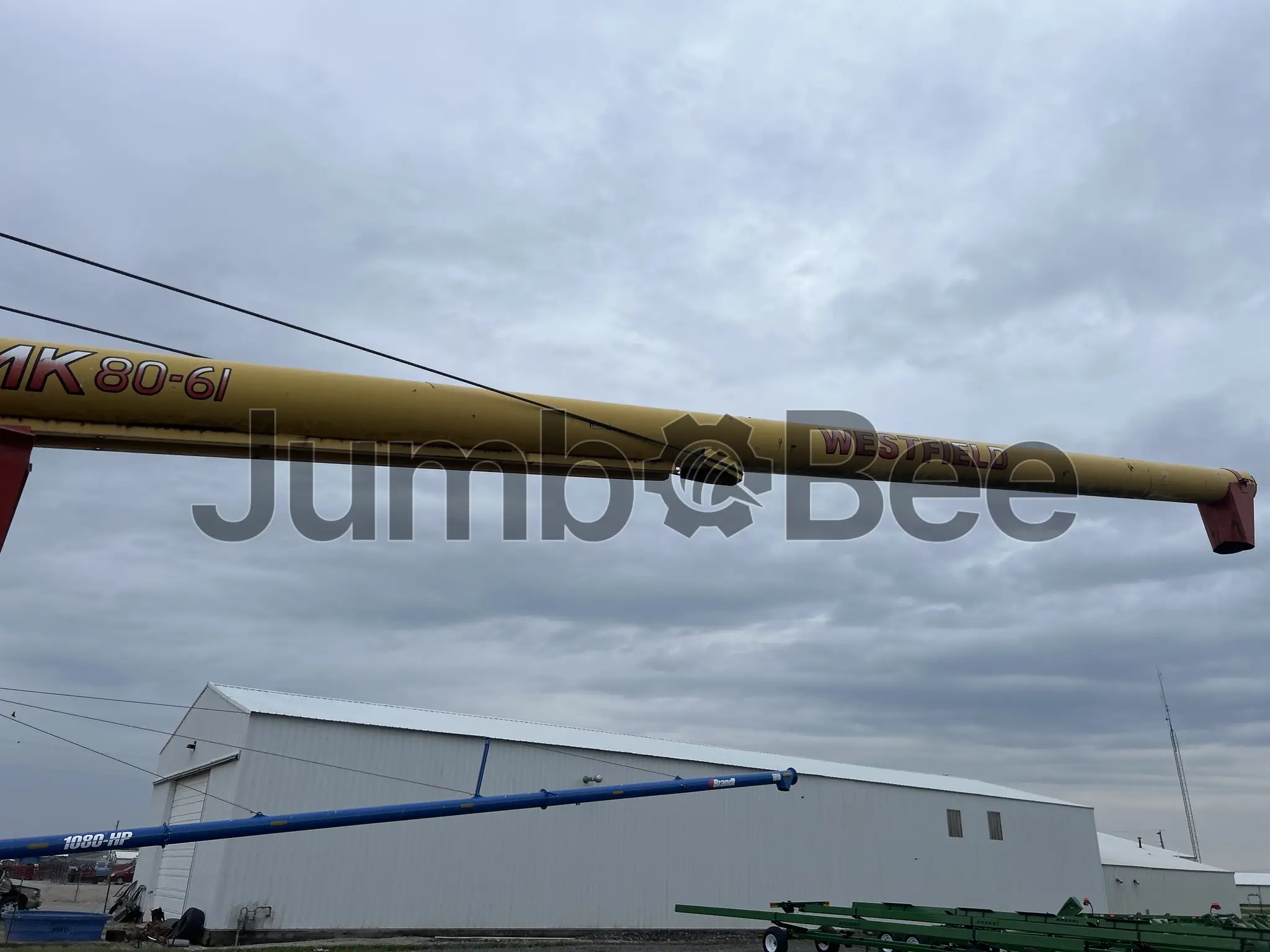

Westfield MK80-61 Grain Auger
Westfield MK80-61
5+
sold in last yearGeneral overview
Westfield MK80-61 is a grain auger attachment used in farm grain handling and transfer work. It is designed for tractor PTO operation at 540 rpm and calls for 33 kW (45 hp) when handling grain between storage and transfer points. Manufactured in Canada, it is a Westfield grain auger model.
The auger measures 12,345 mm (40 ft 6 in) in transport length and 4,115 mm (13 ft 6 in) in transport height, with a wheel track width of 2,845 mm (9 ft 4 in). It weighs 267 kg (589 lb) and uses hydraulic lift with one 4" cylinder and 5/16" aircraft cable; the lift system requires 950 psi and about 7.5 L of hydraulic oil to fully raise. Flighting includes 10 ga stretched & welded main sections, plus 10 ga with Wear Edge ribbon welded at critical transfer points, including intake hopper flighting, on a 42 mm (2 in) core diameter.
Year
2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Country of manufacturing
Canada
General specifications
Dimensions
Length
18,593 mm
~732 in
Tractor PTO speed
540
Capacity (bushels per hour)
137,400 L/min
Recommended PTO Horsepower
45 hp
Tractor PTO RPM
540 RPM
Additional specifications
Drive type
PTO-driven mechanical
Operating Weight
267 kg
Axle
2.5" x 2.5" x 1/8" wall square tubing
Wheel Size
15"
Flighting - Standard Intake
10 ga with Wear Edge ribbon welded at critical transfer points, including intake hopper flighting
Flighting - Main
10 ga stretched & welded
1/4" Core Diameter
42 mm
Transport Length
12,345 mm
Transport Height
4,115 mm
Wheel Track Width
2,845 mm
Number of Hydraulic Cylinders
1
Hydraulic Requirements
950 psi and about 7.5 L of hydraulic oil to fully raise
Tire Size
15" agricultural tires
Height w/ Extension
368 mm
Lift Mechanism
Hydraulic lift with one 4" cylinder and 5/16" aircraft cable
Westfield MK80-61 Grain Auger Listings
Looking for Westfield MK80-61 Grain Auger?
See similar listingsCompare Westfield MK80-61 Grain Auger to other grain auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Westfield MK80-61?
No confirmed market price is supplied for the Westfield MK80-61. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Westfield MK80-61?
Listed features include 10 ga stretched and welded main flighting, intake flighting with a wear edge, and a hydraulic lift using one cylinder and aircraft cable. It uses 15" agricultural tires and has a 540 rpm tractor PTO requirement.
What type of engine does the MK80-61 use?
The supplied data does not identify an engine. The MK80-61 is specified for tractor PTO operation at 540 rpm.
How much horsepower does the MK80-61 have?
The recommended PTO power is 33.6 kW (45 hp).
What fuel does the Westfield MK80-61 use?
No fuel type is specified. The supplied information identifies a tractor PTO drive at 540 rpm rather than an onboard engine.
What jobs is this Grain Auger best suited for?
The supplied data identifies the MK80-61 as a Grain Auger. It is intended for grain-handling tasks, but the data does not confirm specific crops, sites, or use cases.
What is the expected lifespan of the MK80-61?
The supplied data does not provide an expected service life. Condition depends on maintenance and inspection of the flighting, lift cable, hydraulic system, axle, and tires.
What should a buyer check when purchasing a used Grain Auger?
Inspect the flighting and intake wear edge for wear or damage. Check the hydraulic lift, cylinder, aircraft cable, axle, tires, PTO components, and overall frame condition. Confirm that the auger raises, transports, and operates properly.
