Vermeer S925TX Skid Steer / CTL
Vermeer S925TX
5+
sold in last yearGeneral overview

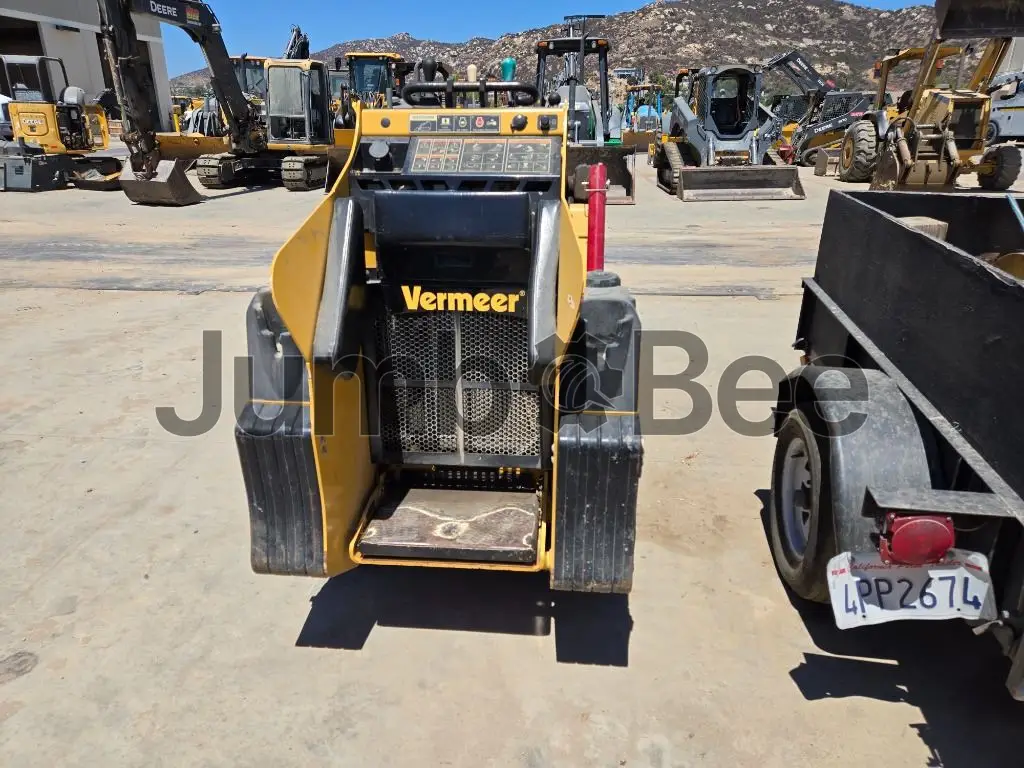

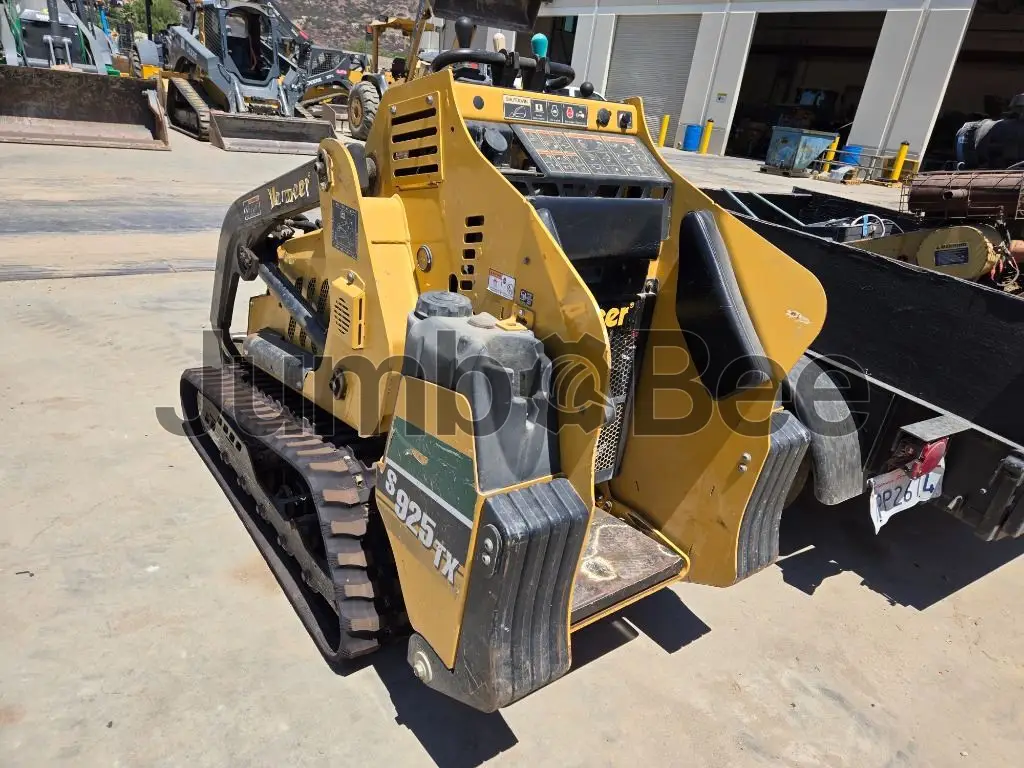

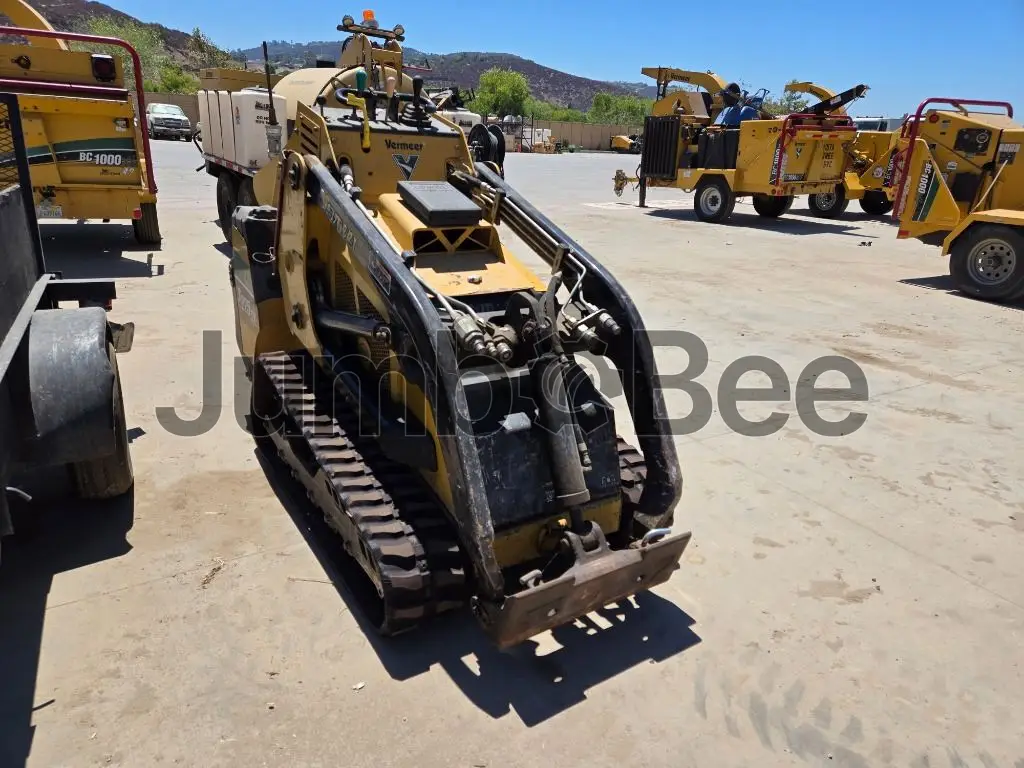

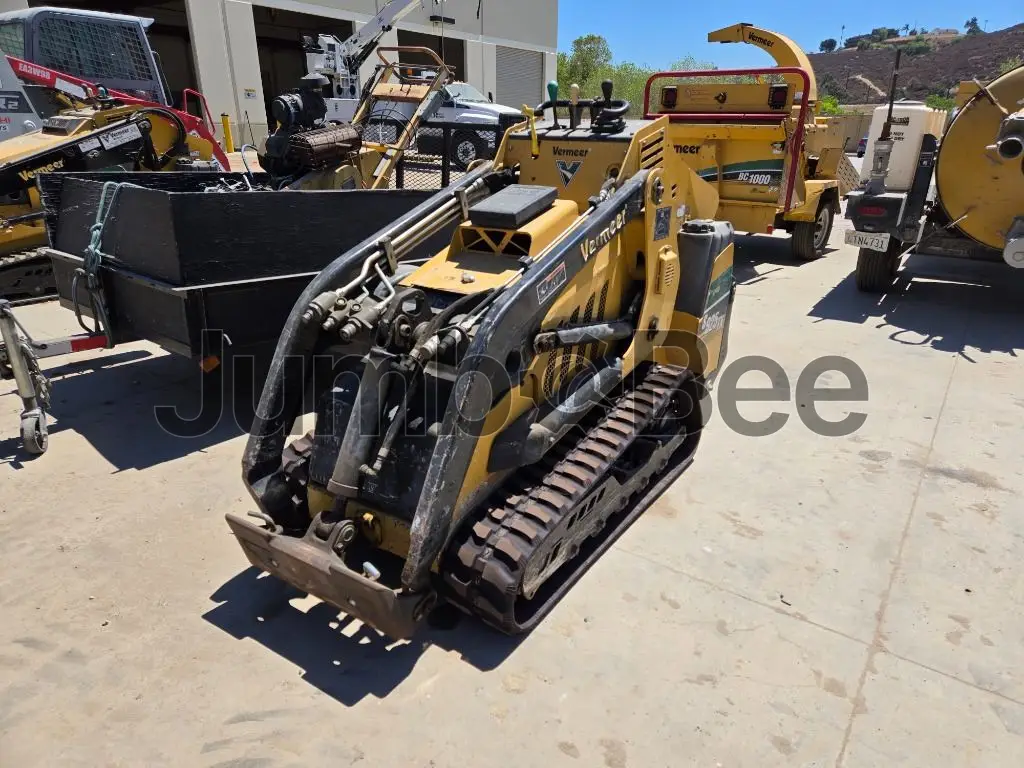

The Vermeer S925TX is a skid steer loader with a tracked undercarriage for compact construction work, material handling, and site preparation. It is powered by an 18 kW (24 hp) Kubota V1505 four-cylinder engine with 1 L displacement and Tier 4 emissions, and it carries a rated operating capacity of 419 kg (924 lb).
This model uses a hydrostatic track drive with single speed and rubber tracks, and it has an operating weight of 1,519 kg (3,350 lb). Working dimensions include a width without bucket of 914 mm (36 in), a height to top of ROPS of 1,473 mm (4 ft 10 in), a dump height of 2,146 mm (7 ft), and a maximum speed of 6 km/h (3.7 mph). Hydraulic flow is 58 L/min (15.3 gpm) at 209.9 bar (3,040 psi), with SAE rated operating capacity with counterweight of 635 kg (1,400 lb).
Year
2019, 2021
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
2,692 mm
~106 in
1,473 mm
~58 in
1,067 mm
~42 in
Engine Power
24 hp
Operating Weight
1,571.7 kg
Rated Operating Capacity
419 kg
Dump Height
2,146 mm
Max. speed
6 km/h
Additional specifications
Emission standard level
Tier 4
Displacement
1 cu(m)
Speeds
Single speed
Fuel tank
49 L
Axles
Tracked (rubber tracks)
Manufacturer and Model
Kubota V1,505
Pump flow loader
58 L/min
System Pressure at Couplers
20,990 kPa
Hydraulic Horsepower Flow
20 hp
Length Without Bucket
2,134 mm
Length With Foundry Bucket
2,692 mm
Width Without Bucket
914 mm
Height to Top of ROPS
1,473 mm
Height to Hinge Pin
2,146 mm
Dump Height With Foundry Bucket
2,146 mm
Dump Reach With Foundry Bucket
581 mm
Ground Clearance
152 mm
Dump Angle (full lift height)
26 deg
Bucket Rollback (ground level)
33 deg
Tipping Load
1,202 kg
SAE Rated Operating Capacity With Counterweight
635 kg
Powertrain Type
Hydrostatic track drive
Operating Weight - Rear
1,519 kg
Seed spacing
6 mm
Cylinders
4
Vermeer S925TX Skid Steer / CTL Listings
Looking for Vermeer S925TX Skid Steer / CTL?
See similar listingsCompare Vermeer S925TX Skid Steer / CTL to other skid steer / ctl
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Vermeer S925TX?
No confirmed market price is supplied for the Vermeer S925TX. Check current listings and compare the machine’s condition, location, and configuration.
What are the key advantages of the Vermeer S925TX?
The supplied specifications show a hydrostatic rubber-track drive, 419 kg (924 lb) rated operating capacity, 2,146 mm (84.5 in) dump height, and a 58 L/min (15.3 gpm) loader pump flow. It also has a compact 914 mm (36 in) width without bucket.
What type of engine does the S925TX use?
The S925TX uses a Kubota V1505 engine. The supplied data lists 4 cylinders and a Tier 4 emission standard level.
How much horsepower does the S925TX have?
The S925TX has an engine power rating of 17.9 kW (24 hp).
What fuel does the Vermeer S925TX use?
The supplied data lists a 49 L (12.9 US gal) fuel tank but does not confirm the fuel type.
What jobs is this Skid Steer Loaders best suited for?
The supplied specifications support use where compact dimensions, tracked travel, and loader capability are needed. Relevant figures include a 914 mm (36 in) width without bucket, 419 kg (924 lb) rated operating capacity, and 2,146 mm (84.5 in) dump height.
What is the expected lifespan of the S925TX?
The supplied data does not provide an expected service life for the S925TX. Assess maintenance records, operating condition, hydraulic performance, track wear, engine condition, and signs of structural damage when evaluating a machine.
What should a buyer check when purchasing a used Skid Steer Loaders?
Check maintenance records, engine starting and operation, hydraulic leaks and performance, rubber-track condition, loader controls, couplers, bucket condition, ROPS condition, and structural damage. Verify that the machine’s configuration and operating capacity match the intended work.
