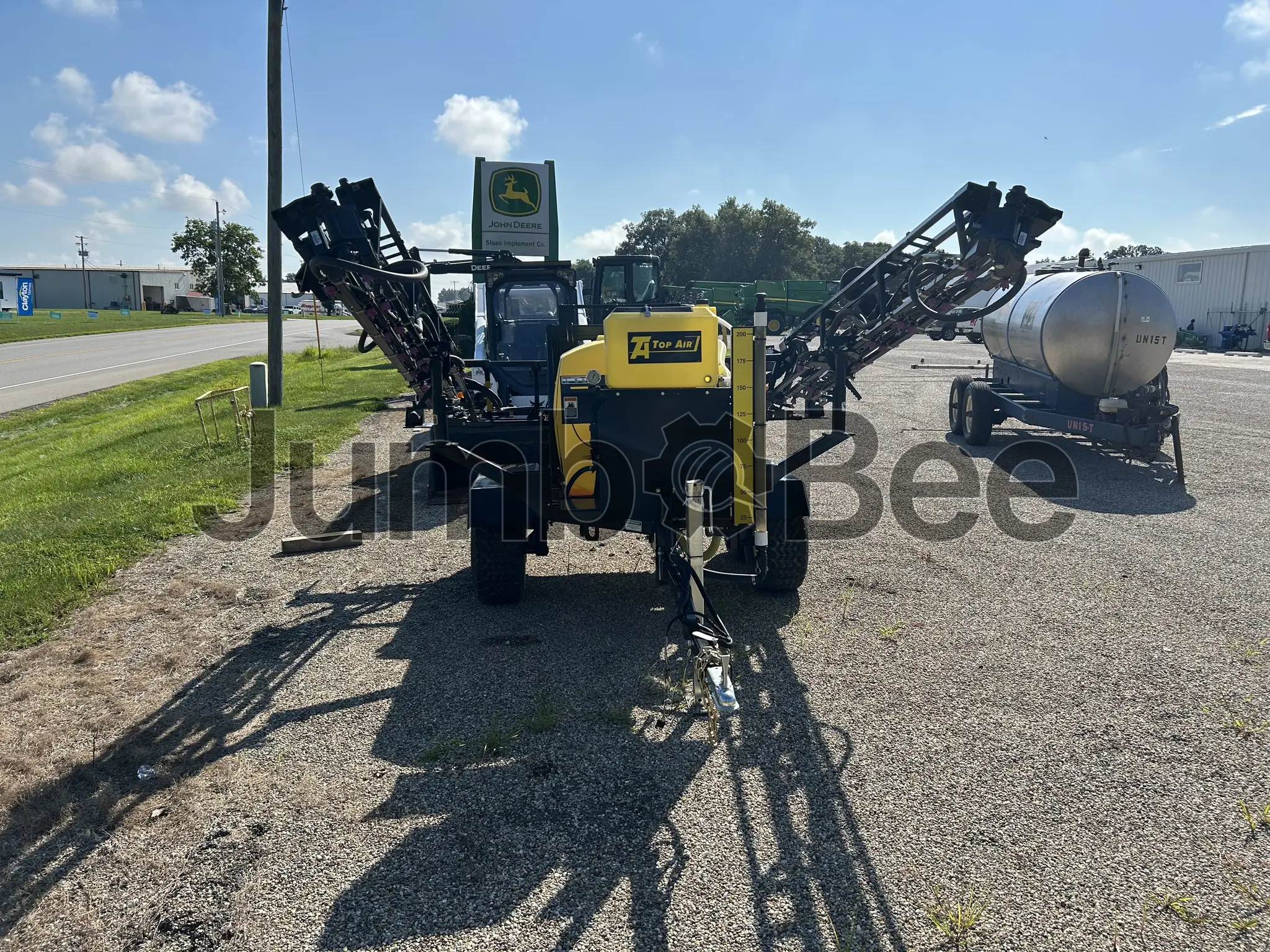

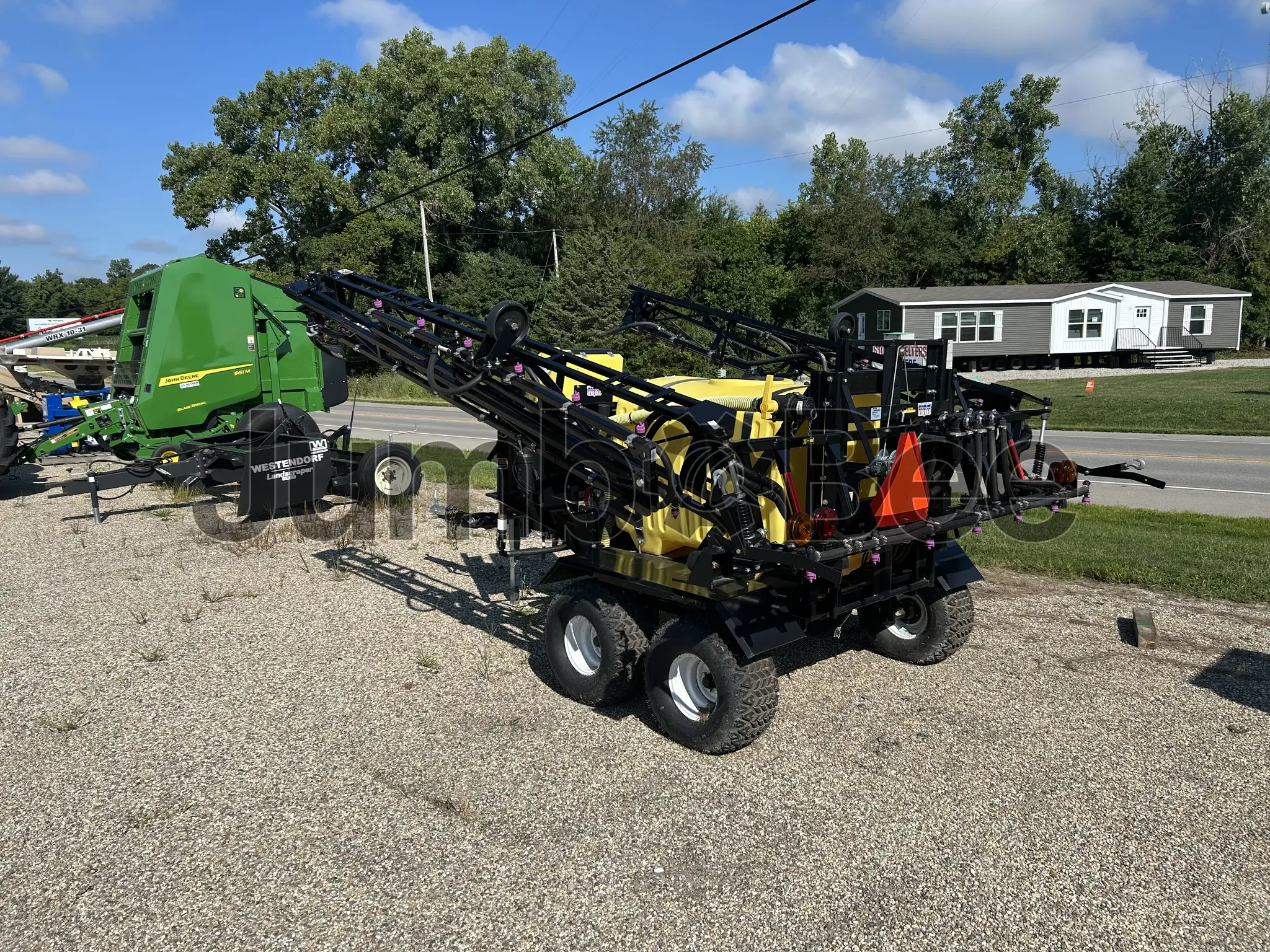

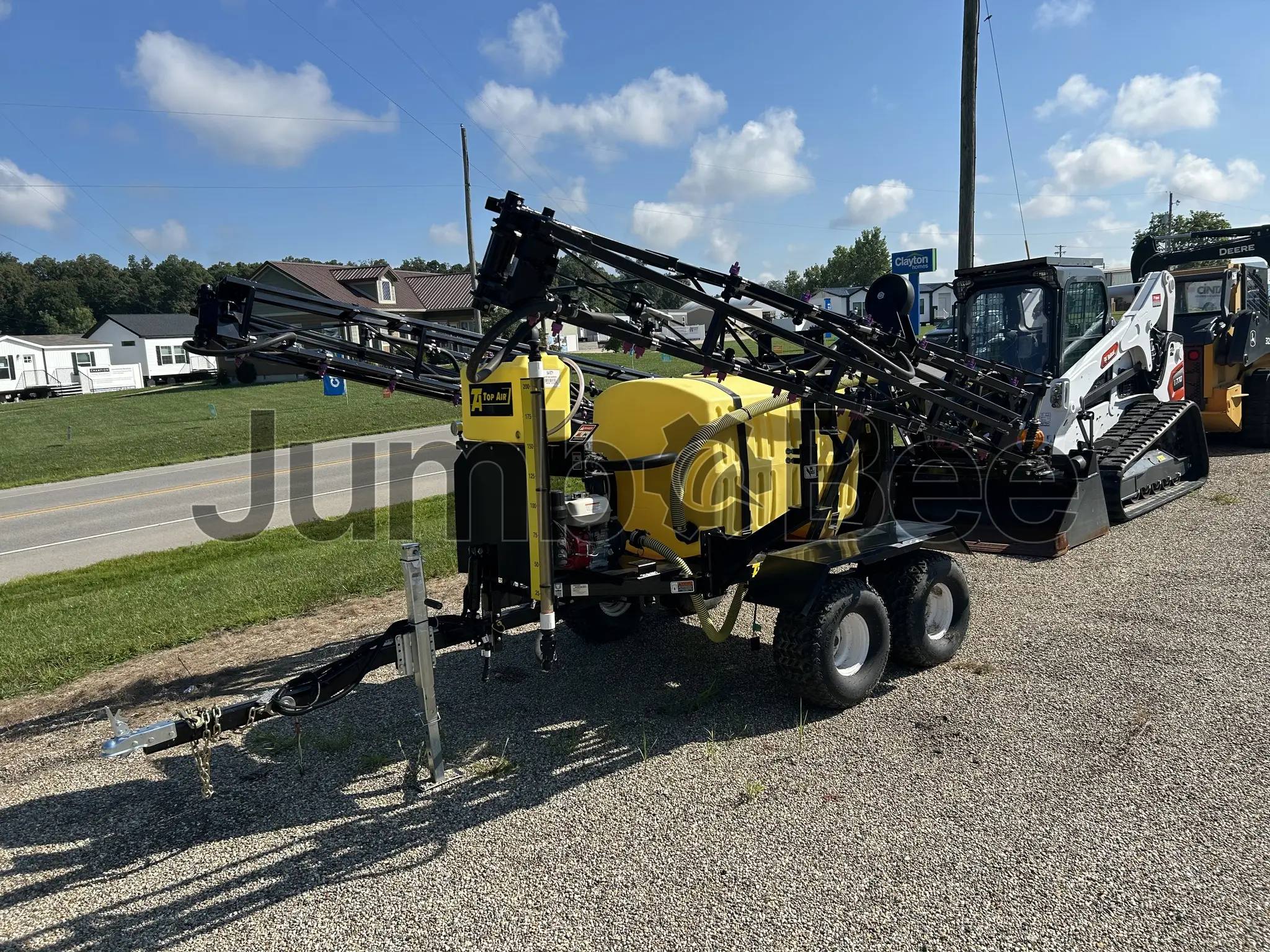

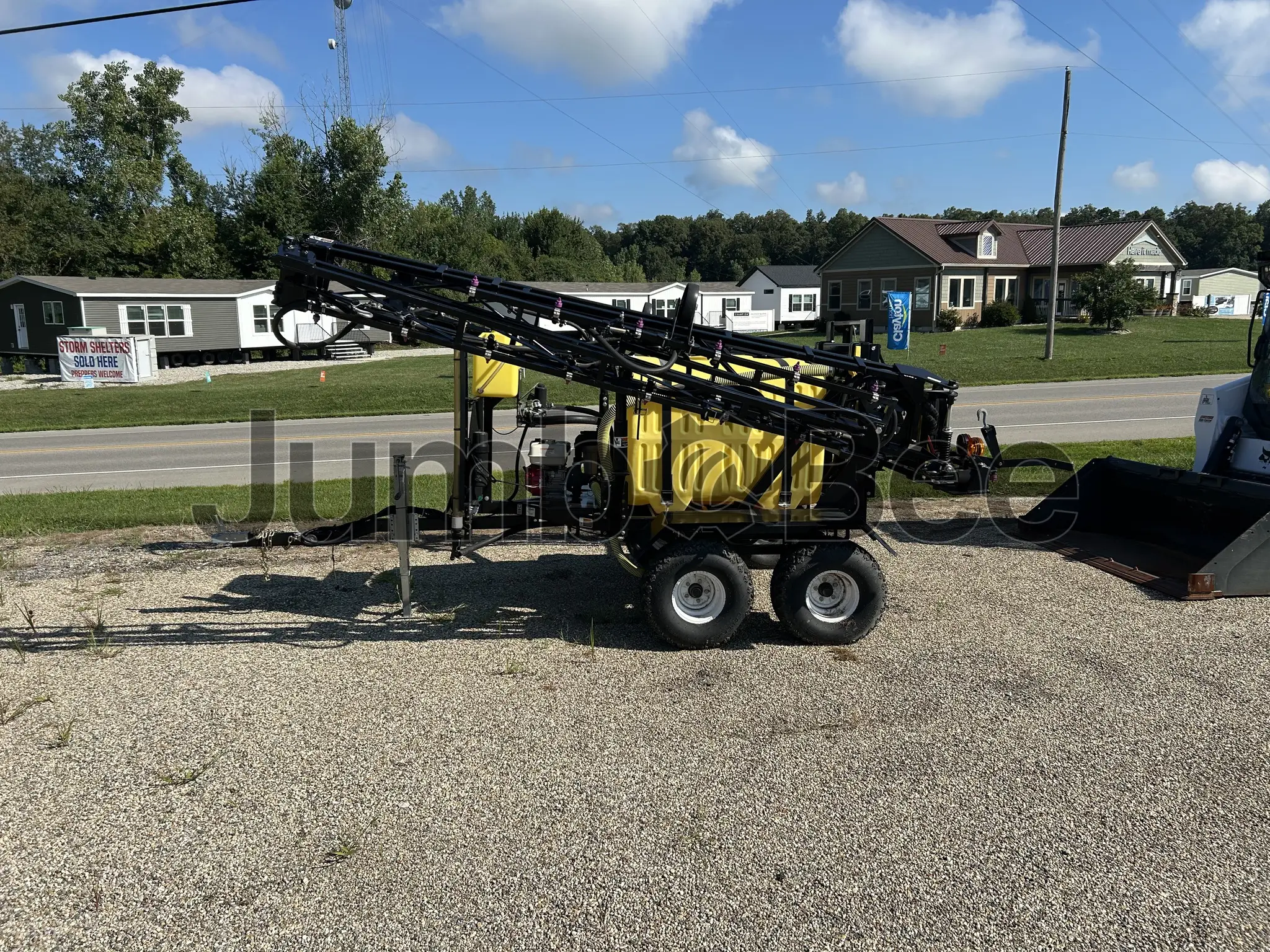

Top Air ATV Sprayer Mounted / 3-Point Sprayers
Top Air ATV Sprayer
5+
sold in last yearGeneral overview
Top Air ATV Sprayer is a farm sprayer model used for liquid application work in agricultural operations. The Top Air ATV Sprayer includes 757 mm (30 in) nozzle spacing and an Ace 660 centrifugal, gas motor-driven solution pump, which define its spray-delivery arrangement for field use. It was produced in 2022 in the United States.
The model also uses pull-type boom leveling and an in-line walking tandem axle. A Raven 450 rate controller is standard, with a Raven 440 available on some 3-section configurations. Together, these features describe the model’s control setup and running gear for managed spray application overall.
Year
2022
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
4,216 mm
~166 in
1,880 mm
~74 in
2,692 mm
~106 in
Emission standard level
5,5
Ground clearance with standard tires
34 mm
Nozzle Spacing
757 mm
Working widths
45 ft or 60 ft
Sprayer Tank Capacity
757.08 L
Fold
manual front-fold
Breakaway
Manual front-fold boom; no automatic breakaway specified
Sprayer Hitch Compatibility
1 7/8" ball hitch
Nozzle Tip
triple- or single-tip nozzles
Spot Sprayer
Optional fence row nozzle kit
Nozzle Tip Size
11,003 flat-fan nozzle tip
Nozzle Type
triple- or single-tip
Sprayer Nozzle Spacing
15 in or 20 in
Pressure Control
Pressure gauge
Max Working Pressure
1,034.21 kPa
Agitation
Agitation control
Pump Control
5.5 HP Honda driven centrifugal pump
Section Control
Manual boom section control
Additional specifications
Solution System Capacity
757.08 L
Length Options
18.29 m
Operator seat description
Raven 450 rate controller (standard); Raven 440 available on some 3-section configurations
Sprayer control
Walking tandem axle (in-line walking tandem)
Suspension
381
Factory-installed
24x10.5-10 high-flotation
Solution pump
Ace 660 centrifugal, gas motor-driven
Air Boom length options
30 mm
Tire width
267 mm
Additional Options
Foam marker system (dual canister), Fence row nozzle kit, Hose reel with 25' hose and spray-gun, Hydraulic kit for 60' booms (fold/unfold/raise/lower), Rate control options (Raven controllers), Fill level gauge, Walking tandem wheels, Fender kit, Transport lights
Boom leveling
pull-type
Top Air ATV Sprayer Mounted / 3-Point Sprayers Listings
Looking for Top Air ATV Sprayer Mounted / 3-Point Sprayers?
See similar listingsCompare Top Air ATV Sprayer Mounted / 3-Point Sprayer to other mounted / 3-point sprayers
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Top Air ATV Sprayer Mounted / 3-Point Sprayer
5,5
4216 mm × 2692 mm × 1880 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Top Air ATV Sprayer?
No confirmed market price is supplied. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Top Air ATV Sprayer?
Listed features include a pull-type boom-leveling system, in-line walking tandem axle, 24x10.5-10 high-flotation tires, and an Ace 660 centrifugal solution pump driven by a gas motor. A Raven 450 rate controller is standard, with Raven 440 available on some 3-section configurations.
What type of engine does the ATV Sprayer use?
The supplied specifications identify the Ace 660 centrifugal solution pump as gas motor-driven. They do not specify the engine make, model, or other engine details.
How much horsepower does the ATV Sprayer have?
The supplied specifications do not confirm a horsepower rating for the ATV Sprayer.
What fuel does the Top Air ATV Sprayer use?
The solution pump is identified as gas motor-driven. The supplied data does not provide a more specific fuel requirement.
What jobs is this Sprayers best suited for?
As farm equipment in the Sprayers category, it is suited to agricultural spraying work. The supplied data does not confirm specific crop types, field sizes, or application uses.
What is the expected lifespan of the ATV Sprayer?
The supplied data does not provide an expected service-life estimate. Lifespan depends on maintenance, storage, pump condition, boom condition, tires, and the condition of the rate-control system.
What should a buyer check when purchasing a used Sprayers?
Check the Ace 660 centrifugal pump and gas motor for operation and leaks. Inspect the boom, leveling system, walking tandem axle, tires, nozzles, plumbing, and Raven rate controller. Verify that spray controls operate properly and look for corrosion or previous repairs.
