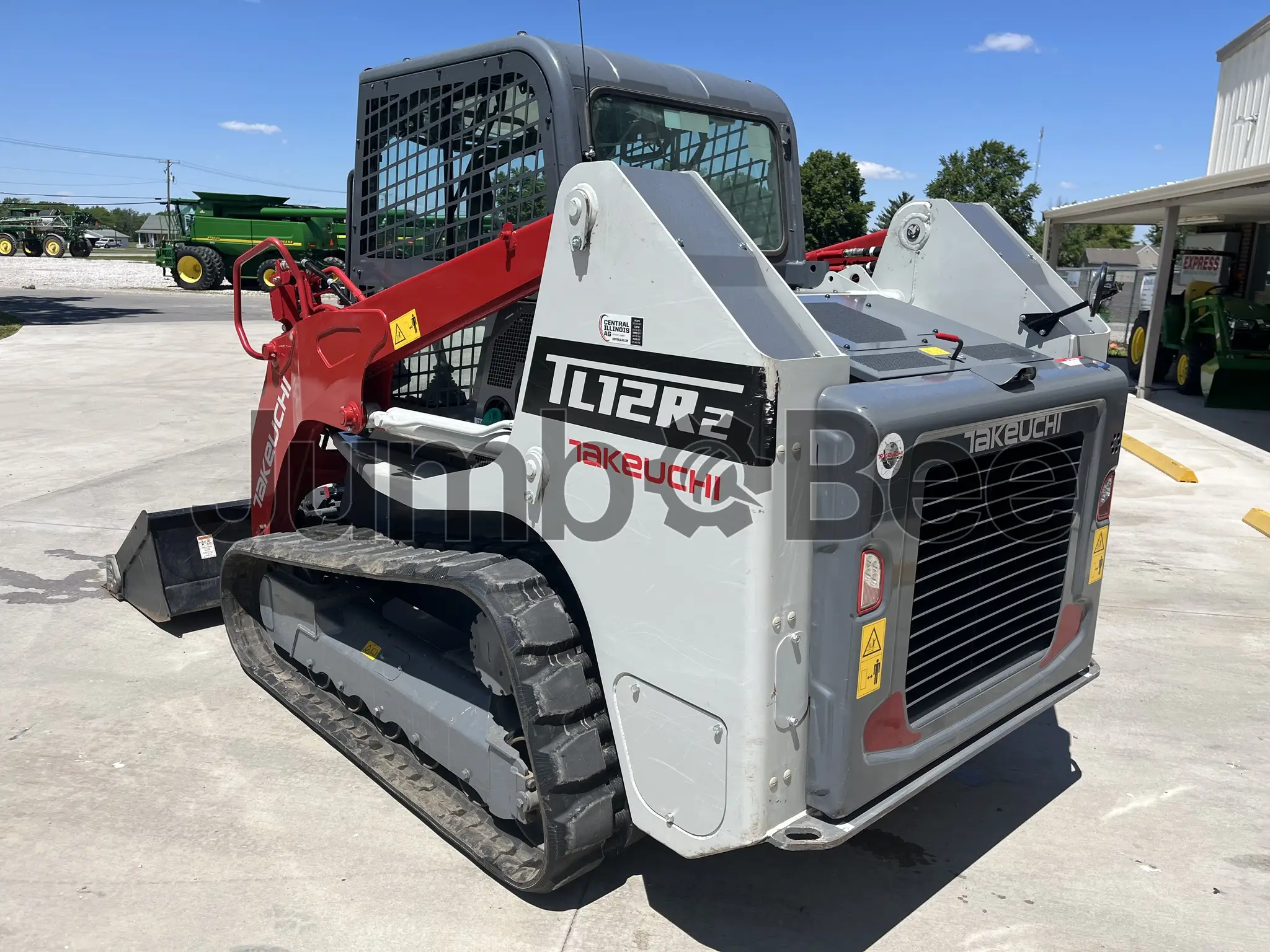

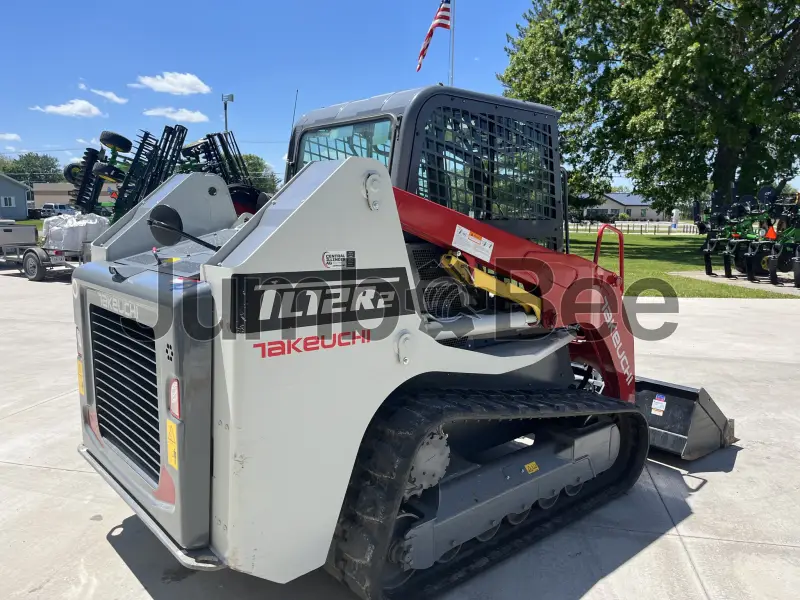

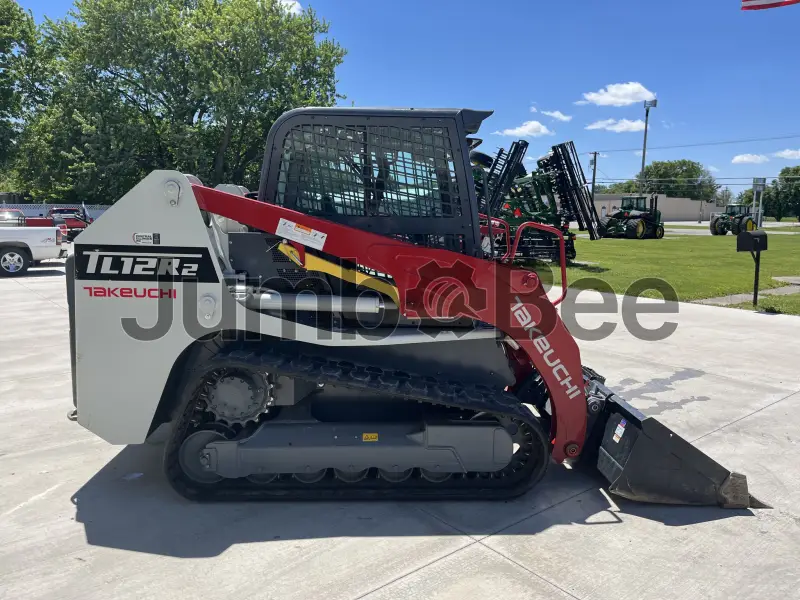

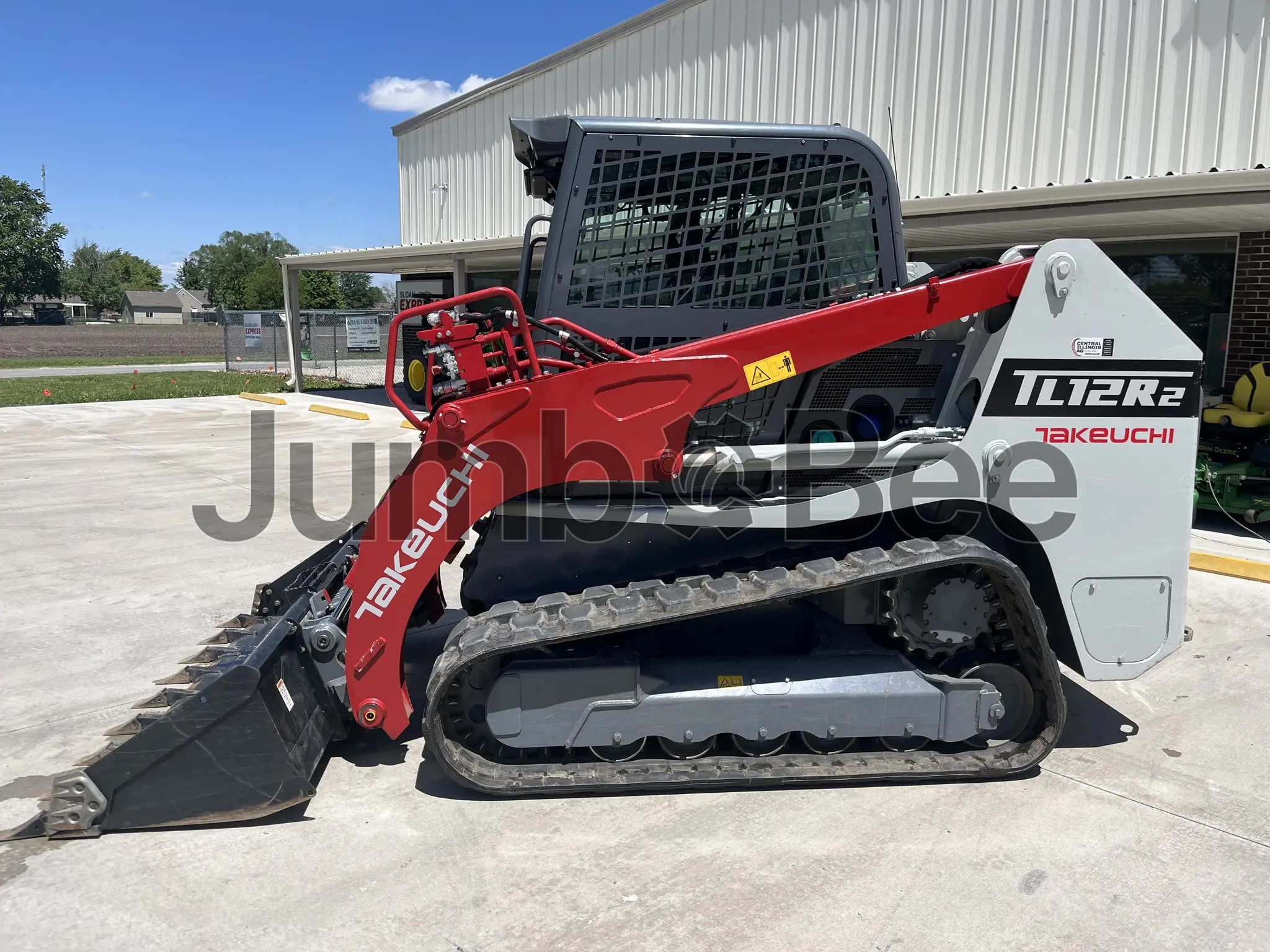

Takeuchi TL12R-2 Skid Steer / CTL
Takeuchi TL12R-2
Average price
$88,900
5+
sold in last year
General overview
Takeuchi TL12R-2 is a skid steer loader with a tracked undercarriage. It is powered by a Kubota V3800-TIF4B 4-cylinder engine rated at 82 kW (111 hp) and meets EPA Tier 4 Final / EU Stage IV emissions standards. The model has a rated operating capacity of 1,350 kg (2,980 lb).
This model uses a hydrostatic drive with double-reduction sprocket final drive and reaches 11 km/h (6.8 mph). Its operating weight is 5,580 kg (12,300 lb), and it combines 62 kN (13,940 lbf) of tractive effort with a tipping load of 3,915 kg (8,630 lb). The loader also has a dump height of 2,400 mm (7 ft 10 in) and a height to hinge pin of 3,200 mm (10 ft 6 in), with a width without bucket of 1,960 mm (6 ft 5 in).
Year
2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Country of manufacturing
Japan
General specifications
Dimensions
Length
Height
Width
4,045 mm
~159.3 in
2,330 mm
~91.7 in
1,960 mm
~77.2 in
Engine Power
111 hp
Operating Weight
5,710 kg
Rated Operating Capacity
1,350 kg
Dump Height
2,400 mm
Bucket volume
680 cu(m)
Max. speed
11 km/h
Additional specifications
Emission standard level
EPA Tier 4 Final / EU Stage IV
Displacement
3 cu(m)
Speeds
2-speed hydrostatic; low 8.1 km/h, high 11.8 km/h
Fuel tank
119 L
Axles
Not applicable - tracked loader
Final drive
Sprocket, double reduction, high-mount drive motor
Manufacturer and Model
Kubota V3,800-TIF4B
Pump flow loader
87 L/min
2 Speed High
11 km/h
Tractive Effort
62 kN
Brakes
Hydrostatic dynamic braking through drive motors; separate service/parking brake not specified
Hydraulic Horsepower Flow
84 hp
Length Without Bucket
3,205 mm
Length With Foundry Bucket
4,045 mm
Width Without Bucket
1,960 mm
Height to Top of ROPS
2,330 mm
Height to Hinge Pin
3,200 mm
Dump Height With Foundry Bucket
2,400 mm
Dump Reach With Foundry Bucket
960 mm
Ground Clearance
320 mm
Angle of Departure
30 deg
Front Turn Radius With Foundry Bucket
2,555 mm
Dump Angle (full lift height)
40 deg
Bucket Rollback (ground level)
30 deg
Tipping Load
3,915 kg
Boom Breakout Force With Foundry Bucket
35 kg
Bucket Breakout Force With Foundry Bucket
36 kg
Powertrain Type
Hydrostatic drive, double-reduction sprocket final drive
Operating Weight - Rear
5,580 kg
Seed spacing
8 mm
Cylinders
4
Takeuchi TL12R-2 Skid Steer / CTL Listings
$88,900
62 kN
Sprocket, double reduction, high-mount drive motor
Hydrostatic dynamic braking through drive motors; separate service/parking brake not specified
71 hours
Virden, United States
Compare Takeuchi TL12R-2 Skid Steer / CTL to other skid steer / ctl
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Takeuchi TL12R-2 Skid Steer / CTL
111 hp
4045 mm × 1960 mm × 2330 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Takeuchi TL12R-2?
No confirmed market price is supplied for the Takeuchi TL12R-2. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Takeuchi TL12R-2?
Listed features include 82.8 kW (111 hp) engine power, a 1,350 kg (2,976 lb) rated operating capacity, hydrostatic drive, 2-speed travel, and 87 L/min (23 gpm) loader pump flow. It also has a high-mount, double-reduction sprocket final drive.
What type of engine does the TL12R-2 use?
The TL12R-2 uses a Kubota V3800-TIF4B engine. It has 4 cylinders and is listed as meeting EPA Tier 4 Final / EU Stage IV emissions standards.
How much horsepower does the TL12R-2 have?
The TL12R-2 is rated at 82.8 kW (111 hp) of engine power.
What fuel does the Takeuchi TL12R-2 use?
The supplied specifications do not confirm the fuel type for the Takeuchi TL12R-2. They list a fuel tank capacity of 119 L (31.4 US gal).
What jobs is this Skid Steer Loaders best suited for?
The supplied data does not identify specific job applications. Its listed 1,350 kg (2,976 lb) rated operating capacity, 2,400 mm (94.5 in) dump height, and hydraulic loader system may help buyers assess compatibility with their intended attachments and work requirements.
What is the expected lifespan of the TL12R-2?
No expected service-life estimate is supplied for the TL12R-2. For a used machine, inspect maintenance records, hydraulic performance, undercarriage condition, engine operation, and signs of leaks or damage.
What should a buyer check when purchasing a used Skid Steer Loaders?
Check maintenance records, engine starting and operation, hydraulic function, loader controls, drive performance, undercarriage wear, fluid leaks, structural damage, and attachment compatibility. Verify that the machine’s capacity, dimensions, and hydraulic flow fit the intended work.
