PARKER 842 Gravity
PARKER 842
5+
sold in last yearGeneral overview

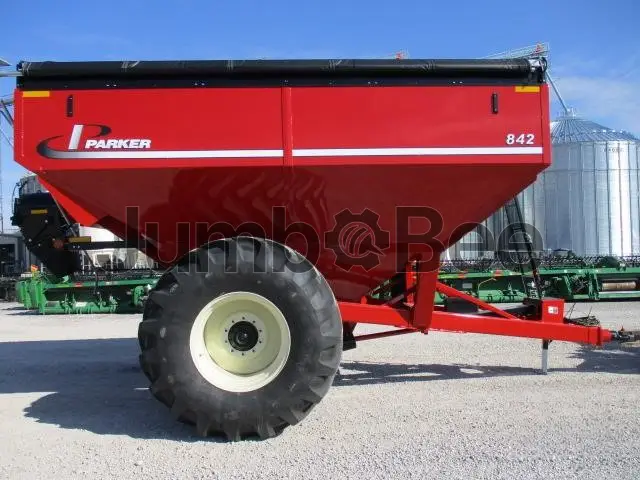

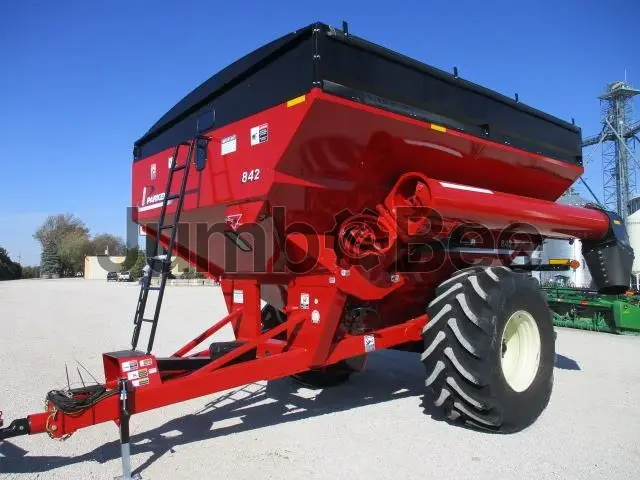

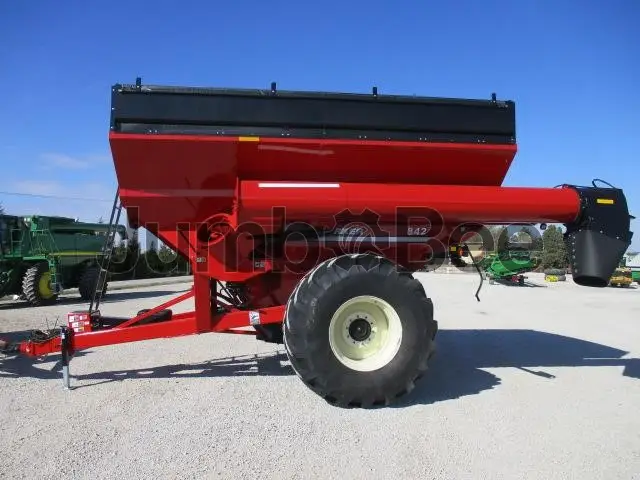

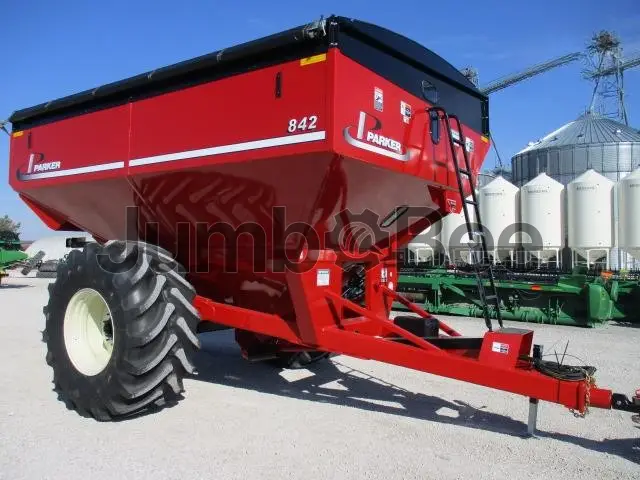

PARKER 842 is a grain cart made for handling and transferring grain during harvest operations. Produced in the United States for 2023, it is specified with a power requirement of 110 kW (150 hp) and a peak unloading rate of 15,857 L/min (4,189 gpm), indicating a high-capacity field transfer role.
The model has a total empty weight of 5,193 kg (11,450 lb) and a vertical auger measuring 457 mm (18 in). Its exclusive heavy-duty 45° gearbox is static rated at 330 HP and dynamic rated at 153 HP. Empty hitch weight is 612 kg (1,350 lb), increasing to 2,517 kg (5,550 lb) when loaded.
Year
2023
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
mm
~ in
3,937 mm
~155 in
mm
~ in
Power requirement
150 hp
Capacity Heaped
29,953 cu(m)
Tractor hydraulics requirements
Tongue-mounted hydraulic drive optional; two hydraulic motor capacities: 100 US gpm (≈378.54 L/min) requires 3 sets of hydraulic remotes; 55 US gpm (≈208.20 L/min) requires 2 sets. Cart can also be operated via PTO (PTO shear‑bolt protection on driveline).
Grain Cart Capacity
32,125.98 L
Hub Size/Spindle Diameter
10-Bolt 4 1/2
Front/Rear Slopes
39/34
Back Slope
34 deg
Door Width
1.52 m
Chute Height
3.93 m (12 ft 11 in) with spout straight down
Unloading Time
113.33 s
Grain Cart Wheel Size
800/65x32
Grain Cart Turning Radius
3.05 m (10 ft)
Additional specifications
Peak unloading rate
15,857 L/min
Track size
914,4 mm
Total weight - empty
5,193 kg
Hitch weight - empty
612 kg
Hitch weight - loaded
2,517 kg
Vertical auger
457 mm
Gearbox
Exclusive heavy-duty 45° gearbox with extra-large 1 3/4" output shaft; static rated at 330 HP and dynamic rated at 153 HP.
PARKER 842 Gravity Listings
Looking for PARKER 842 Gravity?
See similar listingsCompare PARKER 842 Gravity to other gravity
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a PARKER 842?
No confirmed market price is supplied for the PARKER 842. Check current listings and compare condition, location, and configuration.
What are the key advantages of the PARKER 842?
Listed features include a 29,953 m³ (39,177.03 cu yd) heaped capacity, a peak unloading rate of 15,857 L/min (4,189 gpm), a 457 mm (18 in) vertical auger, and 914.4 mm (36 in) tracks.
What type of engine does the 842 use?
The supplied specifications do not identify an engine type for the PARKER 842.
How much horsepower does the 842 have?
The PARKER 842 has a listed power requirement of 111.9 kW (150 hp).
What fuel does the PARKER 842 use?
The supplied specifications do not confirm a fuel type for the PARKER 842.
What jobs is this Grain carts best suited for?
The PARKER 842 is a grain cart suited to grain-handling work where on-site grain transfer and unloading are needed. Its listed peak unloading rate is 15,857 L/min (4,189 gpm).
What is the expected lifespan of the 842?
The supplied data does not provide an expected service life for the PARKER 842. Inspect the auger, gearbox, tracks, hitch, and overall condition when evaluating a unit.
What should a buyer check when purchasing a used Grain carts?
Check the auger, gearbox, output shaft, tracks, hitch, unloading operation, and signs of wear or damage. Verify empty and loaded hitch condition, overall structural condition, and that the cart matches the available power requirement.
