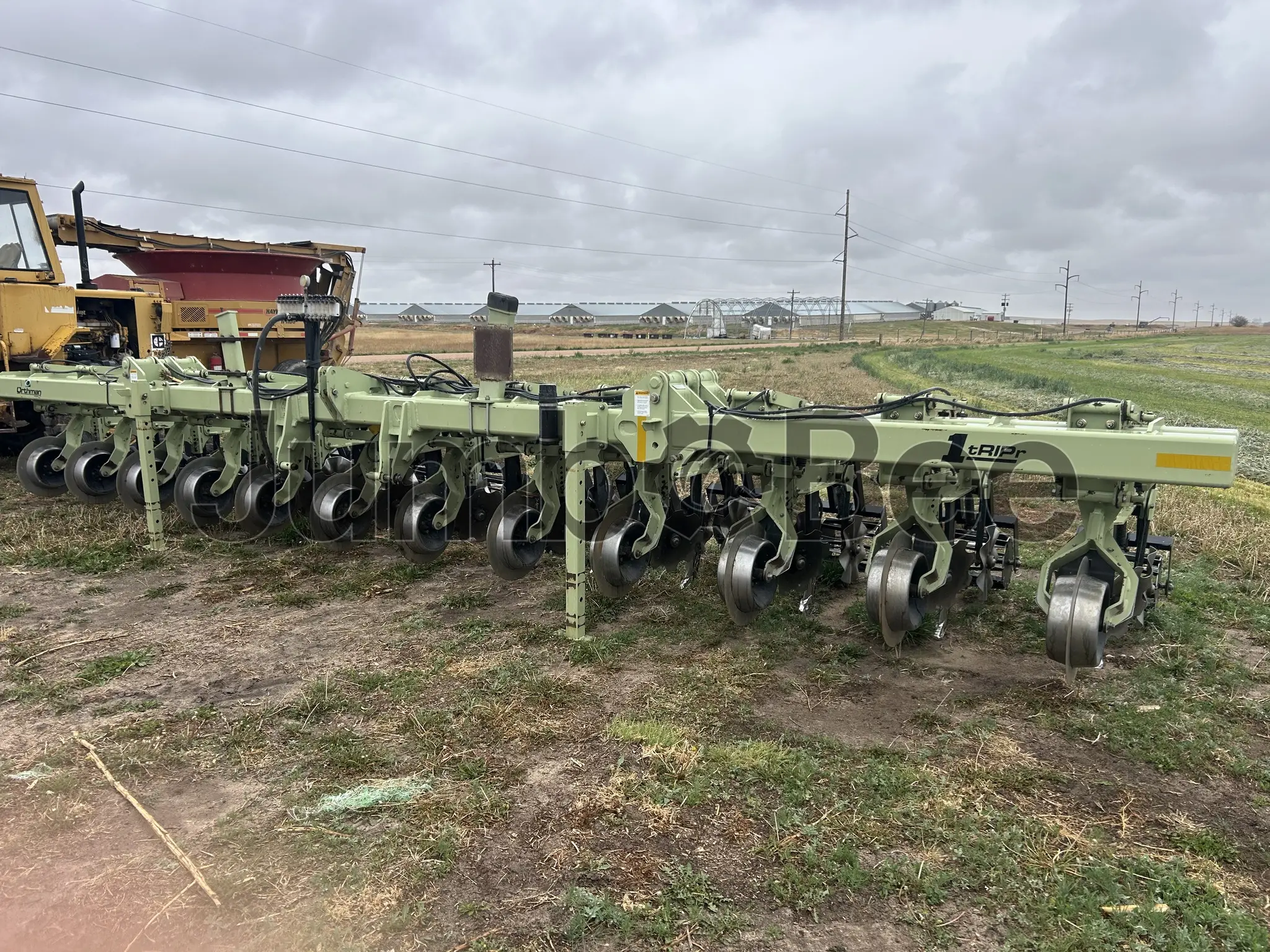

Orthman 1TRIPR Strip-Till Units
Orthman 1TRIPR
5+
sold in last yearGeneral overview
Orthman 1TRIPR is a tillage equipment attachment from Orthman designed for crop production fieldwork in high-residue conditions. It has a working width of 2,946 mm (9 ft 8 in) and a working depth of 203 mm (8 in), which define its operating coverage and soil engagement during tillage passes. The model is intended for residue-heavy soil preparation where controlled cutting depth is important.
The model uses independent gauge wheels with hydraulic down-pressure and per-row adjustment to manage depth control across the working width. Its high-residue (90%+ retention) specification indicates operation in fields where substantial crop residue remains, supporting consistent tillage performance under residue-heavy conditions. This arrangement supports steady depth setting during the pass.
Year
2012, 2021, 2022, 2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Length
Width
2,083 mm
~82 in
2,946 mm
~116 in
Working Width
2,946 mm
Working depth
203 mm
Strip-Till Unit Spacing
22" to 40"
Strip-Till Units – Toolbar
Single 7" x 7" toolbar
Strip-Till Unit Hitch Type
3-point hitch
Frame
Rigid
Rear Basket
14"
Strip-Till Unit Work Width
22" to 40" row spacing; 6' 6" to 26' 8" overall work width depending on rows and configuration
Shank Trip
Shear-bolt or auto-reset
Strip-Till Unit Required HP
100 to 200 HP depending on row count and spacing
Additional specifications
Residue Conditions
High-residue (90%+ retention)
Depth control
Independent gauge wheels + hydraulic down-pressure; per-row adjustment
Orthman 1TRIPR Strip-Till Units Listings
Looking for Orthman 1TRIPR Strip-Till Units?
See similar listingsCompare Orthman 1TRIPR Strip-Till Unit to other strip-till units
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Orthman 1TRIPR?
No confirmed market price is supplied for the Orthman 1TRIPR. Check current listings and compare the machine’s condition, location, and configuration.
What are the key advantages of the Orthman 1TRIPR?
Key stated features include high-residue operation with 90%+ retention, independent gauge wheels, hydraulic down-pressure, and per-row depth adjustment. Its working width is 2,946 mm (116 in), with a working depth of 203 mm (8 in).
What type of engine does the 1TRIPR use?
The supplied information does not confirm an engine type for the Orthman 1TRIPR.
How much horsepower does the 1TRIPR have?
The supplied information does not confirm a horsepower rating for the Orthman 1TRIPR.
What fuel does the Orthman 1TRIPR use?
The supplied information does not confirm a fuel type for the Orthman 1TRIPR.
What jobs is this Tillage Equipment best suited for?
The Orthman 1TRIPR is suited to tillage work in high-residue conditions, with 90%+ residue retention stated. It provides per-row depth adjustment, hydraulic down-pressure, and a working depth of 203 mm (8 in).
What is the expected lifespan of the 1TRIPR?
The supplied information does not provide an expected lifespan for the Orthman 1TRIPR. Service life depends on operating conditions, maintenance, wear-part condition, and proper adjustment.
What should a buyer check when purchasing a used Tillage Equipment?
Inspect the frame, row units, gauge wheels, hydraulic components, adjustment mechanisms, and wear parts for damage, excessive wear, leaks, and missing components. Confirm that depth control and per-row adjustment operate properly, and review maintenance history if available.
