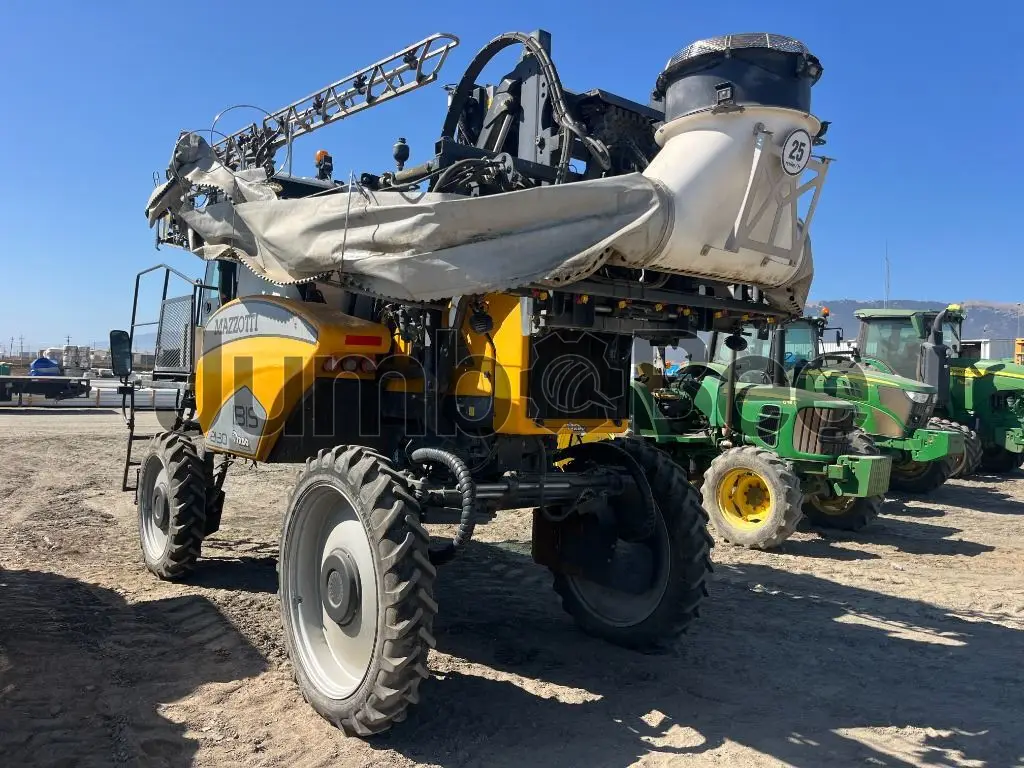

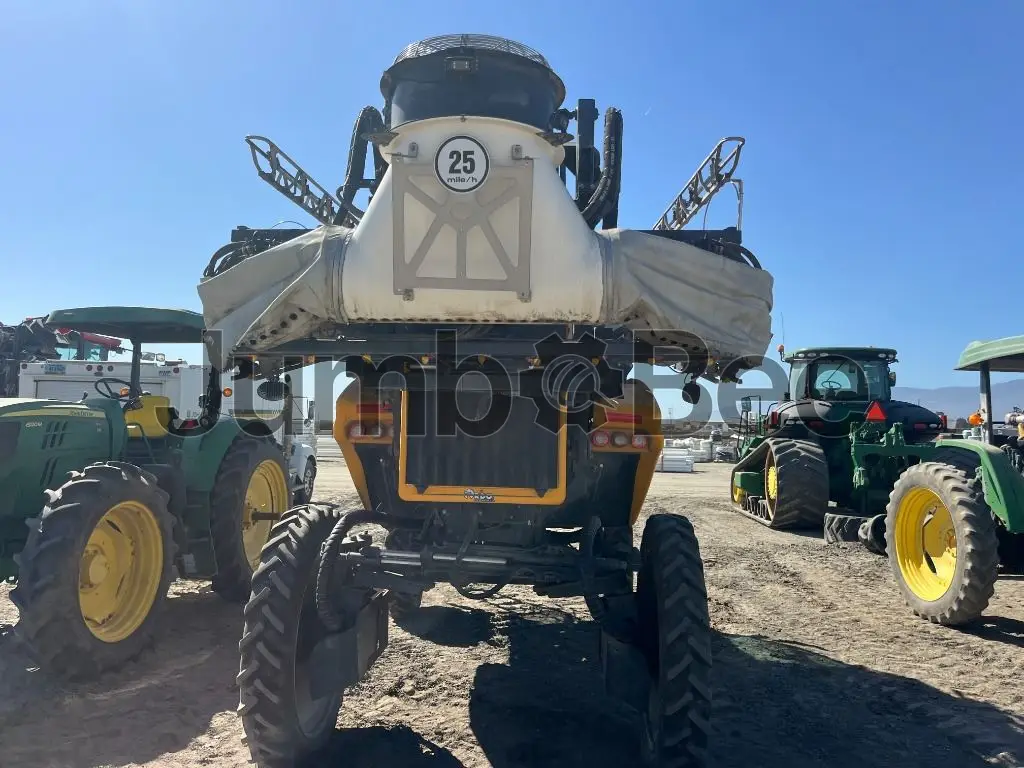

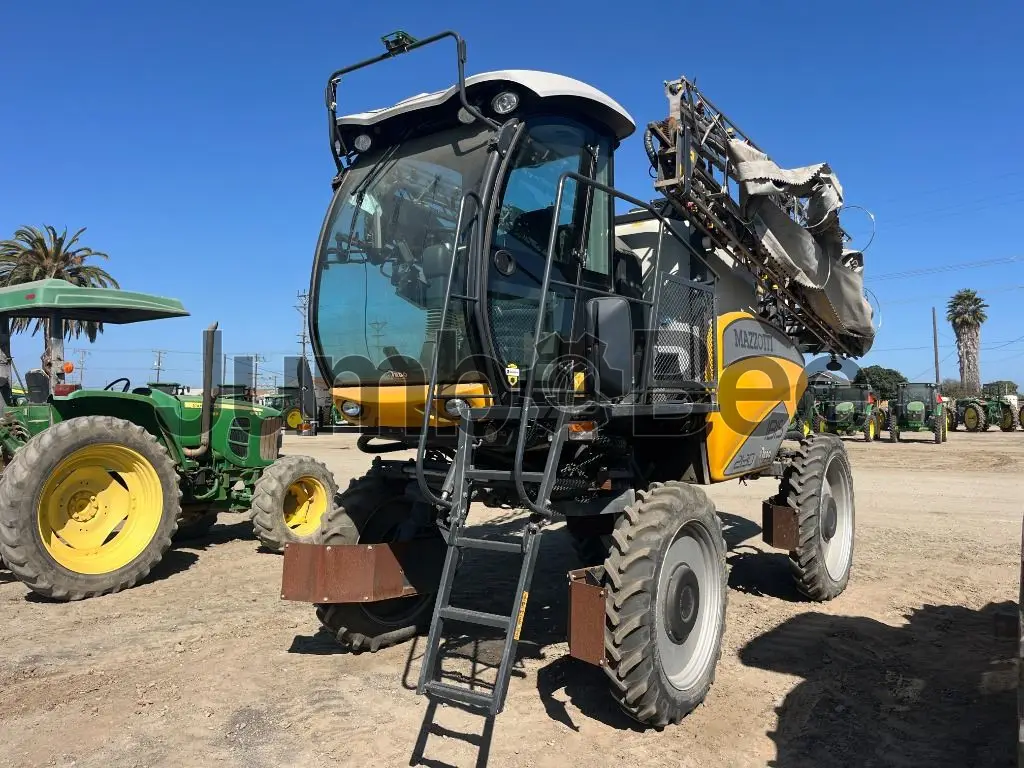

Mazzotti IBIS2130 Self-Propelled Sprayers
Mazzotti IBIS2130
5+
sold in last yearGeneral overview
Mazzotti IBIS2130 is a farm sprayer for agricultural field application work. It is powered by a 103 kW (140 hp) four-cylinder engine with 4.5 L (275 cu in) displacement and is listed with emission standard level stage 4 or stage 3A. The machine uses a 4 wheel drive hydrostatic transmission and has a solution system capacity of 2,097 L (554 US gal).
Its spraying setup includes an 18 m (59 ft 1 in) boom with 18 to 24 boom sections, a diaphragm water pump, and a 200 L (53 US gal) rinse tank. Additional operating details include a hydraulic reservoir capacity of 210 L (55 US gal), maximum transport speed of 40 km/h (24.9 mph), ground clearance with standard tires of 100 cm (3 ft 3 in), and an Arag spray computer with compatibility for John Deere management systems.
Year
2018, 2019, 2020, 2021, 2022, 2023, 2024
Country of manufacturing
Italy
General specifications
Dimensions
Width
Height
Length
Weight
3,600 mm
~141.7 in
3,090 mm
~121.7 in
6,000 mm
~236.2 in
5,500 kg
~12,125.4 lb
Solution System Capacity
2,097 L
Length Options
18 m
Additional specifications
Emission standard level
stage 4 or stage 3A
Displacement
275 cu(in)
Fuel tank
125 L
Number of Cylinders
4
Drive type
4 wheel drive hydrostatic transmission
Rated power
140 hp
Rinse tank capacity
200 L
Breakaway length
18 m
Boom sections
18 to 24
Shifting
two gears: 0-20 km/h (work) 0-40 km/h (road transfer)
Hydraulic reservoir capacity
210 L
Operator seat description
pheumatic seat with air conditioning
Sprayer control
Arag spray computer, compatible with John Deere management systems
Suspension
hudraulic independent suspension system
Ground clearance with standard tires
100 cm
Factory-installed
270/95R38 tires
Solution pump
diaphragm water pump
Maximum transport speed
40 km/h
Turning Radius - Inside Tire
3.9 m
