Mayrath WRX_841 Grain Auger
Mayrath WRX_841
5+
sold in last yearGeneral overview

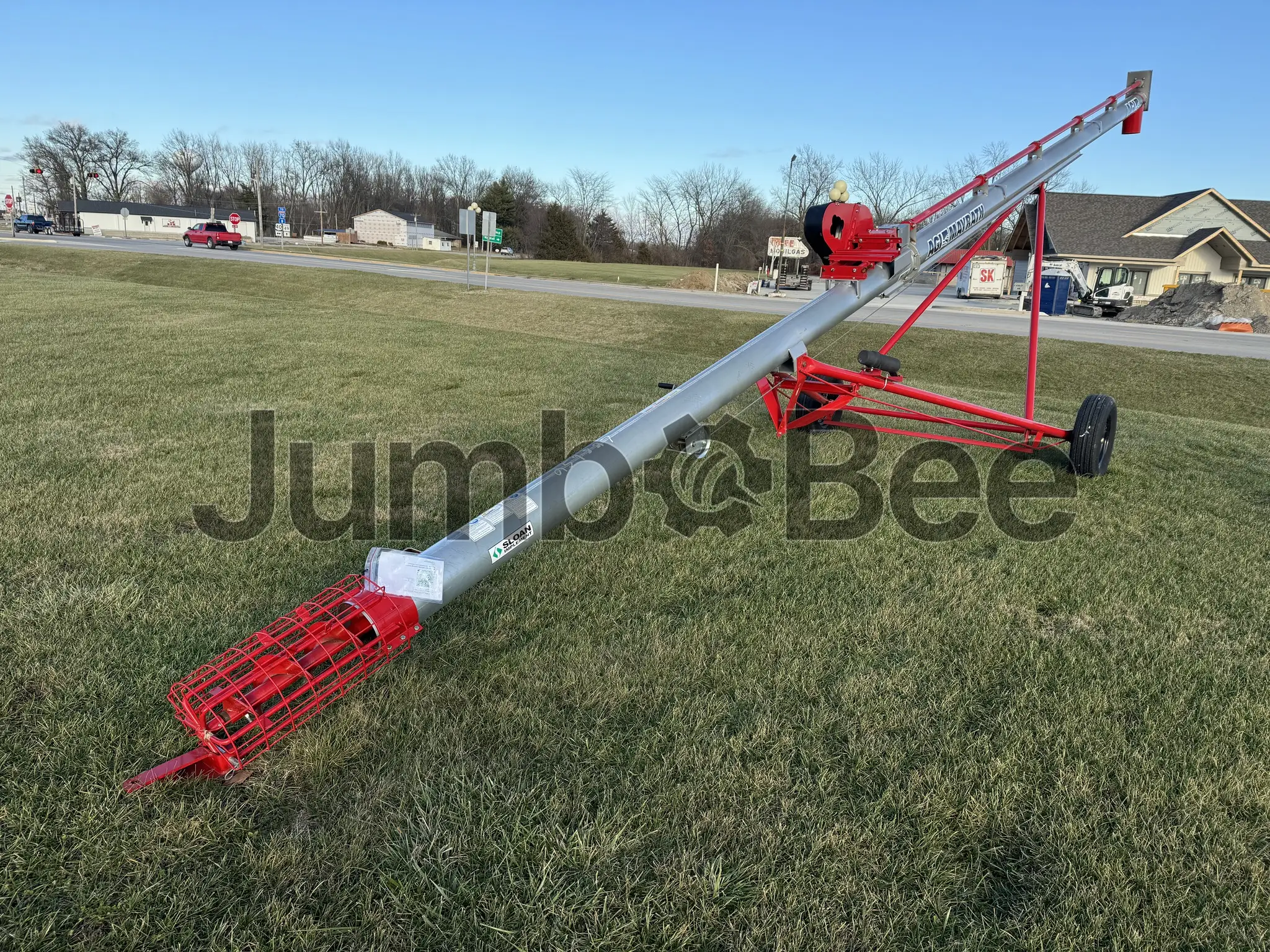

The Mayrath WRX_841 is a grain auger for farm grain-handling operations, manufactured in the United States. It is built around a 203 mm (8 in) intake diameter and a hydraulic swing-away lift mechanism, supporting grain transfer in storage, loading, and unloading workflows. The model is intended for grain handling in storage and transfer setups.
Key features include heavy-duty square tubing frame arms and hydraulic requirements of 45 L/min @ 2,400 psi. The model lists a 12,497 mm (41 ft) raised reach, 5,486 mm (18 ft) raised height, 7,315 mm (24 ft) transport length, 4,267 mm (14 ft) transport height, 914 mm (36 in) operating width, and 610 kg (1,340 lb) operating weight.
Year
2022, 2023, 2024, 2025, 2026
Country of manufacturing
United States
General specifications
Dimensions
Height
Width
Length
4,267 mm
~168 in
2,438 mm
~96 in
12,497 mm
~492 in
Capacity (bushels per hour)
5,663 L/min
Recommended PTO Horsepower
29.83 kW
Tractor PTO RPM
540 RPM
Additional specifications
Drive type
PTO-driven auger
Operating Weight
610 kg
Operating width
914 mm
Axle
Fixed 96 in
Wheel Size
16.5 x 16.1
Upper Bar Length
1,219 mm
Recommended Horsepower - Electric
15 hp
HP Intake Diameter
203 mm
Height - Raised
5,486 mm
Height - Raised (with AugerMOVER)
5,944 mm
Reach - Lowered
1,524 mm
Reach - Raised
12,497 mm
Reach - Intake
762 mm
Tube Thickness
3 mm
Flighting - Standard Intake
9 mm (3/8 in thick)
Flighting - HP Intake
11 mm
Flighting - Main
9 mm (3/8 in)
1/4" Core Diameter
114 mm
Top Drive Chain
#60
Transport Length
7,315 mm
Transport Height
4,267 mm
Wheel Track Width
2,438 mm
Lower Bearing Size
38 mm
Gearbox Shaft Diameter
38 mm
Weight - Hitch
159 kg
Frame Arms
Heavy-Duty Square Tubing
Number of Hydraulic Cylinders
2
Hydraulic Requirements
45 L/min @ 2,400 psi
Tire Size
16.5L-16.1
Tire Ply Rating
10
Height w/ Extension
914 mm
Number of Horizontal Flights
3
Number of Wheels
2
Lift Mechanism
Hydraulic Swing-Away
Mayrath WRX_841 Grain Auger Listings
Looking for Mayrath WRX_841 Grain Auger?
See similar listingsCompare Mayrath WRX_841 Grain Auger to other grain auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Mayrath WRX_841?
No confirmed market price is supplied for the Mayrath WRX_841. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Mayrath WRX_841?
Listed features include a Hydraulic Swing-Away lift mechanism, 2 hydraulic cylinders, Heavy-Duty Square Tubing frame arms, 3 horizontal flights, and a fixed 96 in axle. Raised reach is 12,497 mm (492 in), or 5,944 mm (234 in) raised height with AugerMOVER.
What type of engine does the WRX_841 use?
The supplied specifications do not identify an engine for the WRX_841. They list a recommended electric power requirement of 11.2 kW (15 hp).
How much horsepower does the WRX_841 have?
The WRX_841 has a recommended electric power requirement of 11.2 kW (15 hp).
What fuel does the Mayrath WRX_841 use?
The supplied data does not confirm a fuel type for the Mayrath WRX_841. It lists a recommended electric power requirement of 11.2 kW (15 hp).
What jobs is this Grain Auger best suited for?
As a Grain Auger, the WRX_841 is suited for grain-handling tasks where its reach and hydraulic swing-away arrangement are needed. The supplied specifications list a raised reach of 12,497 mm (492 in) and hydraulic requirements of 45 L/min @ 2,400 psi.
What is the expected lifespan of the WRX_841?
The supplied data does not provide an expected lifespan for the WRX_841. Service life depends on operating conditions, maintenance, wear of flighting and bearings, and the condition of hydraulic components.
What should a buyer check when purchasing a used Grain Auger?
Check the tube and flighting for wear or damage, inspect lower bearings and the gearbox shaft, and test the Hydraulic Swing-Away system and 2 hydraulic cylinders. Also inspect tires, wheels, hitch, frame arms, hydraulic hoses, and confirm the auger operates smoothly.
