Kinze 1050 Single Auger
Kinze 1050
5+
sold in last yearGeneral overview
The Kinze 1050 is a grain cart produced in the United States in 2003 for in-field grain collection and transfer during harvest. It has a heaped capacity of 37.4 m³ (48.9 cu yd) and is designed to operate with a tractor providing 154 kW (210 hp) through a 1000 rpm shaft.

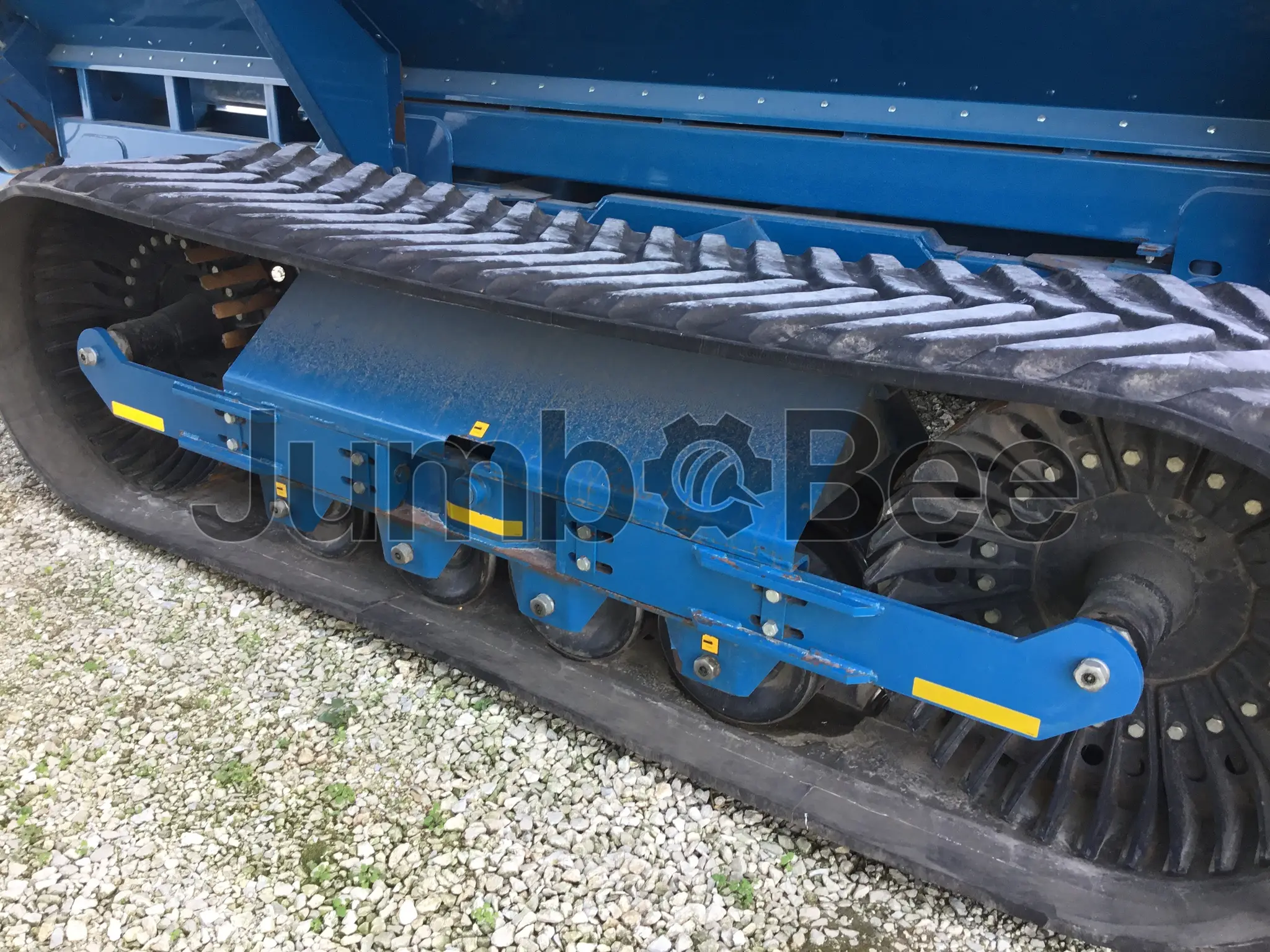

It uses a belt-drive system and a direct-drive gearbox for the vertical auger. Grain movement is handled by a 355 mm (14 in) horizontal auger and a 508 mm (20 in) vertical auger, with tractor hydraulics listed at 3 SCVs at 2 320 PSI. The cart also has a 36″-wide rubber-tracked undercarriage and an empty total weight of 11,291 kg (24,890 lb).
Year
2003
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
3,454 mm
~136 in
3,658 mm
~144 in
6,630 mm
~261 in
11,291 kg
~24,892.4 lb
Unloading rate
7,192.15 L/min
Capacity Heaped
37.4 cu(m)
Grain Cart Capacity
37,002.99 L
Required Engine Power
186.4 kW
Grain Cart Loaded Tongue Weight
2,268 kg
Grain Cart Empty Tongue Weight
1,134 kg
Grain Cart Auger Diameter
0.51 m
Flighting Thickness
Thickened-edge UltraFlyte flighting; exact thickness unknown
Hub Size/Spindle Diameter
20-bolt hub; spindle diameter unknown
Hydraulic Remotes Required
3 SCVs
Front/Rear Slopes
32° front and rear slopes
Hopper Length
5.89 m
Hopper Width
3.76 m
Auger Side Reach Max
2.21 m
Grain Cart Overall Transport Length
9.3 m
Additional specifications
Power requirement
210 hp
PTO
1,000 rpm shaft
Track size
36″-wide rubber-tracked undercarriage
Tractor hydraulics requirements
3 SCVs at 2 320 PSI
Total weight - empty
11,291 kg
Hitch weight - empty
1,792 kg
Hitch weight - loaded
2,849 kg
PSI capacity
2,320 kPa
Vertical auger
508 mm
Horizontal auger
355 mm
Gearbox
direct-drive gearbox for vertical auger
Drive belts
belt-drive system
Drive sheaves
Kinze 1050 Single Auger Listings
Looking for Kinze 1050 Single Auger?
See similar listingsCompare Kinze 1050 Single Auger to other single auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Kinze 1050?
No confirmed market price is supplied for the Kinze 1050. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Kinze 1050?
Listed features include 37.4 m³ (48.92 cu yd) heaped capacity, a 36″-wide rubber-tracked undercarriage, 355 mm (14 in) horizontal and 508 mm (20 in) vertical augers, and a direct-drive gearbox for the vertical auger.
What type of engine does the 1050 use?
The supplied information does not confirm an engine type for the Kinze 1050. It lists a tractor power requirement rather than an onboard engine.
How much horsepower does the 1050 have?
The Kinze 1050 has a listed tractor power requirement of 156.6 kW (210 hp). The supplied data does not list horsepower for an onboard engine.
What fuel does the Kinze 1050 use?
The supplied information does not confirm a fuel type for the Kinze 1050. It is specified with tractor power and PTO requirements.
What jobs is this Grain carts best suited for?
As a grain cart, the Kinze 1050 is suited to grain handling and transfer operations. Its listed 37.4 m³ (48.92 cu yd) heaped capacity and auger system support high-volume grain movement.
What is the expected lifespan of the 1050?
The supplied data does not provide an expected lifespan for the Kinze 1050. Inspect overall condition, augers, belts, gearbox, hydraulics, tracks, and hitch components to assess a specific unit.
What should a buyer check when purchasing a used Grain carts?
Check the 36″-wide rubber-tracked undercarriage, augers, belt-drive system, direct-drive gearbox, hitch, PTO shaft, and hydraulic connections. Verify operation of the 3 SCVs at 2 320 PSI requirement and inspect for wear, damage, or leaks.
