John Deere GATOR XUV 835R UTVs
John Deere GATOR XUV 835R
Average price
$29,900
5+
sold in last year
General overview
The John Deere GATOR XUV 835R is a farm utility vehicle for transport and towing around fields and farmyards. Produced in 2023-2024, it uses a 4-cycle gas engine with electronic fuel injection (EFI) rated at 40 kW (54 hp), giving the model a compact but work-oriented power class for utility tasks.
A Continuously Variable Transmission (CVT) with clutch enclosure and a park, high, low, neutral, reverse transaxle supports varied ground conditions. The dash switch actuated four-wheel drive system, limited slip front differential, and positive locking, switch-actuated rear differential lock help manage traction, and descent control supports controlled travel on slopes. Its 454 kg (1,000 lb) capacity and 1,814 kg (4,000 lb) towing capacity define its carrying and pulling range.
Year
2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Height
Width
Length
1,987 mm
~78.2 in
1,763 mm
~69.4 in
3,228 mm
~127.1 in
Engine Power
54 hp
Engine type
4-cycle gas, electronic fuel injection (EFI)
Displacement
cu(m)
Tires front
27x9-R14 Maxxis Bighorn 2.0 extreme terrain radials on alloy wheels; 27x9-R14 Predator Heavy-Duty all-terrain radials on alloy wheels
Transmission type
Continuously Variable Transmission (CVT) with clutch enclosure
Electrical system type
12 V DC outlet
Alternator output
85
Fuel capacity
42 L
Cooling system
5.7 L
Wheelbase
2,146 mm
Drive type
Four-wheel drive
Box length
1,143 mm
Battery Voltage
12
Caster Wheel Type
All-terrain radial
Volume
460 L
Capacity (weight)
454 kg
Towing capacity
1,814 kg
Brakes type
Front/rear hydraulic disc with twin piston front calipers
Park brake
Park in-transmission; optional factory-installed secondary foot-operated with hand release
Drivetrain
Continuously Variable Transmission (CVT) with clutch enclosure
Final drive
Park, high, low, neutral, reverse transaxle
Four wheel drive
Dash switch actuated four-wheel drive system
Traction assist
Limited slip front differential; positive locking, switch-actuated rear differential lock
Descent control
Yes
Cab Height
305 mm
Final Drive
Park, high, low, neutral, reverse transaxle
Boom Width
1,320 mm
Rakes Wheel tread
27 mm
Cargo box dimensions
1,143 x 305 x 1,320
Cargo box capacity (weight)
454 kg
Front suspension
Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear suspension
Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Additional specifications
Color
Green and yellow; TrueTimber KANATI camo; olive and black

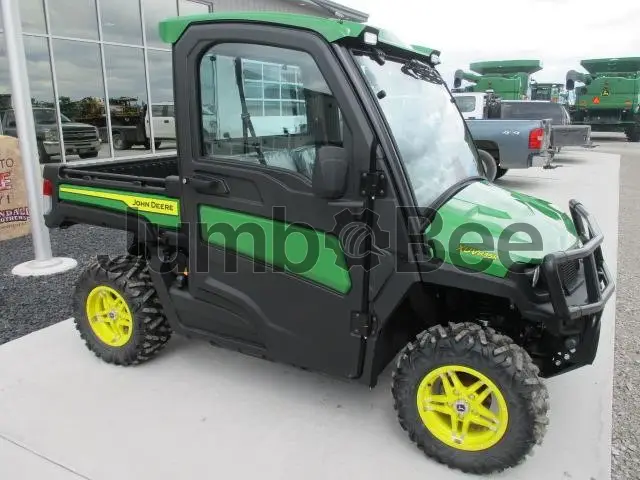

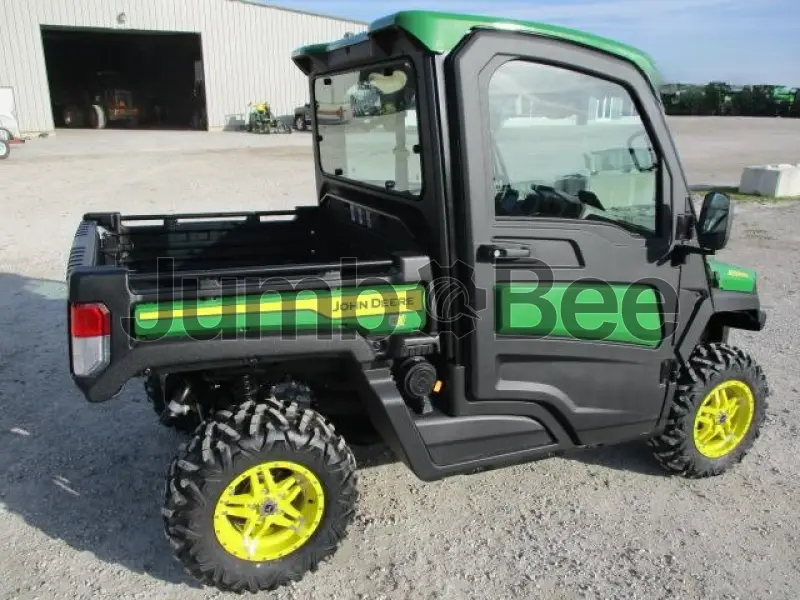

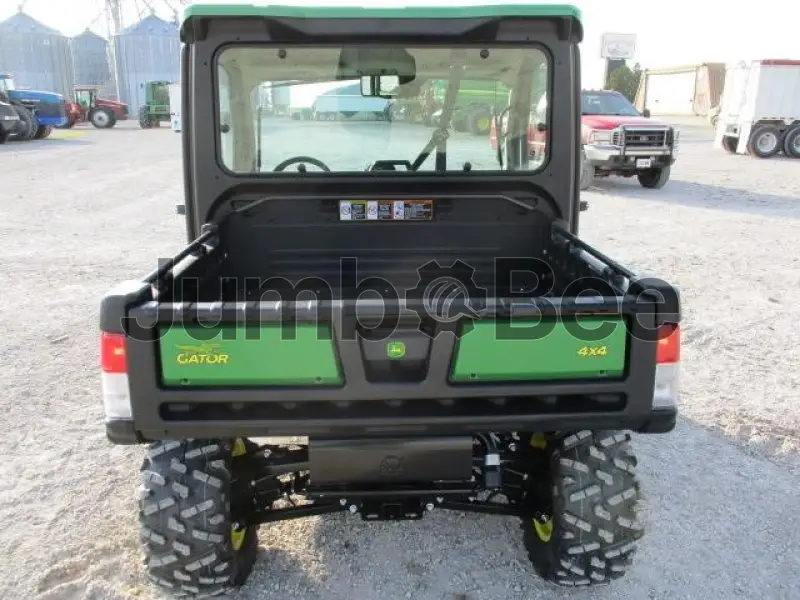

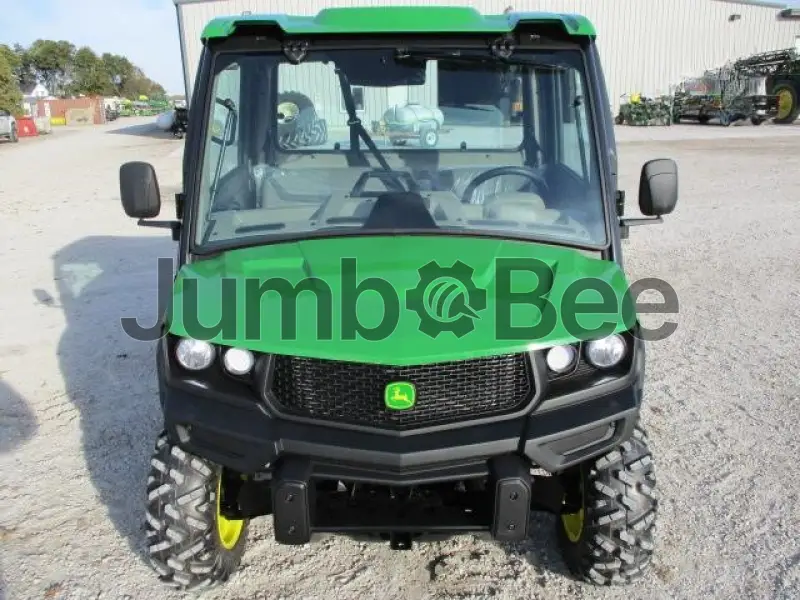

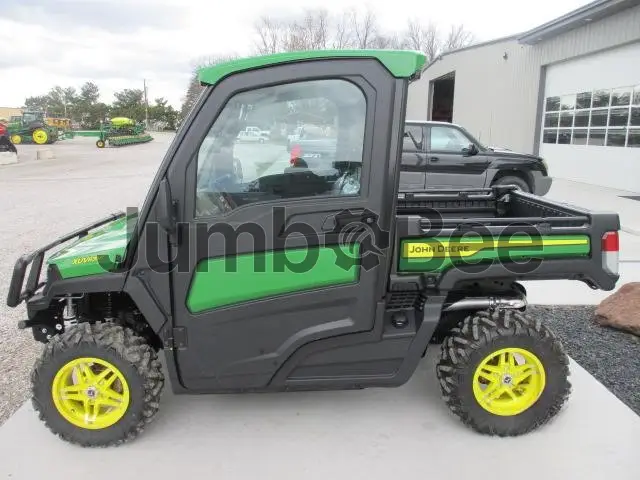

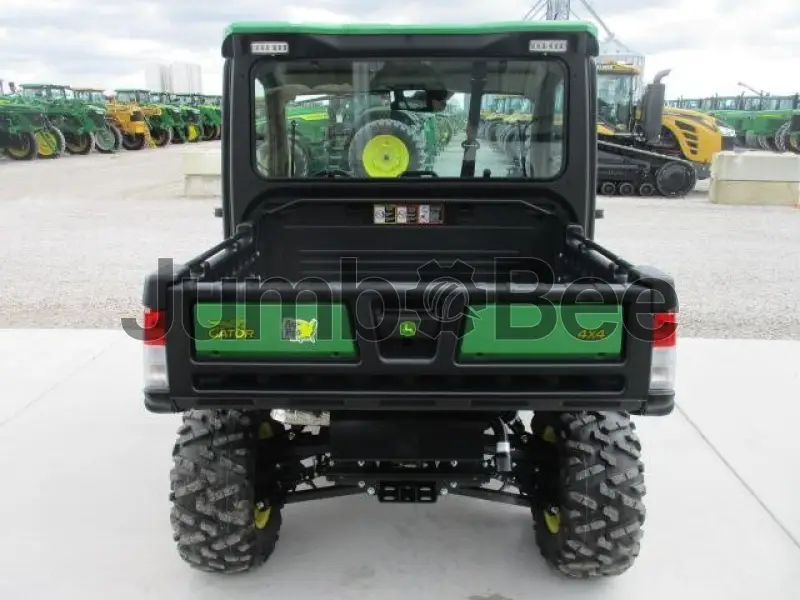

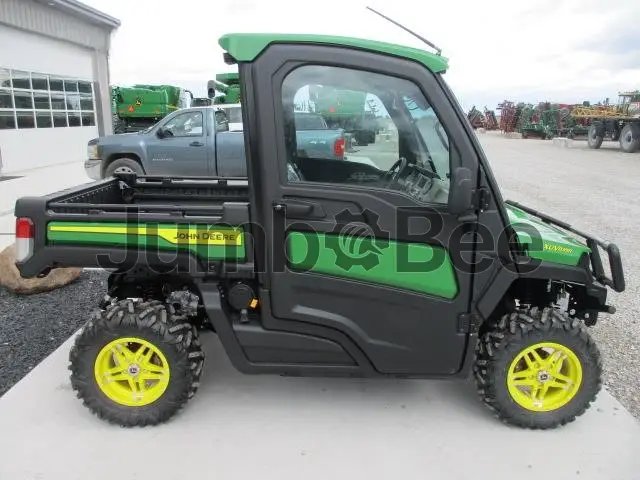

John Deere GATOR XUV 835R UTVs Listings
$29,900
54 hp
4-cycle gas, electronic fuel injection (EFI)
460 L
Holgate, United States
$29,900
Park, high, low, neutral, reverse transaxle
4-cycle gas, electronic fuel injection (EFI)
460 L
Holgate, United States
Compare John Deere GATOR XUV 835R UTV to other utvs
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere GATOR XUV 835R?
No confirmed market price is supplied. Check current listings and compare condition, location, and configuration.
What are the key advantages of the John Deere GATOR XUV 835R?
Listed features include four-wheel drive, a Continuously Variable Transmission (CVT) with clutch enclosure, descent control, hydraulic disc brakes, and differential-lock traction assist. It also has a 1,814 kg (3,999 lb) towing capacity and a 454 kg (1,001 lb) weight capacity.
What type of engine does the GATOR XUV 835R use?
The GATOR XUV 835R uses a 4-cycle gas engine with electronic fuel injection (EFI).
How much horsepower does the GATOR XUV 835R have?
The GATOR XUV 835R has 40.3 kW (54 hp) of engine power.
What fuel does the John Deere GATOR XUV 835R use?
It uses gas. The listed fuel capacity is 42 L (11.1 US gal).
What jobs is this ATVs and Gators best suited for?
The supplied specifications do not confirm specific intended jobs. Its listed four-wheel drive, traction assist, towing capacity, and weight capacity may be relevant when evaluating it for property, farm, or worksite transport tasks.
What is the expected lifespan of the GATOR XUV 835R?
The supplied data does not provide an expected lifespan. Evaluate service records, engine condition, drivetrain operation, brakes, tires, battery, and signs of damage or corrosion.
What should a buyer check when purchasing a used ATVs and Gators?
Check service records, engine starting and operation, CVT and transaxle function, four-wheel drive and differential-lock operation, brakes, tires, battery, fuel system, towing equipment, cargo area, and overall condition. Inspect for leaks, corrosion, damage, and excessive wear.
