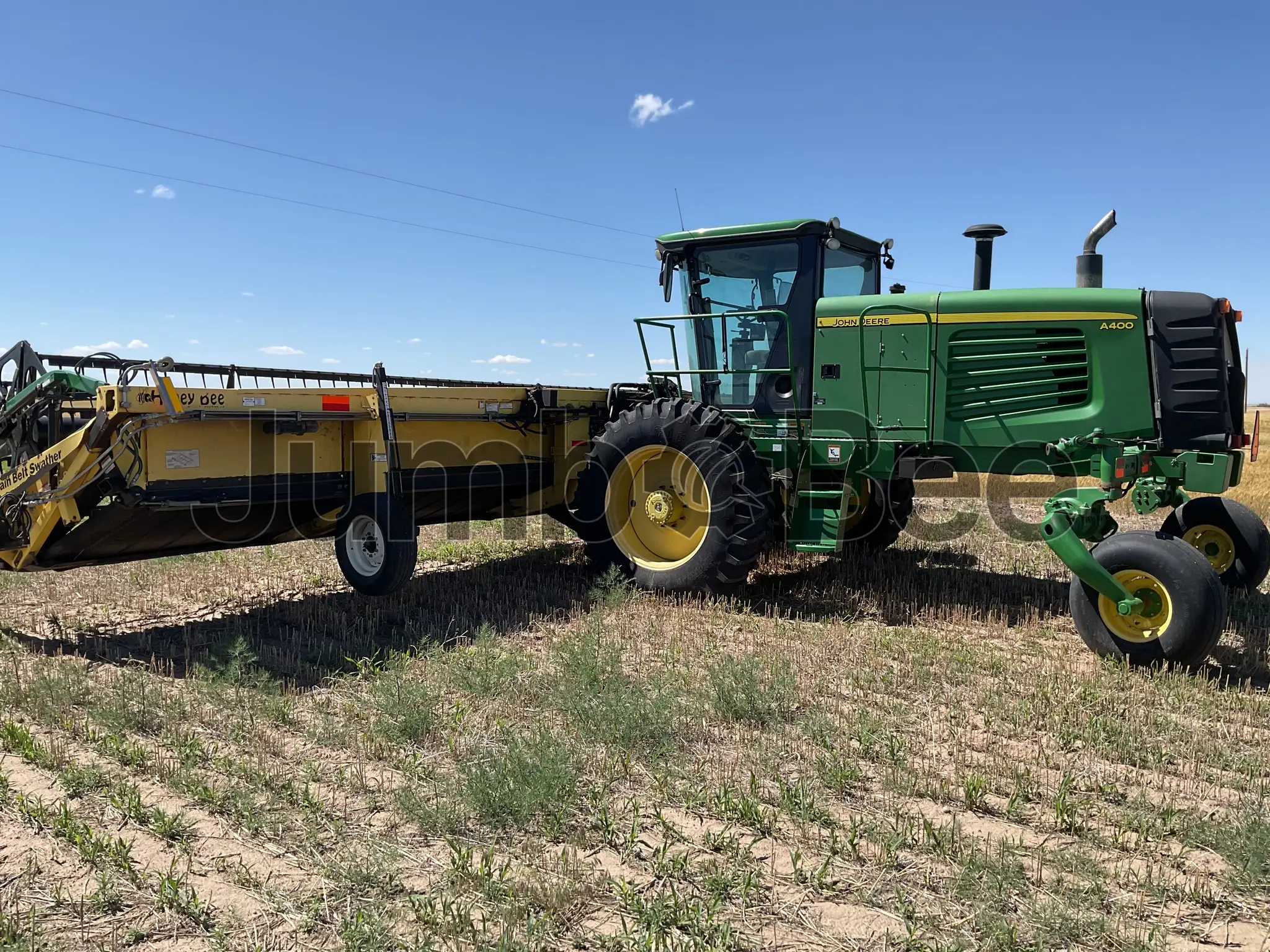

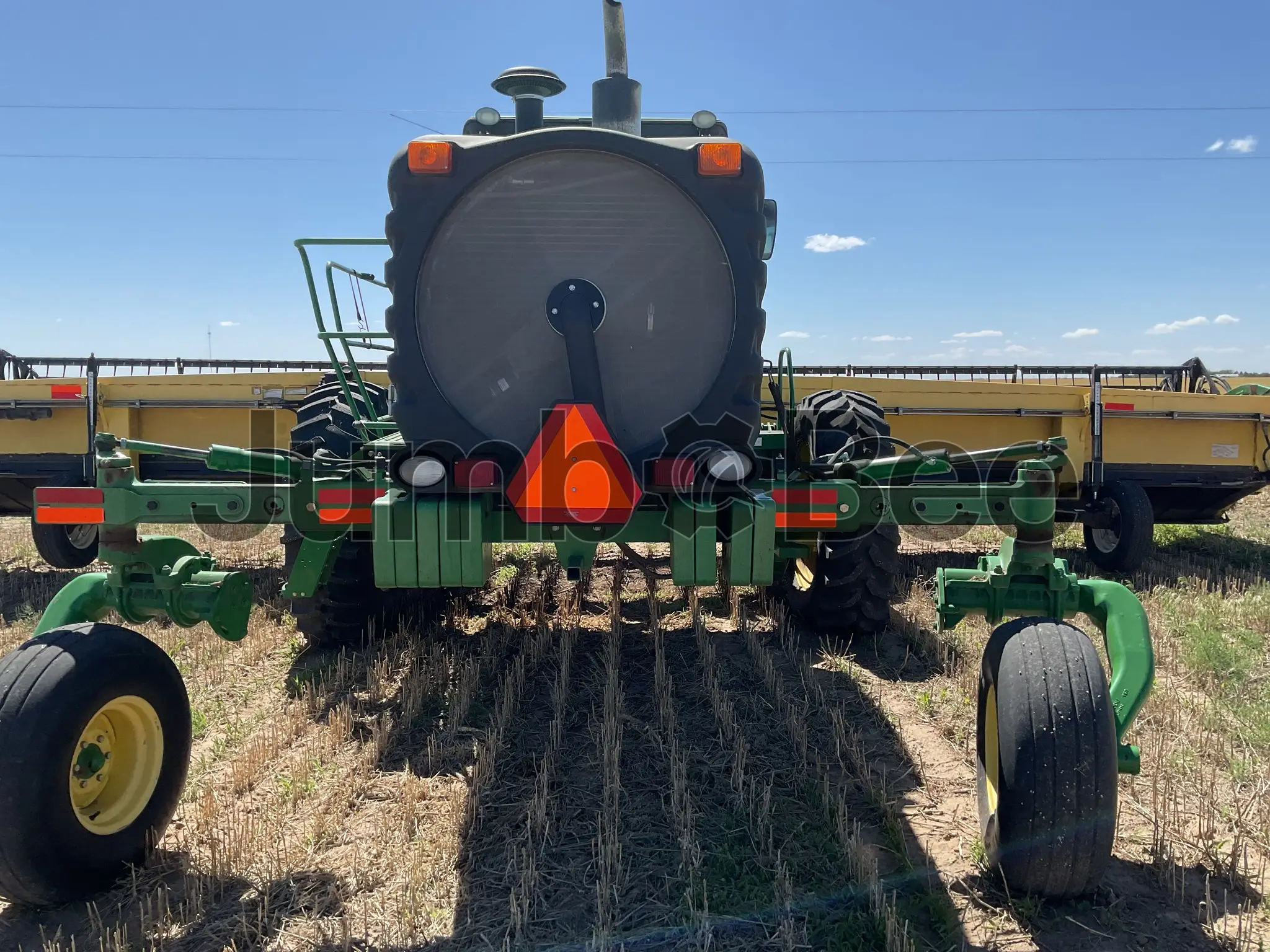

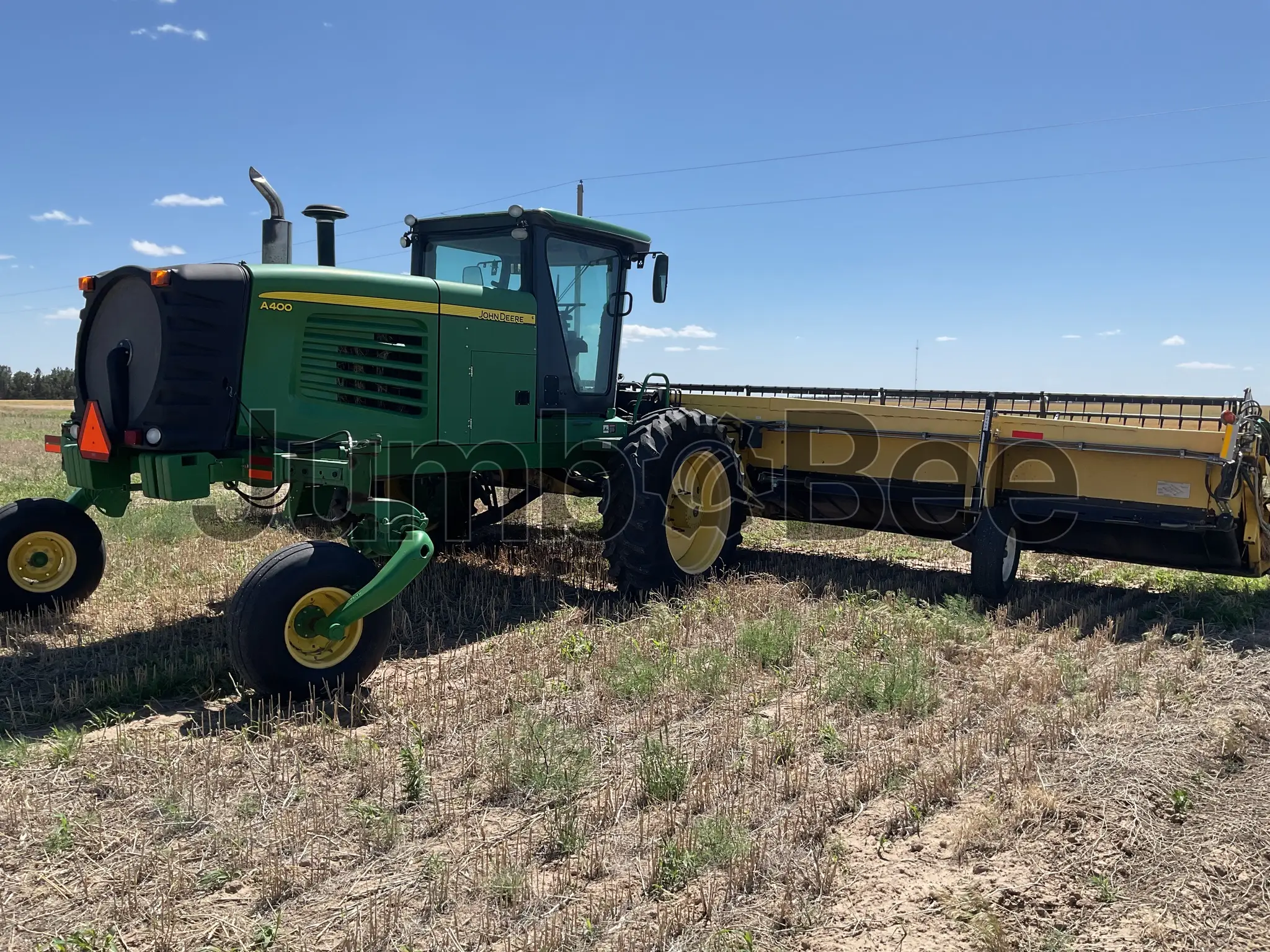

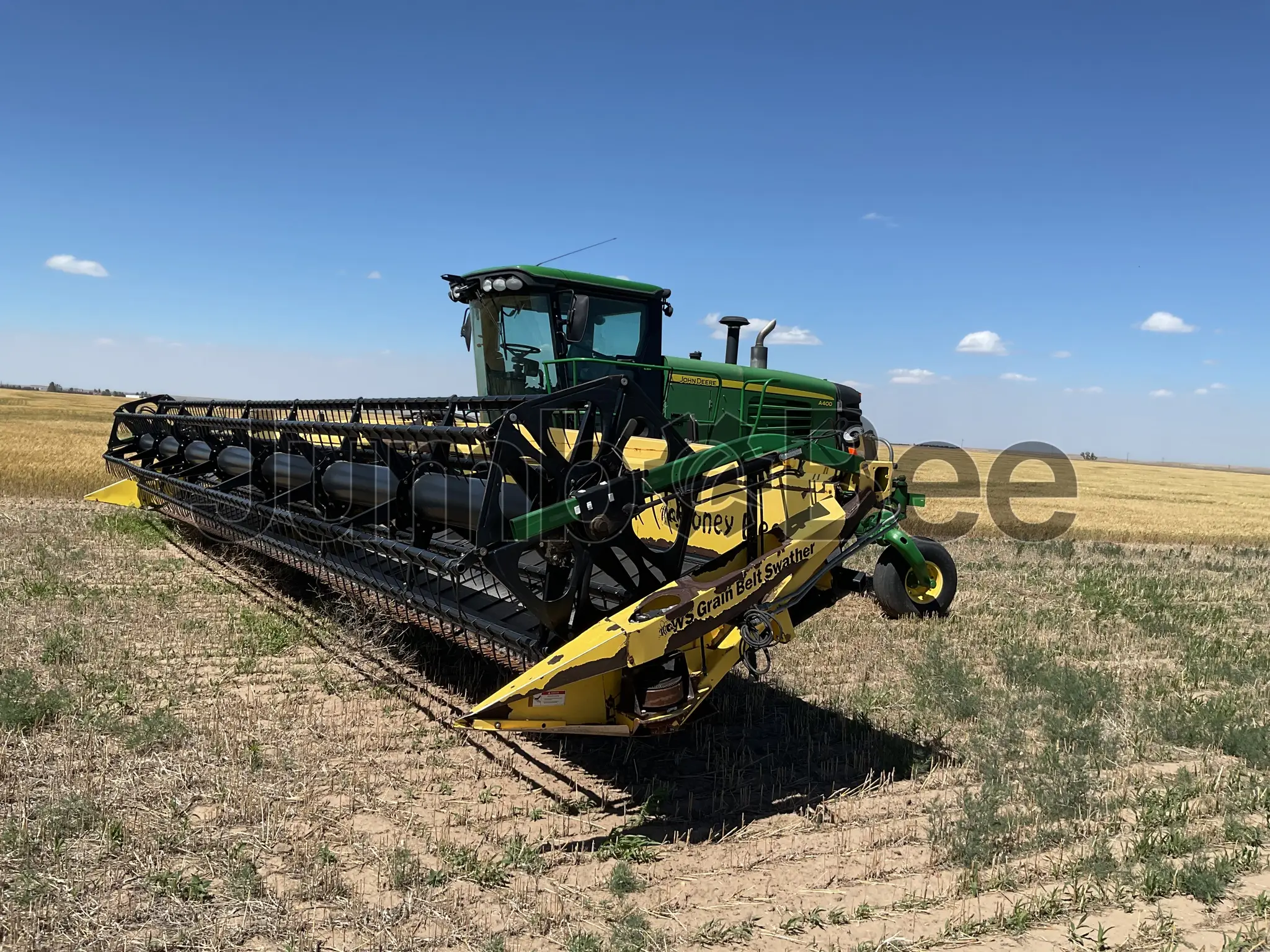

John Deere A400 Self-Propelled Windrowers
John Deere A400
5+
sold in last yearGeneral overview
John Deere A400 is a windrower designed for field harvest operations where crops are cut and laid into windrows for later pickup or drying. It is powered by a diesel engine rated at 92 kW (125 hp) with 4.5 L (275 cu in) displacement and meets Tier 3 emission standard level.
This model is set up for header-driven crop harvesting, with Sicklebar (Auger) Headers: Yes, all widths and Draper Headers: Yes, Honey Bee. A Hydraulic Header Reverser is listed for 896 Auger only. Travel speeds are 25.7 km/h (16 mph) in Range 1 and 33.8 km/h (21 mph) in Range 2, supporting movement between field areas within a harvesting cycle.
Year
2009, 2010, 2011, 2012, 2013
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
3,800 mm
~149.6 in
3,175 mm
~125 in
5,588 mm
~220 in
10,650 kg
~23,479.3 lb
Engine Power
125 hp
Additional specifications
Emission standard level
Tier 3
Engine type
Diesel
Displacement
275 cu(in)
Fuel tank
125 L
Sicklebar (Auger) Headers
Yes, all widths
Draper Headers
Yes, Honey Bee
Rotary Disc Headers
Hydraulic Header Reverser
896 Auger only
Range 1
25.7 km/h
Range 2
33.8 km/h
Drive wheels (standard)
480/80 R38
Caster wheels (standard)
14L-16.1, 8PR
Alternator output
120 Amps
Length w/o header
5,588 mm
Height to top of cab
3,175 mm
Track width (drive end)
3,800 mm
Wheelbase
3,683 mm
Crop clearance
1,067 mm
Weight, w/o header
10.65 kg
John Deere A400 Self-Propelled Windrowers Listings
Looking for John Deere A400 Self-Propelled Windrowers?
See similar listingsCompare John Deere A400 Self-Propelled Windrower to other self-propelled windrowers
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere A400 Self-Propelled Windrower
125 hp
10650 kg
5588 mm × 3800 mm × 3175 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere A400?
No confirmed market price is supplied for the John Deere A400. Check current listings and compare machine condition, location, hours, header configuration, and maintenance history.
What are the key advantages of the John Deere A400?
Listed features include 93.2 kW (125 hp) diesel power, support for sicklebar (auger) headers in all widths, compatibility with Honey Bee draper headers, and travel ranges of 25.7 km/h (16 mph) and 33.8 km/h (21 mph). A hydraulic header reverser is listed for the 896 Auger only.
What type of engine does the A400 use?
The John Deere A400 uses a Tier 3 diesel engine with 275 cu in displacement.
How much horsepower does the A400 have?
The John Deere A400 is rated at 93.2 kW (125 hp).
What fuel does the John Deere A400 use?
The John Deere A400 uses diesel fuel. Its fuel tank capacity is 125 L (33 US gal).
What jobs is this Windrowers best suited for?
The supplied information confirms that the A400 can use sicklebar (auger) headers in all widths and Honey Bee draper headers. It does not specify particular crops or job applications, so suitability should be confirmed against the intended header and operating requirements.
What is the expected lifespan of the A400?
The supplied data does not provide an expected service life for the A400. For a used machine, assess maintenance records, engine condition, hydraulic performance, drivetrain operation, and header compatibility.
What should a buyer check when purchasing a used Windrowers?
Inspect the engine, hydraulic system, drivetrain, tires, caster wheels, cab, and electrical system. Verify header compatibility and operation, including the hydraulic header reverser if an 896 Auger header is fitted. Review service records and test both travel ranges.
