John Deere 9620 Articulated 4WD Tractors
John Deere 9620
Average price
$114,593.33
5+
sold in last year
General overview
John Deere 9620 is a wheeled farm tractor produced in the United States from 2004 to 2006. It is powered by a diesel engine with 12.5 L displacement and an engine output of 368 kW (500 hp), placing it in a high-power class for field tractor work.
The model uses an 18-speed full power shift transmission, an independent rear PTO at 1,000 rpm, and a Category 3 rear 3-point hitch. PTO output is listed at 232 kW (316 hp) rated and 277 kW (376.7 hp) maximum, while the closed center pressure/flow compensated hydraulic system provides 113.6 L/min (30 gpm) pump output and a maximum lift capacity behind the lift points of 6,291 kg (13,870 lb).
Year
2004, 2005, 2006
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
Weight
6,950 mm
~273.6 in
3,490 mm
~137.4 in
2,930 mm
~115.4 in
17,735 kg
~39,099 lb
Tire or Track Type
wheels
Engine Power
500 hp
Additional specifications
Engine type
diesel
Displacement
12,5 cu(m)
Maximum PTO power
376,7 hp
Rated PTO power
316 hp
Transmission type
18-speed full power shift
Maximum lift capacity behind lift points
6,291 kg
Fuel tank
1,022 L
Hydraulic system type
closed center pressure/flow compensated
Pump rated output
113,6 L/min
Hitch type
3
Rear PTO
independent
Rear 3-Point Hitch
III
Tire width
800 mm
Tire type
Ag
PTO speed
1,000

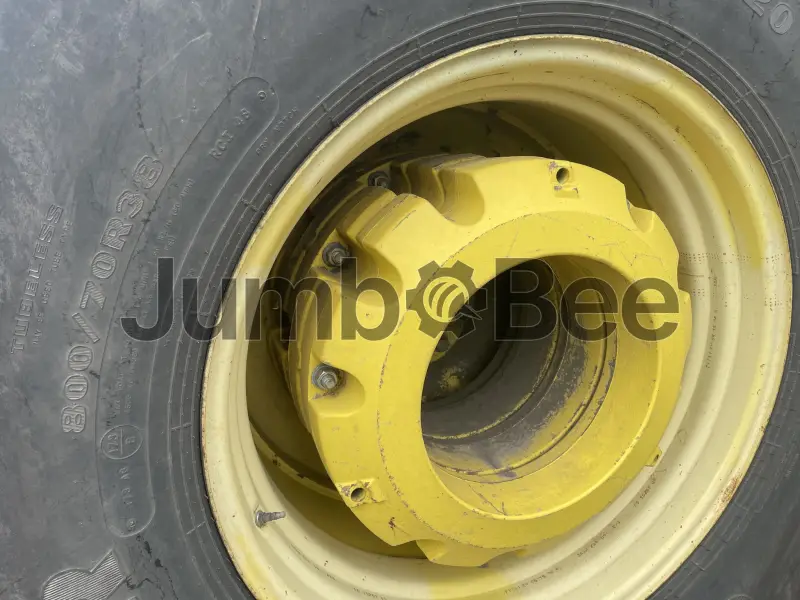

Tire Size
800/70R38
John Deere 9620 Articulated 4WD Tractors Listings
$119,170
500 hp
376,7 hp
3
7137 hours
Aberdeen, United States
$89,500
Wheels
500 hp
Diesel
8200 hours
Holland, United States
$135,110
316 hp
113,6 L/min
1022 L
5750 hours
Thief River Falls, United States
Compare John Deere 9620 Articulated 4WD Tractor to other articulated 4wd tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 9620 Articulated 4WD Tractor
wheels
17735 kg
6950 mm × 2930 mm × 3490 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 9620?
No confirmed market price is supplied for the John Deere 9620. Check current listings and compare condition, location, and configuration.
What are the key advantages of the John Deere 9620?
Listed features include a diesel engine rated at 372.9 kW (500 hp), an 18-speed full power shift transmission, independent rear PTO, closed center pressure/flow compensated hydraulics, and a maximum lift capacity behind lift points of 6,291 kg (13,869 lb).
What type of engine does the 9620 use?
The 9620 uses a diesel engine.
How much horsepower does the 9620 have?
The 9620 has an engine power rating of 372.9 kW (500 hp).
What fuel does the John Deere 9620 use?
The John Deere 9620 uses diesel fuel.
What jobs is this Tractors best suited for?
The supplied specifications support use with PTO- and hydraulically powered implements, as well as mounted equipment requiring substantial hitch lift capacity. Exact suitability for a particular job depends on the implement, field conditions, and tractor configuration.
What is the expected lifespan of the 9620?
The supplied data does not provide an expected service life for the 9620. For a used tractor, assess maintenance records, engine condition, transmission operation, hydraulic performance, PTO function, and hitch wear.
What should a buyer check when purchasing a used Tractors?
Check maintenance records; inspect the diesel engine, 18-speed full power shift transmission, hydraulic system, rear PTO, three-point hitch, tires, and signs of leaks or structural wear. Confirm that controls and implements operate correctly during inspection.
