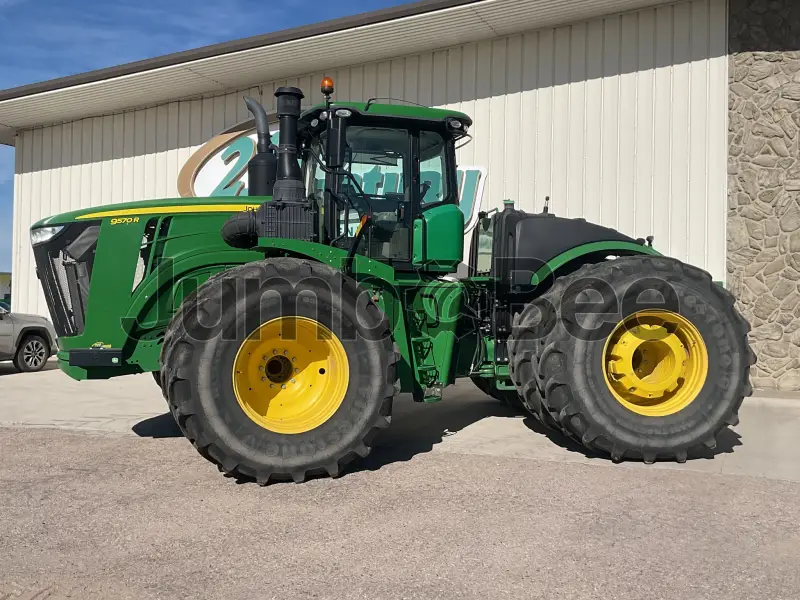

John Deere 9570R Articulated 4WD Tractors
John Deere 9570R
Average price
$326,753.33
5+
sold in last year
General overview

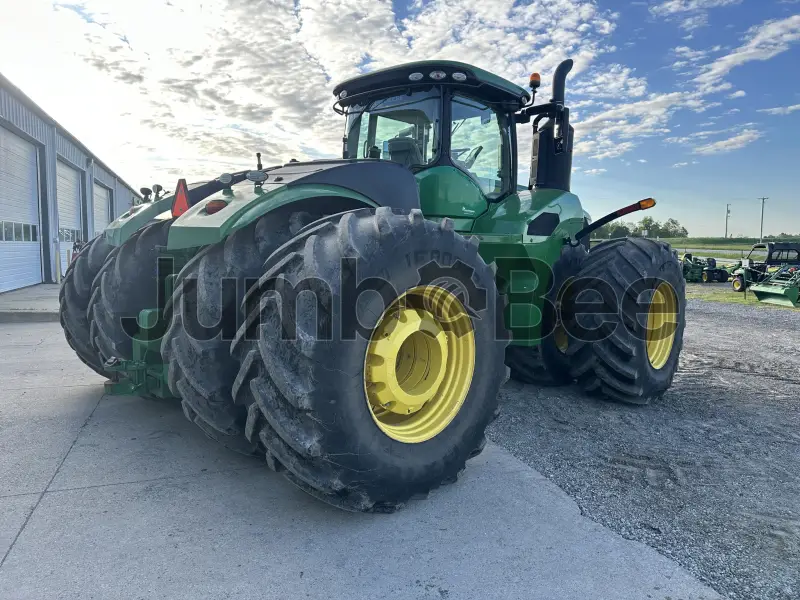

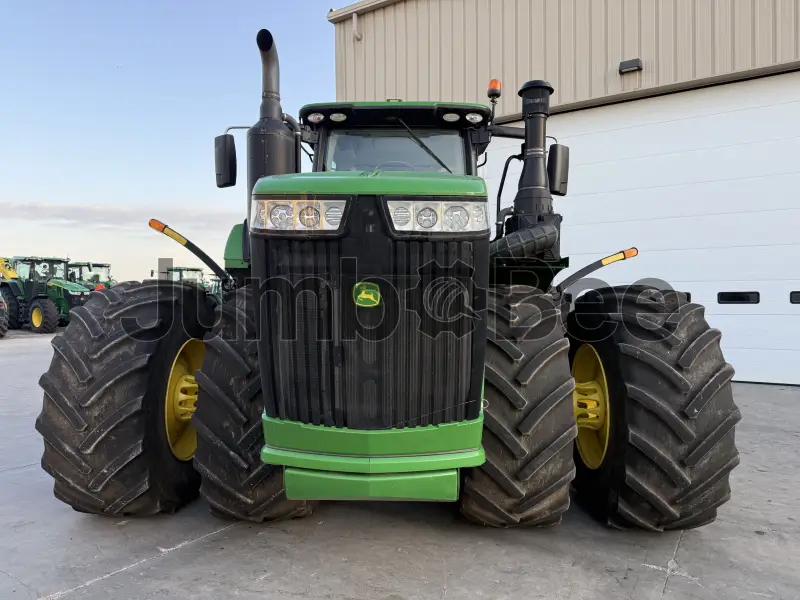

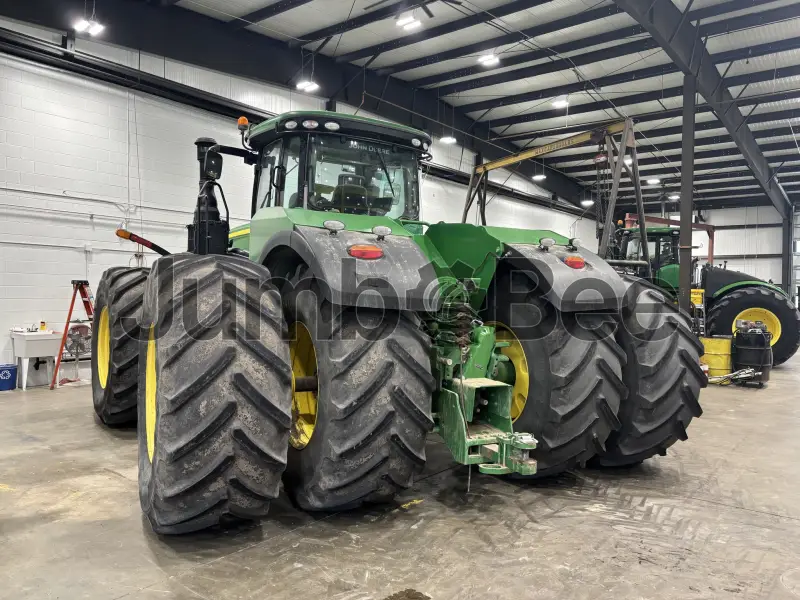

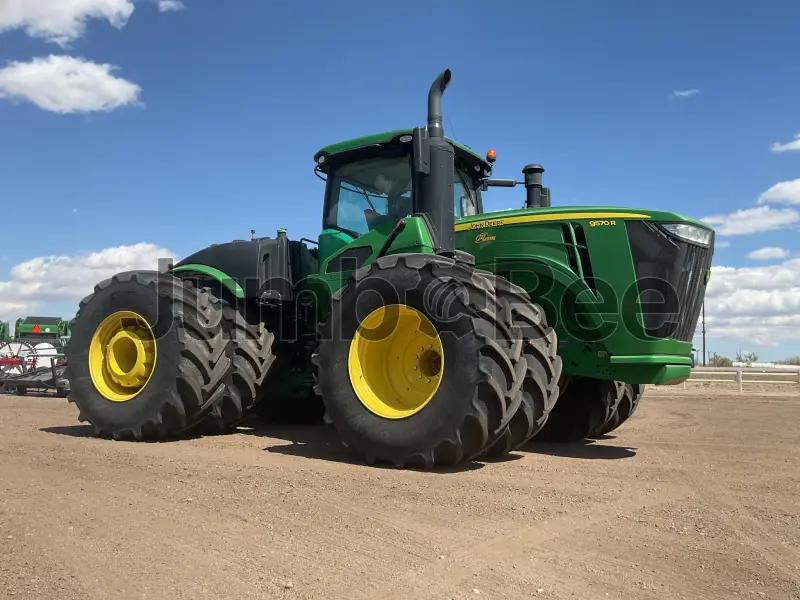

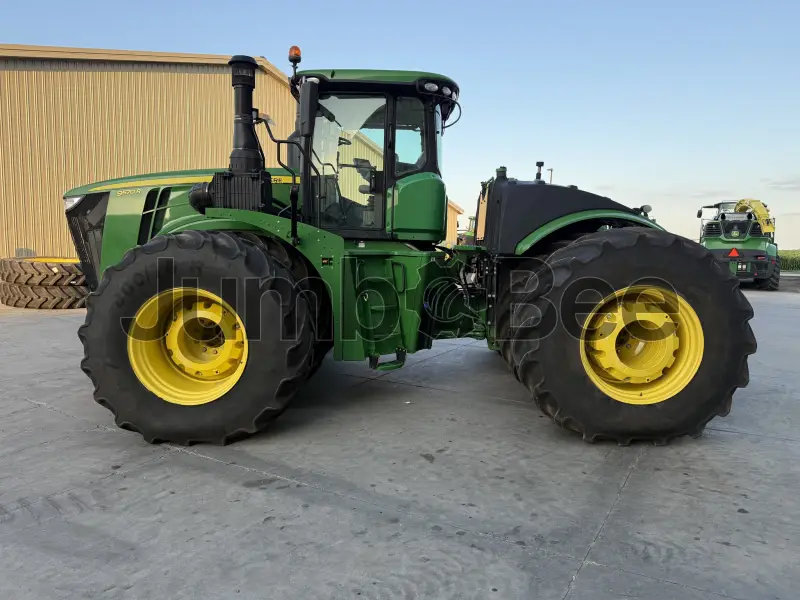

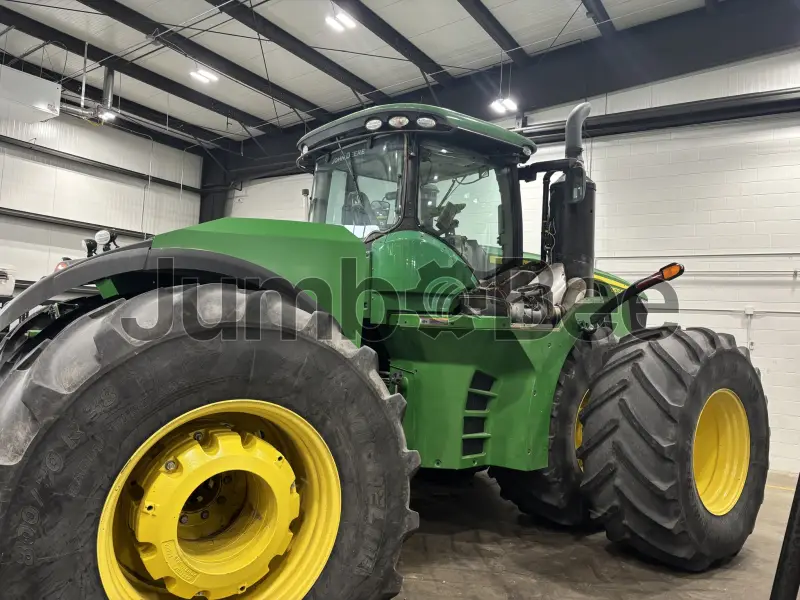

John Deere 9570R is a wheeled tractor built in the United States for large-scale farm operations that require high drawbar and PTO power. It is powered by a diesel engine rated at 419 kW (570 hp) with 14.9 L (912 cu in) displacement and meets Tier IV emission standard level.
The model uses a full power shift transmission and delivers a rated PTO power of 246 kW (335 hp). Its rear hitch is Cat-IV/IVN with a maximum lift capacity behind lift points of 6,804 kg (15,000 lb). A closed-center pressure/flow compensated hydraulic system, 219.5 L/min (58 gpm) pump output, electronic SCV control, and electrohydraulic draft sensing support heavy implement operation. These features suit demanding fieldwork.
Year
2015, 2016, 2017, 2018, 2019, 2020, 2021
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
4,900 mm
~192.9 in
3,680 mm
~144.9 in
8,110 mm
~319.3 in
19,754 kg
~43,550.2 lb
Tire or Track Type
Wheels
Engine Power
570 hp
Additional specifications
Emission standard level
Tier IV
Engine type
Diesel
Displacement
912 cu(in)
Tires front
800/70 R38
Rated PTO power
335 hp
Speeds
2,100 rpm
Transmission type
Full power shift

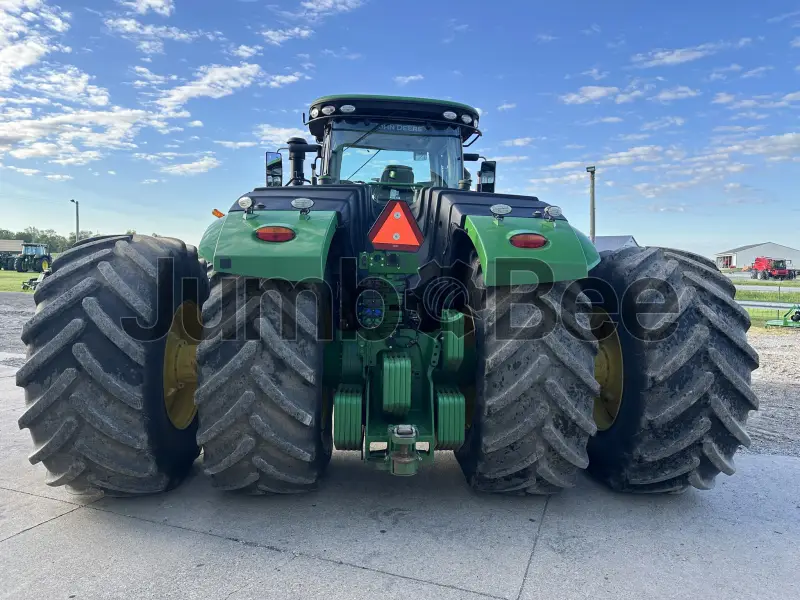

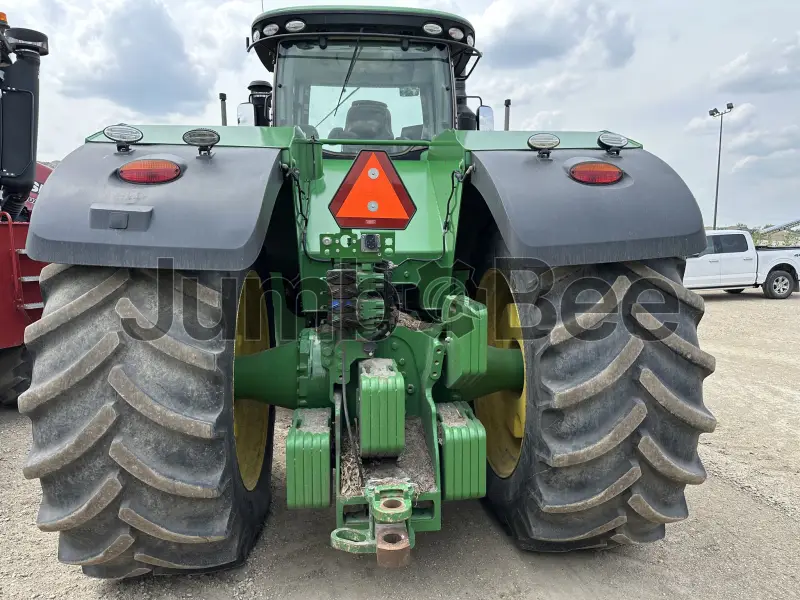

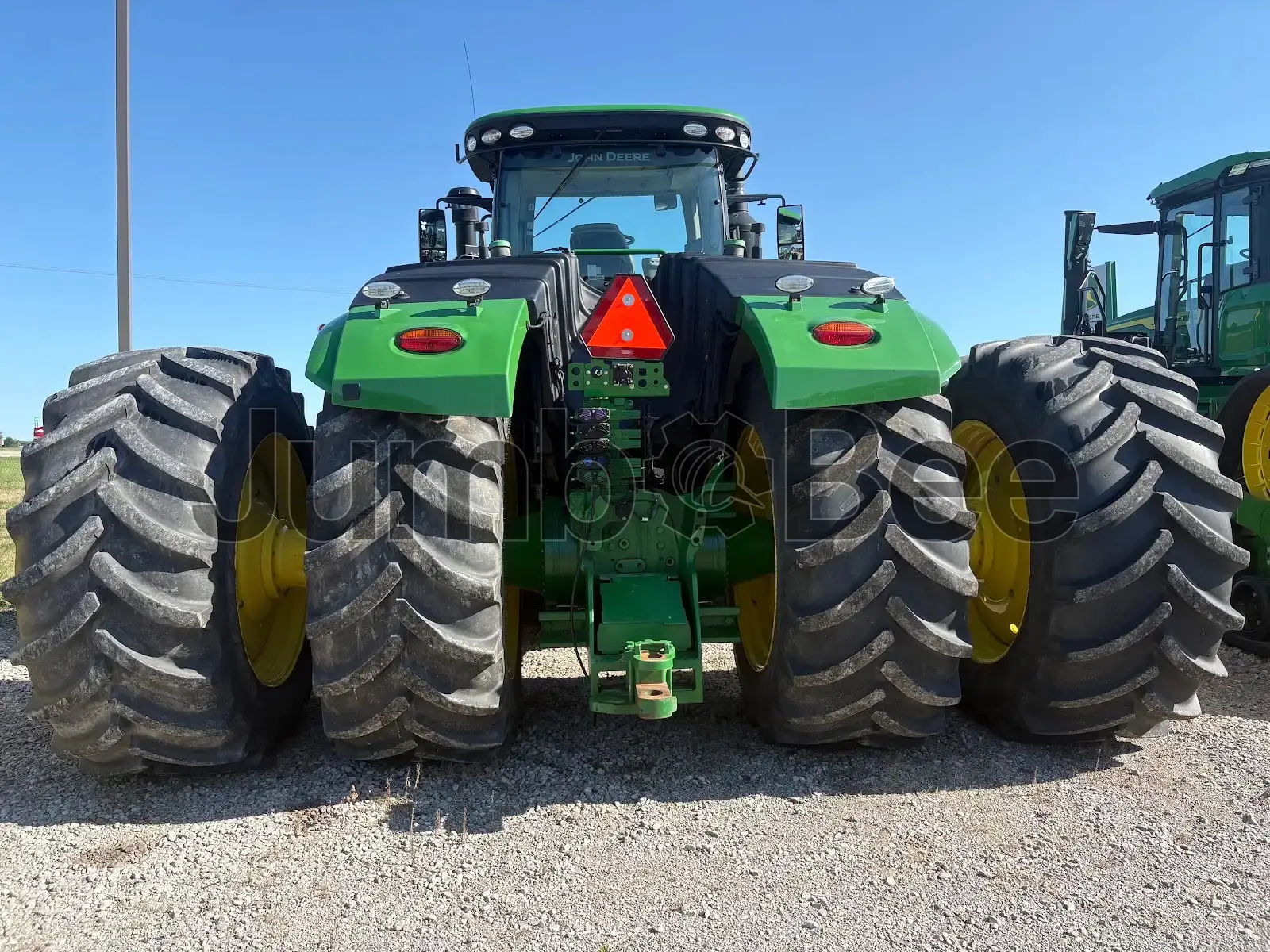

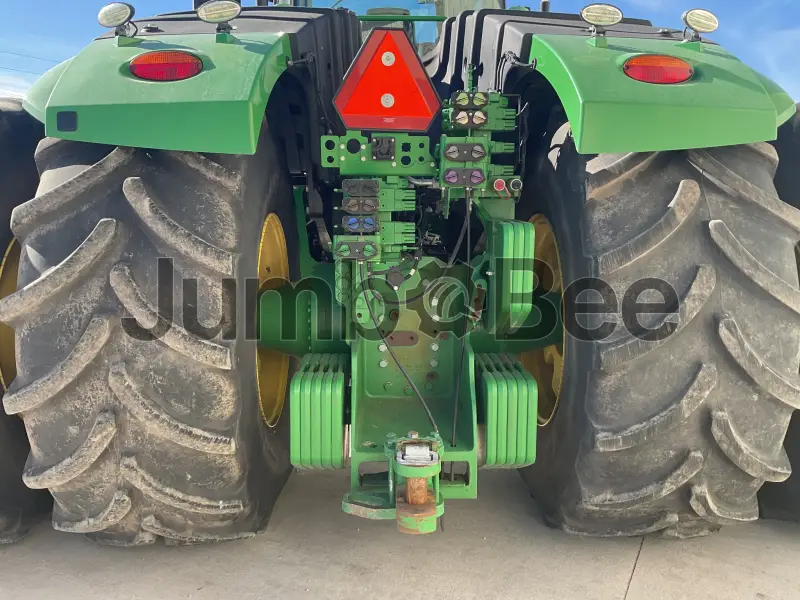

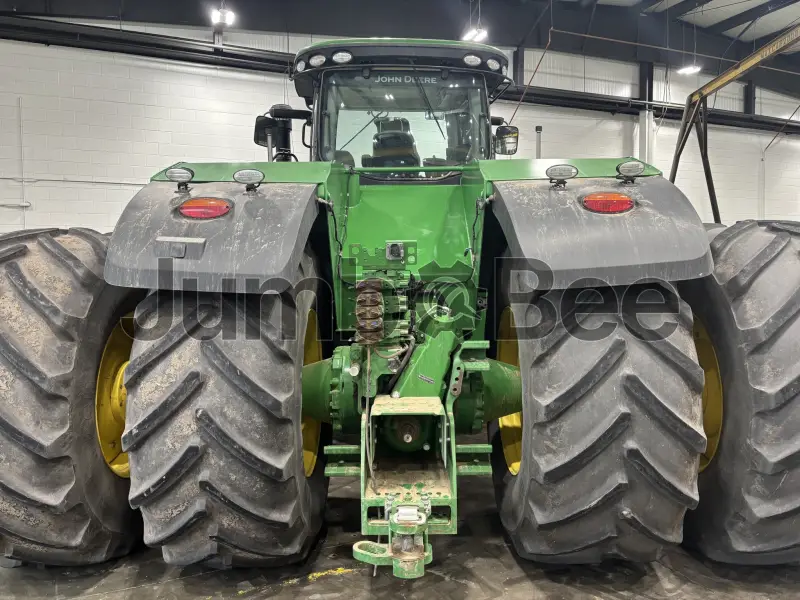

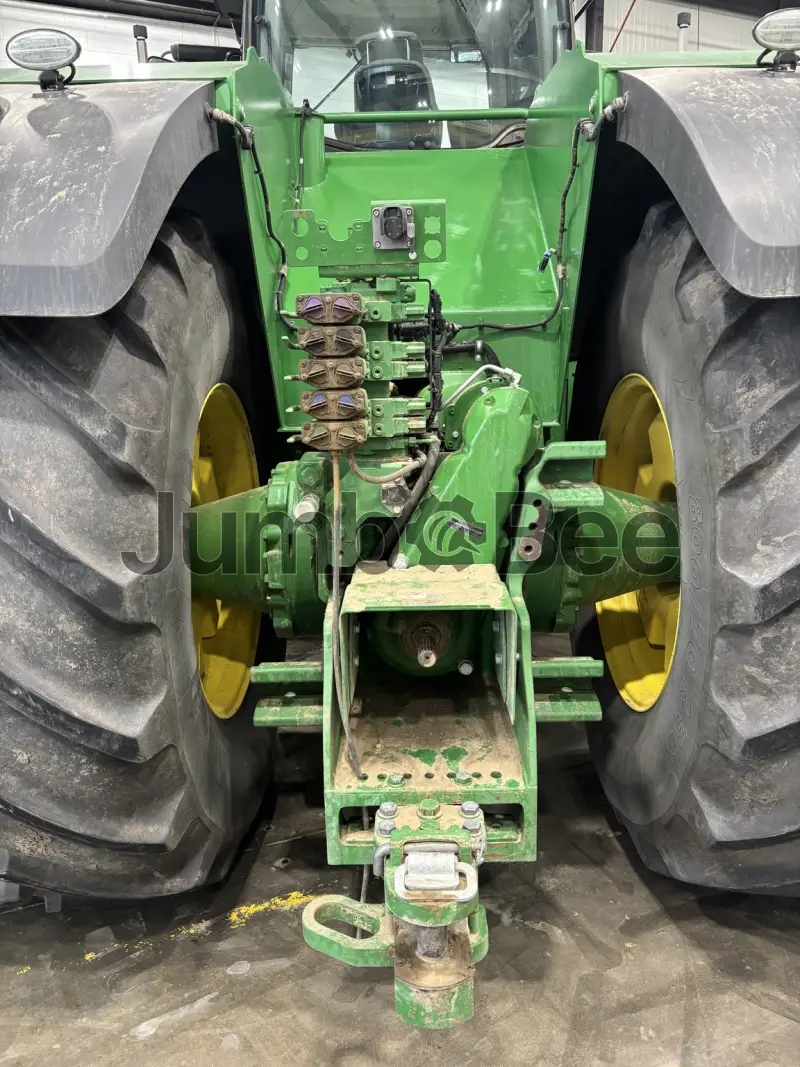

Rear hitch category (SAE designation)
Cat-IV/IVN
Maximum lift capacity behind lift points
6,804 kg
Fuel tank
1,514 L
Cab glass area
6.52 sq(m)
Hydraulic system type
Closed-center pressure/flow compensated
Pump rated output
219.5 L/min
Number of rear selective control valves
4 to 8
SCV control
Electronic
Sensing type
Electrohydraulic with draft sensing
Tires rear
800/70 R38
Transmission Speeds

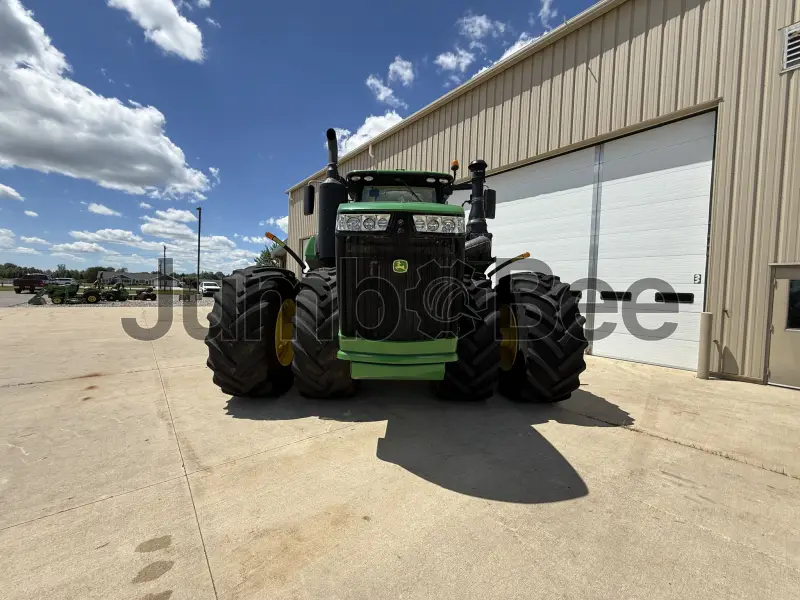

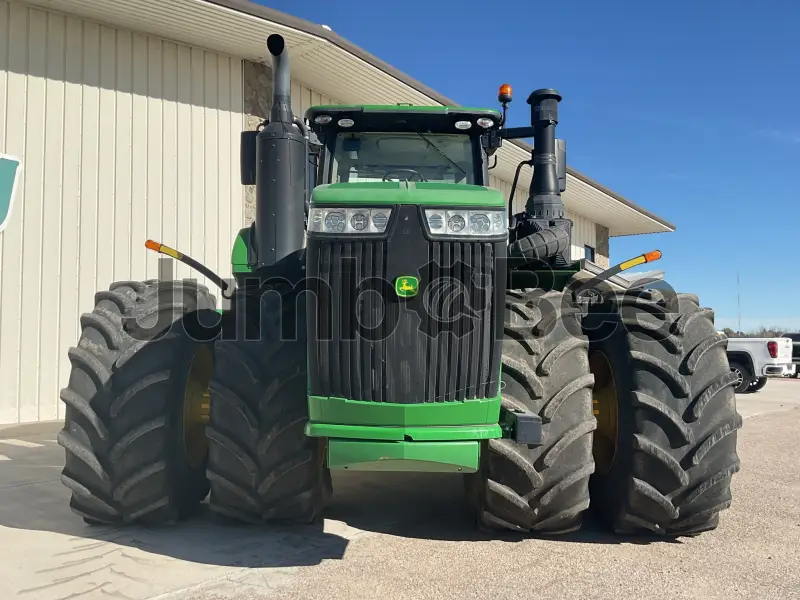

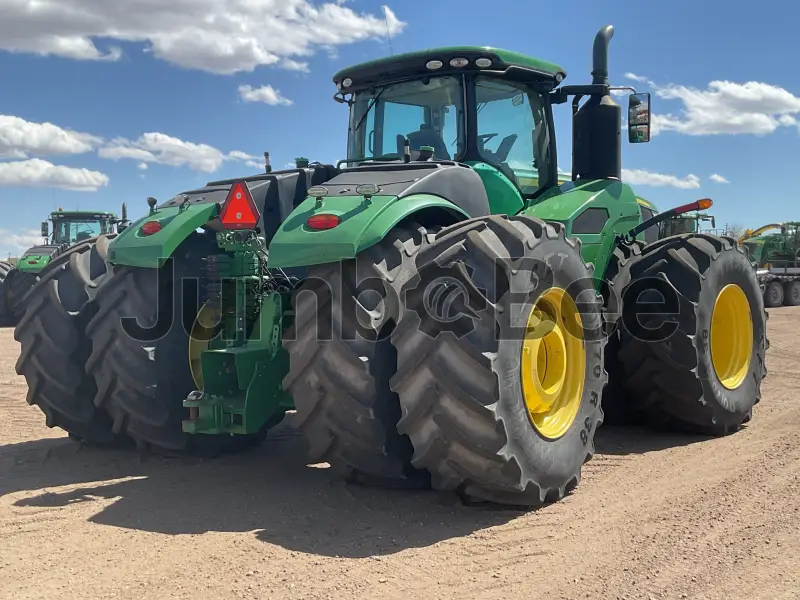

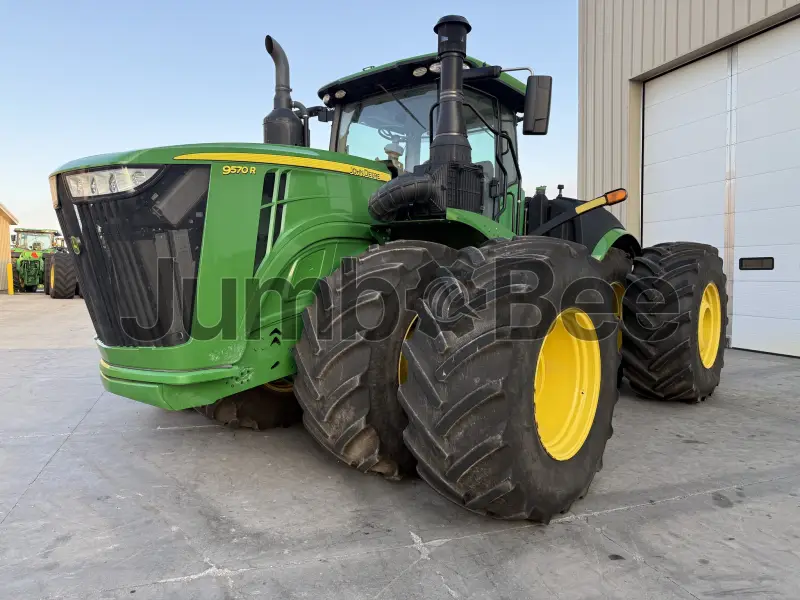

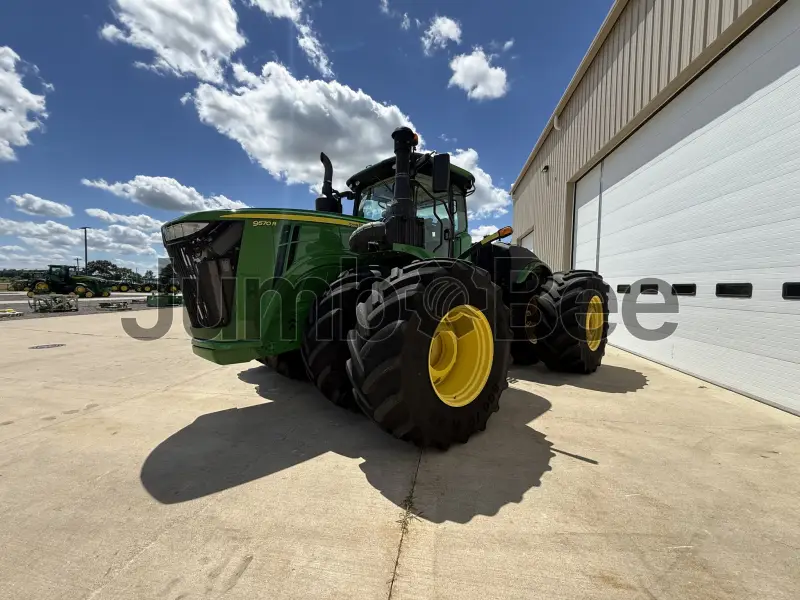

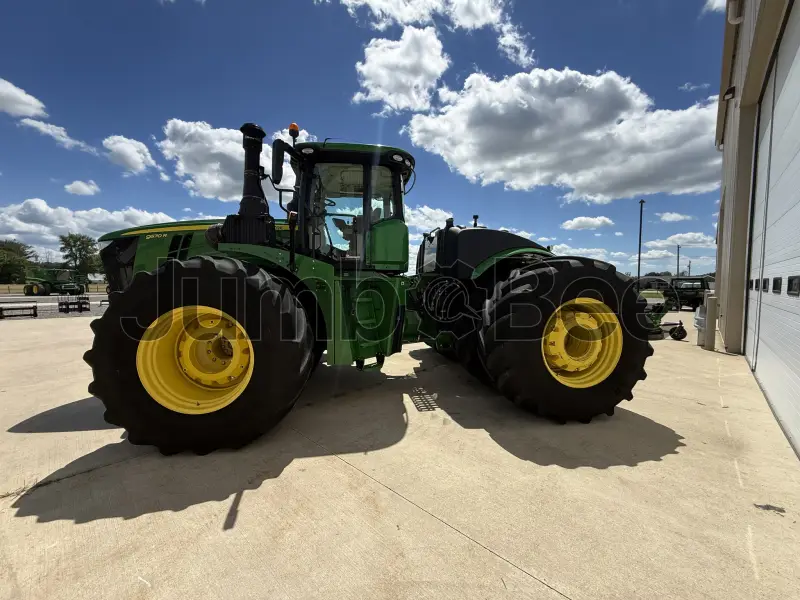

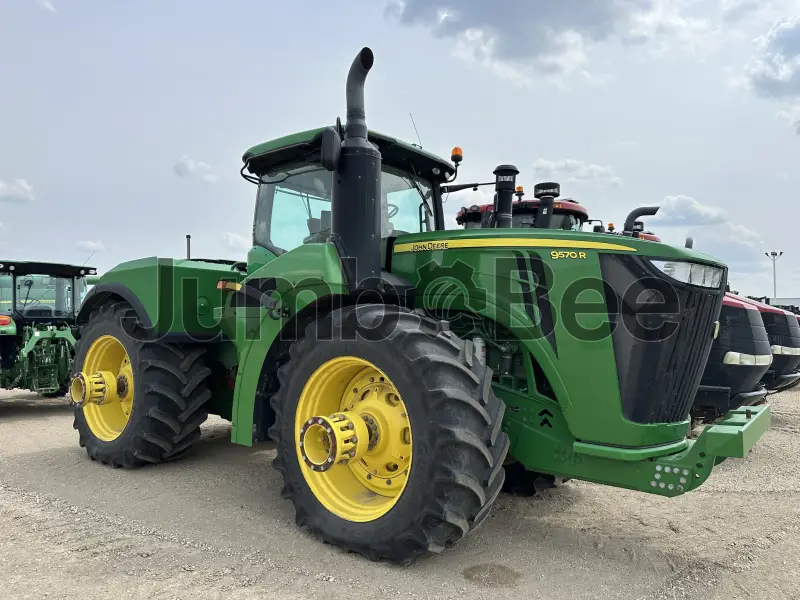

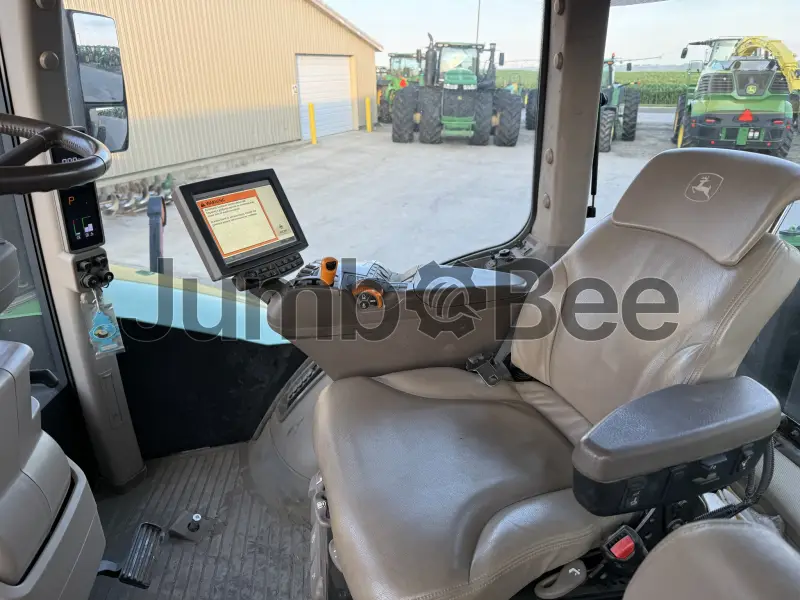

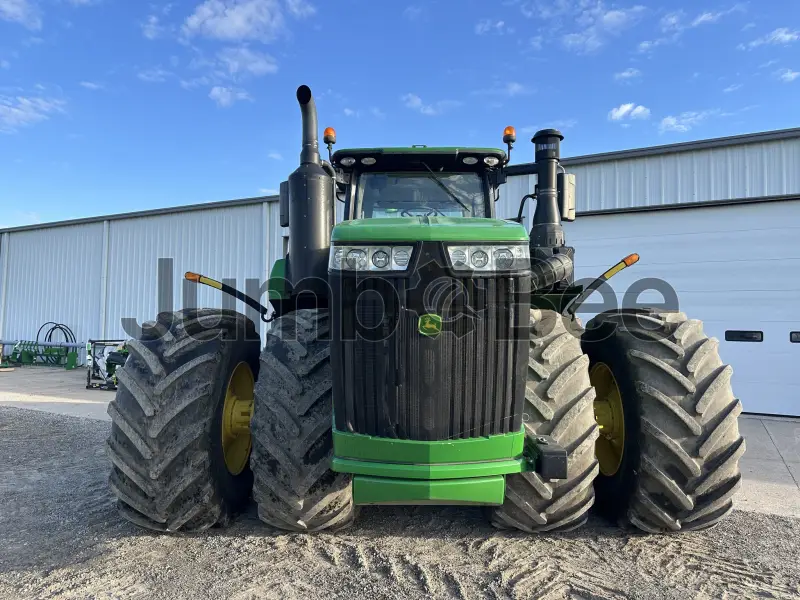

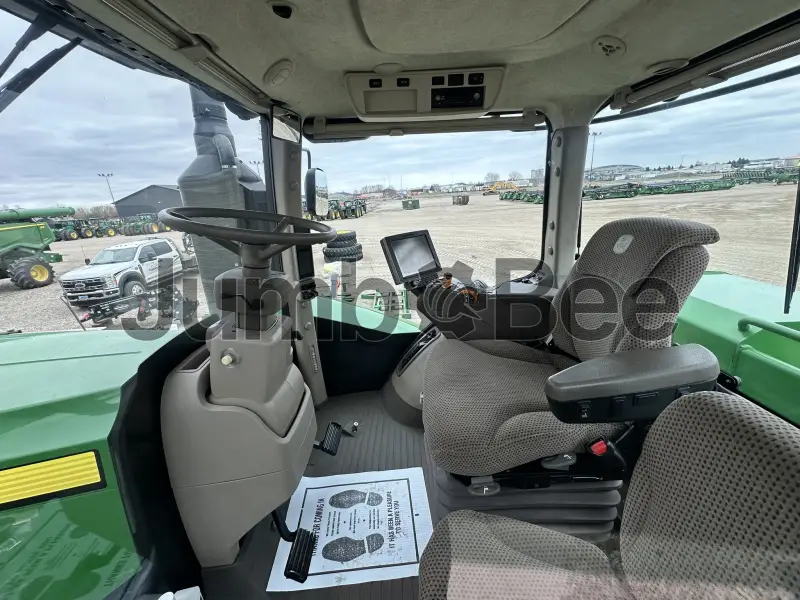

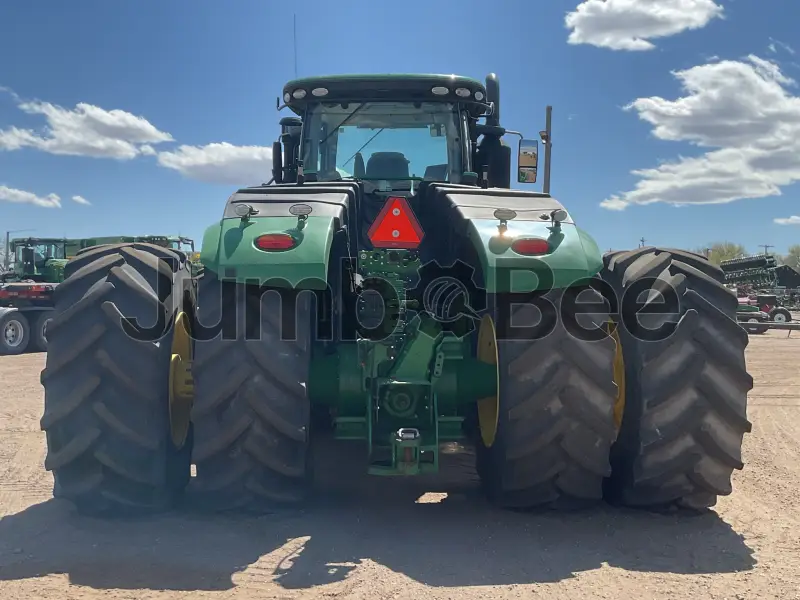

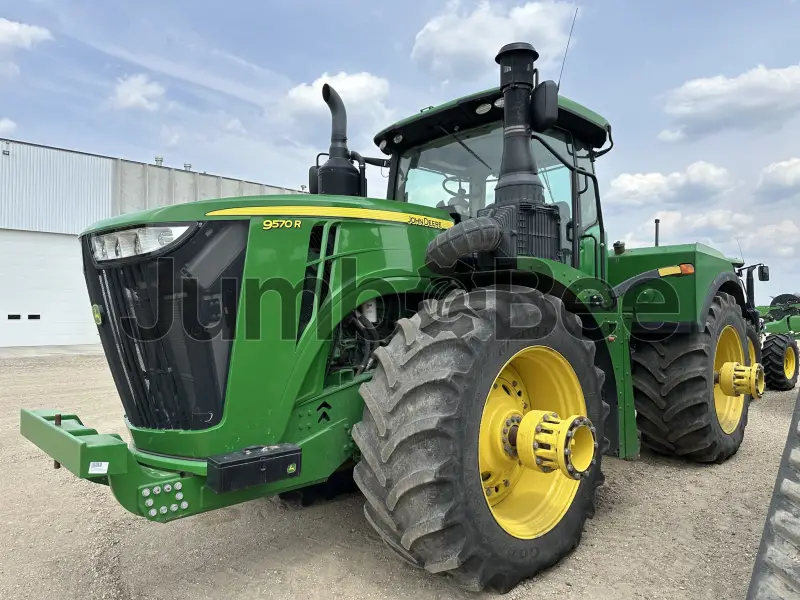

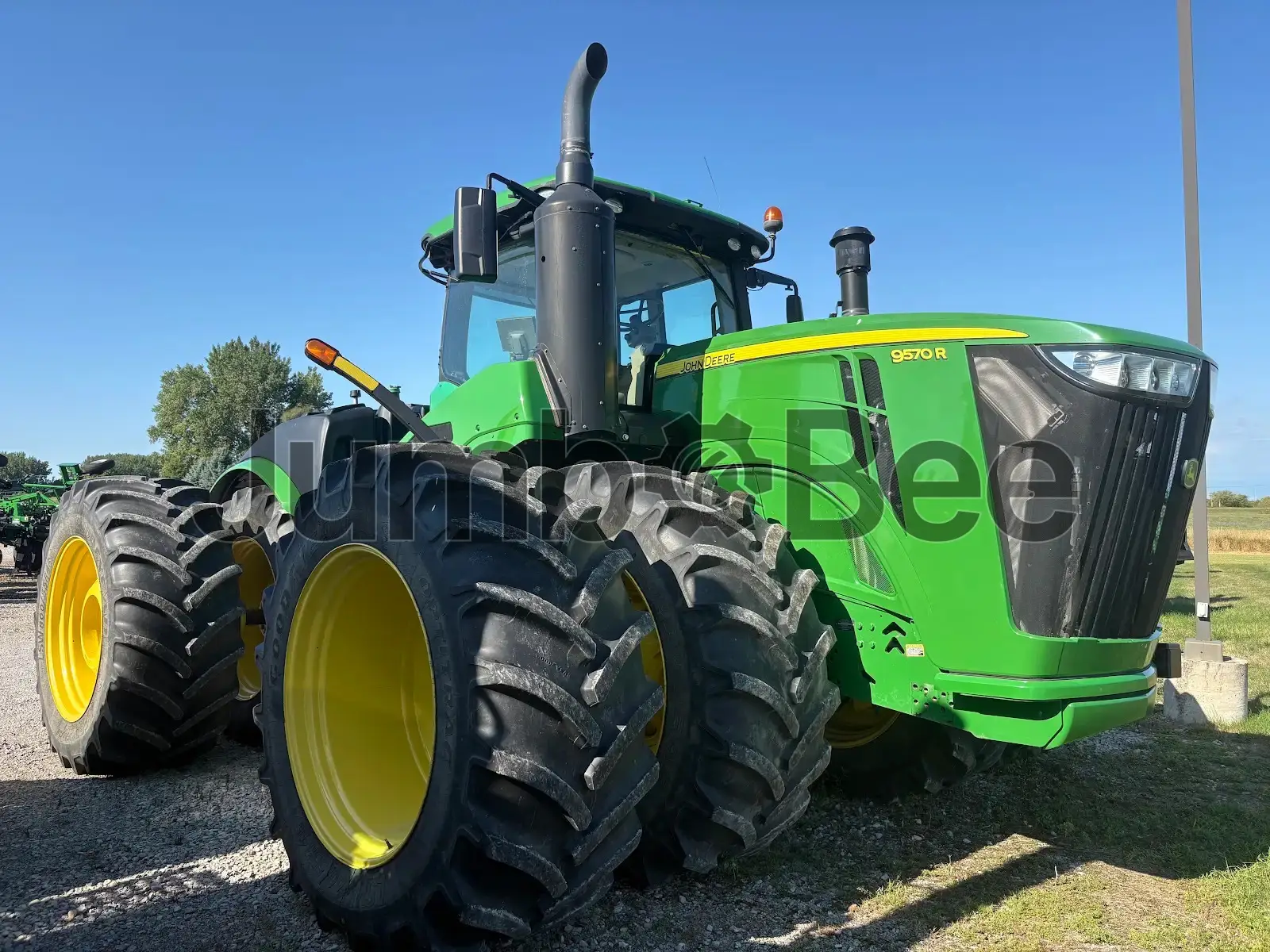

John Deere 9570R Articulated 4WD Tractors Listings
$329,000
570 hp
Wheels
Diesel
2078 hours
Caro, United States
$234,900
570 hp
Wheels
Tier IV
4843 hours
Greeley, United States
$340,280
Diesel
912 cu(in)
800/70 R38
2738 hours
Northwood, United States
$329,500
570 hp
Wheels
Tier IV
2751 hours
Warsaw, United States
$349,500
570 hp
Wheels
Tier IV
2806 hours
Holland, United States
$369,500
912 cu(in)
800/70 R38
1514 L
2141 hours
Lagrange, United States
$319,000
219.5 L/min
912 cu(in)
800/70 R38
2680 hours
Caro, United States
$322,300
570 hp
Wheels
Tier IV
3545 hours
Scottsbluff, United States
$346,800
800/70 R38
570 hp
Wheels
2414 hours
Greeley, United States
Compare John Deere 9570R Articulated 4WD Tractor to other articulated 4wd tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 9570R Articulated 4WD Tractor
570 hp
19754 kg
8110 mm × 4900 mm × 3680 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 9570R?
No confirmed market price is supplied for the John Deere 9570R. Check current listings and compare the tractor’s condition, location, configuration, service history, and installed equipment.
What are the key advantages of the John Deere 9570R?
Key listed features include 425 kW (570 hp) diesel power, a full power shift transmission, closed-center pressure/flow-compensated hydraulics, and 4 to 8 electronically controlled rear SCVs. It also has a Cat-IV/IVN rear hitch with 6,804 kg (15,000 lb) maximum lift capacity.
What type of engine does the 9570R use?
The 9570R uses a diesel engine with 912 cu in displacement and a Tier IV emission standard level.
How much horsepower does the 9570R have?
The John Deere 9570R has 425 kW (570 hp) engine power. Its rated PTO power is 249.8 kW (335 hp).
What fuel does the John Deere 9570R use?
The John Deere 9570R uses diesel fuel. Its listed fuel tank capacity is 1,514 L (400 US gal).
What jobs is this Tractors best suited for?
The supplied specifications indicate suitability for work requiring substantial engine power, rear-hitch lift capacity, and hydraulic implement control. Relevant features include 425 kW (570 hp), a Cat-IV/IVN rear hitch, and 4 to 8 rear selective control valves.
What is the expected lifespan of the 9570R?
The supplied data does not confirm an expected service life for the 9570R. For a used tractor, review maintenance records and inspect the engine, transmission, hydraulic system, hitch, tires, and electronic controls.
What should a buyer check when purchasing a used Tractors?
Check maintenance records and inspect the diesel engine, full power shift transmission, hydraulic system, rear SCVs, Cat-IV/IVN hitch, tires, and electronic controls. Confirm operation of the hydraulic pump, draft sensing, and rear lift system, and compare the configuration with the intended implements.
