John Deere 9560R Articulated 4WD Tractors
John Deere 9560R
Average price
$189,112.22
5+
sold in last year
General overview
The John Deere 9560R is a wheeled tractor designed for high-horsepower field work in farm operations. Produced from 2012 to 2014 in the United States, it uses a diesel engine rated at 453 kW (616 hp) and meets Tier IV emission standards, placing it in a high-output tractor class for demanding agricultural work.
At 1000 rpm, the PTO is rated at 234 kW (319 hp) and reaches a maximum of 268 kW (364.2 hp). The tractor uses an 18-speed full power shift transmission, a rear hitch category of Cat-4N/4, and a maximum lift capacity behind lift points of 6,940 kg (15,300 lb). Its closed-center pressure/flow compensated hydraulic system is rated at 181.7 L/min (48 gpm) and offers 4 to 6 rear selective control valves with electronic SCV control and electro-hydraulic sensing.
Year
2012, 2013, 2014
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
3,040 mm
~119.7 in
3,680 mm
~144.9 in
7,160 mm
~281.9 in
18,842 kg
~41,539.5 lb
Tire or Track Type
Wheels
Engine Power
616 hp
Additional specifications
Emission standard level
Tier IV
Engine type
Diesel
Displacement
823 cu(in)
Tires front
800/70R38
Maximum PTO power
364.23 hp
Rated PTO power
319 hp
Speeds
1,000 rpm
Transmission type
18-speed full power shift
Rear hitch category (SAE designation)
Cat-4N/4
Maximum lift capacity behind lift points
6,940 kg
Fuel tank
1,324.8 L
Cab glass area
6.52 sq(m)
Hydraulic system type
Closed-center pressure/flow compensated
Pump rated output
181.7 L/min
Number of rear selective control valves
4 to 6
SCV control
Electronic
Sensing type
Electro-hydraulic
Tires rear
800/70R38
Transmission Speeds

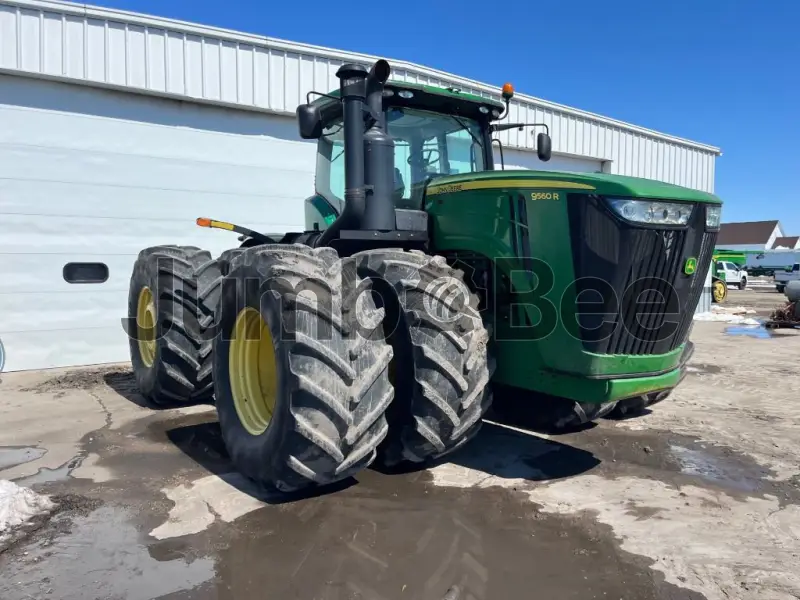

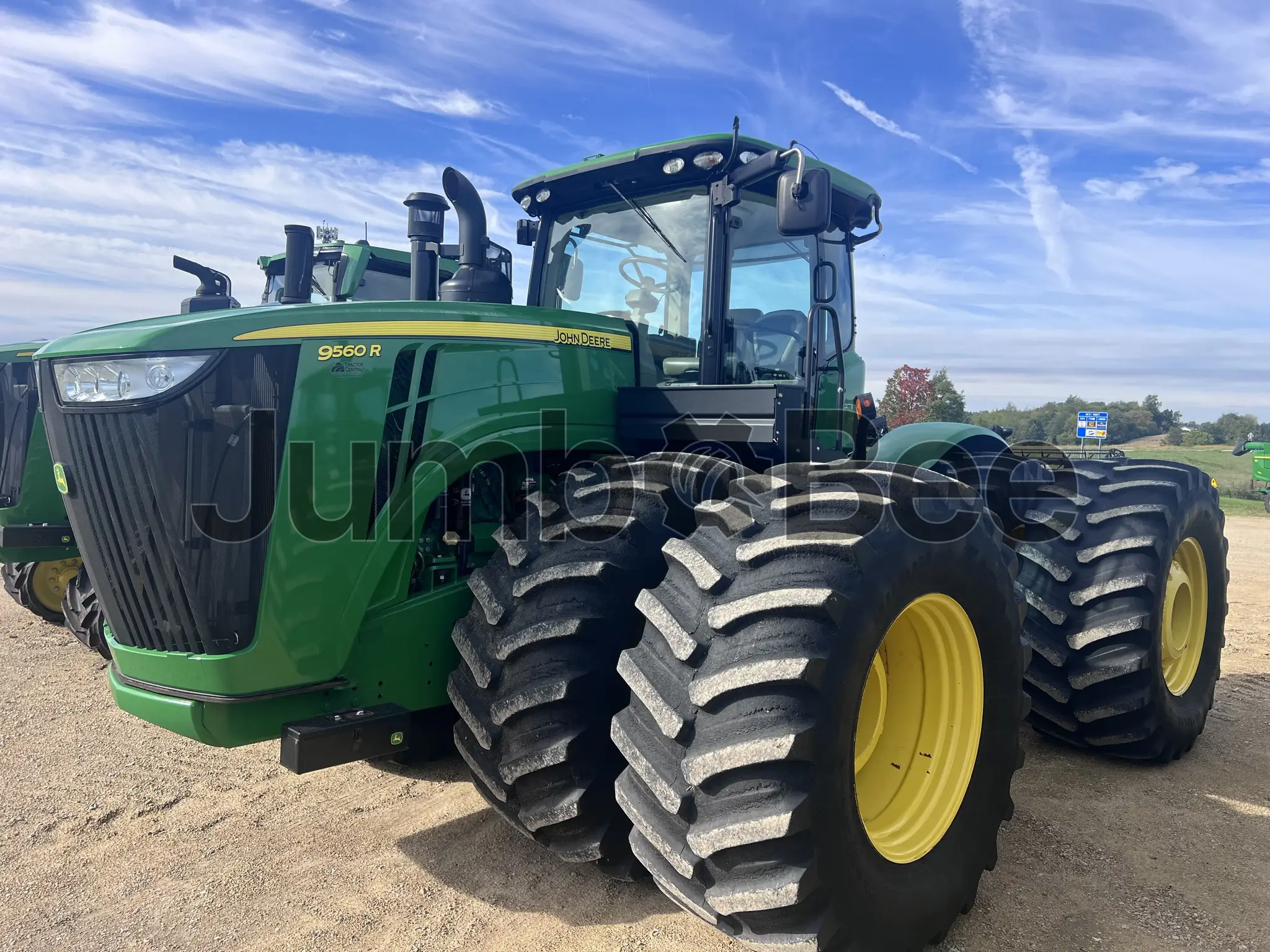

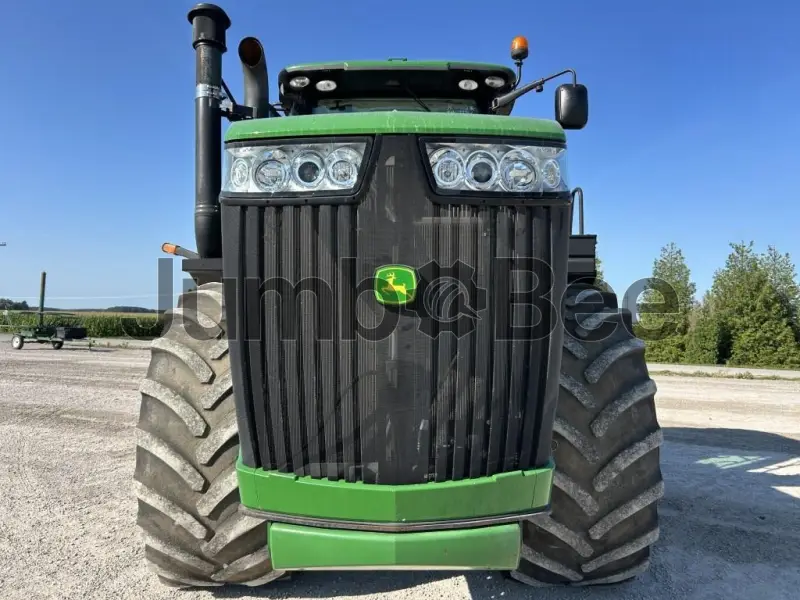

John Deere 9560R Articulated 4WD Tractors Listings
$224,900
6.52 sq(m)
Closed-center pressure/flow compensated
181.7 L/min
2157 hours
Monroe, United States
$94,500
616 hp
Tier IV
Diesel
11980 hours
Jonesville, United States
$211,870
616 hp
Closed-center pressure/flow compensated
181.7 L/min
4268 hours
Kennedy, United States
$203,500
616 hp
Wheels
Tier IV
4184 hours
Kent City, United States
$229,500
616 hp
Wheels
Diesel
3297 hours
Kent City, United States
$192,650
616 hp
Wheels
Tier IV
5538 hours
Hawley, United States
$248,090
616 hp
Tier IV
823 cu(in)
3225 hours
Washburn, United States
Compare John Deere 9560R Articulated 4WD Tractor to other articulated 4wd tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 9560R Articulated 4WD Tractor
616 hp
18842 kg
7160 mm × 3040 mm × 3680 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 9560R?
No confirmed market price is supplied for the John Deere 9560R. Check current listings and compare the tractor’s condition, location, configuration, service history, and installed options.
What are the key advantages of the John Deere 9560R?
Key listed features include 459.4 kW (616 hp) engine power, an 18-speed full power shift transmission, closed-center pressure/flow compensated hydraulics, and electronic SCV control. It also offers up to 6 rear selective control valves and 6,940 kg (15,300 lb) maximum lift capacity behind the lift points.
What type of engine does the 9560R use?
The John Deere 9560R uses a Diesel engine with 823 cu in displacement and a Tier IV emission standard level.
How much horsepower does the 9560R have?
The 9560R has 459.4 kW (616 hp) of engine power. Its maximum PTO power is 271.6 kW (364.2 hp), and rated PTO power is 237.9 kW (319 hp).
What fuel does the John Deere 9560R use?
The John Deere 9560R uses diesel fuel. Its fuel tank capacity is 1,324.8 L (350 US gal).
What jobs is this Tractors best suited for?
The supplied specifications do not identify specific jobs. Its listed features include high engine and PTO power, rear hitch capacity, and closed-center pressure/flow compensated hydraulics, which buyers can compare with the requirements of their implements and operations.
What is the expected lifespan of the 9560R?
The supplied data does not confirm an expected service life for the 9560R. For a used machine, evaluate maintenance records, engine condition, transmission operation, hydraulic performance, tires, and hitch and PTO function.
What should a buyer check when purchasing a used Tractors?
Check service records, engine condition, fluid leaks, transmission shifting, hydraulic operation, SCVs, PTO function, hitch lift, tire condition, and cab condition. Confirm that the 18-speed full power shift transmission, electronic SCV controls, and installed equipment match the listing.
