John Deere 845M UTVs
John Deere 845M
5+
sold in last yearGeneral overview

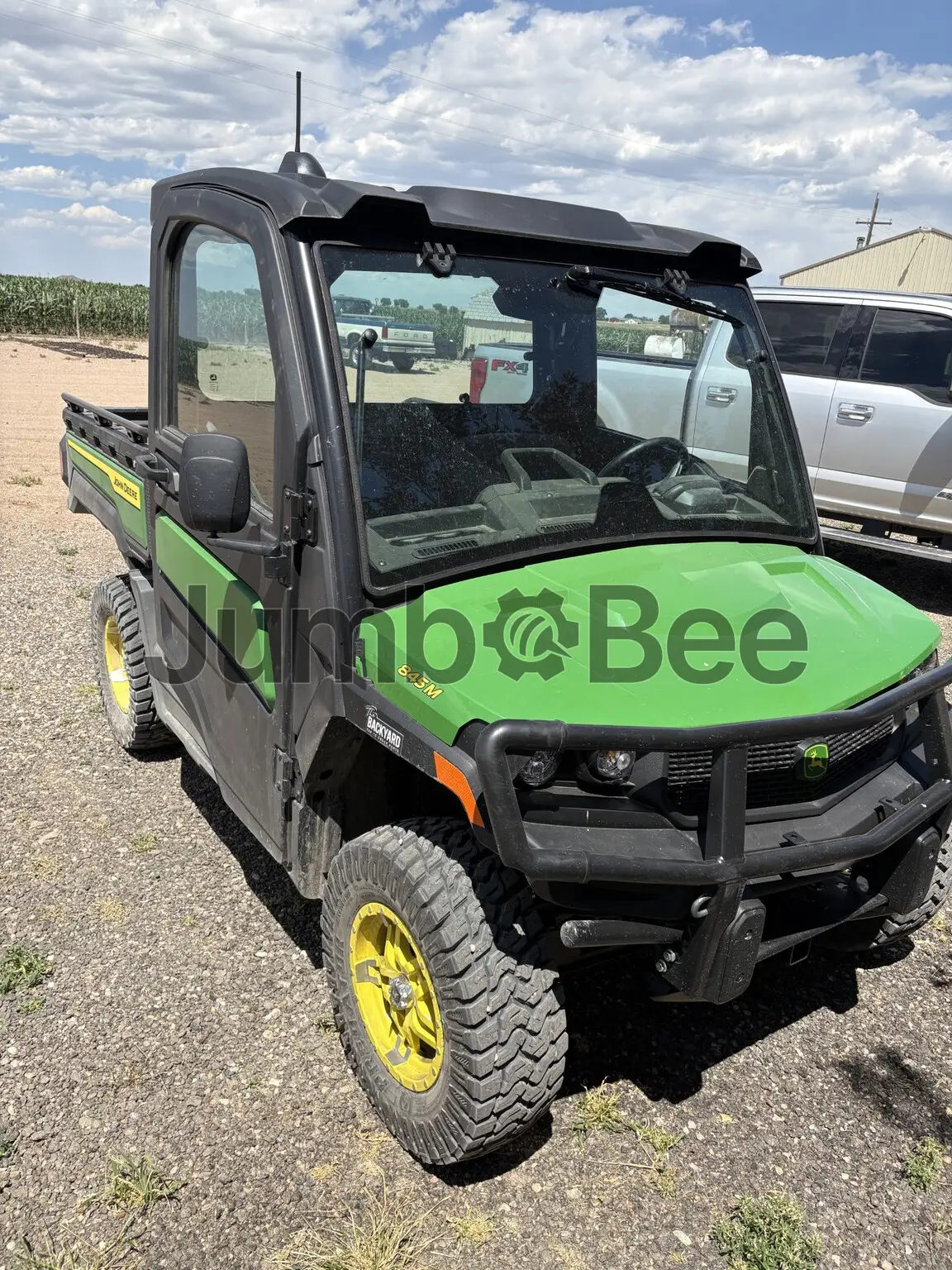

John Deere 845M is a 2025 utility vehicle from John Deere's farm equipment line, designed for transporting materials and supporting utility work around agricultural property. It uses a 39 kW (53 hp) 4-cycle gas engine with electronic fuel injection (EFI) and 0.8 L displacement for material hauling and utility tasks.
The drivetrain centers on a Continuously Variable Transmission (CVT) with clutch enclosure, a dash switch actuated four-wheel drive system, and a limited slip front differential with Positive locking, switch actuated rear differential lock. It also lists a volume of 524 L (138 US gal), a capacity (weight) of 454 kg (1,000 lb), and a towing capacity of 1,814 kg (4,000 lb), and descent control.
Year
2025
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
3,250 mm
~128 in
1,980 mm
~78 in
1,625 mm
~64 in
Engine Power
53 hp
Engine type
4-cycle gas, electronic fuel injection (EFI)
Displacement
0,812 cu(m)
Tires front
27x9-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels
Transmission type
Continuously Variable Transmission (CVT) with clutch enclosure
Electrical system type
85
Alternator output
Green and yellow; TrueTimber KANATI camo; olive and black
Fuel capacity
42,4 L
Cooling system
5.7 L
Wheelbase
2,211 mm
Box length
1,099 mm
Manufacturer
John Deere
Battery Voltage
12 V DC outlet; 12 V cargo box power port
Caster Wheel Type
Radial
Volume
524 L
Capacity (weight)
454 kg
Towing capacity
1,814 kg
Brakes type
Front/rear hydraulic disc with twin piston front calipers
Park brake
Park in-transmission; optional factory-installed secondary foot operated with hand release
Drivetrain
Continuously Variable Transmission (CVT) with clutch enclosure
Final drive
Park, high, low, neutral, reverse transaxle
Four wheel drive
Dash switch actuated four-wheel drive system
Traction assist
Limited slip front differential; Positive locking, switch actuated rear differential lock
Descent control
Yes
Cab Height
1,392 mm
Final Drive
Park, high, low, neutral, reverse transaxle
Boom Width
343 mm
Rakes Wheel tread
27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels mm
Cargo box dimensions
1,143 x 305 x 1,320
Cargo box capacity (weight)
454 kg
Front suspension
Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear suspension
Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Additional specifications
Color
12
John Deere 845M UTVs Listings
Looking for John Deere 845M UTVs?
See similar listingsCompare John Deere 845M UTV to other utvs
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 845M?
No confirmed market price is supplied for the John Deere 845M. Check current listings and compare condition, location, and configuration.
What are the key advantages of the John Deere 845M?
Listed advantages include 39.5 kW (53 hp), electronic fuel injection (EFI), dash-switch-actuated four-wheel drive, traction assist with a locking rear differential, descent control, hydraulic disc brakes, and a towing capacity of 1,814 kg (3,999 lb).
What type of engine does the 845M use?
The 845M uses a 4-cycle gas engine with electronic fuel injection (EFI).
How much horsepower does the 845M have?
The 845M is rated at 53 hp.
What fuel does the John Deere 845M use?
The John Deere 845M uses gas. Its listed engine is a 4-cycle gas engine with electronic fuel injection (EFI).
What jobs is this ATVs and Gators best suited for?
Its four-wheel drive, traction-assist differentials, descent control, cargo capacity of 454 kg (1,001 lb), and towing capacity of 1,814 kg (3,999 lb) indicate suitability for hauling cargo and towing equipment where off-road traction is needed.
What is the expected lifespan of the 845M?
The supplied data does not confirm an expected service life for the 845M. For a used unit, assess maintenance records, operating condition, drivetrain operation, brakes, tires, and signs of damage or excessive wear.
What should a buyer check when purchasing a used ATVs and Gators?
Check maintenance records, engine starting and operation, CVT and transaxle function, four-wheel-drive engagement, differential lock operation, brakes, tires, cargo box condition, towing equipment, and signs of leaks, damage, or excessive wear. Verify that all switches and electrical ports operate correctly.
