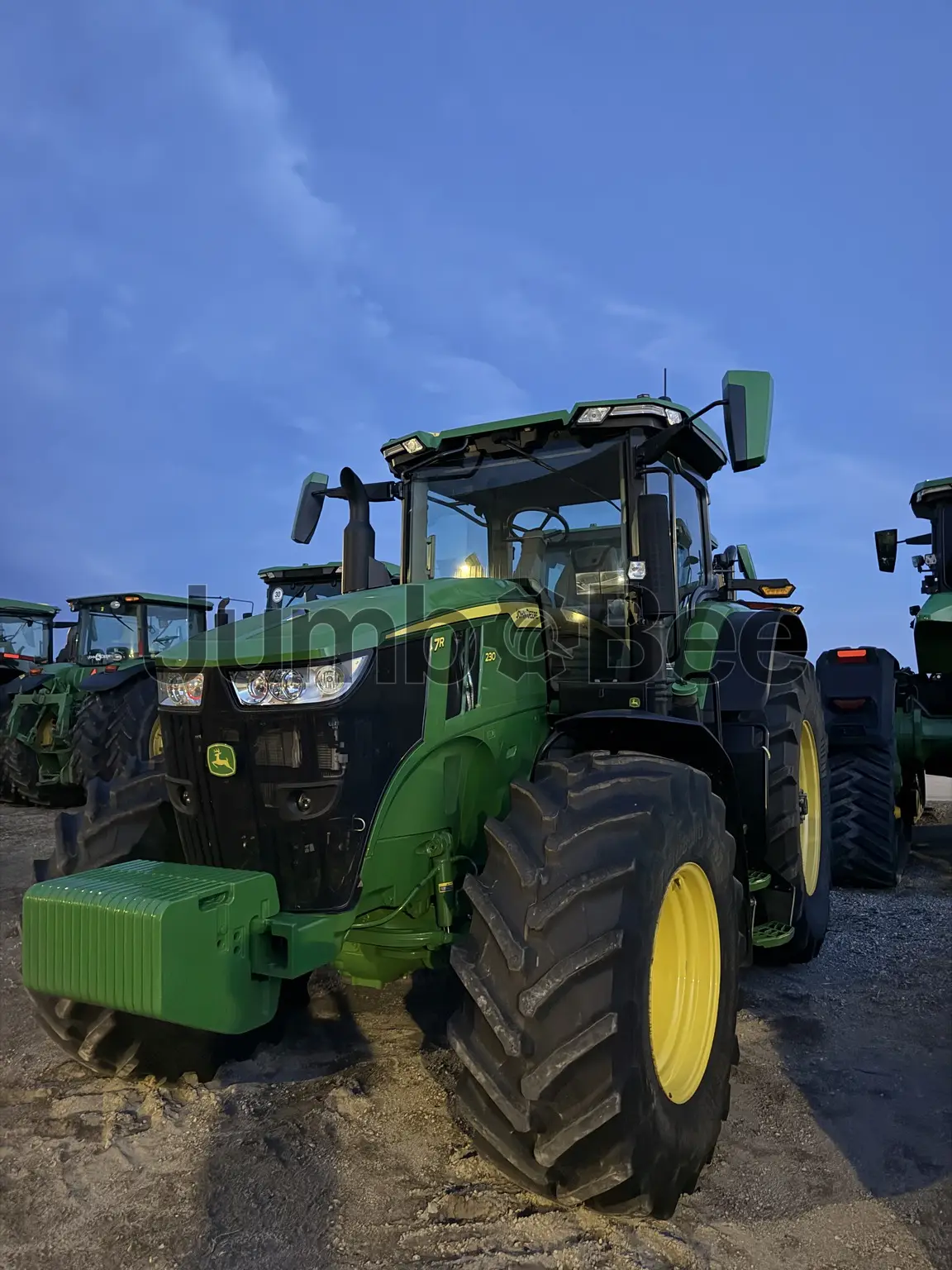

John Deere 7R 230 Row Crop Tractors
John Deere 7R 230
Average price
$224,500
5+
sold in last year
General overview
John Deere 7R 230 is a farm tractor for operations that require a balance of power, PTO capability, and hydraulic capacity. It is powered by a diesel engine rated at 169 kW (230 hp) with 6 L (366 cu in) displacement and meets Final Tier 4 emissions standards.
The model pairs a John Deere e23â„¢ transmission with 134 kW (182 hp) rated PTO power and 540/540E/1000 RPM PTO speeds. A Category 3/3N rear hitch and a maximum lift capacity behind lift points of 5,443 kg (12,000 lb) support mounted implements, while the closed-center hydraulic system provides 162 L/min (42.8 gpm) with electro-hydraulic control and sensing.
Year
2020, 2021, 2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
2,235 mm
~88 in
3,110 mm
~122.4 in
5,520 mm
~217.3 in
10,000 kg
~22,046.2 lb
Tire or Track Type
Wheels
Engine Power
230 hp
Additional specifications
Emission standard level
Final Tier 4
Engine type
Diesel
Displacement
366 cu(in)
Tires front
RCI Group 42/43
Rated PTO power
182 hp
Speeds
540/540E/1,000 RPM
Transmission type
John Deere e23â„¢
Rear hitch category (SAE designation)
Category 3/3N
Maximum lift capacity behind lift points
5,443 kg
Fuel tank
461.8 L
Cab glass area
6.45 sq(m)
Hydraulic system type
Closed-center
Pump rated output
162 L/min
Number of rear selective control valves
4-6 SCVs
SCV control
Electro-hydraulic control
Sensing type
Electro-hydraulic
Tires rear
RCI Group 47/48
John Deere 7R 230 Row Crop Tractors Listings
$239,500
230 hp
Wheels
Final Tier 4
800 hours
Holland, United States
$209,500
230 hp
Wheels
Final Tier 4
1500 hours
Holland, United States
Compare John Deere 7R 230 Row Crop Tractor to other row crop tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 7R 230 Row Crop Tractor
230 hp
10000 kg
5520 mm × 2235 mm × 3110 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 7R 230?
No confirmed market price is supplied. Check current listings and compare condition, location, and configuration.
What are the key advantages of the John Deere 7R 230?
Listed features include a 171.5 kW (230 hp) diesel engine, John Deere e23â„¢ transmission, closed-center hydraulics, electro-hydraulic controls, and 4-6 rear SCVs. It also has a Category 3/3N rear hitch with 5,443 kg (12,000 lb) maximum lift capacity behind lift points.
What type of engine does the 7R 230 use?
The 7R 230 uses a diesel engine with 366 cu in displacement and Final Tier 4 emissions certification.
How much horsepower does the 7R 230 have?
The John Deere 7R 230 has engine power of 171.5 kW (230 hp). Its rated PTO power is 135.7 kW (182 hp).
What fuel does the John Deere 7R 230 use?
The John Deere 7R 230 uses diesel fuel. Its fuel tank capacity is 461.8 L (122 US gal).
What jobs is this Tractors best suited for?
The supplied specifications do not confirm specific applications. Its wheels, Category 3/3N rear hitch, 5,443 kg (12,000 lb) lift capacity, closed-center hydraulic system, and 4-6 rear SCVs indicate compatibility should be checked against the intended implement and hydraulic requirements.
What is the expected lifespan of the 7R 230?
The supplied data does not provide an expected lifespan. For a used tractor, assess maintenance records, engine condition, transmission operation, hydraulic performance, tire wear, and hitch and SCV function.
What should a buyer check when purchasing a used Tractors?
Check maintenance records, diesel engine operation, John Deere e23â„¢ transmission shifting, hydraulic output and electro-hydraulic controls, rear SCVs, hitch operation, tire condition, cab glass, fuel system condition, and signs of leaks or damage. Confirm that the configuration matches the implements you plan to use.
