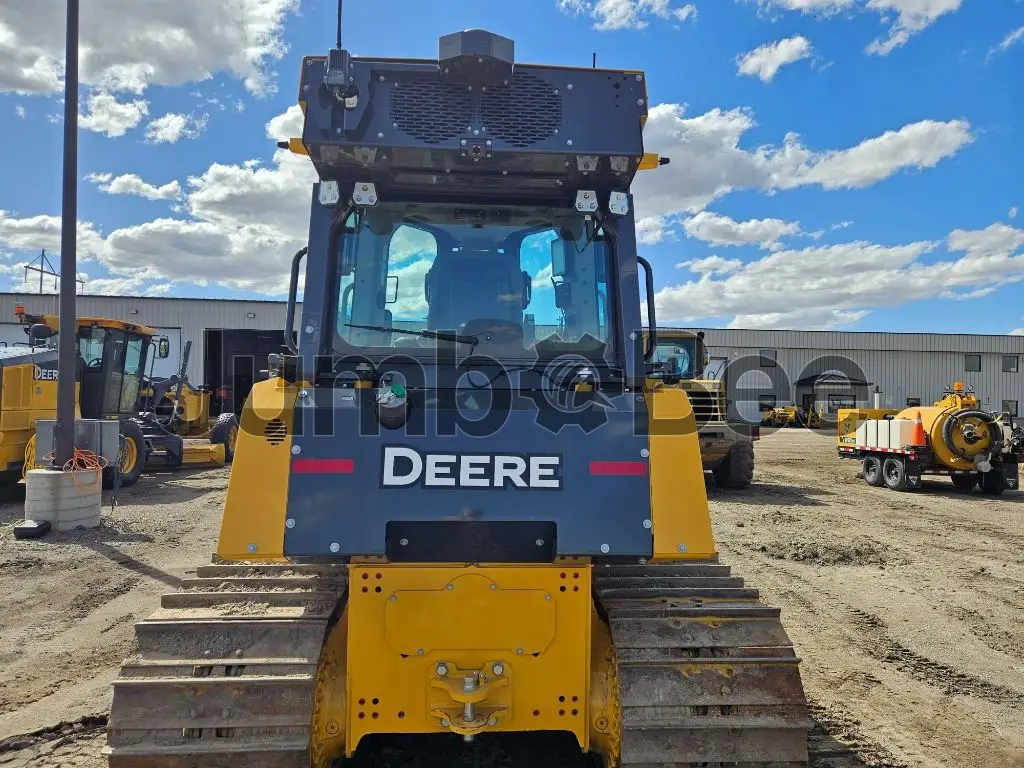

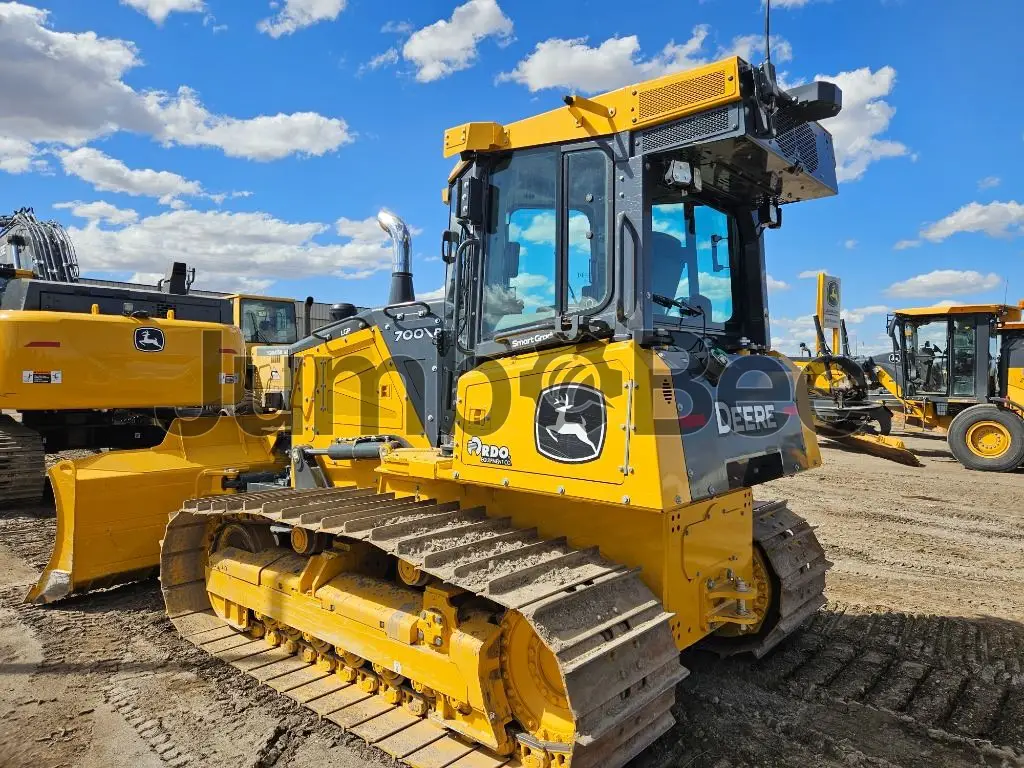

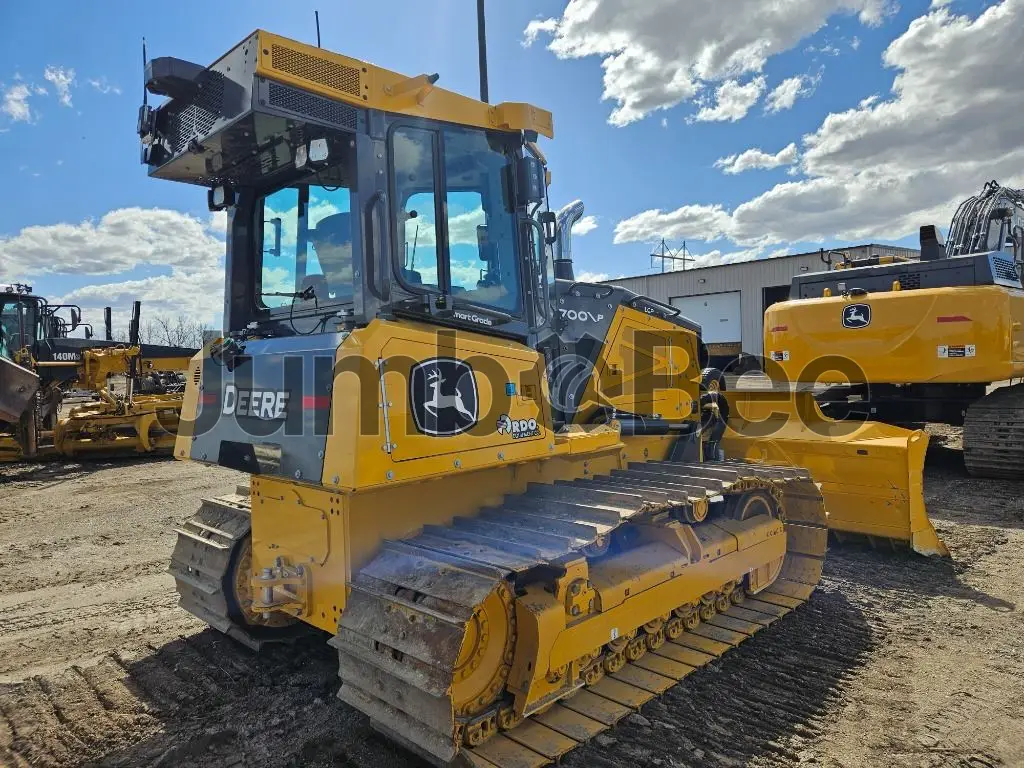

John Deere 700P Crawler Dozer
John Deere 700P
Average price
$297,860
5+
sold in last year
General overview
John Deere 700P is a dozer for construction dozing and grading. It is powered by a John Deere PowerTech PVS 6068 engine rated at 99 kW (135 hp), with 6 L displacement and Tier 4 Final emissions compliance for construction duty. The model is configured for controlled material pushing and grade work in construction environments.
The 700P has an operating weight of 14,016 kg (30,900 lb) and uses a hydrostatic (HST), dual-path, load-sensing power train with triple-reduction final drives. It is equipped with a Power-Angle-Tilt (PAT) blade with a blade capacity of 3 m³ (3.9 cu yd) and listed ground pressure of 32 kPa (4.64 psi). This combination supports repeated push and finish operations.
Year
2024, 2025, 2026
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
5,461 mm
~215 in
3,138 mm
~123.5 in
3,383 mm
~133.2 in
Engine Power
135 hp
Emission standard level
Tier 4 Final
Displacement
6 cu(m)
Fuel tank
262 L
Operating Weight
14,016 kg
Engine Model
John Deere PowerTech PVS 6,068
Power Train
Hydrostatic (HST), dual-path, load-sensing; triple-reduction final drives
Undercarriage Ground Pressure
32 kPa
Length of Track on Ground
2,615 mm
Number of Shoes
39
Blade Capacity
3 cu(m)
Power - Net
135 hp
Net Power (ISO 9249)
135 hp
Lift Cylinders
6 mm
Blades type
Power-Angle-Tilt (PAT)
Additional specifications
Operating Weight-LGP
14,555 kg
Ground Pressure
32 kPa
VPAT Width of Standard Shoe
610 mm
VPAT Type of Blade
Power-Angle-Tilt (PAT)
VPAT Blade Capacity
4 cu(m)
VPAT Operating Weight
14,301 kg
LGP VPAT Operating Weight
14,555 kg
LGP VPAT Ground Pressure
41 kPa
LGP VPAT Width of Standard Shoe
915 mm
LGP VPAT Type of Blade
PAT (LGP variant)
LGP VPAT Blade Capacity
4 cu(m)
PUSH ARM Operating Weight
14,016 kg
PUSH ARM Ground Pressure
45 kPa
PUSH ARM Width of Standard Shoe
610 mm
PUSH ARM Type of Blade
Straight
PUSH ARM Blade Capacity
4 cu(m)
Hydraulic controls
Fixed-displacement gear pump; system relief 47,573 kPa
Width of Standard Shoe
915 mm
John Deere 700P Crawler Dozer Listings
$297,860
Tier 4 Final
135 hp
135 hp
668 hours
Grand Forks, United States
Compare John Deere 700P Crawler Dozer to other crawler dozer
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 700P?
No confirmed market price is supplied for the John Deere 700P. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the John Deere 700P?
The supplied specifications list a 100.7 kW (135 hp) John Deere PowerTech PVS 6068 engine, hydrostatic dual-path load-sensing power train, Power-Angle-Tilt (PAT) blade options, and Tier 4 Final emissions compliance.
What type of engine does the 700P use?
The 700P uses a John Deere PowerTech PVS 6068 engine rated at 100.7 kW (135 hp) net power.
How much horsepower does the 700P have?
The John Deere 700P has 135 hp (100.7 kW) of net power.
What fuel does the John Deere 700P use?
The supplied data does not confirm the fuel type for the John Deere 700P. It lists a 262 L (69.2 US gal) fuel tank and a John Deere PowerTech PVS 6068 engine.
What jobs is this Dozers best suited for?
The supplied data does not specify intended jobs. Its listed configurations include Power-Angle-Tilt (PAT) and straight blades, with blade capacities ranging from 3 m³ (3.92 cu yd) to 4 m³ (5.23 cu yd).
What is the expected lifespan of the 700P?
The supplied data does not provide an expected service life for the 700P. Assess maintenance records, operating hours, undercarriage wear, hydraulic condition, and the engine before purchase.
What should a buyer check when purchasing a used Dozers?
Check service records, operating hours, engine condition, hydraulic operation, blade and cylinder wear, undercarriage components, track shoes, final drives, leaks, and controls. Confirm the installed blade and shoe configuration, as specifications vary by version.
