John Deere 544K Wheel Loaders
John Deere 544K
Average price
$71,505
5+
sold in last year
General overview
John Deere 544K is a wheel loader produced in the United States from 2011 to 2015. It is used for loading and moving material in construction settings. Its 2 m³ (2.6 cu yd) heaped bucket and 123 kW (167 hp) engine define its basic loading capacity and power.
The machine has an operating weight of 12,911 kg (28,460 lb) and uses a John Deere E 6068H 6 L, six-cylinder engine with Tier 3 emissions. Travel speed forward is 35 km/h (21.7 mph), and dimensions such as 3,240 mm (10 ft 8 in) to the top of cab, 2,546 mm (8 ft 4 in) in width, and a 5,000 mm (16 ft 5 in) turning radius over bucket describe its working envelope.
Year
2011, 2012, 2013, 2014, 2015
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
7,750 mm
~305.1 in
3,240 mm
~127.6 in
2,546 mm
~100.2 in
Engine Power
167 hp
Operating Weight
12,911 kg
Bucket Capacity
2.3 cu(m)
Bucket Capacity - Heaped
2 cu(m)
Additional specifications
Emission standard level
Tier 3
Displacement
6 cu(m)
Fuel tank
325 L
Cooling system
23 L
Height to top of cab
3,240 mm
Wheelbase
2,930 mm
Number of Cylinders
6
Ground clearance with standard tires
400 mm
Battery Voltage
24
Width
2,546 mm
System Relief Pressure
25,165 kPa
Travel Speed Forward
35 km/h
Engine Model
E 6,068H
Engine Oil
19 L
Maximum Reach at Ground Level
990 mm
Power - Net
167 hp
Net Power (ISO 9249)
167 hp
General Purpose
2 cu(m)
3rd Auxiliary Flow
189 L/min
Hydraulic Cycle Time - Lower, Float
3 s
Hydraulic Cycle Time - Lift
5 s
Hydraulic Cycle Time - Dump
1 s
Overall Length - With Bucket
7,750 mm
Reach at Maximum Dump Height
3,110 mm
Hinge Pin at Maximum Height
4,170 mm
Turning Radius - Over Bucket
5,000 mm
Width - Over Bucket
2,540 mm
Hydraulic System
91 L
Rated Operating Capacity
4,690 kg

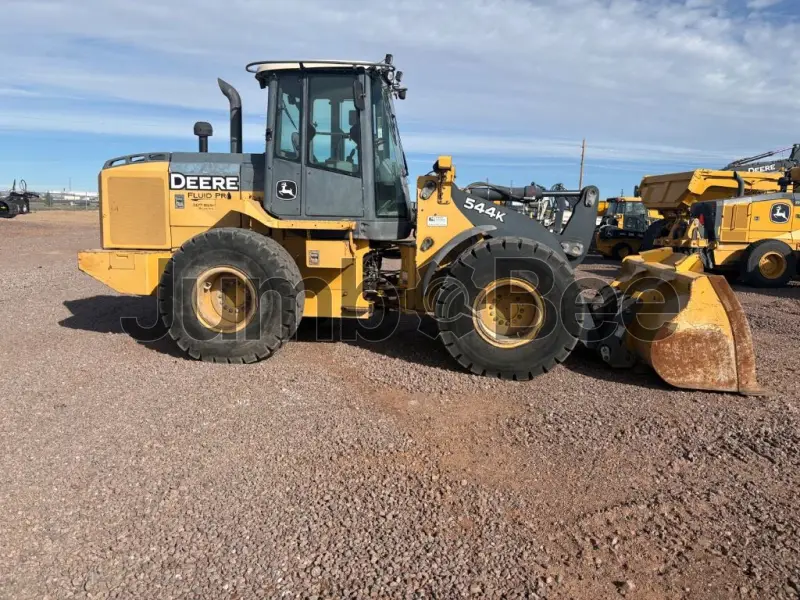

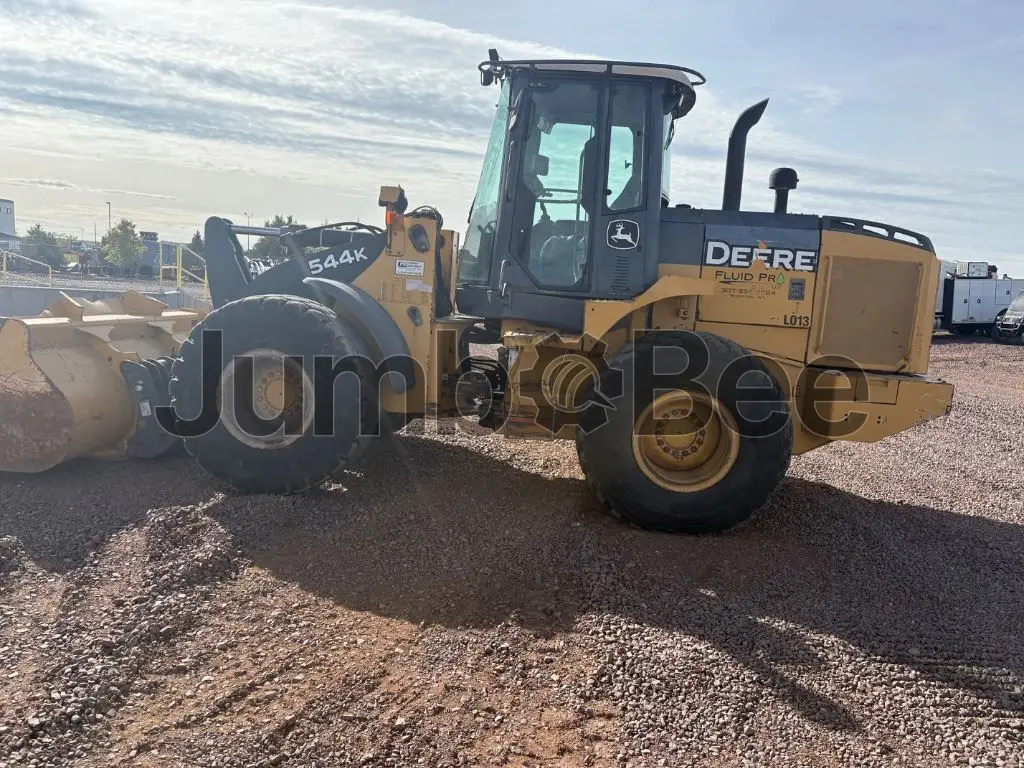

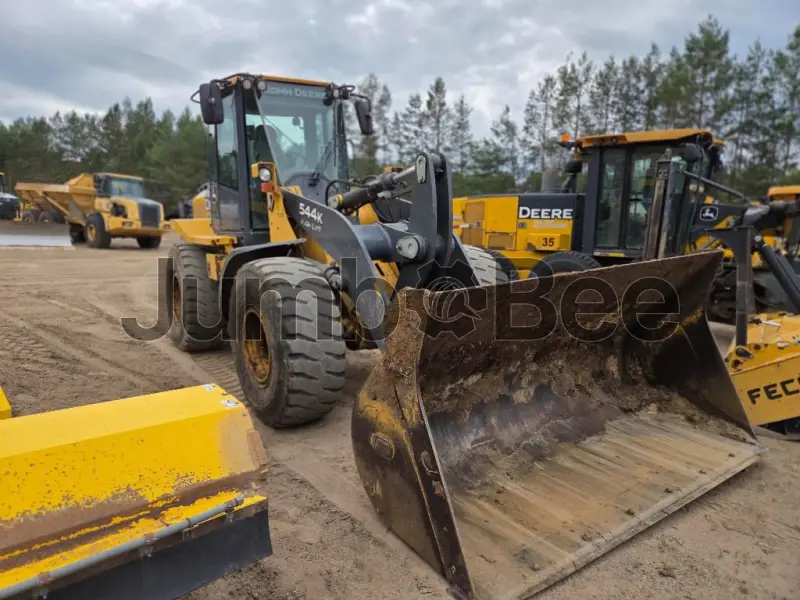

John Deere 544K Wheel Loaders Listings

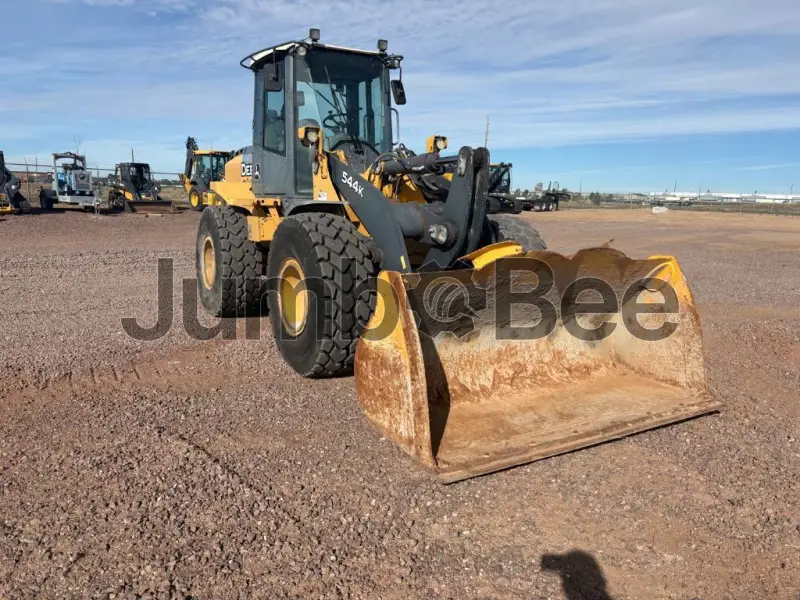

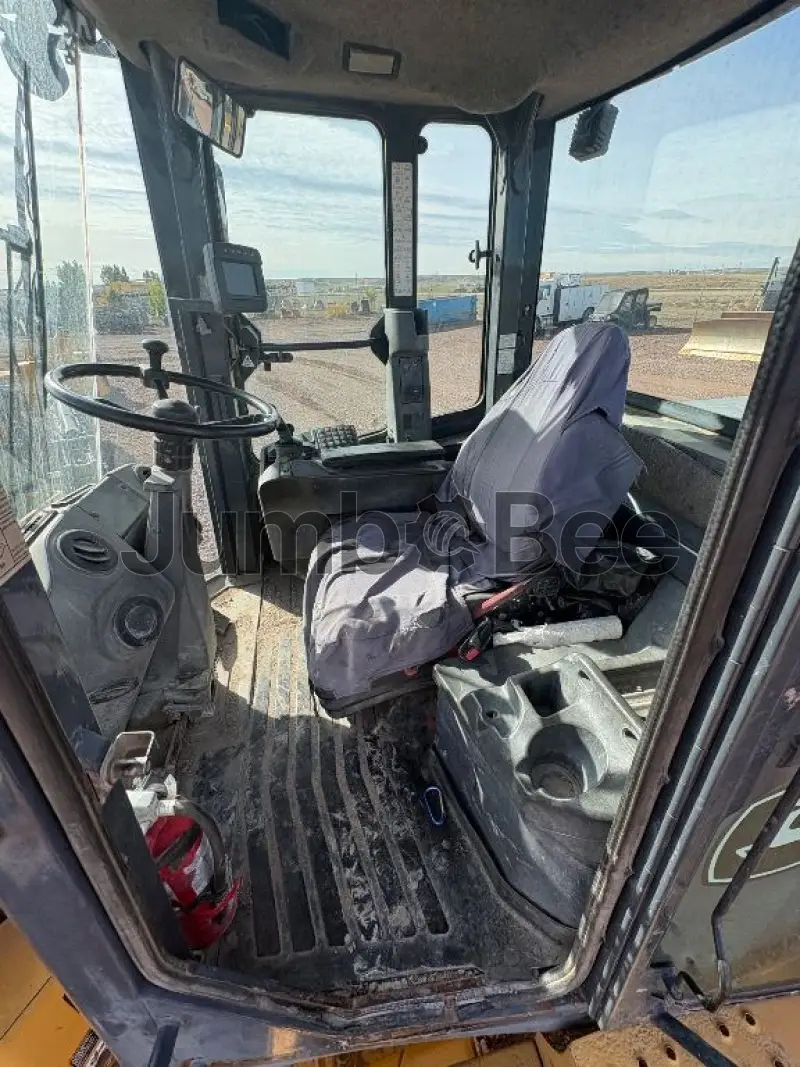

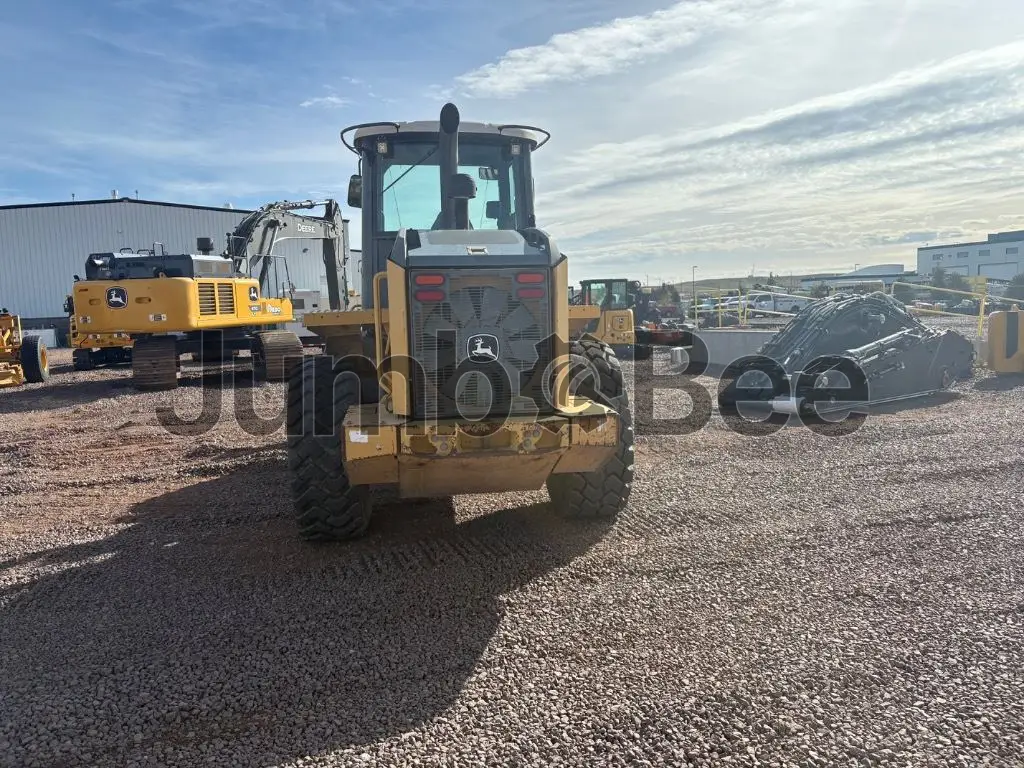

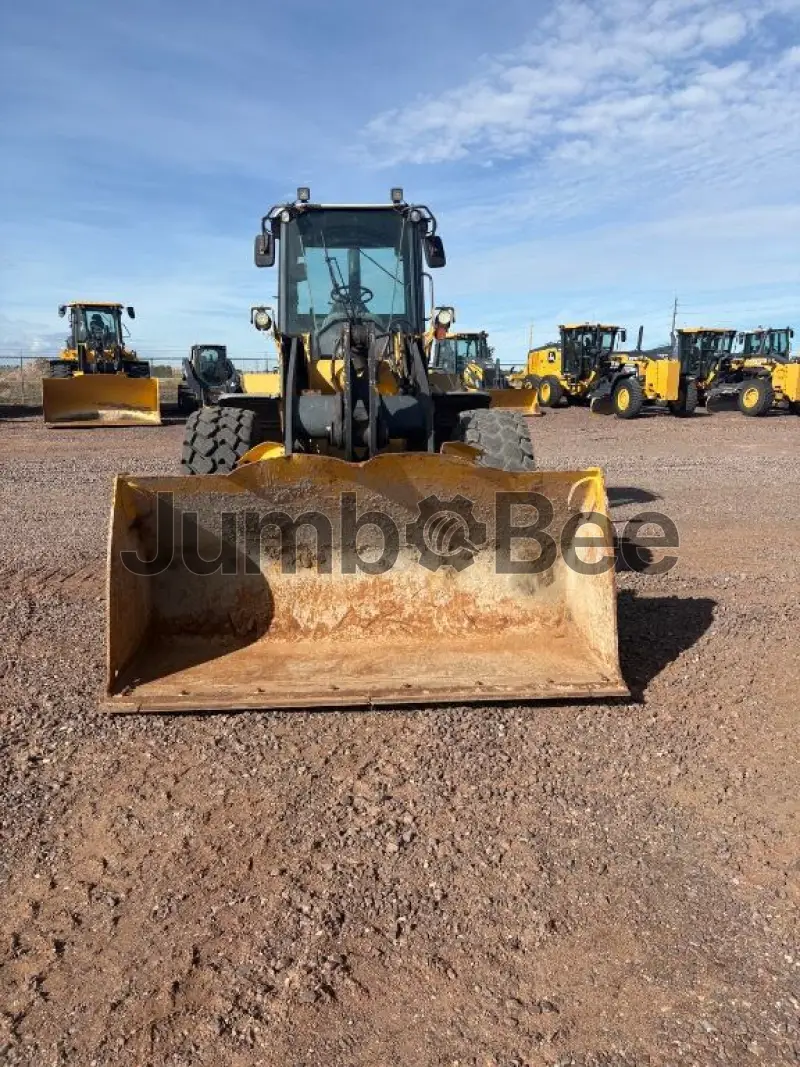

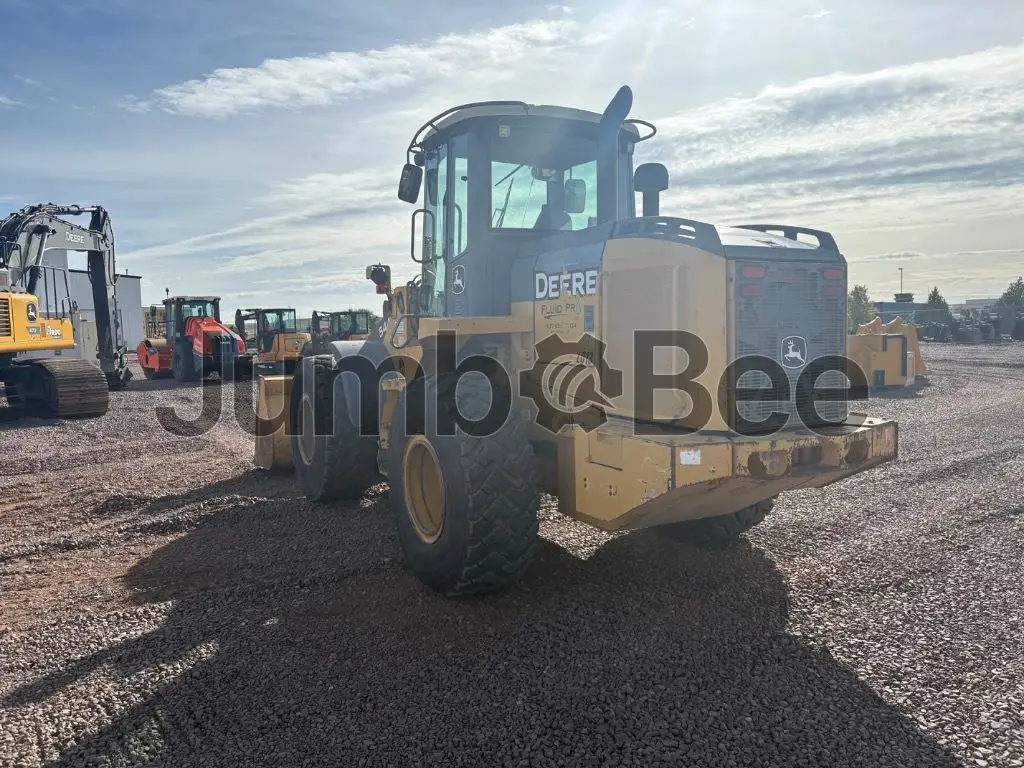

$54,990
12911 kg
E 6068H
167 hp
14594 hours
Cheyenne, United States

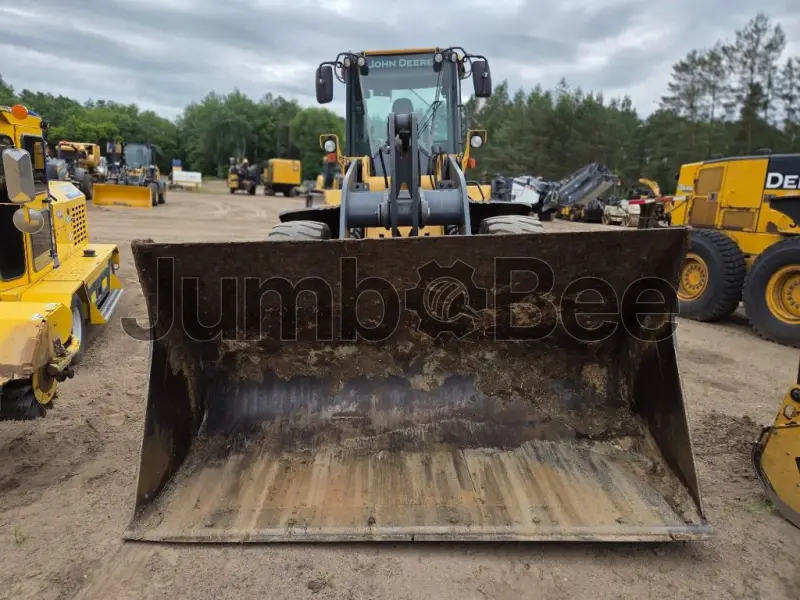

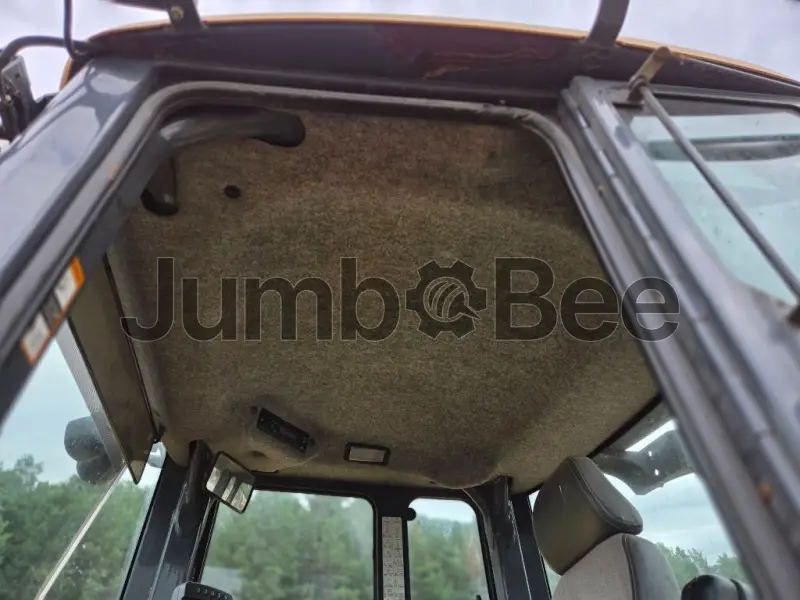

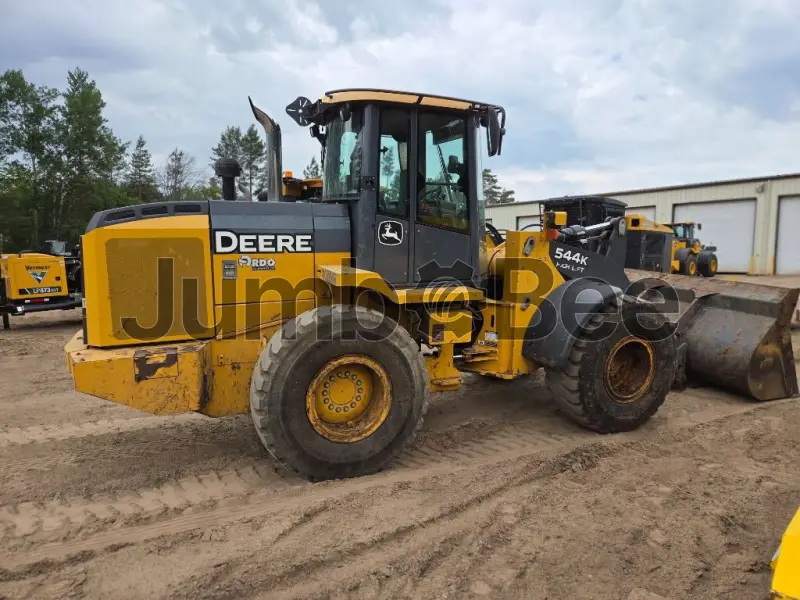

$93,010
7750 mm
2 cu(m)
12911 kg
9703 hours
Sauk Rapids, United States
Compare John Deere 544K Wheel Loader to other wheel loaders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 544K?
No confirmed market price is supplied for the John Deere 544K. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the John Deere 544K?
Supplied specifications list 124.5 kW (167 hp) net power, a 2 m³ (2.62 cu yd) heaped bucket capacity, 35 km/h (21.7 mph) forward travel speed, and 189 L/min (49.9 gpm) third auxiliary flow. Suitability depends on the attachment and job requirements.
What type of engine does the 544K use?
The 544K uses an E 6068H engine. The supplied specifications list 6 cylinders, Tier 3 emissions, and 124.5 kW (167 hp) net power.
How much horsepower does the 544K have?
The 544K has 167 hp (124.5 kW) net power.
What fuel does the John Deere 544K use?
The supplied data does not confirm the fuel type for the John Deere 544K. It lists a 325 L (85.9 US gal) fuel tank.
What jobs is this Wheel Loaders best suited for?
The supplied data does not identify specific job applications. Its listed 2 m³ (2.62 cu yd) bucket capacity, 124.5 kW (167 hp) net power, and auxiliary hydraulic flow may help buyers assess compatibility with planned loading and attachment work.
What is the expected lifespan of the 544K?
The supplied data does not provide an expected service life for the 544K. For a used machine, inspect maintenance records, operating condition, hydraulic performance, engine condition, tires, bucket and linkage wear, and signs of leaks or structural damage.
What should a buyer check when purchasing a used Wheel Loaders?
Check maintenance records, engine starting and operation, hydraulic functions and cycle times, transmission response, tire condition, articulation and steering play, bucket and linkage wear, leaks, brakes, cab controls, and structural damage. Confirm that attachments and auxiliary hydraulics match the intended work.
