John Deere 5100E Utility Tractors

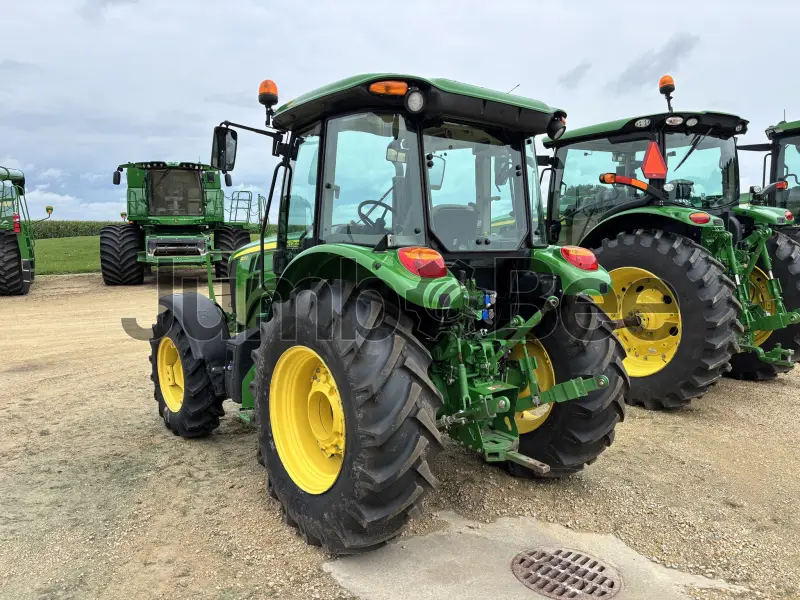

John Deere 5100E
Average price
$61,700
5+
sold in last year
General overview
John Deere 5100E is a wheeled tractor designed for farm work that combines a 74 kW (100 hp) diesel engine with 4.5 L (275 cu in) of displacement. It is a United States-manufactured model from John Deere’s tractor line, suited to routine field and utility operations that require a mid-range power class.
The 5100E is configured with a rear PTO rated at 62 kW (85 hp) and a maximum PTO power of 67 kW (90.7 hp), with 540@ 2400 speeds. It uses an open-center hydraulic system with a pump rated output of 85.2 L/min (22.5 gpm) and available flow at a single rear SCV of 60.2 L/min (15.9 gpm). The rear hitch is Category II with top-link draft sensing, and maximum lift capacity behind the lift points is 1,457 kg (3,210 lb). It is offered with 2 or 3 rear selective control valves.
Year
2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
1,453 mm
~57.2 in
2,568 mm
~101.1 in
4,042 mm
~159.1 in
3,299 kg
~7,273.1 lb
Tire or Track Type
Wheels
Engine Power
100 hp
Additional specifications
Engine type
Diesel
Displacement
275 cu(in)
Tires front
12.4-24
Maximum PTO power
90.65 hp
Rated PTO power
85 hp
Speeds
540@ 2,400
Rear hitch category (SAE designation)
Category II
Maximum lift capacity behind lift points
1,457 kg
Fuel tank
113.6 L
Hydraulic system type
Open-center
Pump rated output
85.2 L/min
Available flow at a single rear SCV
60.2 L/min
Number of rear selective control valves
2 or 3
Tires rear
18.4-30
Front Axle
Flange

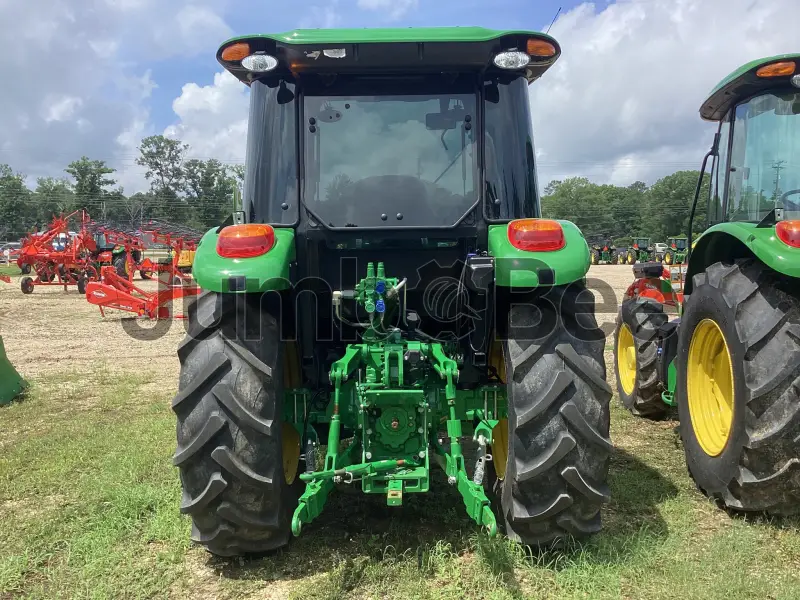

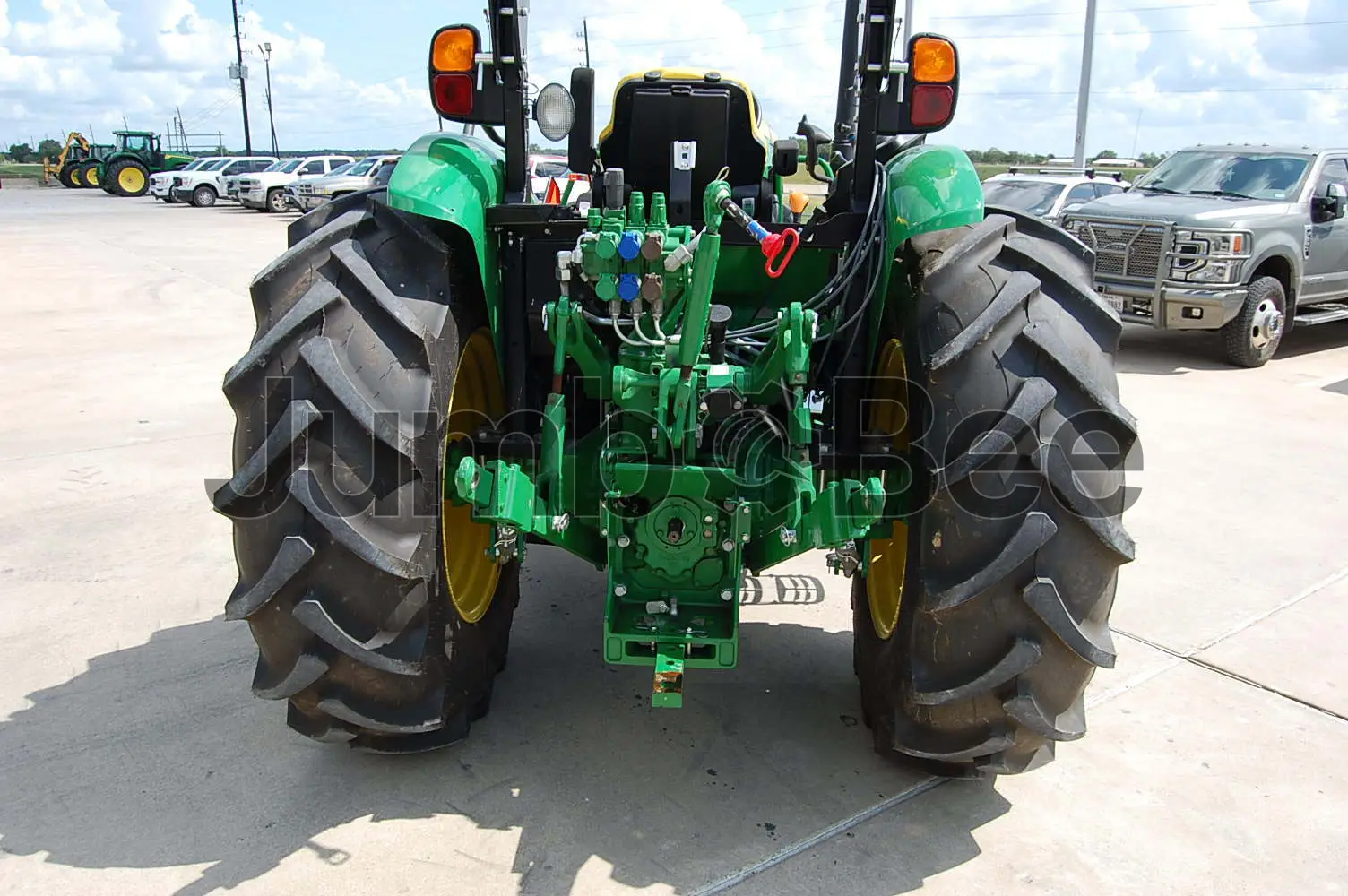

Rear 3-Point Hitch
Top-link draft sensing

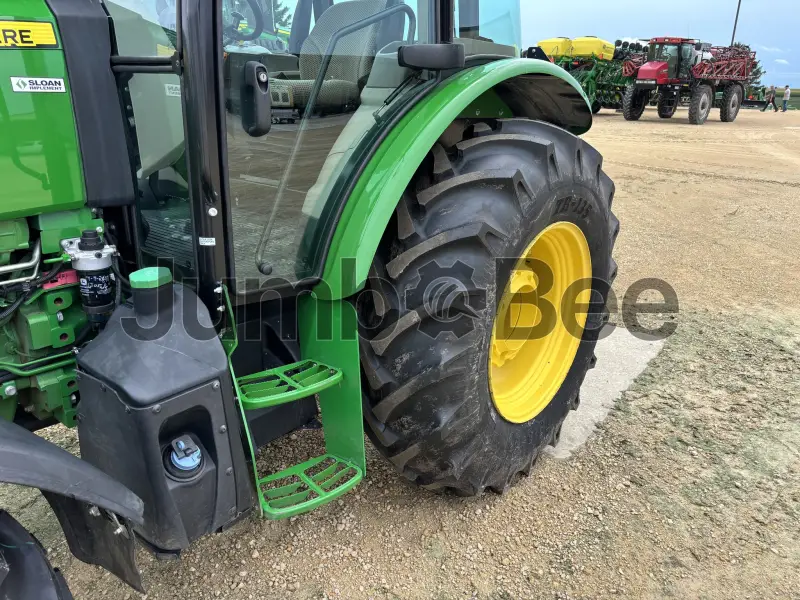

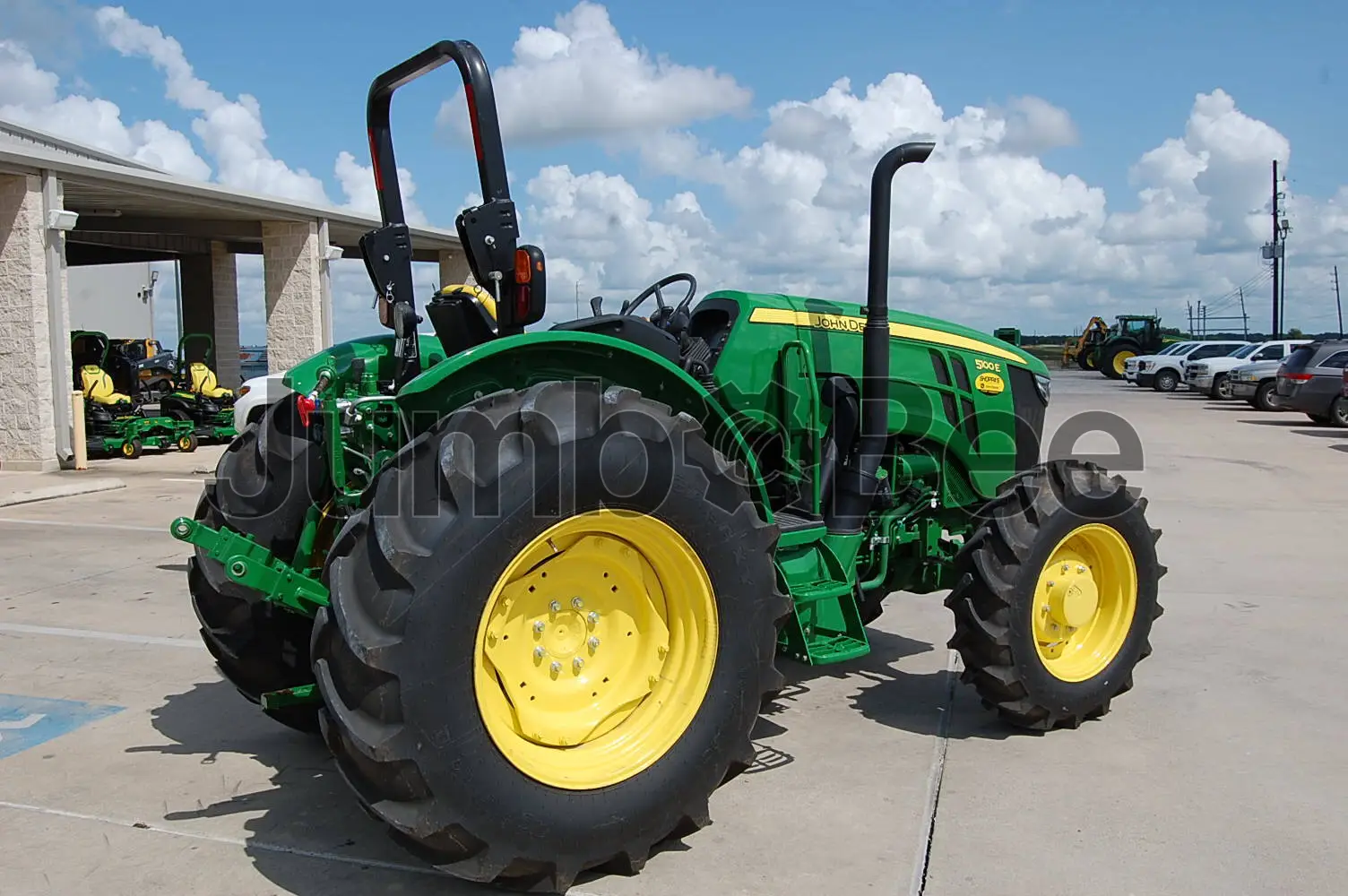

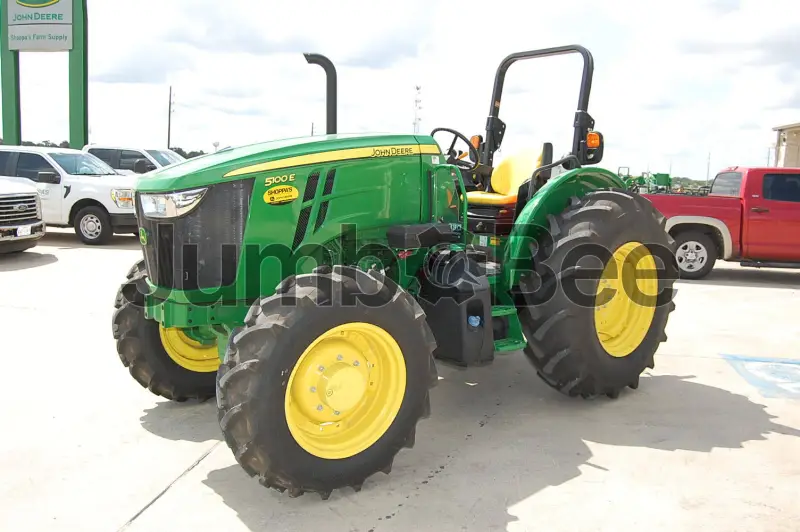

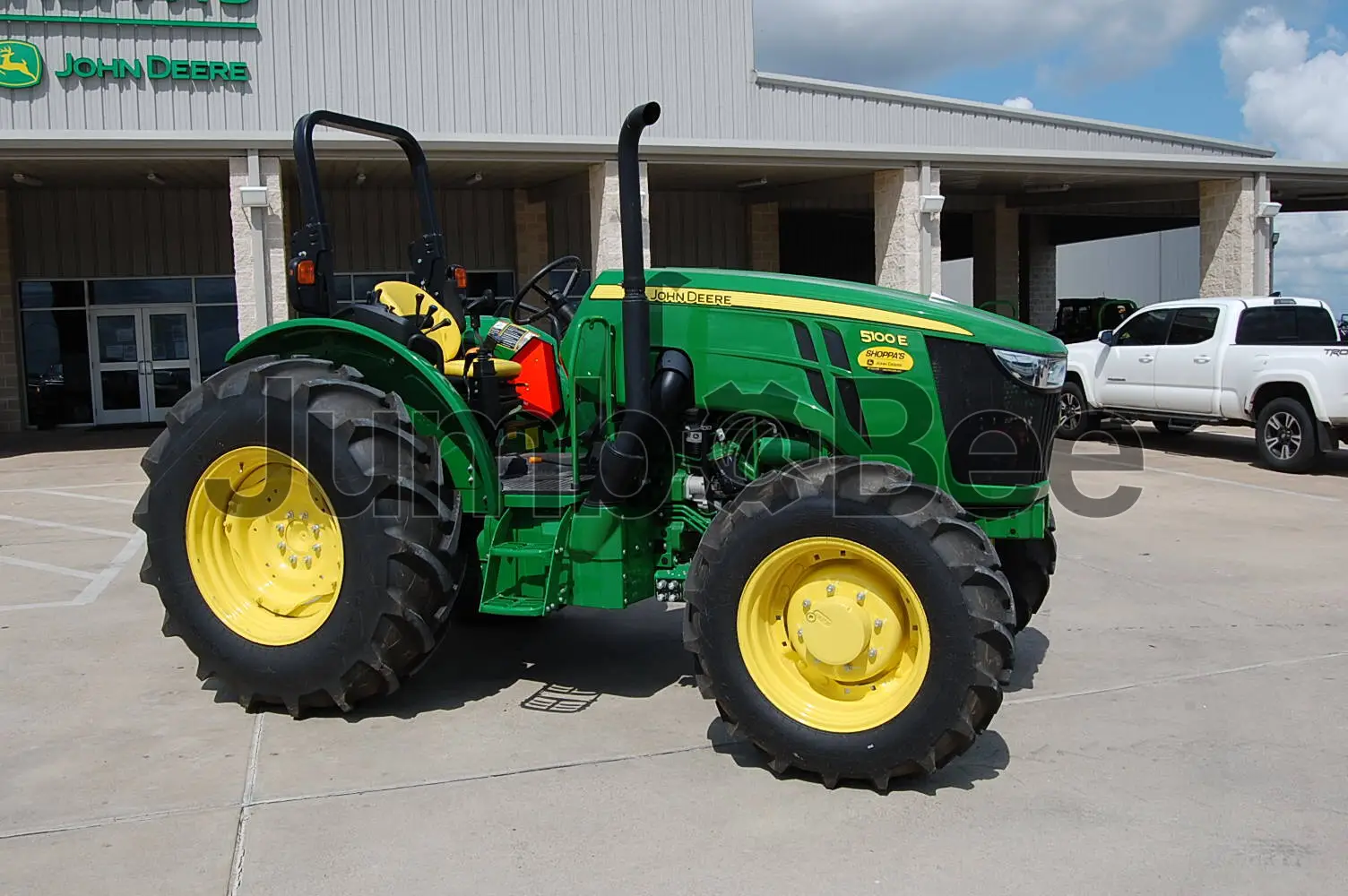

John Deere 5100E Utility Tractors Listings
$62,100
100 hp
540
Mid
15 hours
East Bernard, United States
$49,900
100 hp
Wheels
Diesel
1305 hours
Bloomington, United States
$73,500
85 hp
Top-link draft sensing
100 hp
64 hours
Hattiesburg, United States
Compare John Deere 5100E Utility Tractor to other utility tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 5100E Utility Tractor
100 hp
3299 kg
4042 mm × 1453 mm × 2568 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 5100E?
No confirmed market price is supplied. Check current listings and compare condition, location, and configuration.
What are the key advantages of the John Deere 5100E?
The supplied specifications list 74.6 kW (100 hp) engine power, up to 67.6 kW (90.7 hp) maximum PTO power, Category II rear hitch capability, and 1,457 kg (3,212 lb) maximum lift capacity behind the lift points. It also has open-center hydraulics and 2 or 3 rear selective control valves.
What type of engine does the 5100E use?
The 5100E uses a Diesel engine with 275 cu in displacement.
How much horsepower does the 5100E have?
The 5100E has 74.6 kW (100 hp) engine power. Its rated PTO power is 63.4 kW (85 hp), with maximum PTO power of 67.6 kW (90.7 hp).
What fuel does the John Deere 5100E use?
The John Deere 5100E uses Diesel fuel. Its fuel tank capacity is 113.6 L (30 US gal).
What jobs is this Tractors best suited for?
The supplied data does not confirm specific intended jobs. Its listed PTO output, Category II rear hitch, lift capacity, open-center hydraulics, and rear selective control valves support use with compatible PTO-driven, hitch-mounted, and hydraulic implements.
What is the expected lifespan of the 5100E?
The supplied data does not provide an expected service-life estimate. For a used unit, assess maintenance records, engine condition, hydraulics, PTO operation, hitch function, tires, and overall wear.
What should a buyer check when purchasing a used Tractors?
Check maintenance records, engine starting and operation, hydraulic performance, PTO operation, rear hitch function, selective control valves, tire condition, fuel-system condition, and signs of leaks or excessive wear. Confirm the configuration matches the intended implements.
