John Deere 5090M Utility Tractors
John Deere 5090M
Average price
$91,500
5+
sold in last year
General overview
John Deere 5090M is a farm tractor designed for general agricultural work, including field operations and implement handling. It is powered by a 90 kW (122 hp) diesel engine with a 3.4 L (207 cu in) displacement and meets Tier 4 emission standards.
The model is equipped with a John Deere PowrReverser Plus transmission and supports 540@2100 540E@1645 1000@2100 PTO speeds. Its powertrain is paired with a rated PTO output of 72 kW (98 hp) and a maximum PTO power of 75 kW (102 hp). Rear-mounted implements are supported by a Cat-2 hitch, a maximum lift capacity behind lift points of 2,340 kg (5,160 lb), an open center hydraulic system, and 3 rear selective control valves with mechanical control.
Year
2022, 2021, 2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
1,520 mm
~59.8 in
2,590 mm
~102 in
3,790 mm
~149.2 in
3,975 kg
~8,763.4 lb
Tire or Track Type
Wheels
Engine Power
90 hp
Additional specifications
Emission standard level
Tier 4
Engine type
Diesel
Displacement
207 cu(in)
Tires front
13.6R24
Maximum PTO power
75 hp
Rated PTO power
72 hp
Speeds
540@2,100 540E@1,645 1,000@2,100
Transmission type
John Deere PowrReverser Plus

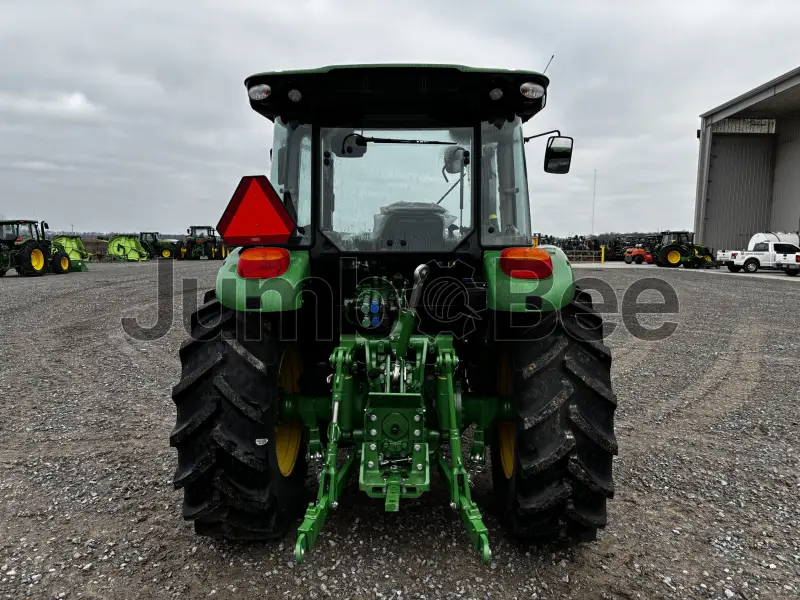

Rear hitch category (SAE designation)
Cat-2
Maximum lift capacity behind lift points
2,340 kg
Fuel tank
141 L
Hydraulic system type
Open center
Pump rated output
93.5 L/min
Available flow at a single rear SCV
69.6 L/min

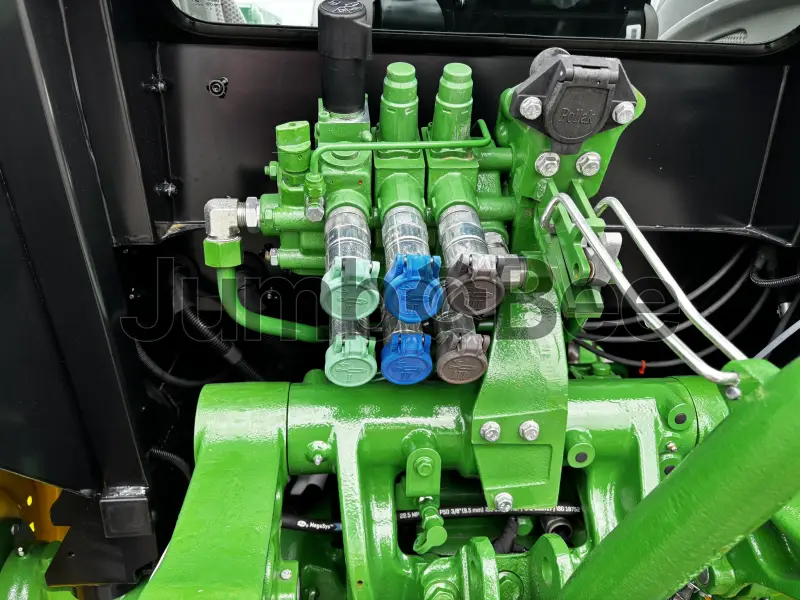

Number of rear selective control valves
3
SCV control
Mechanical
Tires rear
16.9R34
John Deere 5090M Utility Tractors Listings
$91,500
16.9R34
Cat-2
2340 kg
245 hours
Dermott, United States
Compare John Deere 5090M Utility Tractor to other utility tractors
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 5090M Utility Tractor
90 hp
3975 kg
3790 mm × 1520 mm × 2590 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 5090M?
No confirmed market price is supplied. Check current listings and compare the tractor’s condition, location, and configuration.
What are the key advantages of the John Deere 5090M?
Listed features include a diesel engine rated at 67.1 kW (90 hp), John Deere PowrReverser Plus transmission, open-center hydraulics, three mechanical rear SCVs, and Cat-2 rear hitch capacity of 2,340 kg (5,159 lb).
What type of engine does the 5090M use?
The 5090M uses a Tier 4 diesel engine with 207 cu in displacement.
How much horsepower does the 5090M have?
Engine power is 67.1 kW (90 hp). Rated PTO power is 53.7 kW (72 hp), with maximum PTO power of 55.9 kW (75 hp).
What fuel does the John Deere 5090M use?
The John Deere 5090M uses diesel fuel. Its fuel tank capacity is 141 L (37.2 US gal).
What jobs is this Tractors best suited for?
The supplied data does not confirm specific intended jobs. Its listed equipment includes a Cat-2 rear hitch, PTO options, three rear SCVs, and open-center hydraulics, which buyers can assess against their implement and hydraulic requirements.
What is the expected lifespan of the 5090M?
The supplied data does not provide an expected service life. For a used tractor, inspect maintenance records, engine condition, transmission operation, hydraulics, PTO function, hitch operation, tires, and signs of leaks or wear.
What should a buyer check when purchasing a used Tractors?
Check maintenance records, diesel engine condition, John Deere PowrReverser Plus transmission operation, hydraulic function, rear SCVs, PTO operation, Cat-2 hitch lift operation, tire condition, fuel system condition, and leaks or visible wear.
