John Deere 410L Backhoe Loaders
John Deere 410L
Average price
$77,508
5+
sold in last year
General overview
John Deere 410L is a backhoe loader for digging, loading, and general construction site work. With 85 kW (116 hp) and an operating weight of 7,975 kg (17,580 lb), it is built for mixed earthmoving tasks where a single machine handles both front-end loading and rear excavation.
The machine pairs a 1.15 m³ (1.5 cu yd) loader bucket with a 0.21 m³ (0.3 cu yd) backhoe bucket, a digging depth of 4.85 m (15 ft 11 in), and a reach from center of swing pivot of 5.52 m (18 ft 1 in). It also lists a loading height, truck loading position of 3.42 m (11 ft 3 in), a swing arc of 190°, and a stabilizer spread, operating of 3.53 m (11 ft 7 in). Backhoe controls are Standard ISO (Deere) two-lever mechanical controls, while the loader uses single-lever control with electric clutch disconnect. Hydraulic flow is 159 L/min (42 gpm) for both loader and backhoe circuits, with system relief pressure of 249.9 bar (3,620 psi).
Year
2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
2,180 mm
~85.8 in
3,930 mm
~154.7 in
7,430 mm
~292.5 in
7,975 kg
~17,581.9 lb
Engine Power
116 hp

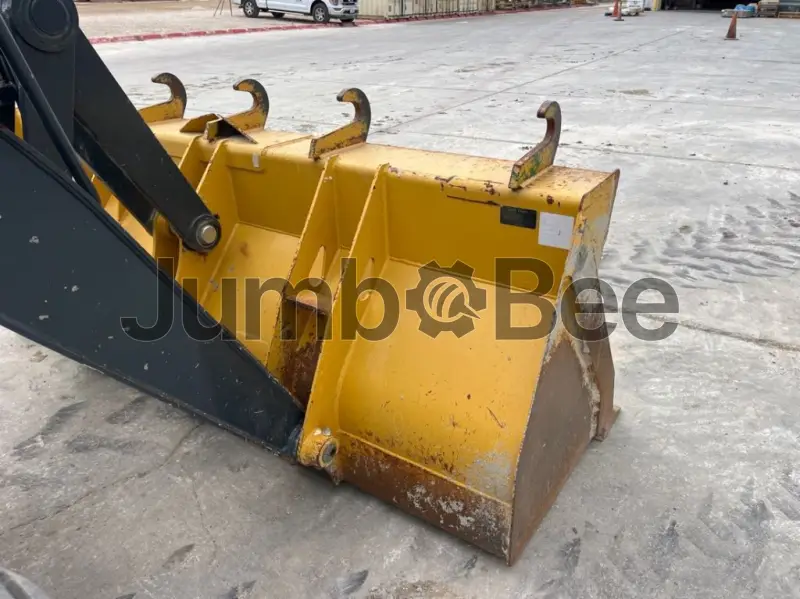

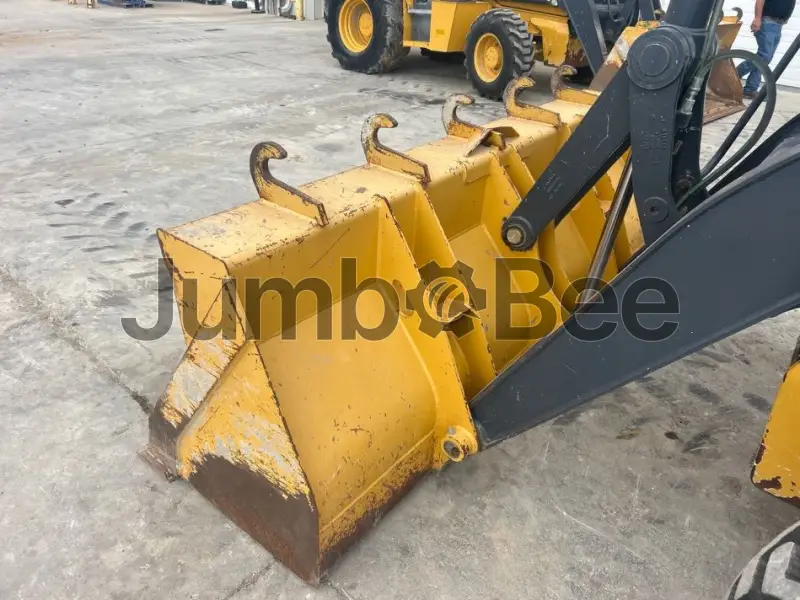

Capacity Bucket (loader)
1.15 cu(m)
Capacity Bucket (backhoe)
0.21 cu(m)
Operating Weights with Full Fuel Tank, Standard Equipment
7,975 kg
Digging Depth (SAE)
4.85 m
Additional specifications
Operating Weight
7,516 kg
Bucket Range
1,346 mm
Swing Arc
190 deg
Pump flow backhoe
159 L/min
Pump flow loader
159 L/min
System Relief Pressure backhoe
24,993 kPa
System Relief Pressure loader
24,993 kPa
Controls backhoe
Standard ISO (Deere) two-lever mechanical controls.
Controls loader
Single-lever control with electric clutch disconnect
Lights
standard lighting, including headlights and taillights, with optional LED lighting kits available for enhanced visibility during low-light conditions
Operating Weights typical with Cab, Extendable Dipperstick and Counterweight
8,735 kg
Length From Axle to Axle
2.19 m
Loading Height, Truck Loading Position
3.42 m
Reach From Center of Swing Pivot
5.52 m
Digging Depth (SAE maximum)
4.35 m
Stabilizer Spread, Operating
3.53 m
Stabilizer Overall Width, Operating
3.53 m
Bucket Rotation
190 deg
Bucket Dump Angle, Maximum
45 deg
Rollback Angle at Ground Level
40 deg
Height to Bucket Hinge Pin, Maximum
3.47 m
Reach at Full Height, Bucket at 45 deg.
730 mm
Length From Front Axle Centerline to Bucket Cutting Edge
2.03 m
Dump Clearance
2.7 m
Main Pump Type
Axial-piston pump, pressure-compensated load-sensing (PCLS) system.
Rated Operating Capacity
3,243 kg

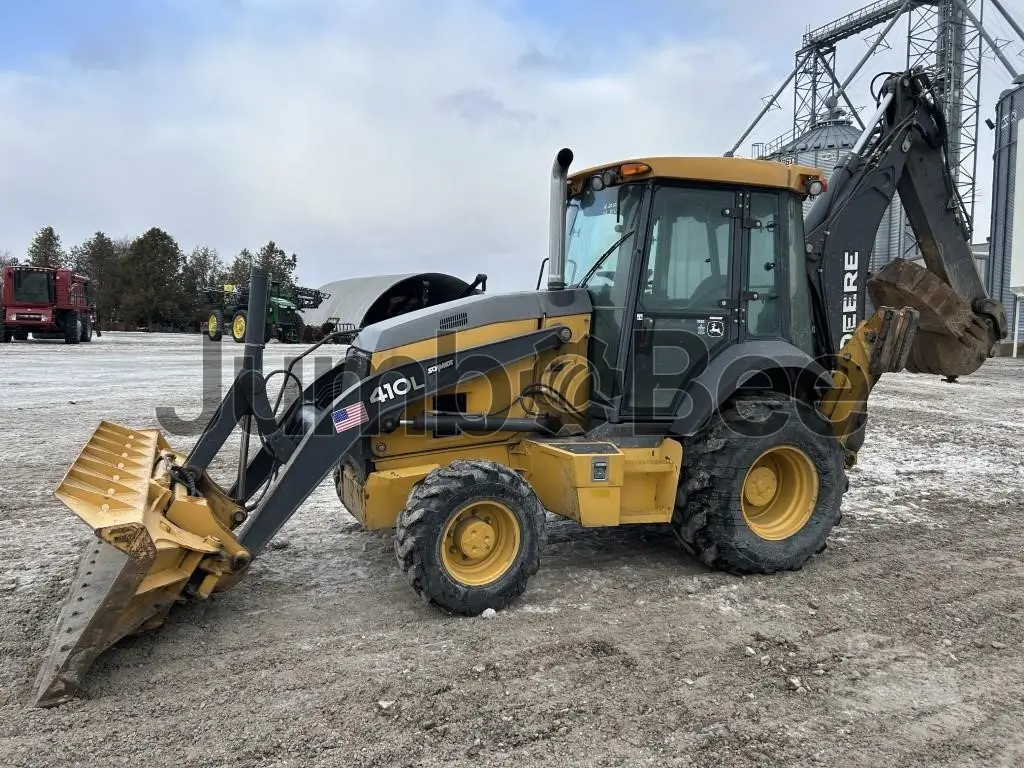

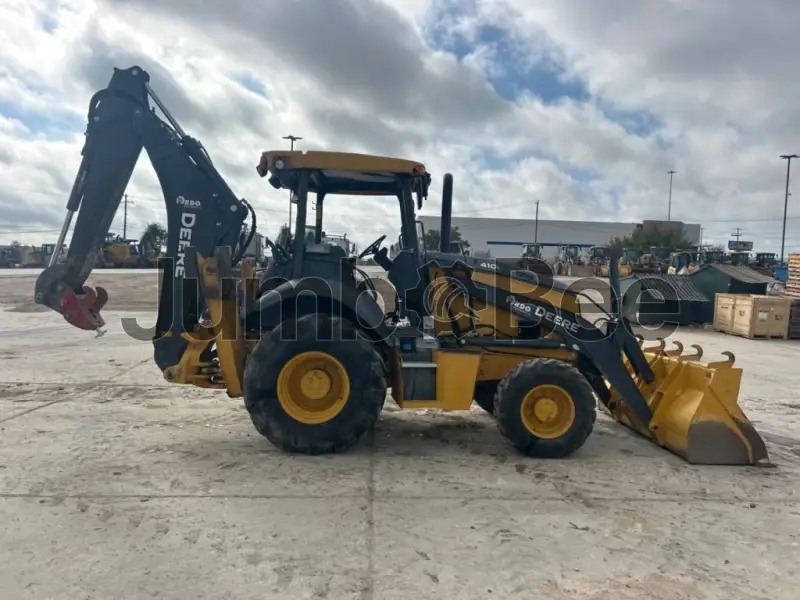

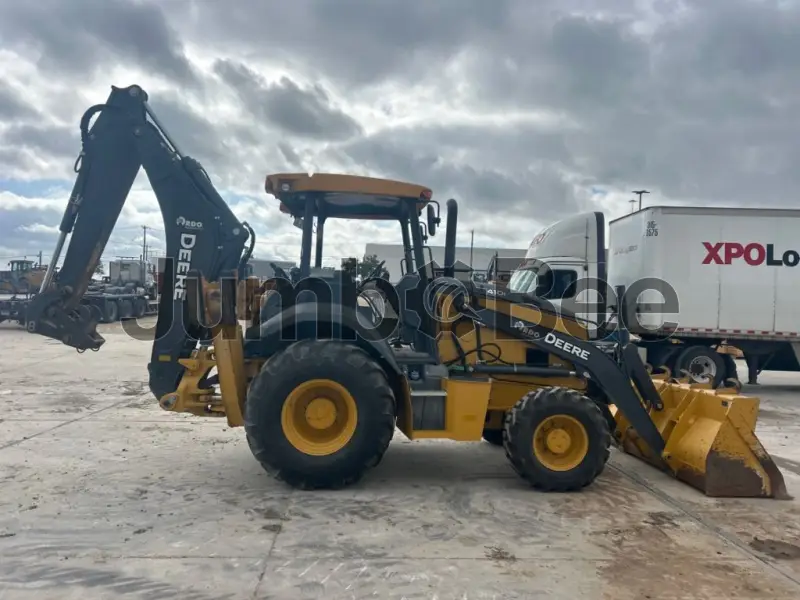

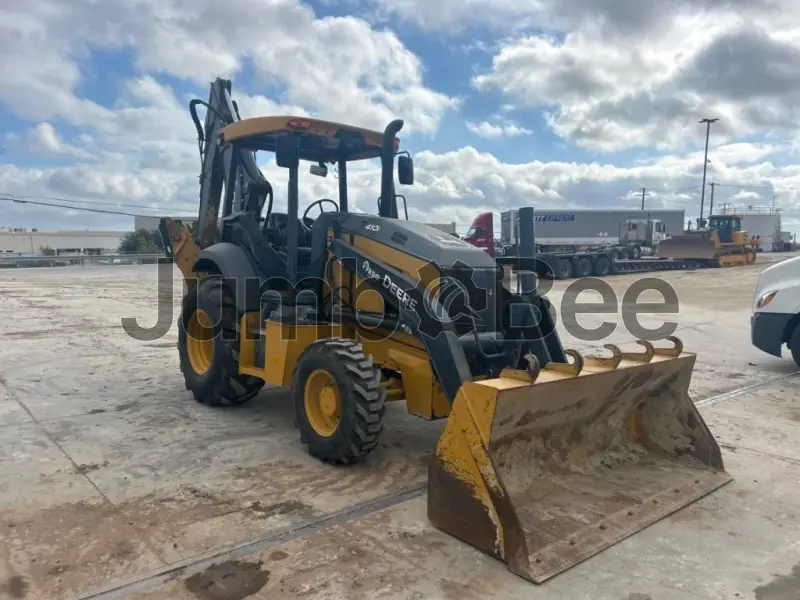

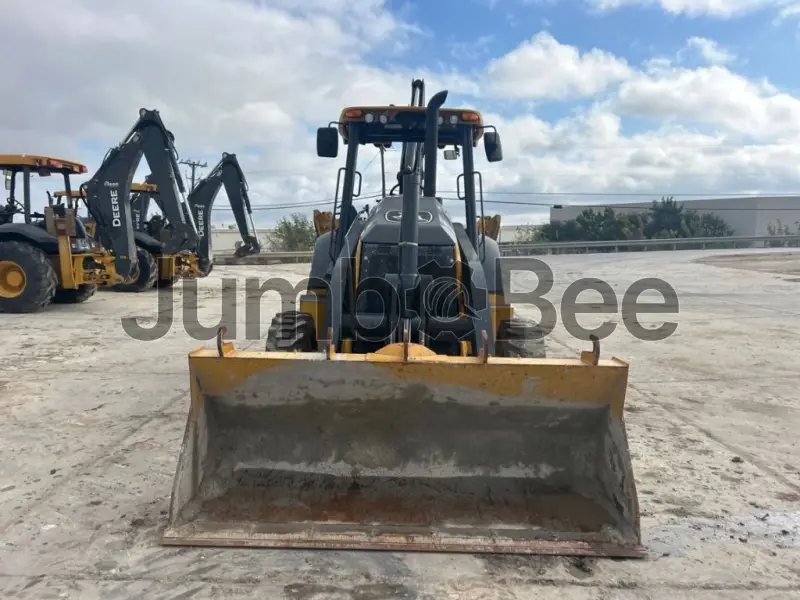

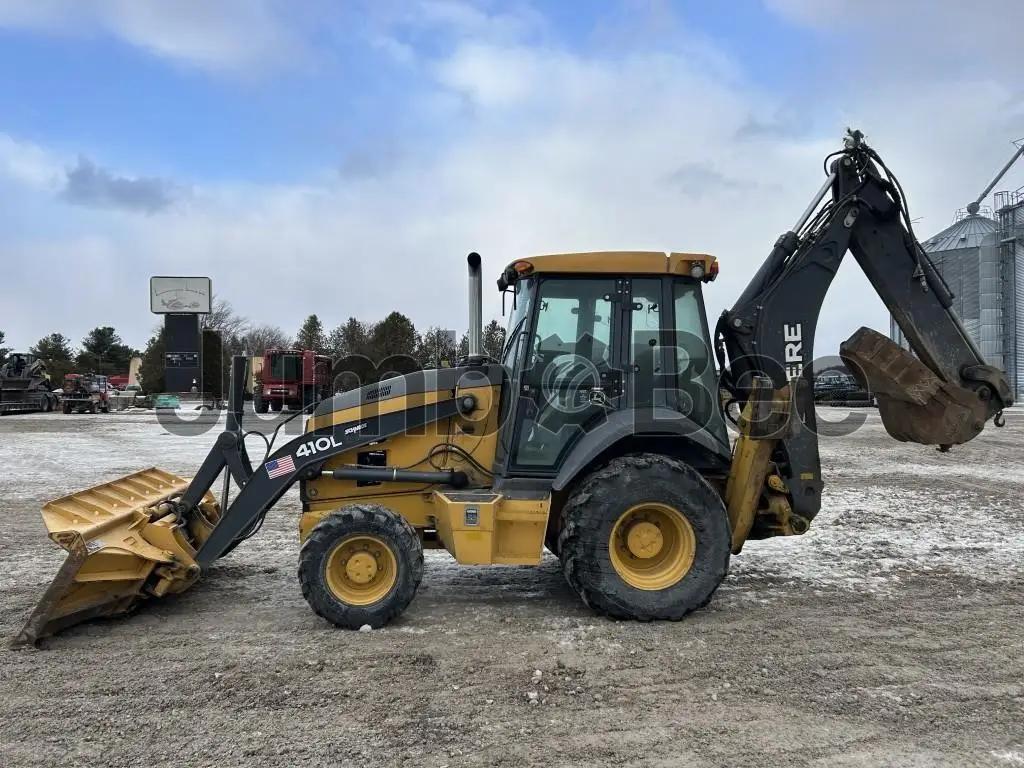

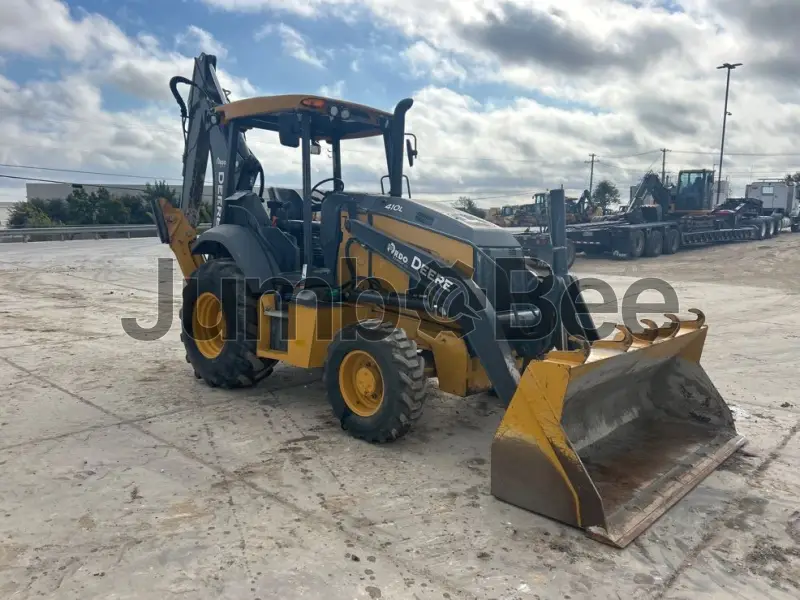

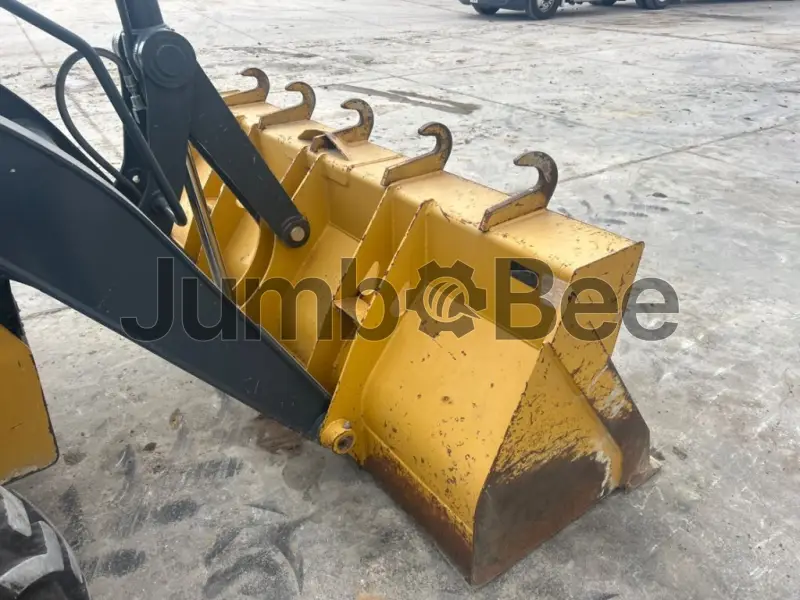

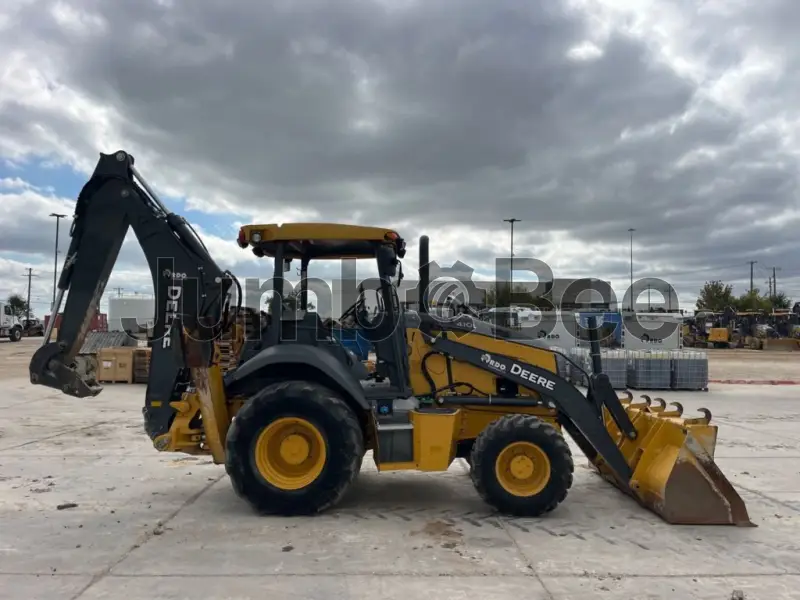

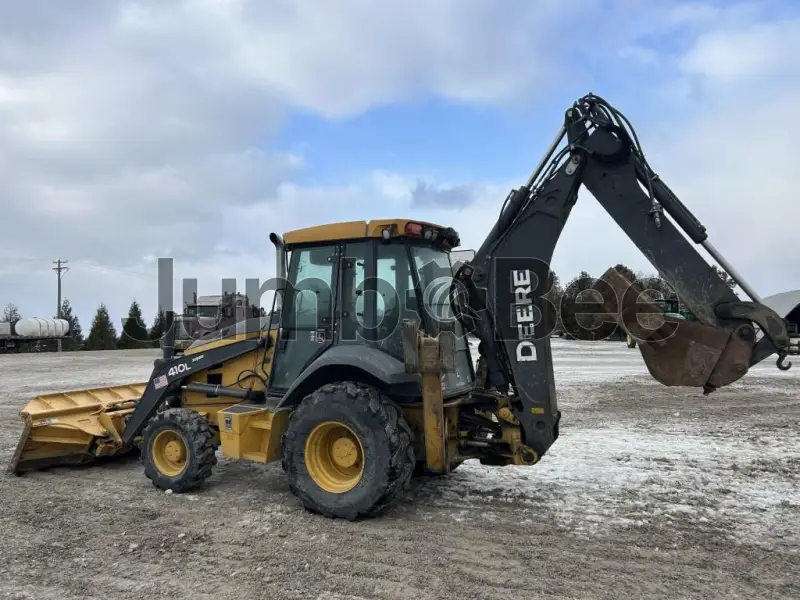

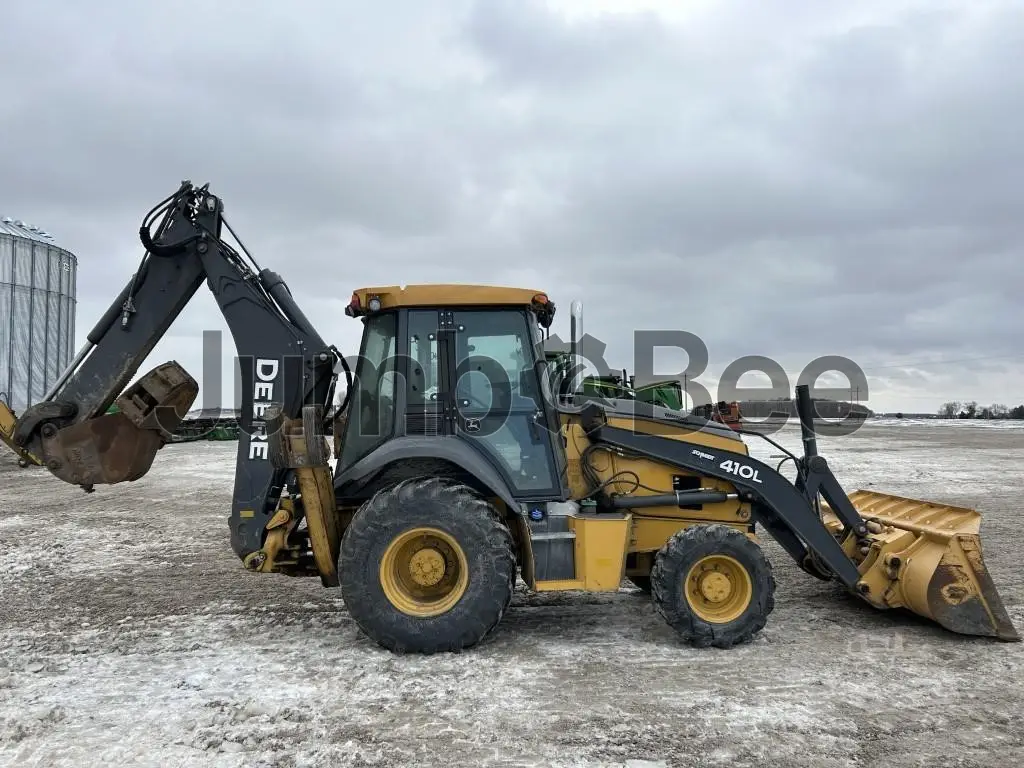

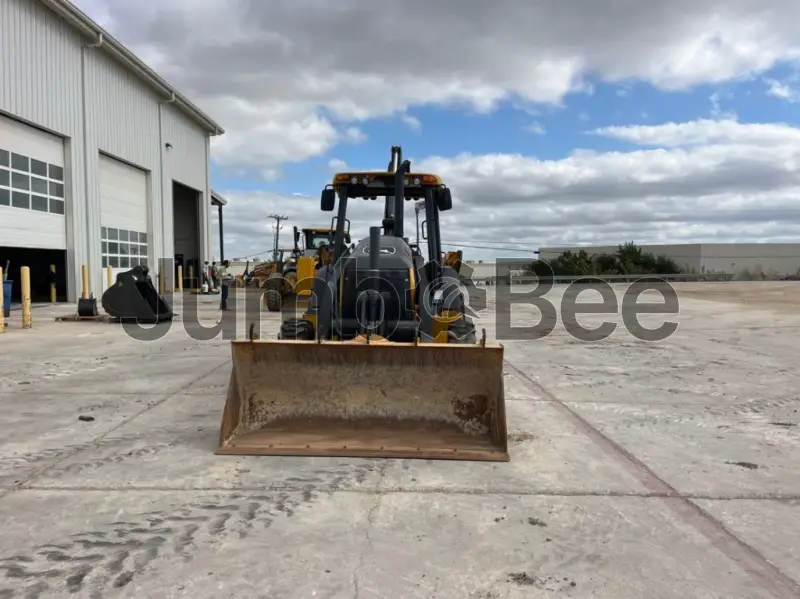

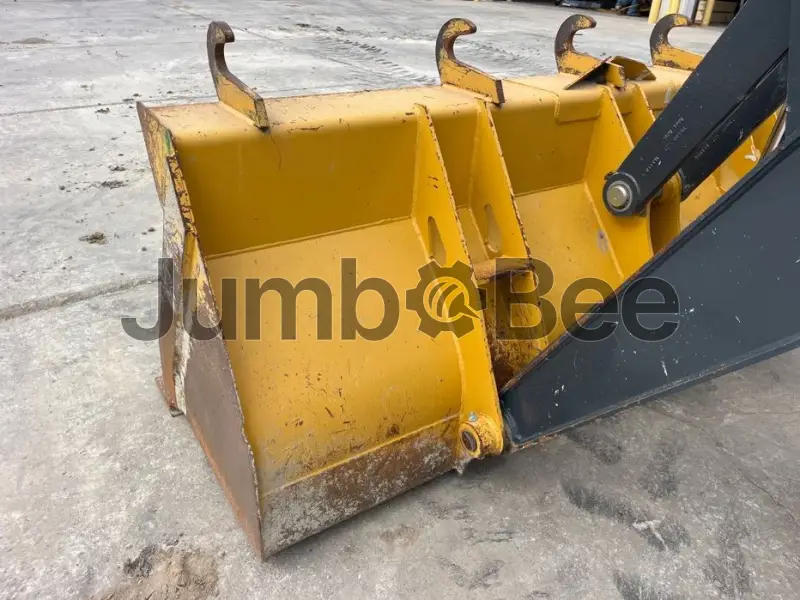

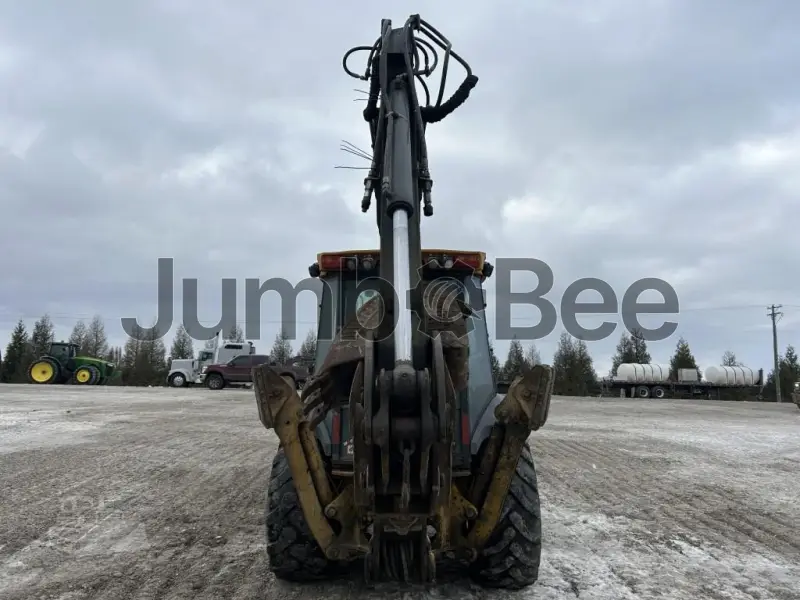

John Deere 410L Backhoe Loaders Listings
$98,900
3.53 m
4.85 m
190 deg
2354 hours
Pflugerville, United States
$107,410
4.85 m
7975 kg
0.21 cu(m)
2332 hours
Pflugerville, United States
$75,330
7975 kg
116 hp
ROPS, Pilot Controls
2651 hours
Pflugerville, United States
Compare John Deere 410L Backhoe Loader to other backhoe loaders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 410L Backhoe Loader
4.85 m
7975 kg
7430 mm × 2180 mm × 3930 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 410L?
No confirmed market price is supplied. Check current listings and compare machine condition, location, year, hours, and configuration.
What are the key advantages of the John Deere 410L?
The supplied specifications list 86.5 kW (116 hp), 159 L/min (42 gpm) pump flow for both backhoe and loader functions, and a 190° swing arc. It also has standard ISO (Deere) two-lever mechanical backhoe controls and a single-lever loader control with electric clutch disconnect.
What type of engine does the 410L use?
The supplied data confirms engine output of 86.5 kW (116 hp), but does not identify the engine type or model.
How much horsepower does the 410L have?
The John Deere 410L has 86.5 kW (116 hp) of engine power.
What fuel does the John Deere 410L use?
The supplied data does not confirm the fuel type for the John Deere 410L.
What jobs is this Backhoe Loaders best suited for?
As a backhoe loader, it is suited to general digging, trenching, loading, and truck-loading work. The supplied specifications include a 4.85 m (15.91 ft) SAE digging depth, 1.15 m³ (1.5 cu yd) loader bucket capacity, and 0.21 m³ (0.27 cu yd) backhoe bucket capacity.
What is the expected lifespan of the 410L?
The supplied data does not provide an expected service life for the 410L. Evaluate maintenance records, operating condition, hydraulic performance, wear in the buckets and linkages, and the condition of major components.
What should a buyer check when purchasing a used Backhoe Loaders?
Check maintenance records, leaks, hydraulic operation, bucket and linkage wear, stabilizers, tires, controls, lights, and overall structural condition. Test the loader and backhoe functions, including swing, digging, and clutch disconnect operation, and confirm that the machine configuration matches the listing.
