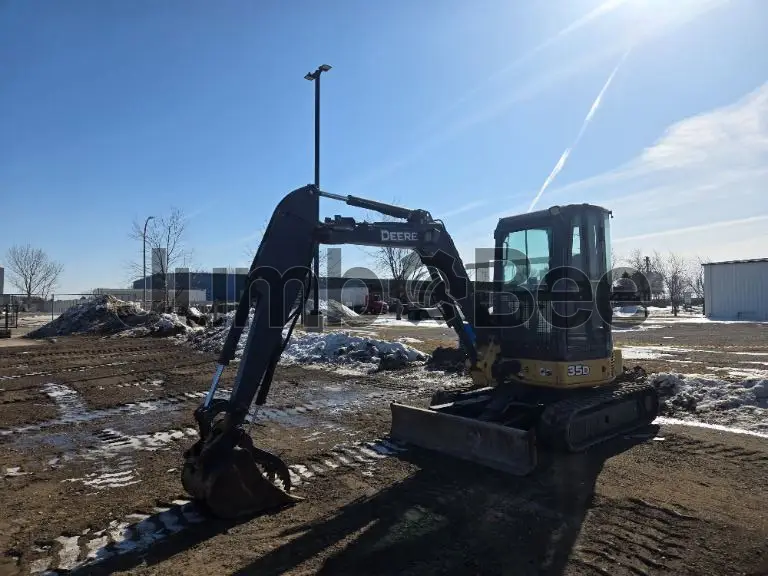

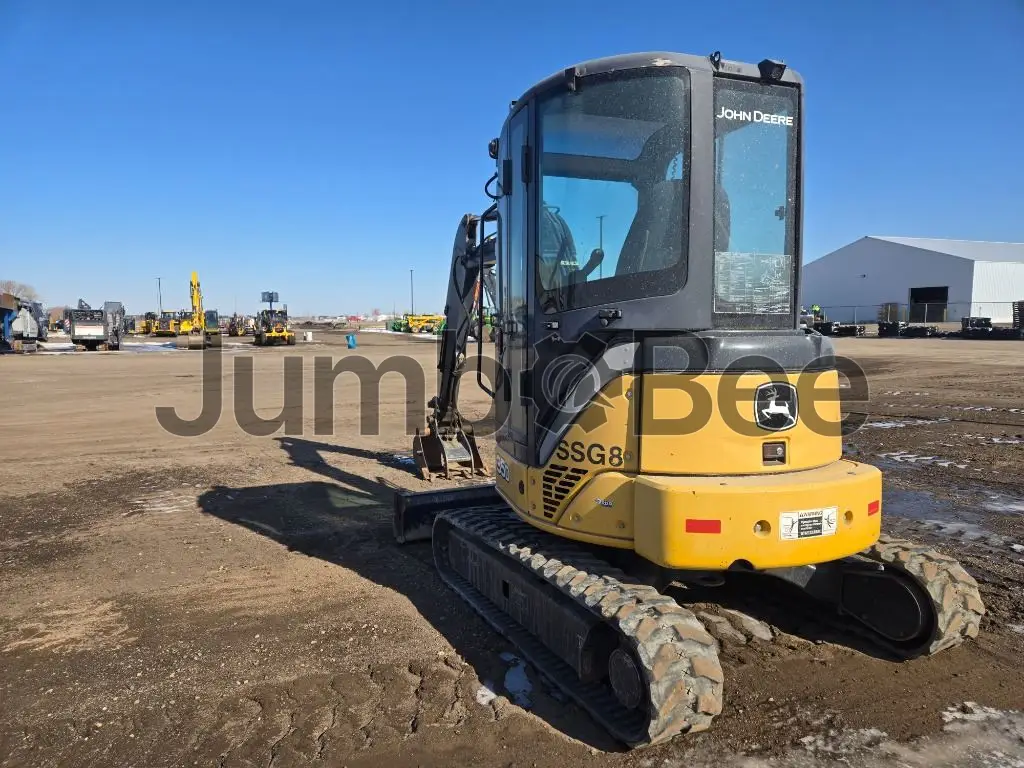

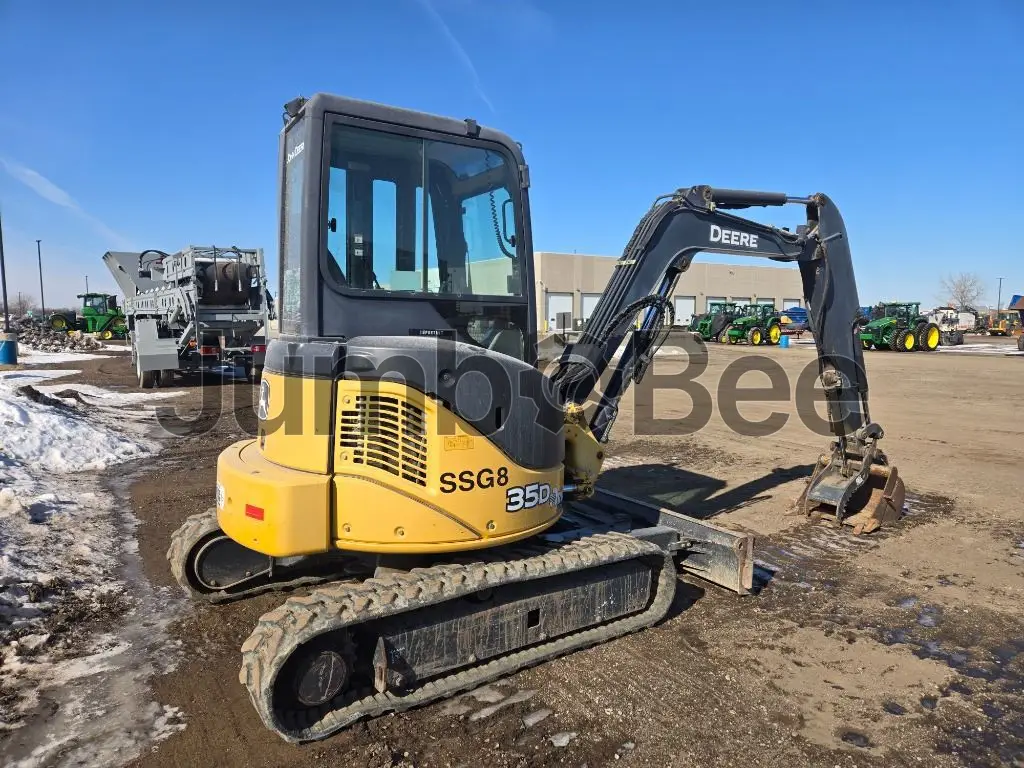

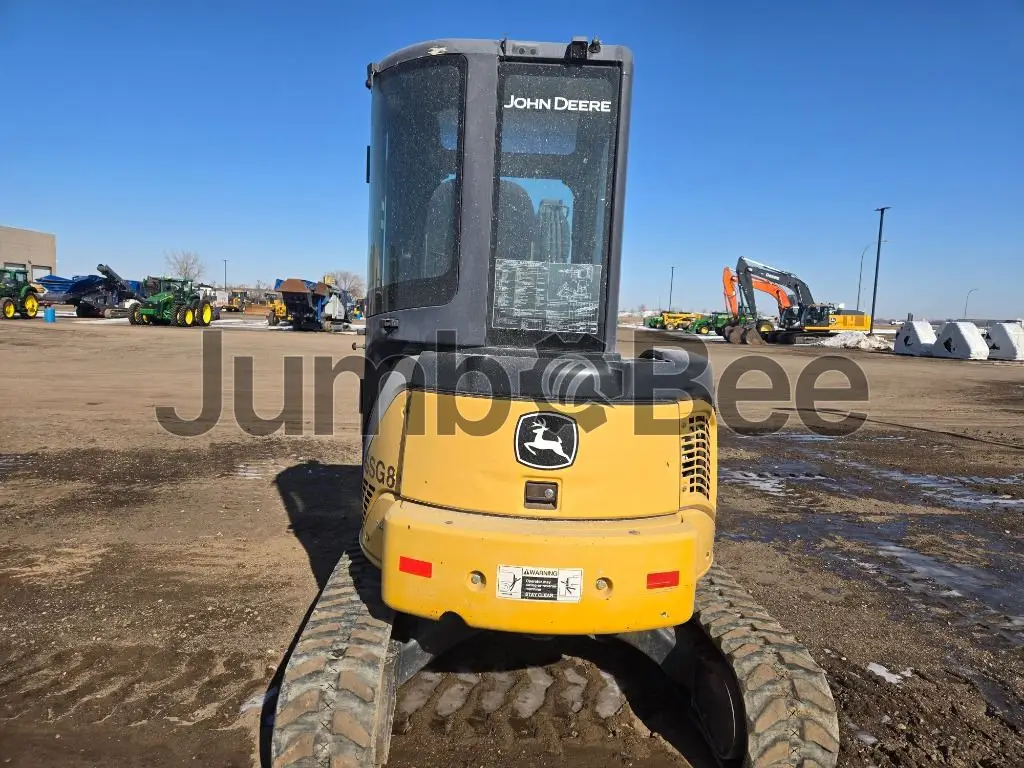

John Deere 35D Compact & Mini (Tracked) Excavators
John Deere 35D
5+
sold in last yearGeneral overview
John Deere 35D is a construction excavator designed for digging and general earthmoving on job sites. It is powered by a Yanmar 3TNV88 engine rated at 21 kW (29 hp), and the machine has an operating weight of 3,520 kg (7,760 lb).
The model lists a maximum digging depth of 3,050 mm (10 ft), maximum reach at ground level of 5,210 mm (17 ft 1 in), maximum cutting height of 4,880 mm (16 ft), and maximum loading height of 3,480 mm (11 ft 5 in). With a width of 1,750 mm (5 ft 9 in), tail swing radius of 860 mm (34 in), and ground pressure of 31 kPa (4.5 psi), it is sized for work in confined areas. Hydraulic output is listed at 80 L/min (21.1 gpm), and an additional hydraulic adjustable-angle backfill blade with 25° adjustment left/right is listed as an option.
Year
2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
4,650 mm
~183.1 in
2,460 mm
~96.9 in
1,750 mm
~68.9 in
Engine Power
29 hp
Displacement
1 cu(m)
Fuel tank
39 L
Alternator output
40
Number of Cylinders
3
Width
1,750 mm
Operating Weight
3,520 kg
Maximum Rated Flow
80 L/min
Hydraulic Pumps
80 cu(cm)
Hydraulic Capacity
46 L
Engine Model
Yanmar 3TNV88
Maximum Travel Speed - Low
2 km/h
Maximum Travel Speed - High
4 km/h
Hydraulic System - Including Tank
46 L
Shipping Height - Top of Cab
2,460 mm
Tail Swing Radius
860 mm
Track Gauge
305 mm
Maximum Digging Depth
3,050 mm
Maximum Reach at Ground Level
5,210 mm
Maximum Cutting Height
4,880 mm
Maximum Loading Height
3,480 mm
Net Power (ISO 9249)
29 hp
Hydraulic Pump
31.7 L/min (8.4 gpm auxiliary flow)
Additional specifications
Rated power
21.3 kW
Reference Bucket Capacity
0.11 cu(m)
Ground Pressure
31 kPa
Additional Options
Hydraulic adjustable-angle backfill blade (25° adjustment left/right)
