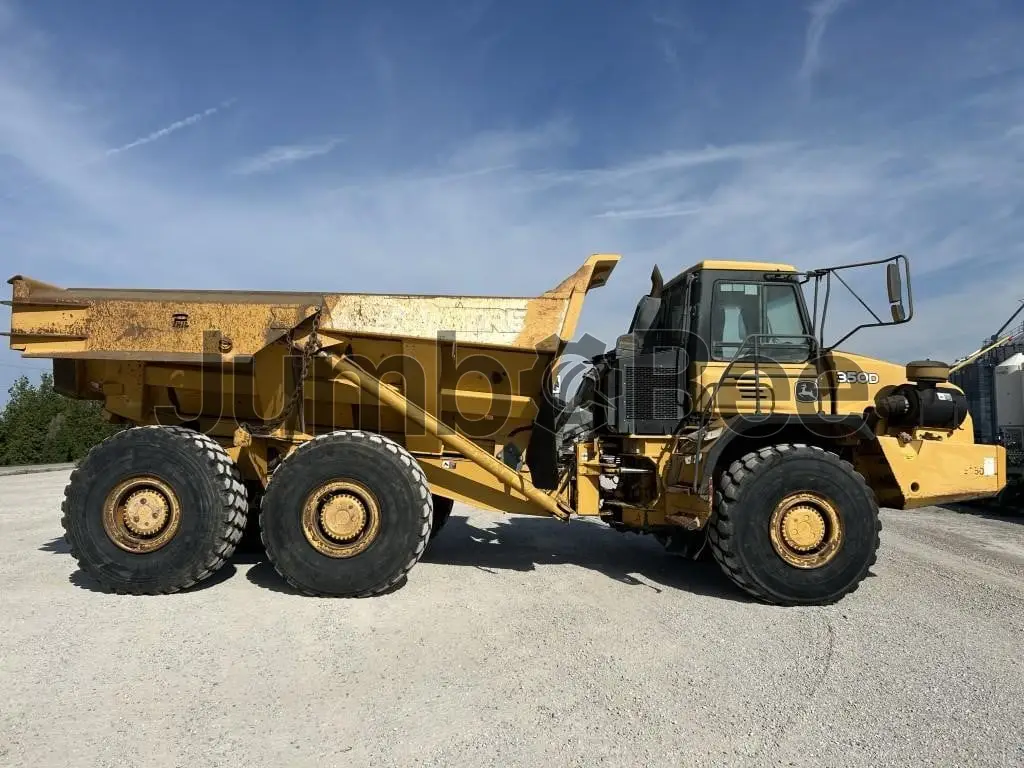

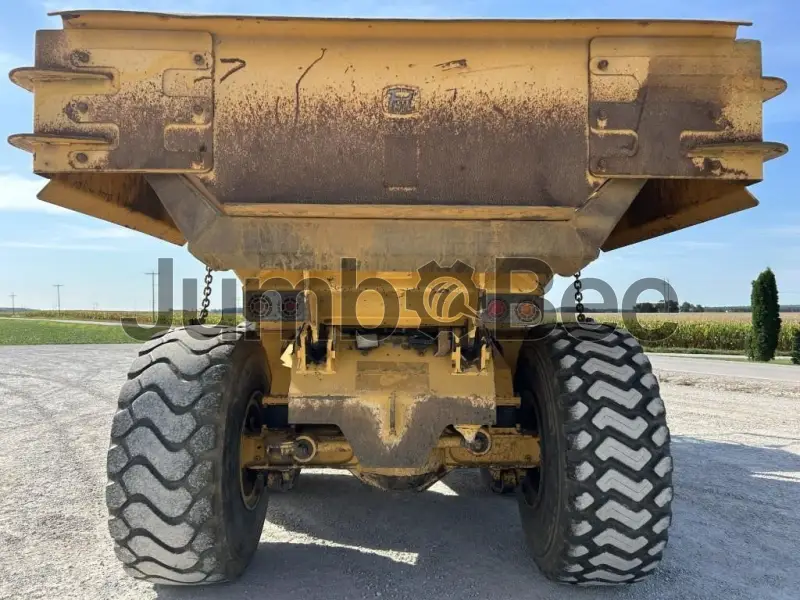

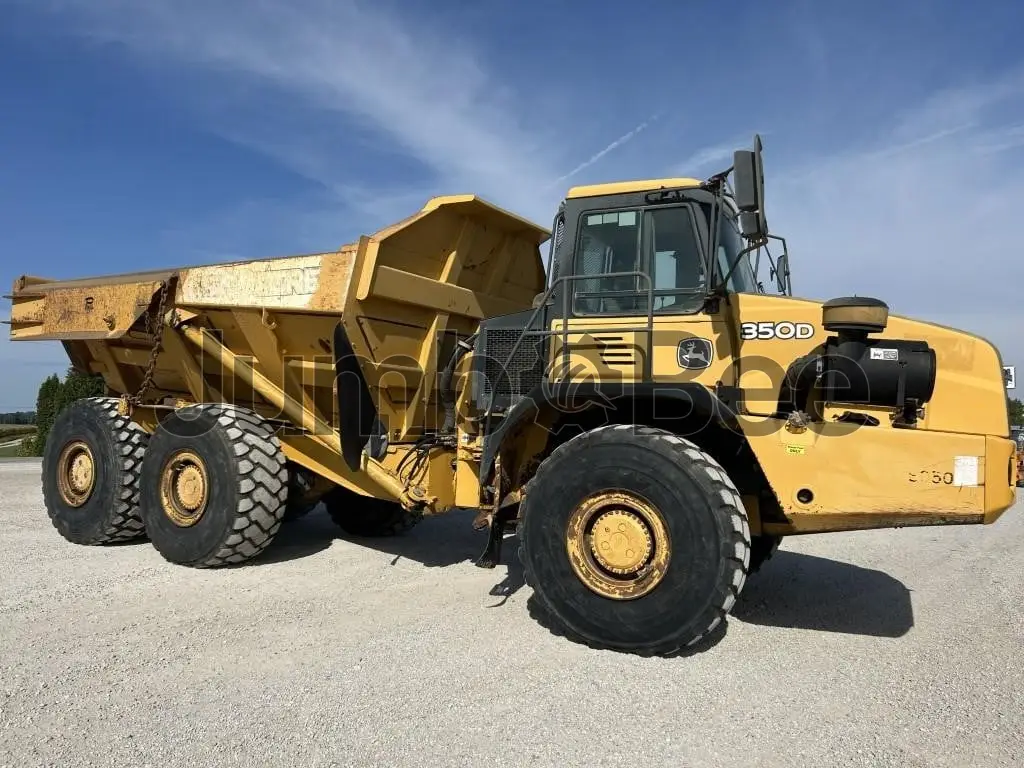

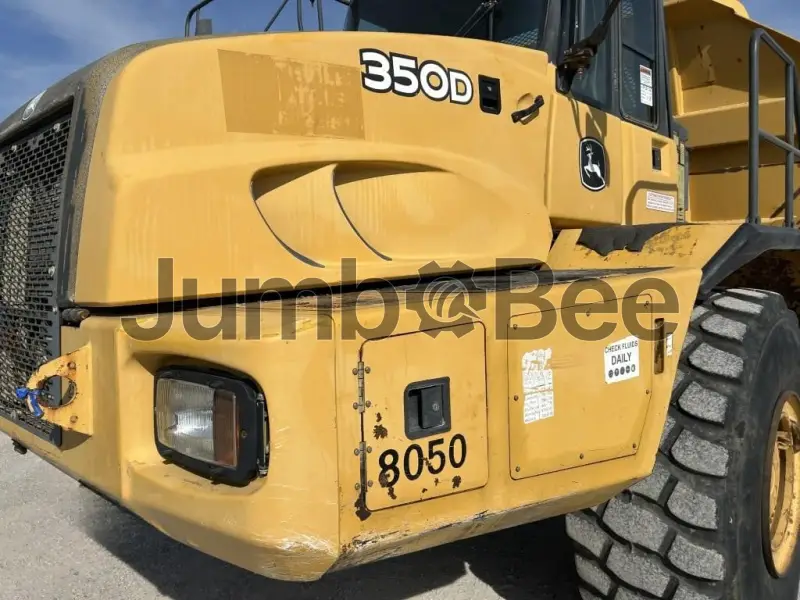

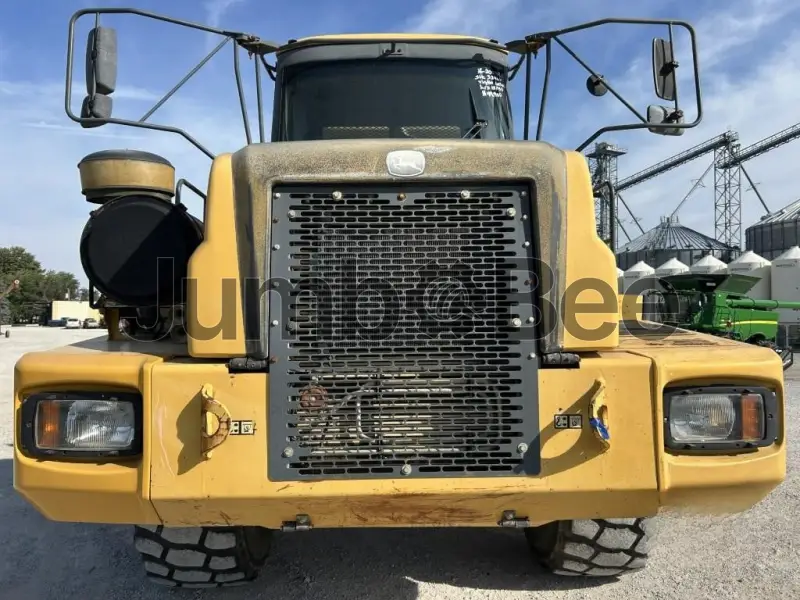

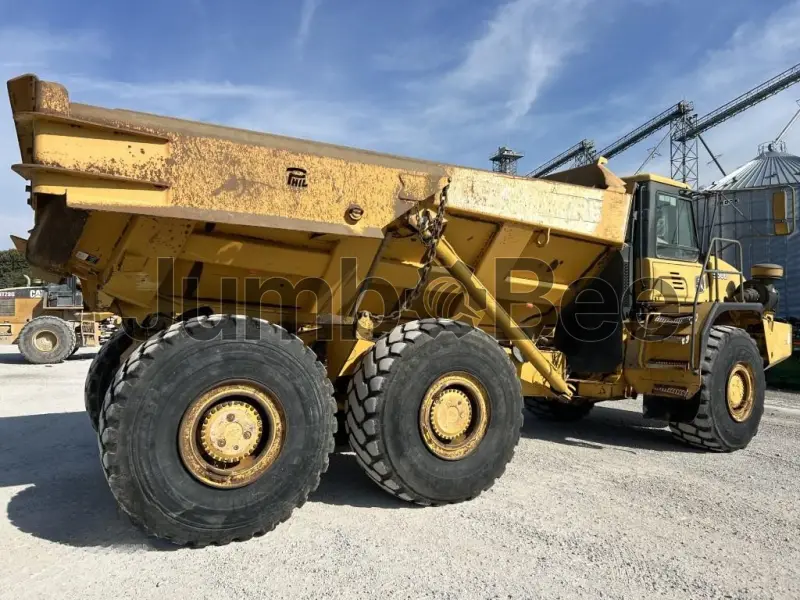

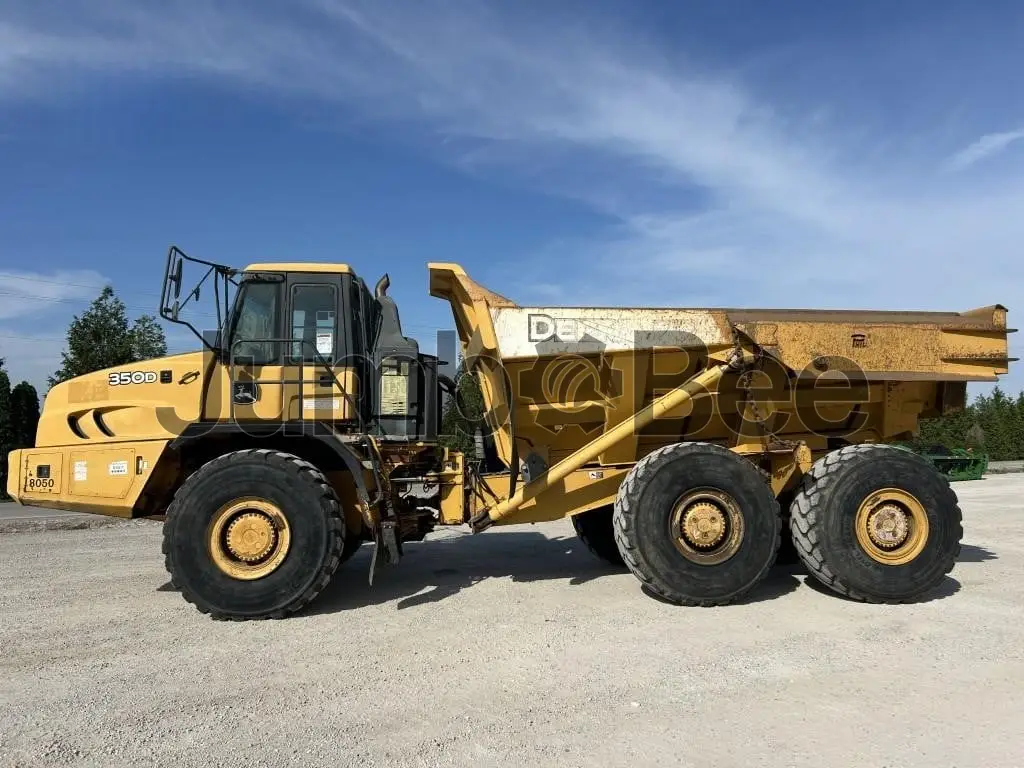

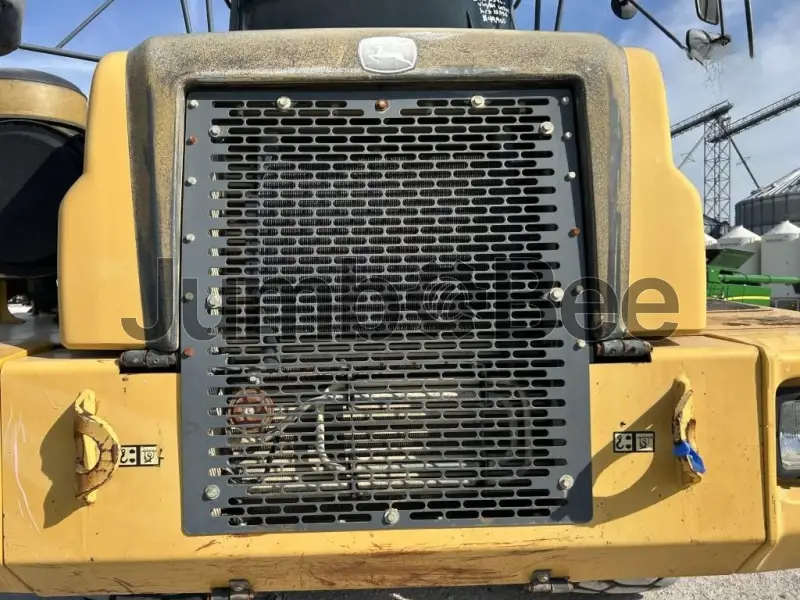

John Deere 350D Articulated Dump Trucks
John Deere 350D
Average price
$49,900
5+
sold in last year
General overview
Year
2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
Weight
10,000 mm
~393.7 in
4,000 mm
~157.5 in
4,000 mm
~157.5 in
28,000 kg
~61,729.5 lb
Additional specifications
Engine Power
380 hp
Emission standard level
Tier 3
Displacement
11.95 L
Transmission type
Allison HD 4,500R ORS fully automatic, engine-mounted planetary, with lockup torque converter, integral output retarder, and adaptive shift control
Hydraulic system type
Closed center, load sensing
Height
3,810 mm
Length
10,260 mm
Engine Model
Mercedes-Benz OM,501LA
Power - Net
380 hp
Net Power (ISO 9249)
380 hp
Rated Payload
32,529 kg
Body Capacities
20.1 cu(m)
Dump Body Type
Heavy-duty rib reinforced
Dump Body Maximum Dump Angle
70 deg
Operating Weights - Front Equipment
13,500 kg
Operating Weights - Middle Equipment
7,300 kg
Operating Weights - Rear Equipment
7,200 kg
Operating Weights - Total
28,000 kg
Width With Mirrors in Operating Position
3,810 mm
Tread Width
2,540 mm
Width Over Tires
3,230 mm
Dump Body Height, Dump Position
7,160 mm
Dump Body Side Rail Height
3,070 mm
Dump Body Dump Lip Height, Transport Position
2,180 mm
Dump Body Ground Clearance, Dump Position
810 mm
Dump Body Length
5,540 mm
Rear Axle Centerline to Rear of Dump Body
1,370 mm
Mid Axle to Rear Axle Centerline
1,960 mm
Front Axle to Mid Axle Centerline
4,470 mm
Front Axle Centerline to Front of Machine
2,460 mm
Approach Angle
29 deg
Maximum Dump Angle
70 deg
Electrical alternator rating
80
Engine power SAE j1995
380 hp
Operating weight rated payload
32,500 kg
Tires size and type
Radial earthmovers 26.5R25
Transmission travel speed
54 km/h
John Deere 350D Articulated Dump Trucks Listings
$49,900
380 hp
32529 kg
Mercedes-Benz OM501LA
Holgate, United States
Compare John Deere 350D Articulated Dump Truck to other articulated dump trucks
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 350D Articulated Dump Truck
28000 kg
10000 mm × 4000 mm × 4000 mm
