John Deere 315SL Backhoe Loaders
John Deere 315SL
5+
sold in last yearGeneral overview

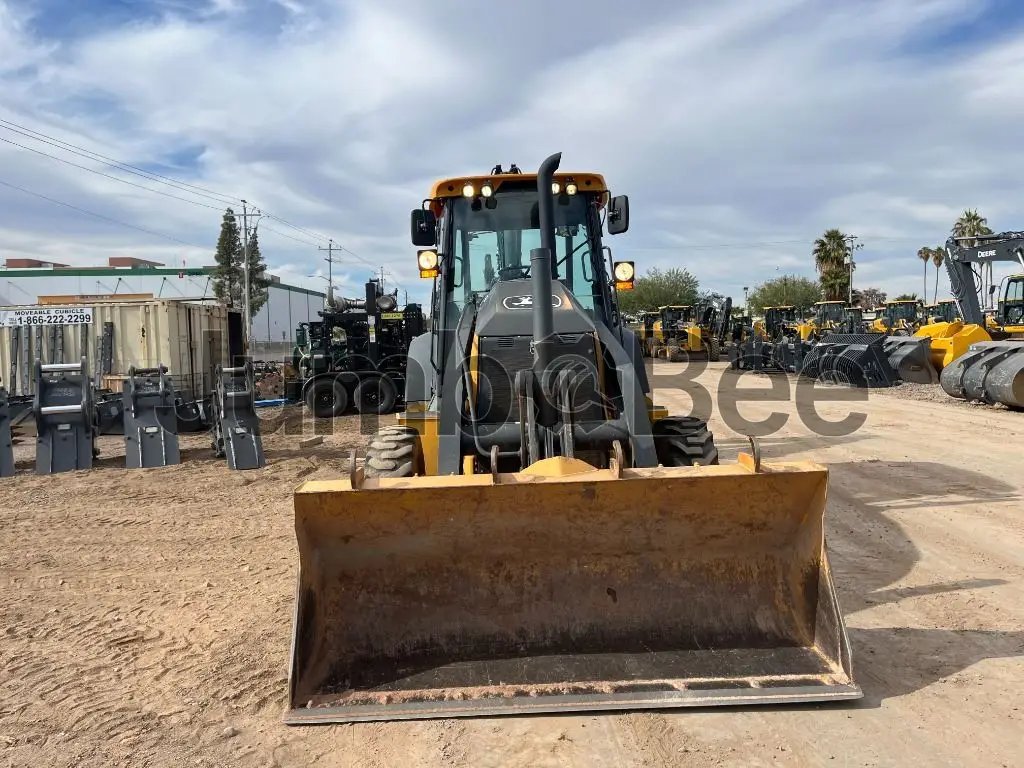

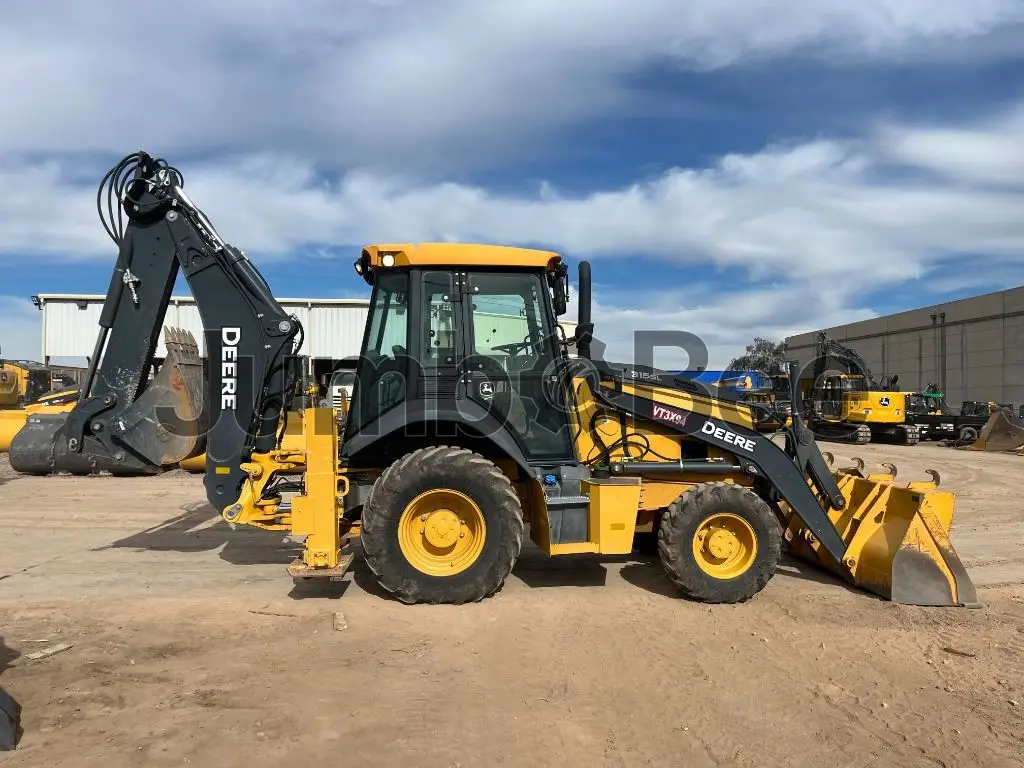

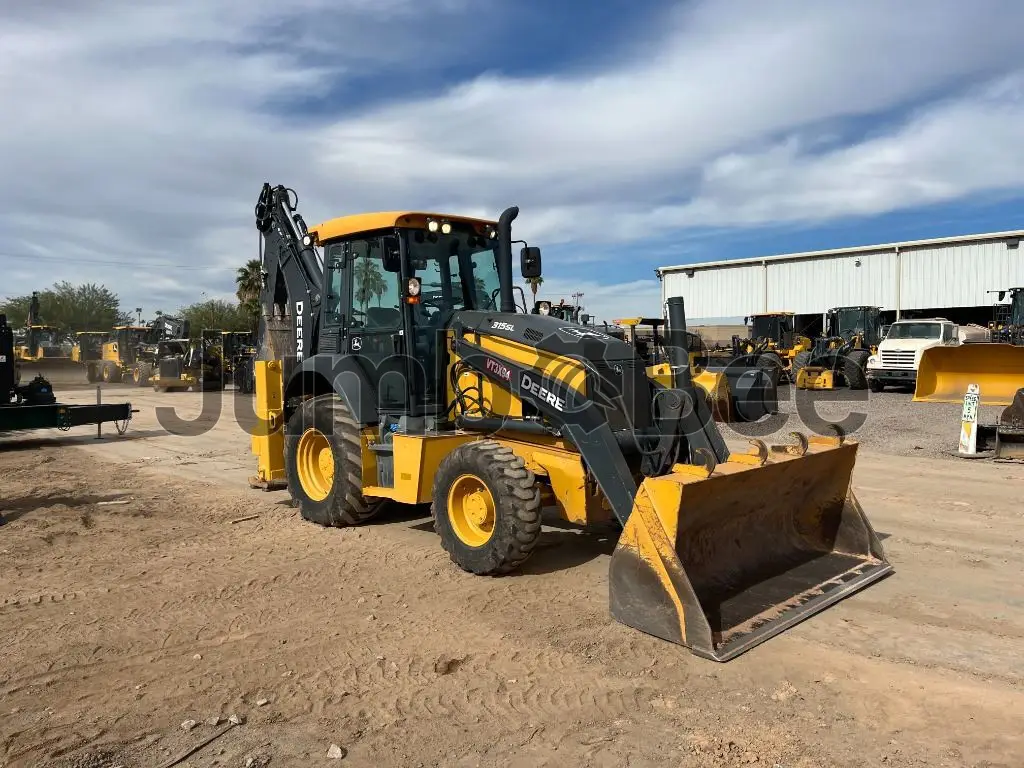

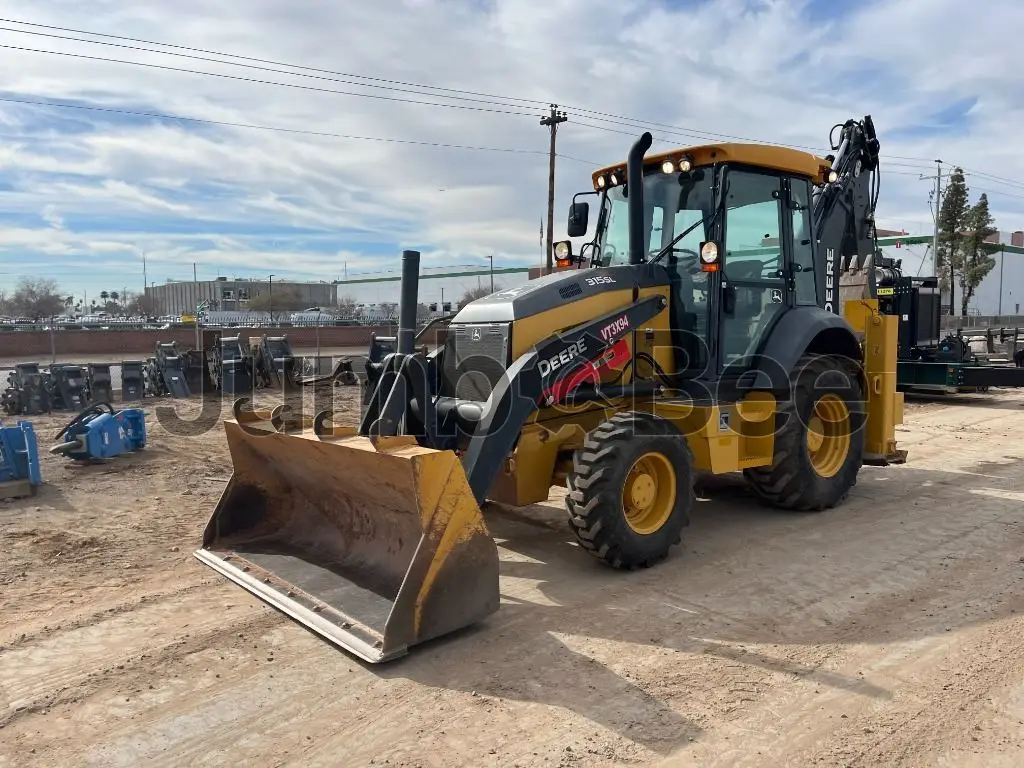

John Deere 315SL is a backhoe loader designed for construction-site digging, loading, and general earthmoving tasks. It is powered by a PowerTech EWL 4045HL050 engine rated at 76 kW (103 hp) and meets Stage IV emission standards.
With an operating weight of 7,854 kg (17,320 lb) and a Powershift transmission, the 315SL is set up for powered site work. The backhoe provides a digging depth of 4,080 mm (13 ft 5 in) and a 180° swing arc, while the hydraulic system is rated at 136 L/min (35.9 gpm) and 249.9 bar (3,620 psi) for both the backhoe and loader circuits.
Year
2020
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
5,960 mm
~234.6 in
3,710 mm
~146.1 in
2,430 mm
~95.7 in
Engine Power
103 hp
Operating Weight
7,854 kg
Dig Depth
4,080 mm
Capacity Bucket (loader)
cu(m)
Capacity Bucket (backhoe)
cu(m)
Digging Depth (SAE)
4.08 m
Additional specifications
Emission standard level
Stage IV
Displacement
4 cu(m)
Tires front
12.5/80-18 F3 (12)
Transmission type
Powershift
Fuel tank
128 L
Overall length w/header
5,960 mm
Height to top of cab
3,710 mm
Wheelbase
2,190 mm
Number of Cylinders
4
Tires rear
16.9L-28 R4 (12)
Ground clearance with standard tires
351 mm
Battery Voltage
12
Bucket Width
762 mm
Hydraulic Capacity
45 L
Engine Model
PowerTech EWL 4,045HL,050
Engine Oil
13 L
Maximum Digging Depth
89 mm
Power - Net
103 hp
Net Power (ISO 9249)
103 hp
Alternator Rating
145
Bucket Range
2,184 mm
Swing Arc
180 deg
Pump flow backhoe
136 L/min
Pump flow loader
136 L/min
System Relief Pressure backhoe
24,993 kPa
System Relief Pressure loader
24,993 kPa
Controls backhoe
2-lever mechanical standard, pilot controls with pattern select and manual and/or electric auxiliary functions optional
Controls loader
Single-lever control with electric clutch cutoff switch standard; manual auxiliary function (2nd lever), single-lever control with electric clutch cutoff switch, electrohydraulic (EH) proportional auxiliary roller, MWFD (momentary), and transmission quick-shift optiona
Lights
10 halogen: 4 front, 4 rear, and 2 side docking (32,500 candlepower each)
Operating Weights with Full Fuel Tank, Standard Equipment
7,854 kg
Operating Weights typical with Cab, Extendable Dipperstick and Counterweight
8,280 kg
Length From Axle to Axle
2,160 mm
Loading Height, Truck Loading Position
3,650 mm
Reach From Center of Swing Pivot
5,440 mm
Digging Depth (SAE maximum)
4,080 mm
Stabilizer Spread, Operating
2,260 mm
Stabilizer Overall Width, Operating
2,260 mm
Bucket Dump Angle, Maximum
45 deg
Rollback Angle at Ground Level
40 deg
Height to Bucket Hinge Pin, Maximum
3,450 mm
Reach at Full Height, Bucket at 45 deg.
743 mm
Length From Front Axle Centerline to Bucket Cutting Edge
2,050 mm
Dump Clearance
2,750 mm
Main Pump Type
Tandem Gear Pump
Rated Operating Capacity
2,792 kg
John Deere 315SL Backhoe Loaders Listings
Looking for John Deere 315SL Backhoe Loaders?
See similar listingsCompare John Deere 315SL Backhoe Loader to other backhoe loaders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 315SL?
No confirmed market price is supplied. Check current listings and compare machine condition, location, configuration, maintenance records, and attachments.
What are the key advantages of the John Deere 315SL?
Listed strengths include 76.8 kW (103 hp) net power, a Powershift transmission, 4,080 mm (160.6 in) SAE maximum digging depth, 180° swing arc, and 136 L/min (35.9 gpm) pump flow for both backhoe and loader functions.
What type of engine does the 315SL use?
The 315SL uses a PowerTech EWL 4045HL050 engine. It has 4 cylinders and is listed with Stage IV emissions compliance.
How much horsepower does the 315SL have?
The 315SL is rated at 76.8 kW (103 hp) net power.
What fuel does the John Deere 315SL use?
The supplied specifications list a 128 L (33.8 US gal) fuel tank but do not confirm the fuel type.
What jobs is this Backhoe Loaders best suited for?
Its backhoe and loader arrangement supports excavation, trenching, material loading, and truck loading. Relevant listed capabilities include 4,080 mm (160.6 in) digging depth, 3,650 mm (143.7 in) truck-loading height, and 2,750 mm (108.3 in) dump clearance.
What is the expected lifespan of the 315SL?
The supplied data does not provide an expected service life. Assess maintenance history, operating hours, hydraulic performance, engine condition, transmission operation, tires, structural wear, and attachment condition.
What should a buyer check when purchasing a used Backhoe Loaders?
Inspect service records, engine starting and operation, hydraulic leaks and function, transmission shifting, backhoe controls, loader and bucket wear, tires, stabilizers, frame damage, cab condition, and warning lights. Test all functions under load where practical.
