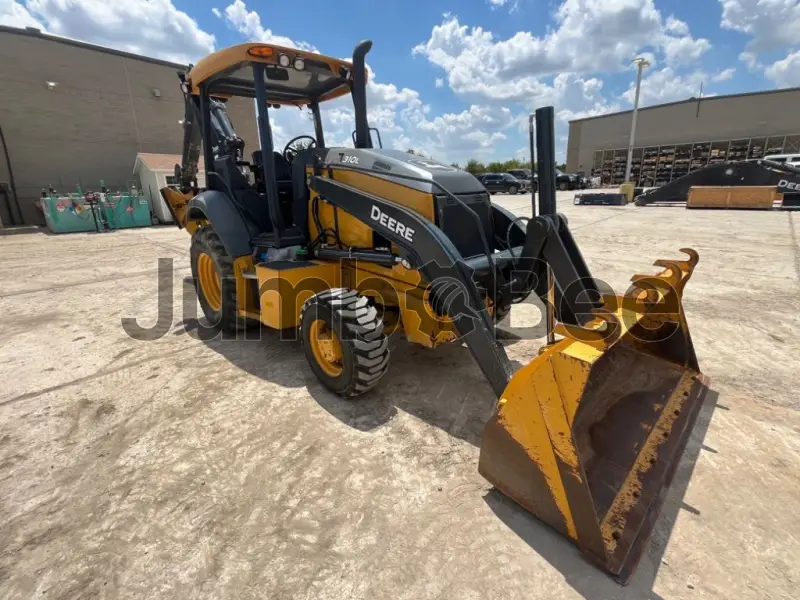

John Deere 310L Backhoe Loaders
John Deere 310L
Average price
$72,493.33
5+
sold in last year
General overview
John Deere 310L is a backhoe loader designed for construction digging and loading work. With an operating weight of 6,822 kg (15,040 lb) and engine power of 74 kW (100 hp), it is configured for general site tasks that combine excavation and material handling.
It uses a John Deere PowerTech EWL 4045HL050 4-cylinder, 4 L engine with EPA Final Tier 4 emissions compliance and 68 kW (93 hp) net power (ISO 9249). A Power Shift transmission, 4,300 mm (14 ft 1 in) digging depth, and 190° swing arc define its backhoe operating range.
Year
2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
7,240 mm
~285 in
3,420 mm
~134.6 in
Engine Power
100 hp
Operating Weight
6,822 kg
Dig Depth
4,300 mm
Capacity Bucket (loader)
cu(m)
Capacity Bucket (backhoe)
cu(m)
Digging Depth (SAE)
4.23 m
Additional specifications
Emission standard level
EPA Final Tier 4
Displacement
4 cu(m)
Tires front
12.5/80-18 F3 (12)
Transmission type
Power Shift
Fuel tank
128 L
Cooling system
35 L
Overall length w/header
7,240 mm
Height to top of cab
2,810 mm
Wheelbase
2,190 mm
Number of Cylinders
4
Tires rear
19.5L-24 R4 (12)
Ground clearance with standard tires
293 mm
Battery Voltage
12
Bucket Width
610 mm
Hydraulic Capacity
45 L
Engine Model
PowerTech EWL 4,045HL,050
Engine Oil
13 L
Maximum Digging Depth
70 mm
Power - Net
100 hp
Net Power (ISO 9249)
93 hp
Alternator Rating
150
Bucket Weight
59 kg
Bucket Range
2,184 mm
Swing Arc
190 deg
Pump flow backhoe
106 L/min
Pump flow loader
106 L/min
System Relief Pressure backhoe
24,993 kPa
System Relief Pressure loader
22,063 kPa
Controls backhoe
2-lever mechanical standard; pilot controls with pattern select and manual and/or electric auxiliary functions optional; field kits available for additional mechanical control options
Controls loader
Single-lever control with electric clutch cutoff switch standard; manual auxiliary function (2nd lever), singlelever control with electric clutch cutoff and electrohydraulic (EH) proportional auxiliary control optional
Lights
10 halogen: 4 front, 4 rear, and 2 side docking
Operating Weights with Full Fuel Tank, Standard Equipment
6,654 kg
Operating Weights typical with Cab, Extendable Dipperstick and Counterweight
7,311 kg
Length From Axle to Axle
2,190 mm
Loading Height, Truck Loading Position
3,410 mm
Reach From Center of Swing Pivot
5,420 mm
Digging Depth (SAE maximum)
4,340 mm
Stabilizer Spread, Operating
3,100 mm
Stabilizer Overall Width, Operating
3,530 mm
Bucket Dump Angle, Maximum
45 deg
Rollback Angle at Ground Level
40 deg
Height to Bucket Hinge Pin, Maximum
3,480 mm
Reach at Full Height, Bucket at 45 deg.
702 mm
Length From Front Axle Centerline to Bucket Cutting Edge
2,020 mm
Dump Clearance
2,740 mm
Main Pump Type
Gear
Rated Operating Capacity
2,578 kg

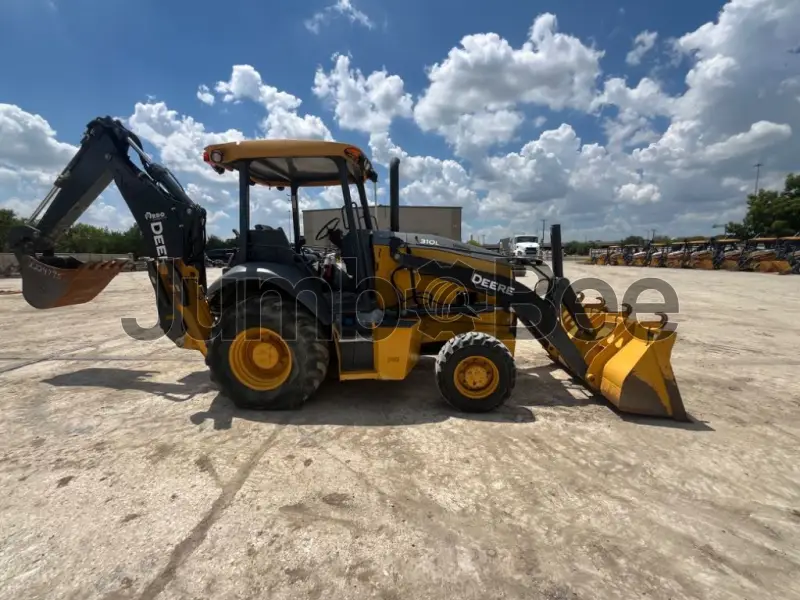

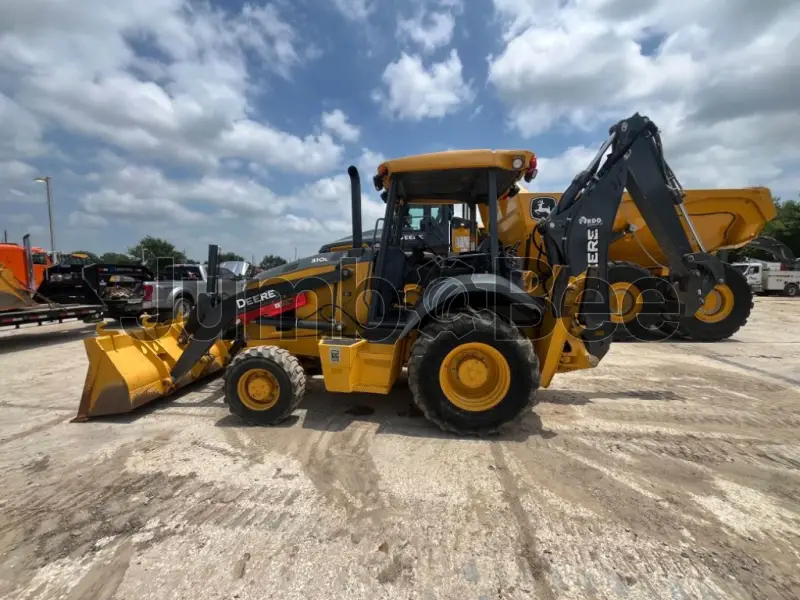

John Deere 310L Backhoe Loaders Listings
$73,170
7240 mm
PowerTech EWL 4045HL050
4
2722 hours
Mckinney, United States
$74,350
100 hp
100 hp
2184 mm
2673 hours
Mckinney, United States
$69,960
4300 mm
7311 kg
293 mm
2514 hours
Mckinney, United States
Compare John Deere 310L Backhoe Loader to other backhoe loaders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 310L?
No confirmed market price is supplied for the John Deere 310L. Check current listings and compare machine condition, location, configuration, service records, and included attachments.
What are the key advantages of the John Deere 310L?
Listed strengths include 74.6 kW (100 hp) engine power, Power Shift transmission, a 4,340 mm (170.9 in) SAE maximum digging depth, 190° swing arc, and 106 L/min (28 gpm) pump flow for both backhoe and loader functions.
What type of engine does the 310L use?
The John Deere 310L uses a PowerTech EWL 4045HL050 engine. The supplied specifications list 4 cylinders and EPA Final Tier 4 emissions.
How much horsepower does the 310L have?
The 310L is listed with 74.6 kW (100 hp) engine power. Net Power (ISO 9249) is listed as 69.4 kW (93 hp).
What fuel does the John Deere 310L use?
The supplied specifications do not confirm the fuel type for the John Deere 310L. They list a fuel tank capacity of 128 L (33.8 US gal).
What jobs is this Backhoe Loaders best suited for?
The supplied data supports use where both loader and backhoe functions are needed, including digging, loading, and truck-loading tasks. Relevant listed specifications include a 4,340 mm (170.9 in) SAE maximum digging depth and 3,410 mm (134.3 in) truck-loading height.
What is the expected lifespan of the 310L?
The supplied data does not provide an expected service-life estimate for the 310L. For a used machine, assess maintenance records, engine condition, hydraulic performance, transmission operation, structural wear, tires, and attachment condition.
What should a buyer check when purchasing a used Backhoe Loaders?
Check service records, engine starting and operation, hydraulic leaks and function, Power Shift transmission performance, backhoe controls, stabilizers, bucket wear, tires, lights, and signs of structural damage or repairs. Verify that the machine’s configuration and operating weight match the seller’s description.
