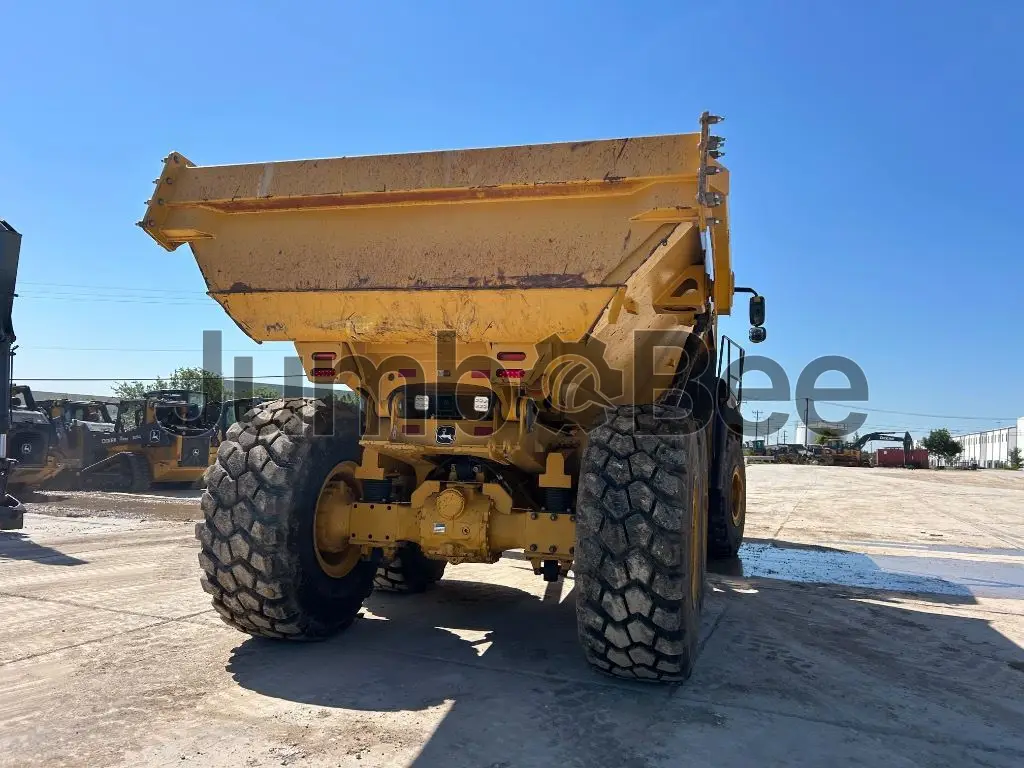

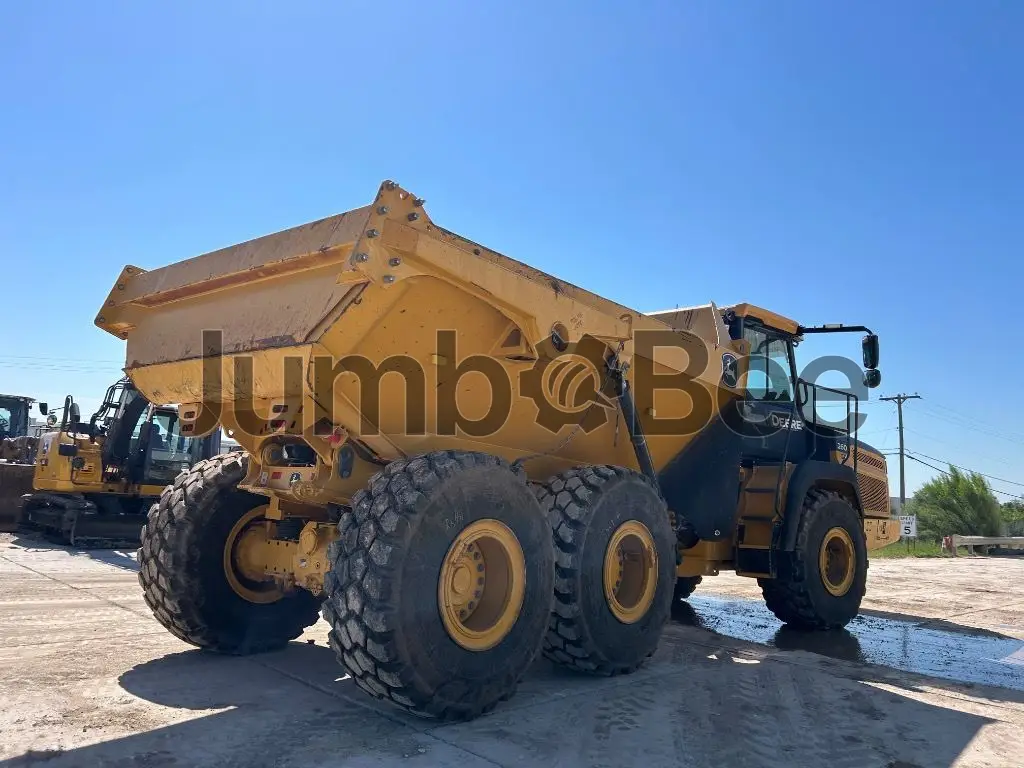

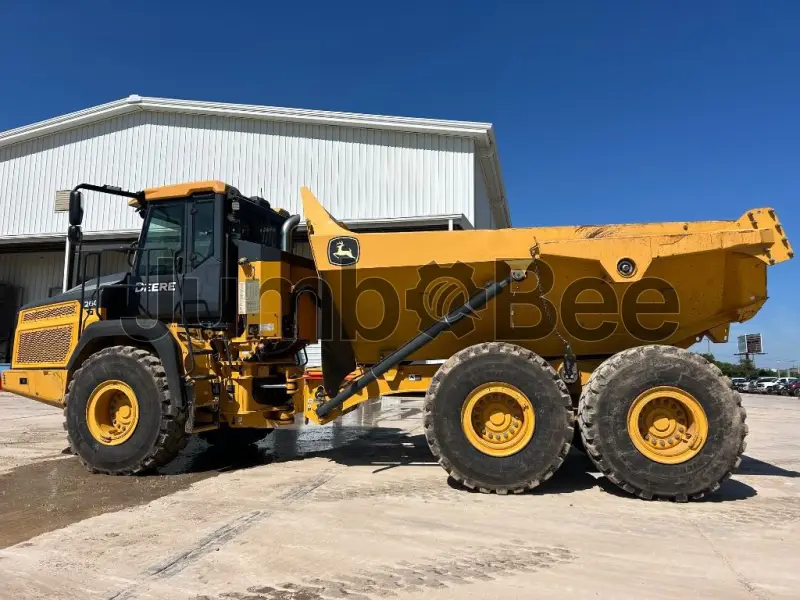

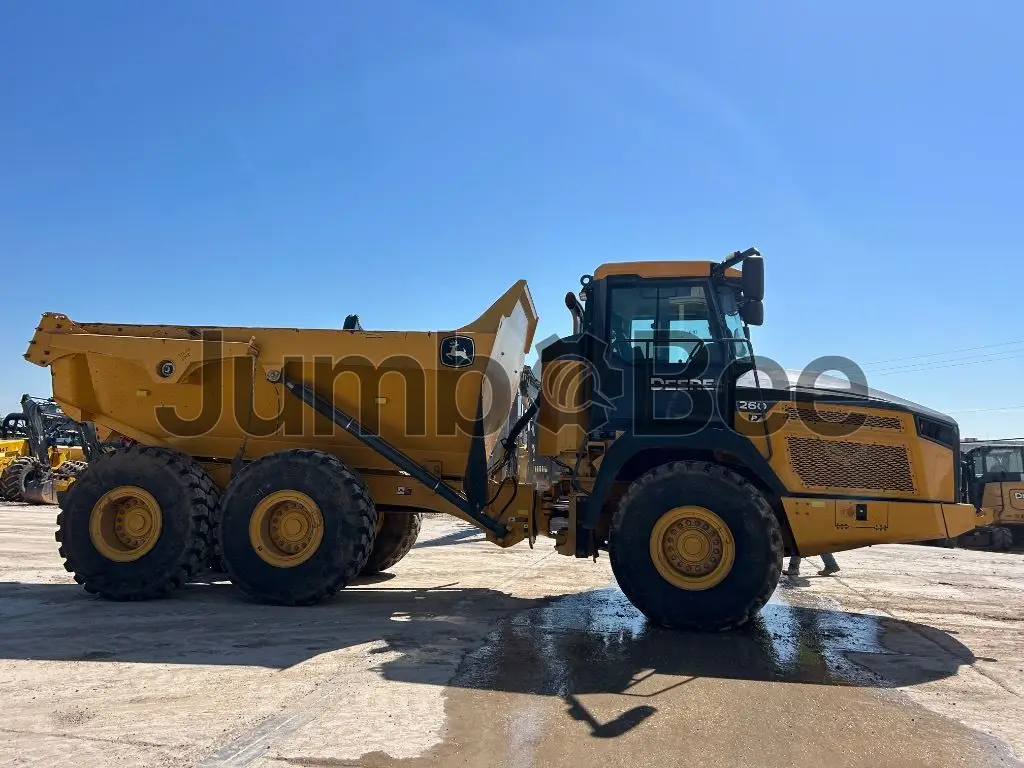

John Deere 260P Articulated Dump Trucks
John Deere 260P
Average price
$400,410
5+
sold in last year
General overview
John Deere 260P is a dump truck designed for hauling bulk material on construction and earthmoving jobs. It is powered by a John Deere PowerTech PSS 9.0 L engine rated at 236 kW (321 hp) and meets Tier 4 Final emissions requirements. The model is produced in the United States.
With a rated payload of 24,192 kg (53,330 lb) and an operating weight of 27,669 kg (61,000 lb), the 260P is built for heavy transport cycles. It uses a fully automatic 8F/4R PowerShift, countershaft/planetary, load-speed adaptive transmission and reaches a forward travel speed of 55 km/h (34.2 mph). The standard dump body is configured for material discharge with a 45° maximum dump angle.
Year
2023, 2024, 2025, 2026
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
9,750 mm
~383.9 in
3,662 mm
~144.2 in
3,150 mm
~124 in
Rated Payload
24,192 kg
Body Capacities
15 cu(m)
Dump Body - Heaped at 2:1
15 cu(m)
Additional specifications
Engine Power
239 kW
Emission standard level
Tier 4 Final
Displacement
9 cu(m)
Transmission type
Fully automatic 8F/4R PowerShift, countershaft/planetary, load-speed adaptive
Hydraulic system type
Ground-driven pump
Number of Cylinders
6
Ground clearance with standard tires
440 mm
Battery Voltage
24
Height
3,662 mm
Length
9,750 mm
Travel Speed Forward
55 km/h
Engine Model
John Deere PowerTech PSS 9.0 L
Power - Net
321 hp
Net Power (ISO 9249)
321 hp
Hydraulic Cycle Time - Lower, Float
4 s
Alternator Rating
240
Dump Angle at Maximum Height
70 deg
Dump Body Type
Standard dump body (optional tailgate)
Dump Body Struck
11 cu(m)
Dump Body - With Optional Tailgate
16 cu(m)
Dump Body Maximum Dump Angle
45 deg
Operating Weights - Front Equipment
9,072 kg
Operating Weights - Middle Equipment
9,072 kg
Operating Weights - Rear Equipment
9,525 kg
Operating Weights - Total
27,669 kg
Width Over Tires
3,150 mm
Width Over Fenders
3,200 mm
Dump Body Length
4,800 mm
Approach Angle
26 deg
Tire Size
23.5 R25 (radial earthmover, E-3 standard)
John Deere 260P Articulated Dump Trucks Listings
$361,680
24192 kg
6
55 km/h
2009 hours
New Braunfels, United States
Compare John Deere 260P Articulated Dump Truck to other articulated dump trucks
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
John Deere 260P Articulated Dump Truck
24192 kg
9750 mm × 3150 mm × 3662 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a John Deere 260P?
No confirmed market price is supplied for the John Deere 260P. Check current listings and compare the truck’s condition, location, configuration, service records, and included options.
What are the key advantages of the John Deere 260P?
Key listed features include a 24,192 kg (53,334 lb) rated payload, a 15 m³ (19.62 cu yd) heaped dump-body capacity, 239.4 kW (321 hp) net power, and a fully automatic 8F/4R PowerShift transmission. An optional tailgate is available.
What type of engine does the 260P use?
The 260P uses a John Deere PowerTech PSS 9.0 L engine. It has 6 cylinders and is listed with a Tier 4 Final emission standard level.
How much horsepower does the 260P have?
The John Deere 260P is rated at 239.4 kW (321 hp) net power, including Net Power (ISO 9249).
What fuel does the John Deere 260P use?
The supplied specifications do not confirm the fuel type for the John Deere 260P.
What jobs is this Dump Trucks best suited for?
The supplied information identifies the 260P as a dump truck with a standard dump body and a 24,192 kg (53,334 lb) rated payload. Specific job suitability is not confirmed; assess site conditions, material type, haul routes, and required capacity.
What is the expected lifespan of the 260P?
The supplied data does not provide an expected lifespan for the John Deere 260P. Service life depends on maintenance, operating conditions, load practices, and inspection of the engine, transmission, hydraulics, body, and tires.
What should a buyer check when purchasing a used Dump Trucks?
Check service records, operating hours, the engine and transmission, hydraulic operation, dump-body condition, frame damage, tire wear, brakes, steering, and electrical components. Test the dump cycle and inspect for leaks, cracks, corrosion, or signs of poor maintenance.
