J&M 875 Single Auger
J&M 875
Average price
$19,900
5+
sold in last year
General overview

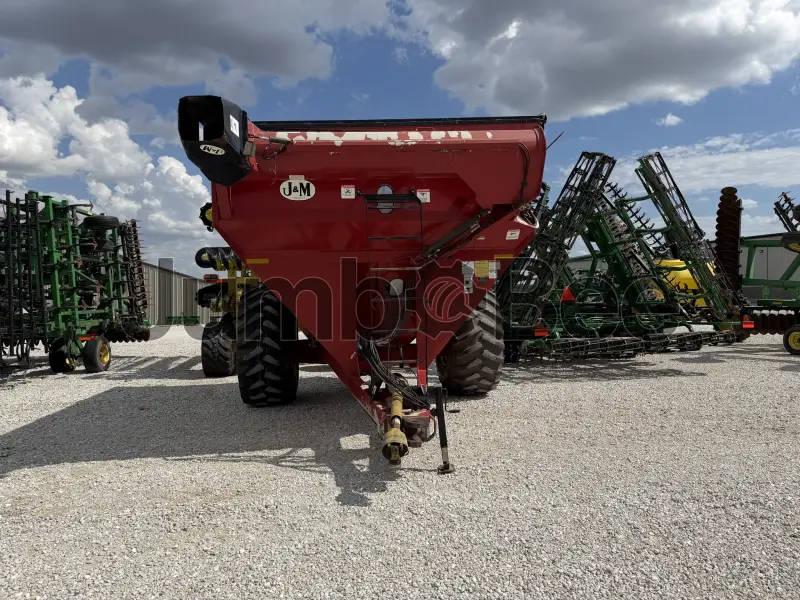

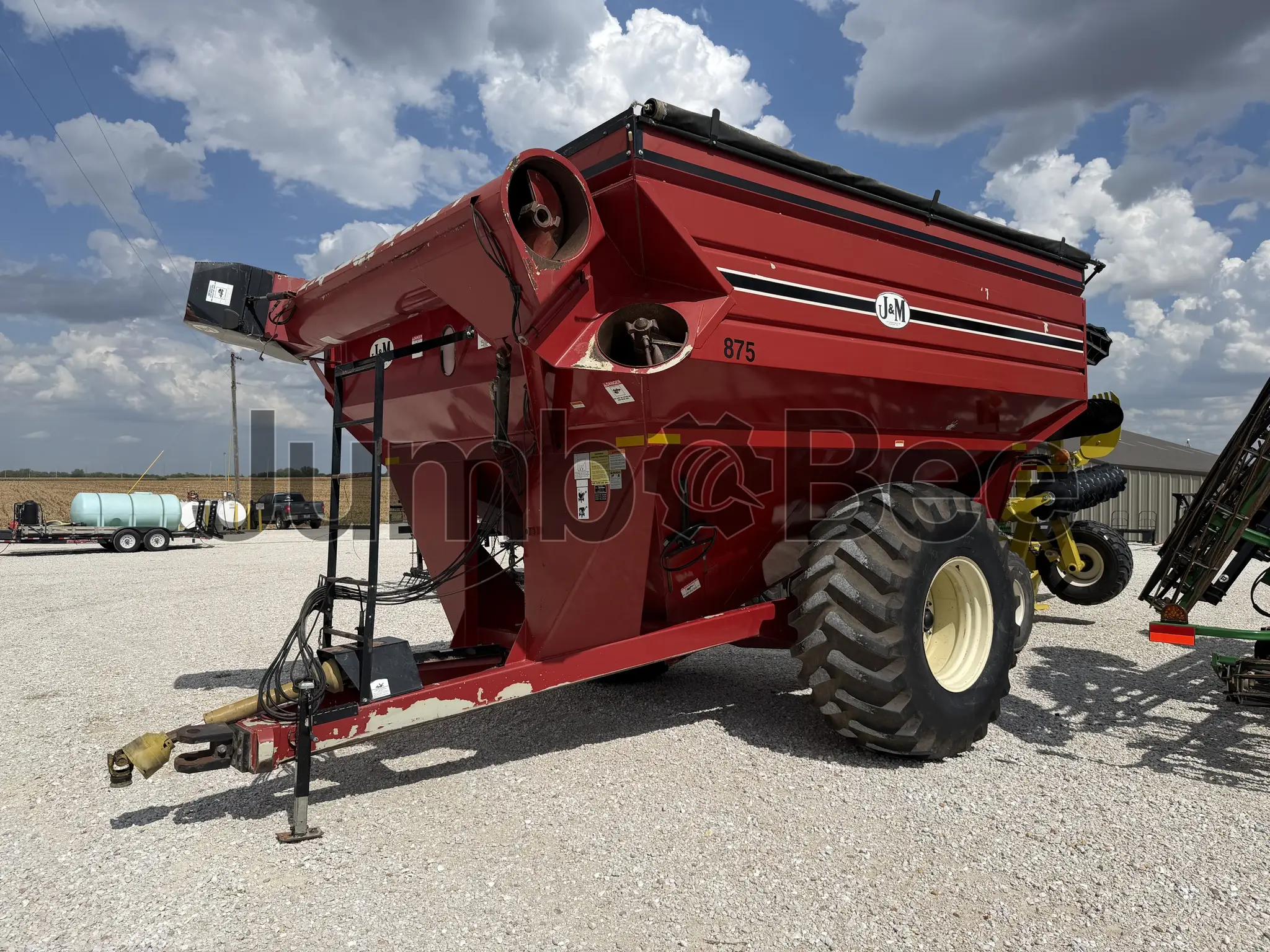

The J&M 875 grain cart is a farm equipment attachment used in harvest operations to receive grain from combines and move it to transport or storage points. It uses a standard heavy-duty driveline/gearbox with PTO driveline standard, and its vertical auger measures 457 mm (18 in). The peak unloading rate is 14,095 L/min (3,723.5 gpm).
Built in the United States for the 2010 model year, the 875 has an empty weight of 4,622 kg (10,190 lb) and an empty hitch weight of 578 kg (1,270 lb). When loaded, hitch weight increases to 1,723 kg (3,800 lb), and PTO speed is 1,000 rpm. These figures place it in a field grain-handling role focused on fast unloading.
Year
2010
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
mm
~ in
mm
~ in
3,556 mm
~140 in
Unloading rate
6,733.33 L/min
Capacity Heaped
30,834 cu(m)
Tractor hydraulics requirements
Standard PTO-driven (factory PTO driveline). Optional Hydraulic Drive Kit (19 cu in motor) in place of PTO requires a minimum of 35 gpm and maximum 50 gpm; provides up to 255 bu/min at 2,400 psi and 50 gpm.
Grain Cart Capacity
30,835.21 L
Required Engine Power
111.85 kW
Grain Cart Loaded Tongue Weight
1,769.01 kg
Grain Cart Empty Tongue Weight
725.75 kg
Grain Cart Auger Diameter
0.46 m
Flighting Thickness
0.375 inch

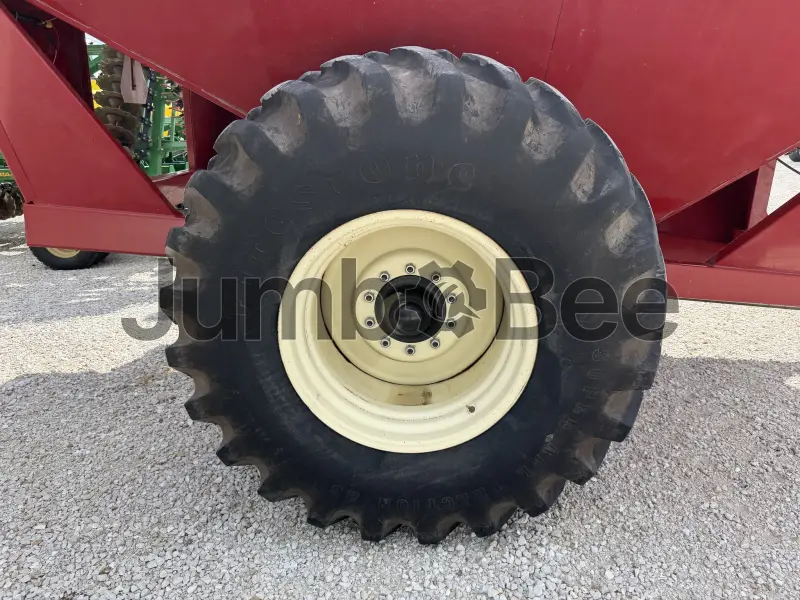

Hub Size/Spindle Diameter
10 bolt; 4 1/2 diameter spindle
Hydraulic Remotes Required
2 hydraulic remotes
Front/Rear Slopes
40° front / 40° rear
Hopper Length
4.14 m
Hopper Width
1.78 m
Auger Side Reach Max
3.86 m
Auger Side Reach Min
0.41 m
Grain Cart Overall Transport Length
6.38 m
Additional specifications
Peak unloading rate
14,095 L/min
Total weight - empty
4,622 kg
Hitch weight - empty
578 kg
Hitch weight - loaded
1,723 kg
PSI capacity
193 kPa

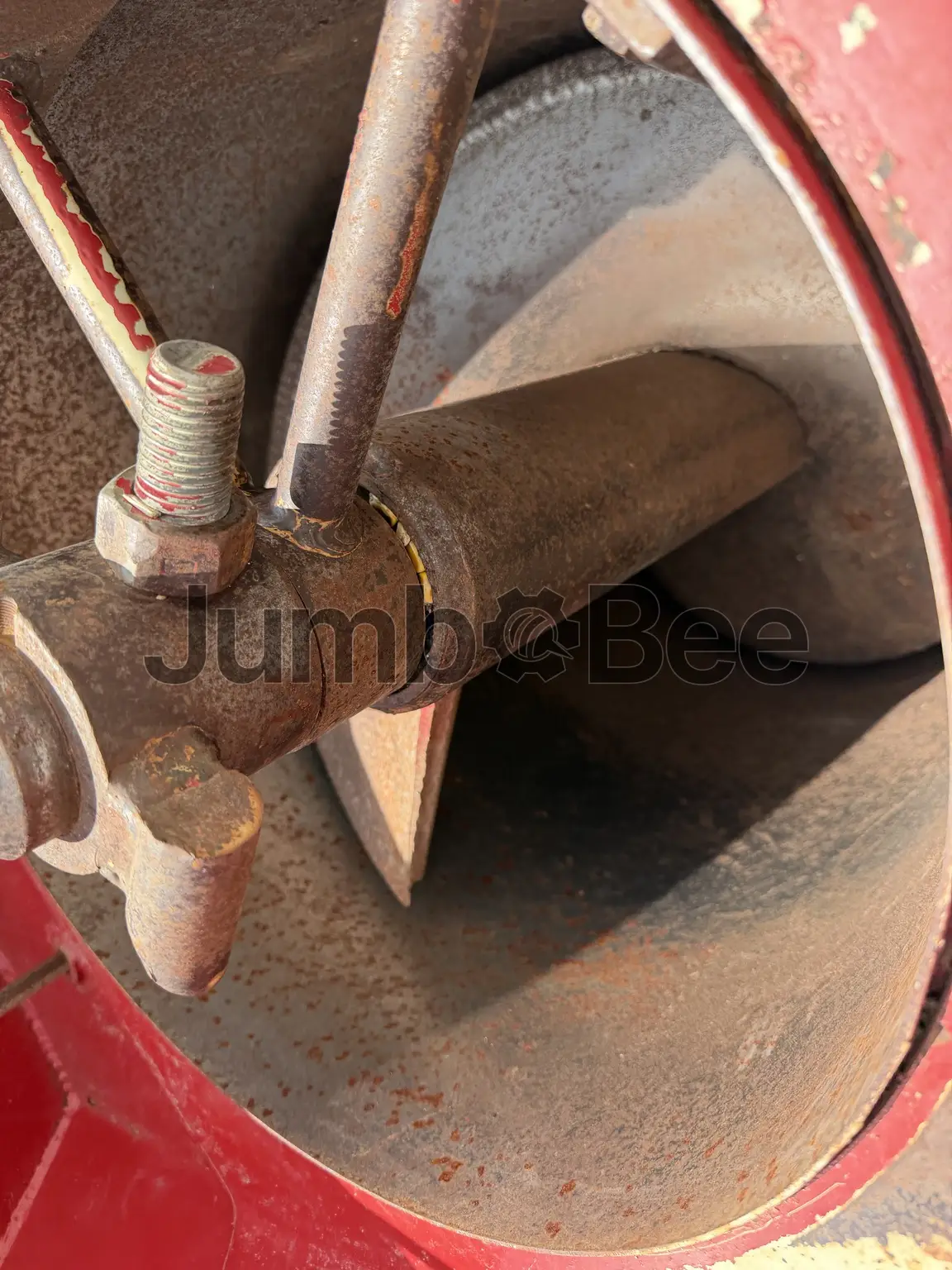

Vertical auger
457 mm
Gearbox
Standard heavy-duty driveline/gearbox (PTO driveline standard). Optional 1 3/4" Weasler PTO with cut-out clutch available.
PTO speed
1,000
J&M 875 Single Auger Listings
$19,900
30834 cu(m)
Standard PTO-driven (factory PTO driveline). Optional Hydraulic Drive Kit (19 cu in motor) in place of PTO requires a minimum of 35 gpm and maximum 50 gpm; provides up to 255 bu/min at 2,400 psi and 50 gpm.
1723 kg
White Hall, United States
Compare J&M 875 Single Auger to other single auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a J&M 875?
No confirmed market price is supplied for the J&M 875. Check current listings and compare condition, location, and configuration when evaluating used equipment.
What are the key advantages of the J&M 875?
Listed features include a 30,834 m³ (40,329.33 cu yd) heaped capacity, a peak unloading rate of 14,095 L/min (3,723.5 gpm), a 457 mm (18 in) vertical auger, and a standard heavy-duty PTO driveline/gearbox.
What type of engine does the 875 use?
The supplied specifications do not identify an engine for the J&M 875. They list a PTO driveline and gearbox rather than engine details.
How much horsepower does the 875 have?
No horsepower rating is supplied for the J&M 875. The specifications list a PTO speed of 1,000 rpm but do not state a horsepower requirement or rating.
What fuel does the J&M 875 use?
The supplied data does not specify a fuel type for the J&M 875. Its listed driveline is PTO-based, and no onboard engine or fuel system is identified.
What jobs is this Grain carts best suited for?
The J&M 875 is a grain cart suited to handling and unloading grain. Its listed 30,834 m³ (40,329.33 cu yd) heaped capacity and peak unloading rate of 14,095 L/min (3,723.5 gpm) are relevant for grain-transfer work.
What is the expected lifespan of the 875?
No expected service-life figure is supplied for the J&M 875. Actual longevity depends on operating conditions, loading practices, maintenance, and the condition of the auger, PTO driveline, gearbox, tires, and hitch.
What should a buyer check when purchasing a used Grain carts?
Inspect the cart body, auger, PTO driveline, gearbox, hitch, tires, and wheel assemblies for wear, damage, leaks, and repairs. Verify that the unloading system operates properly and check the empty weight, hitch condition, and tire pressure capacity against the listed specifications.
