J&M 1326-22T Gravity
J&M 1326-22T
Average price
$49,900
5+
sold in last year
General overview

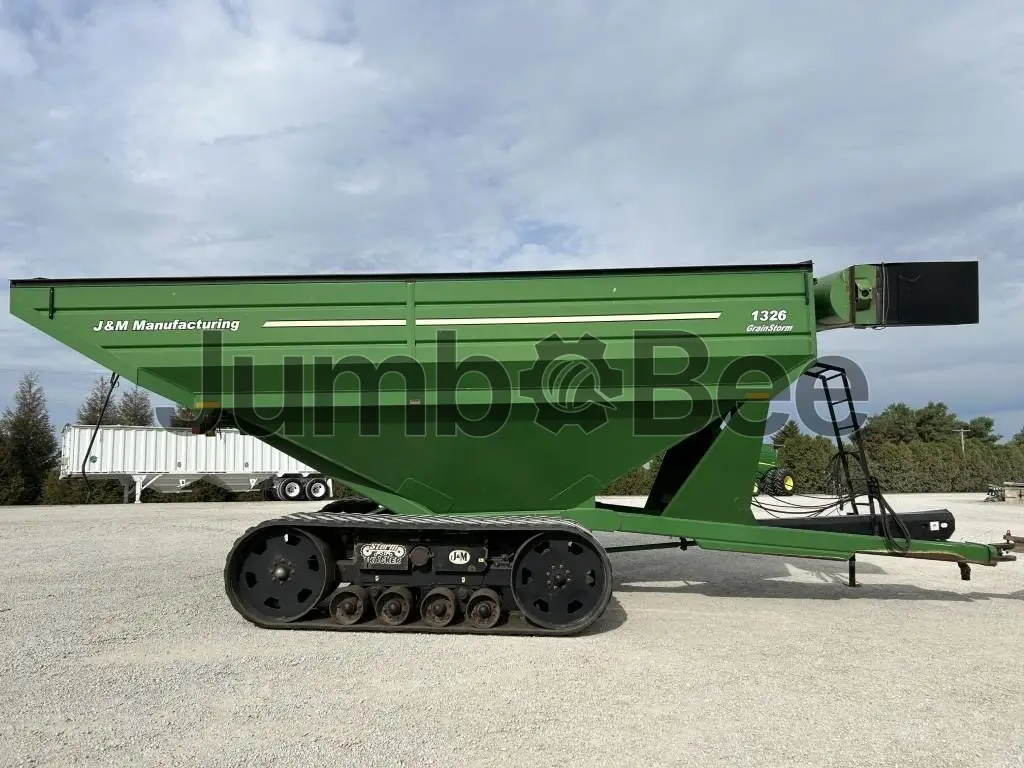

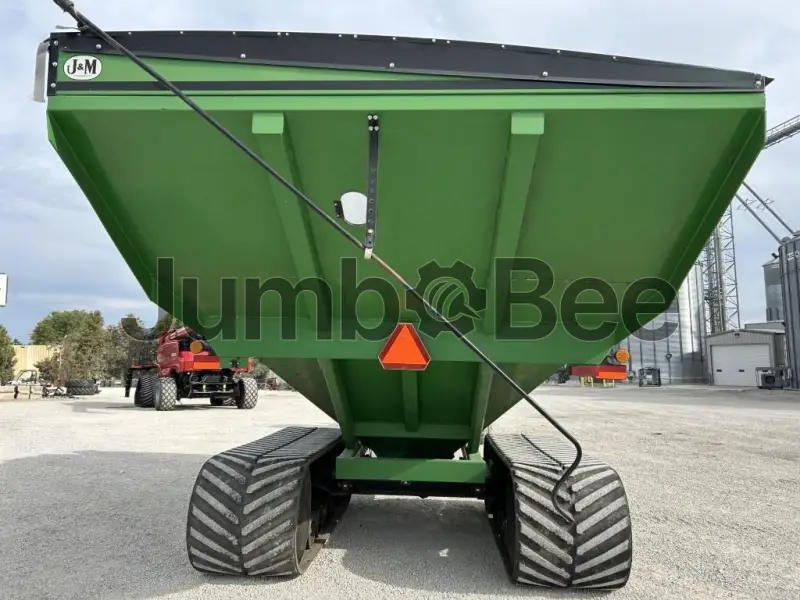

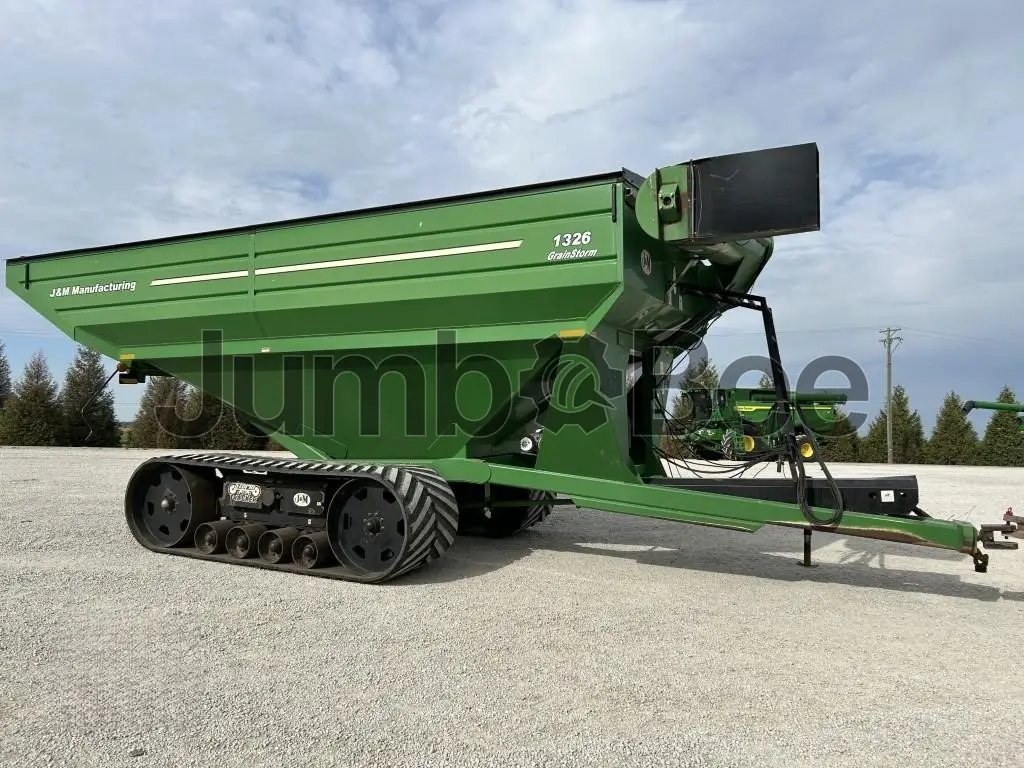

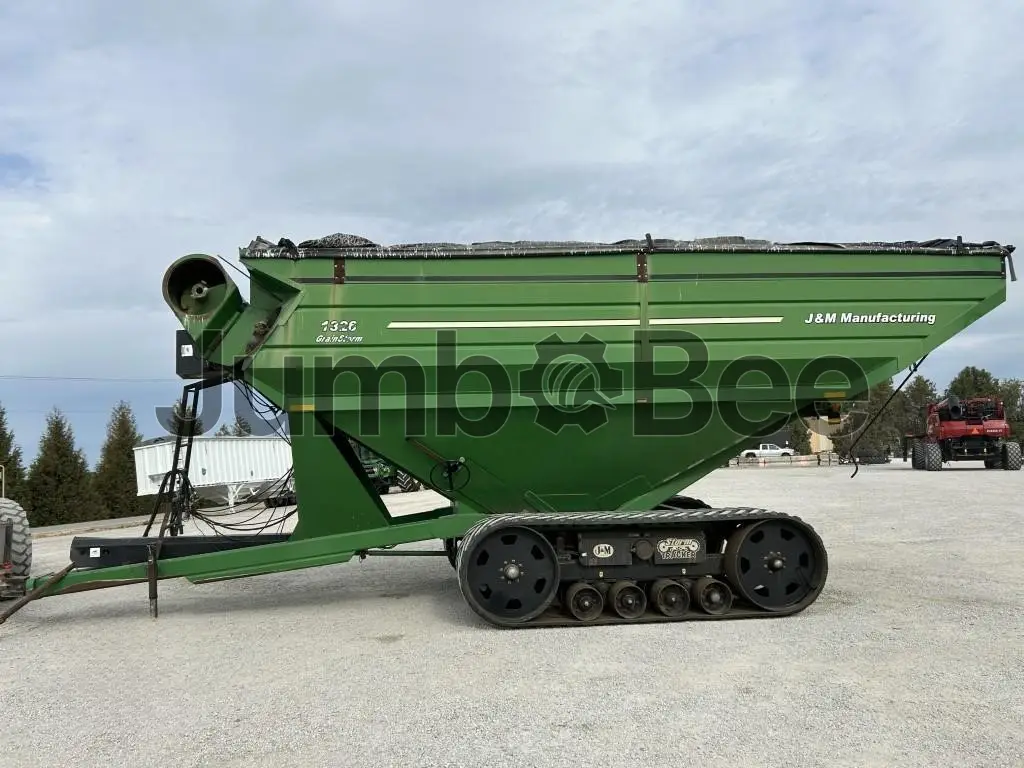

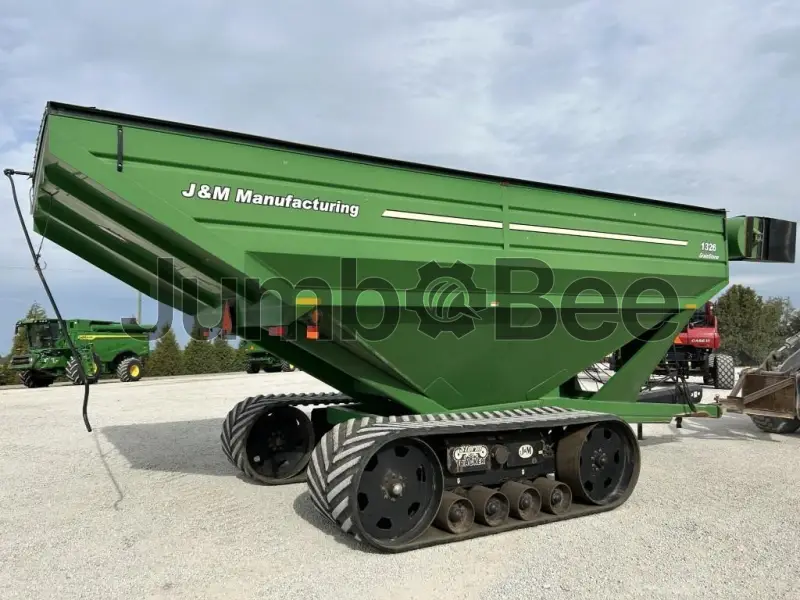

The J&M 1326-22T is a grain cart from J&M, produced in 2011 in the United States. It is intended for harvest-season grain transfer in field conditions. The cart is rated for a peak unloading rate of 21,223 L/min (5,606.5 gpm), defining its role in moving grain at high volume.
Key specifications include a vertical auger measuring 558 mm (22 in), a PTO speed of 1,000 rpm, and a total empty weight of 7,302 kg (16,100 lb). Hitch weight is listed at 1,088 kg (2,400 lb) empty and 2,177 kg (4,800 lb) loaded, with a PSI capacity of 344 kPa (49.89 psi). The model also uses 914.4 mm (36 in) track size.
Year
2011
Country of manufacturing
United States
General specifications
Capacity Heaped
46,691 cu(m)
Tractor hydraulics requirements
Requires a 4WD tractor. Two hydraulic lines operate the gate (connect to one tractor service outlet) and two lines operate the auger folding mechanism (connect to a second service outlet). System uses flow-control spout components, pilot check valves and orifice restrictors (e.g. .062) as described in the operator manual.
Grain Cart Capacity
18,752.25 L
Hub Size/Spindle Diameter
10 Bolt hubs; 4-1/2 inch diameter spindles (dual wheel option)
Front/Rear Slopes
Front slope: 35°; rear slope: 35°
Back Slope
35 deg
Door Width
0.56 m
Chute Height
4.6 m
Unloading Time
132.5 s
Grain Cart Wheel Size
18x42 wheels; IF,520/85R42 or 520/85R42 tires (dual wheel option)
Grain Cart Turning Radius
7.9 m
Additional specifications
Peak unloading rate
21,223 L/min
Track size
914,4 mm
Total weight - empty
7,302 kg
Hitch weight - empty
1,088 kg
Hitch weight - loaded
2,177 kg
PSI capacity
344 kPa
Vertical auger
558 mm
Gearbox
PTO-driven gearbox with slip-disc (slip) clutch and overload protection; gearbox filled with EP 80-90 lubricant; includes inspection/vent plugs. Operator manual references slip-clutch and over-running/automatic cut-out clutch features.
PTO speed
1,000
J&M 1326-22T Gravity Listings
$49,900
46691 cu(m)
21223 L/min
Requires a 4WD tractor. Two hydraulic lines operate the gate (connect to one tractor service outlet) and two lines operate the auger folding mechanism (connect to a second service outlet). System uses flow-control spout components, pilot check valves...
Holgate, United States
Compare J&M 1326-22T Gravity to other gravity
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a J&M 1326-22T?
No confirmed market price is supplied for the J&M 1326-22T. Check current listings and compare condition, location, and configuration.
What are the key advantages of the J&M 1326-22T?
Supplied specifications indicate a 46,691 m³ (61,069.49 cu yd) heaped capacity, a peak unloading rate of 21,223 L/min (5,606.5 gpm), a 558 mm (22 in) vertical auger, and a 1,000 rpm PTO speed.
What type of engine does the 1326-22T use?
The supplied data does not confirm an engine type for the J&M 1326-22T.
How much horsepower does the 1326-22T have?
The supplied data does not confirm a horsepower rating for the J&M 1326-22T.
What fuel does the J&M 1326-22T use?
The supplied data does not confirm a fuel type for the J&M 1326-22T.
What jobs is this Grain carts best suited for?
The J&M 1326-22T is a grain cart. Its supplied 46,691 m³ (61,069.49 cu yd) heaped capacity and peak unloading rate of 21,223 L/min (5,606.5 gpm) indicate use for moving and unloading grain during farm harvest operations.
What is the expected lifespan of the 1326-22T?
The supplied data does not provide an expected lifespan for the J&M 1326-22T. Inspect the auger, PTO components, hitch, tracks, structure, and hydraulic system, and review maintenance history before purchase.
What should a buyer check when purchasing a used Grain carts?
Check the auger and unloading system, PTO components, hitch, tracks, hydraulic system, tires or track condition, frame, grain tank, and signs of corrosion or repairs. Confirm maintenance records and test unloading operation where possible.
