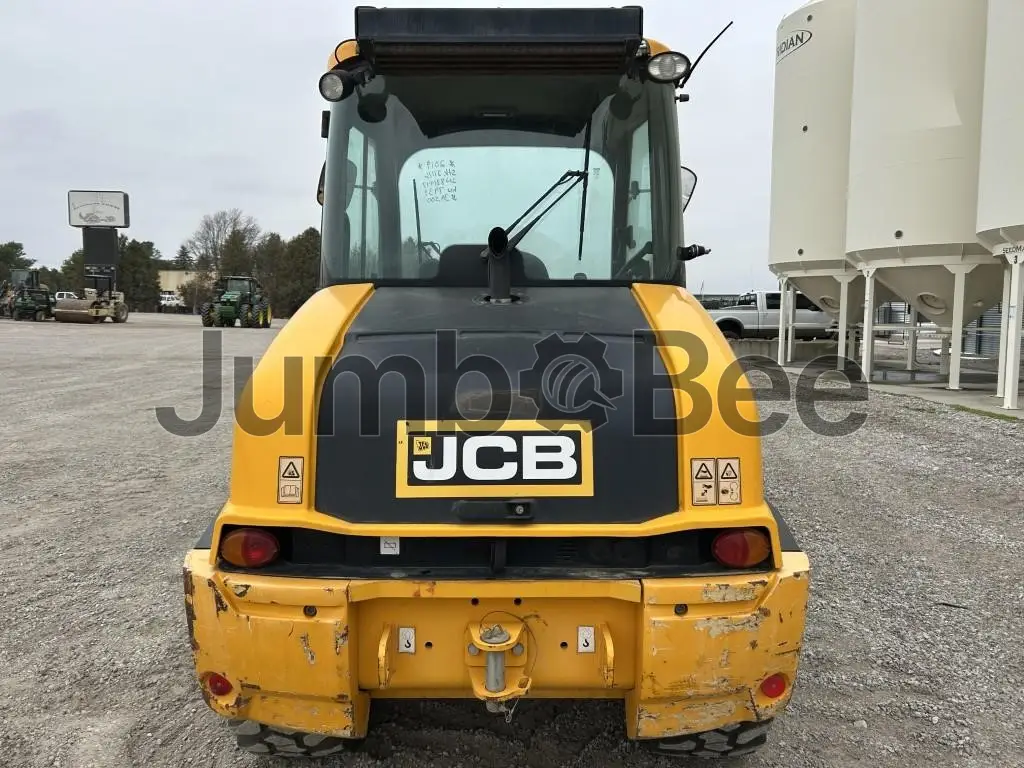

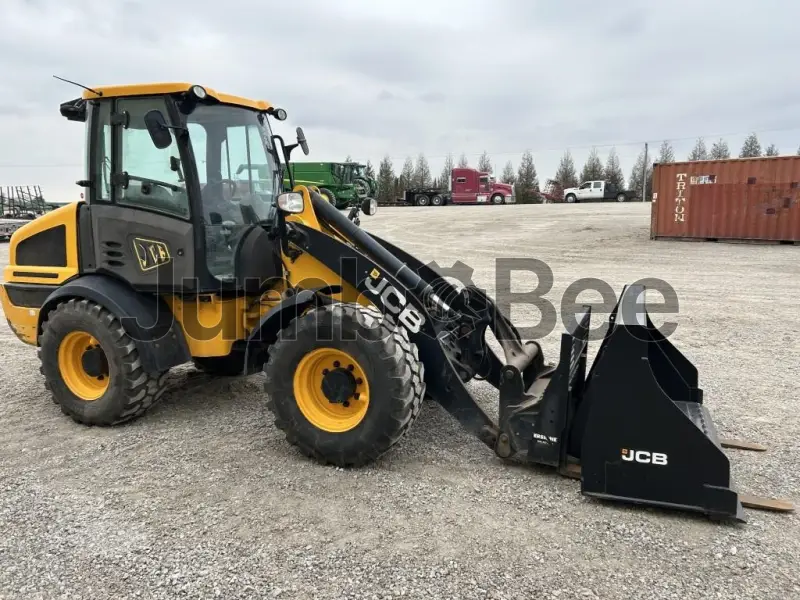

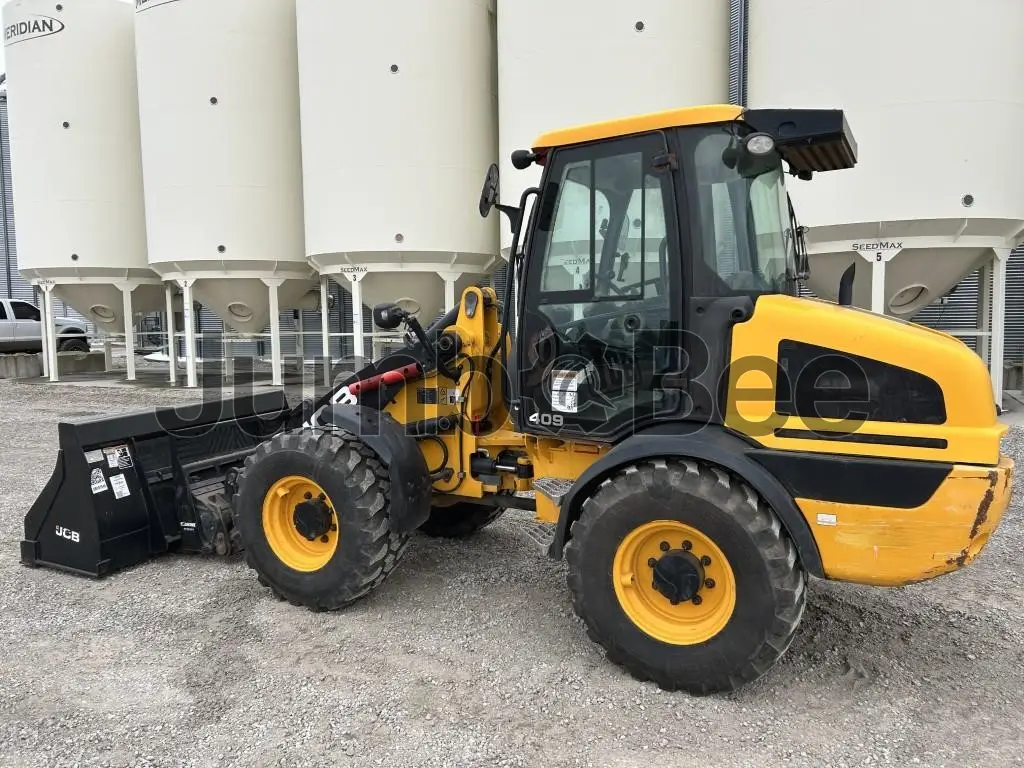

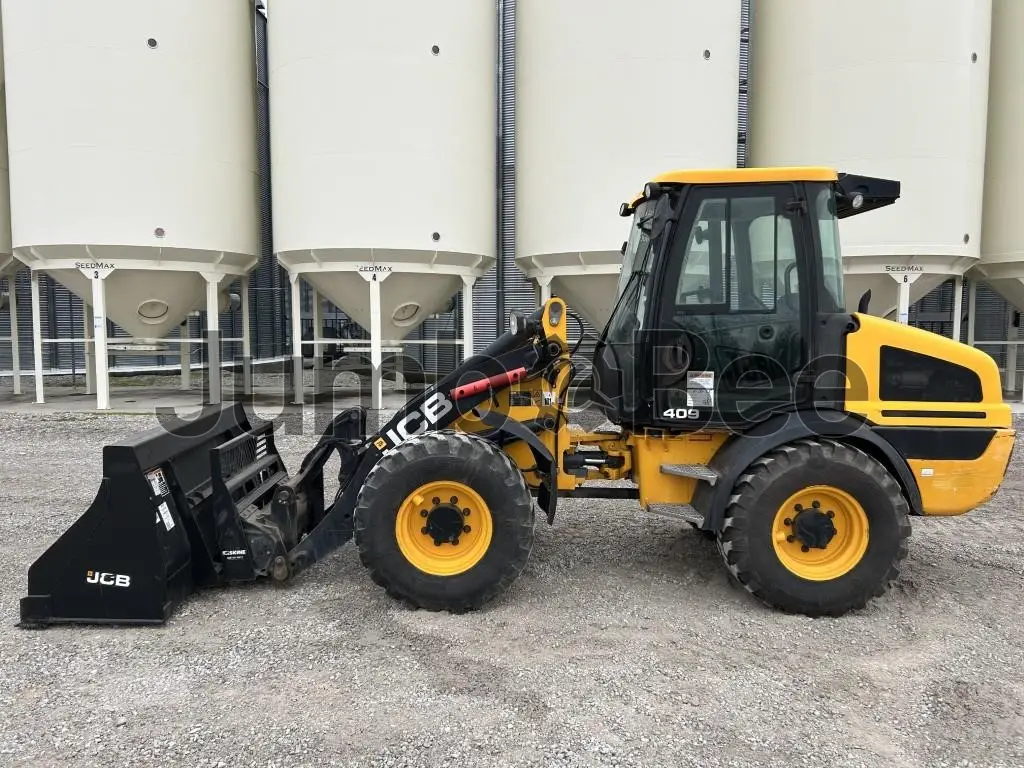

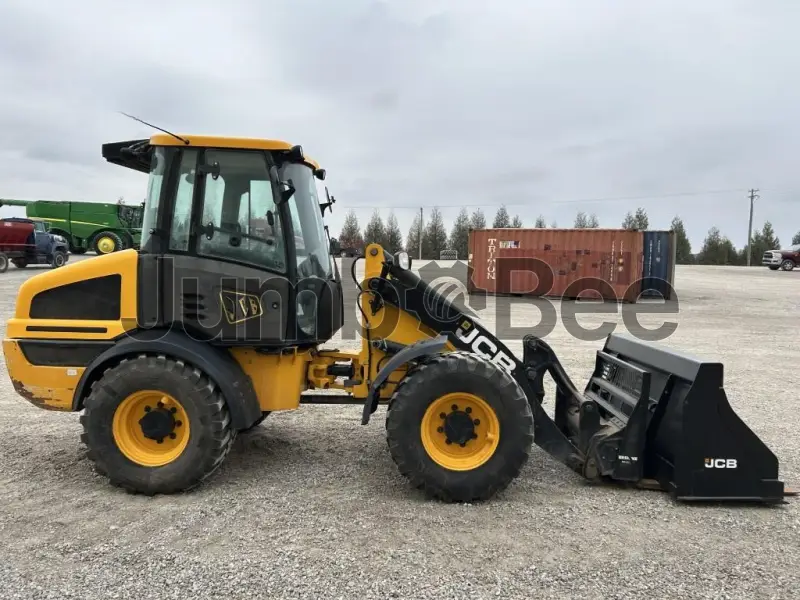

JCB 409 Wheel Loaders
JCB 409
Average price
$35,500
5+
sold in last year
General overview
The JCB 409 is a wheel loader from JCB built for construction material handling and loading tasks. In this 2019 model, the machine uses a JCB Diesel by Kohler engine rated at 54 kW (74 hp) and meets Stage V emissions requirements.
With an operating weight of 5,820 kg (12,830 lb), the JCB 409 uses a heaped bucket capacity of 1 m³ (1.3 cu yd) and a general purpose bucket of 1 m³ (1.3 cu yd). It has a forward travel speed of 20 km/h (12.4 mph), measures 1,900 mm (6 ft 3 in) wide and 2,640 mm (8 ft 8 in) to the top of the cab, and includes a 3rd Auxiliary Flow of 118 L/min (31.2 gpm).
Year
2019
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
5,460 mm
~215 in
2,640 mm
~103.9 in
1,900 mm
~74.8 in
Engine Power
74 hp
Operating Weight
5,820 kg
Bucket Capacity
1.5 cu(m)
Bucket Capacity - Heaped
1 cu(m)
Additional specifications
Emission standard level
Stage V
Displacement
2 cu(m)
Fuel tank
79 L
Height to top of cab
2,640 mm
Number of Cylinders
4
Width
1,900 mm
Travel Speed Forward
20 km/h
Engine Model
JCB Diesel by Kohler
General Purpose
1 cu(m)
3rd Auxiliary Flow
118 L/min
Overall Length - With Bucket
5,460 mm
Rated Operating Capacity
4,300 kg
JCB 409 Wheel Loaders Listings
Compare JCB 409 Wheel Loader to other wheel loaders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a JCB 409?
No confirmed market price is supplied for the JCB 409. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the JCB 409?
The supplied specifications show a 1 m³ (1.31 cu yd) heaped bucket capacity, 55.2 kW (74 hp) engine power, Stage V emissions level, 20 km/h (12.4 mph) forward travel speed, and 118 L/min (31.2 gpm) third auxiliary flow.
What type of engine does the 409 use?
The 409 uses a JCB Diesel by Kohler engine. The supplied specifications list 4 cylinders, 2 m³ (2.62 cu yd) displacement, and a Stage V emissions level.
How much horsepower does the 409 have?
The 409 has 74 hp of engine power, listed as 55.2 kW (74 hp).
What fuel does the JCB 409 use?
The supplied engine name is JCB Diesel by Kohler, indicating diesel fuel. Its fuel tank capacity is 79 L (20.9 US gal).
What jobs is this Wheel Loaders best suited for?
The supplied data does not confirm specific job applications. Its listed 1 m³ (1.31 cu yd) general-purpose bucket and 118 L/min (31.2 gpm) third auxiliary flow may be relevant when matching the machine to required materials and attachments.
What is the expected lifespan of the 409?
No expected service-life figure is supplied for the 409. Evaluate maintenance records, operating condition, hydraulic performance, engine condition, tire wear, and signs of structural damage when assessing a machine.
What should a buyer check when purchasing a used Wheel Loaders?
Check maintenance records, engine starting and operation, hydraulic functions, bucket and linkage wear, tire condition, brakes, steering, cab controls, leaks, and structural damage. Confirm the machine’s configuration and attachment compatibility meet the intended work.
