Elmers Haulmaster 1700 Single Auger
Elmers Haulmaster 1700
5+
sold in last yearGeneral overview

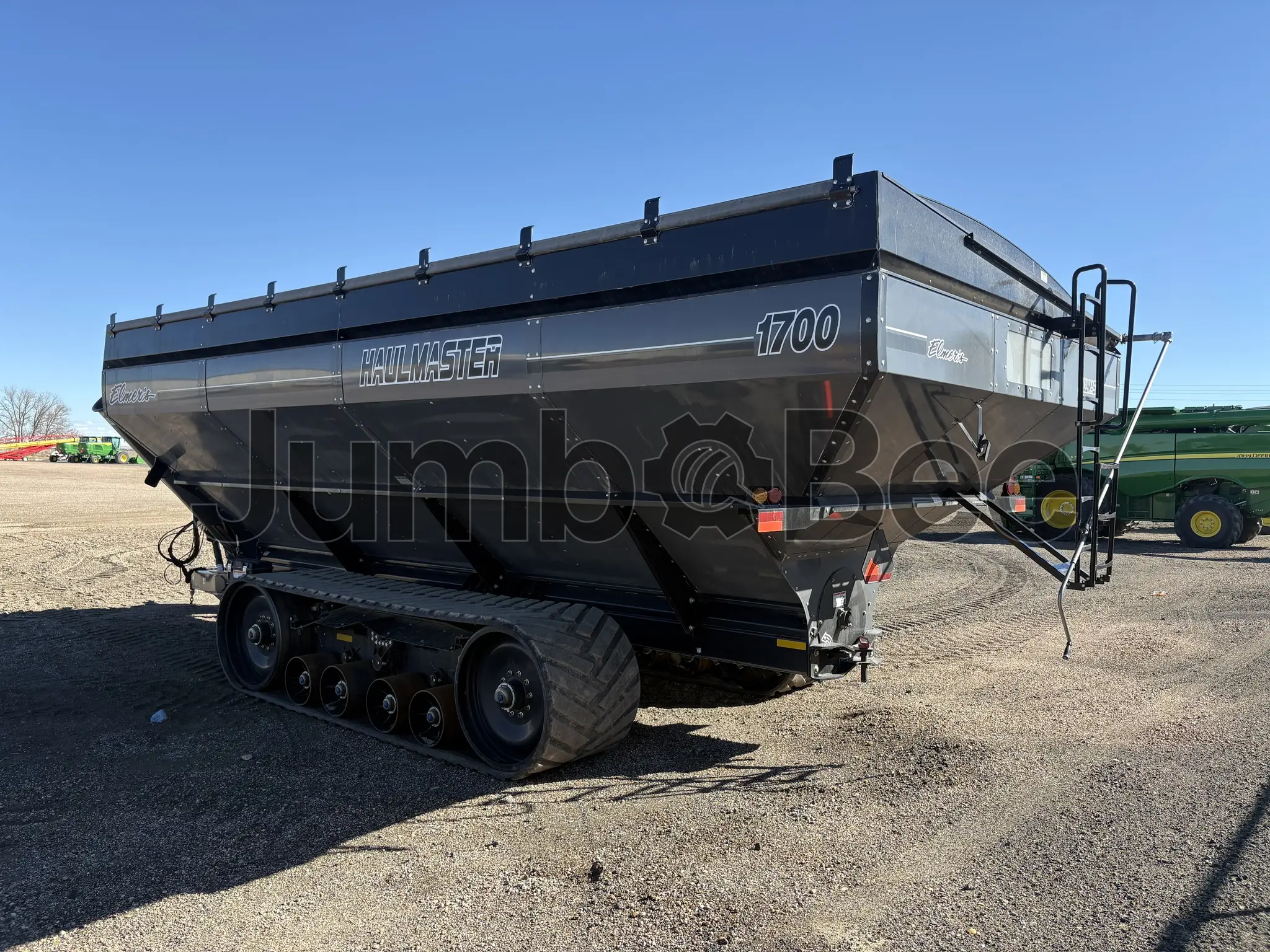

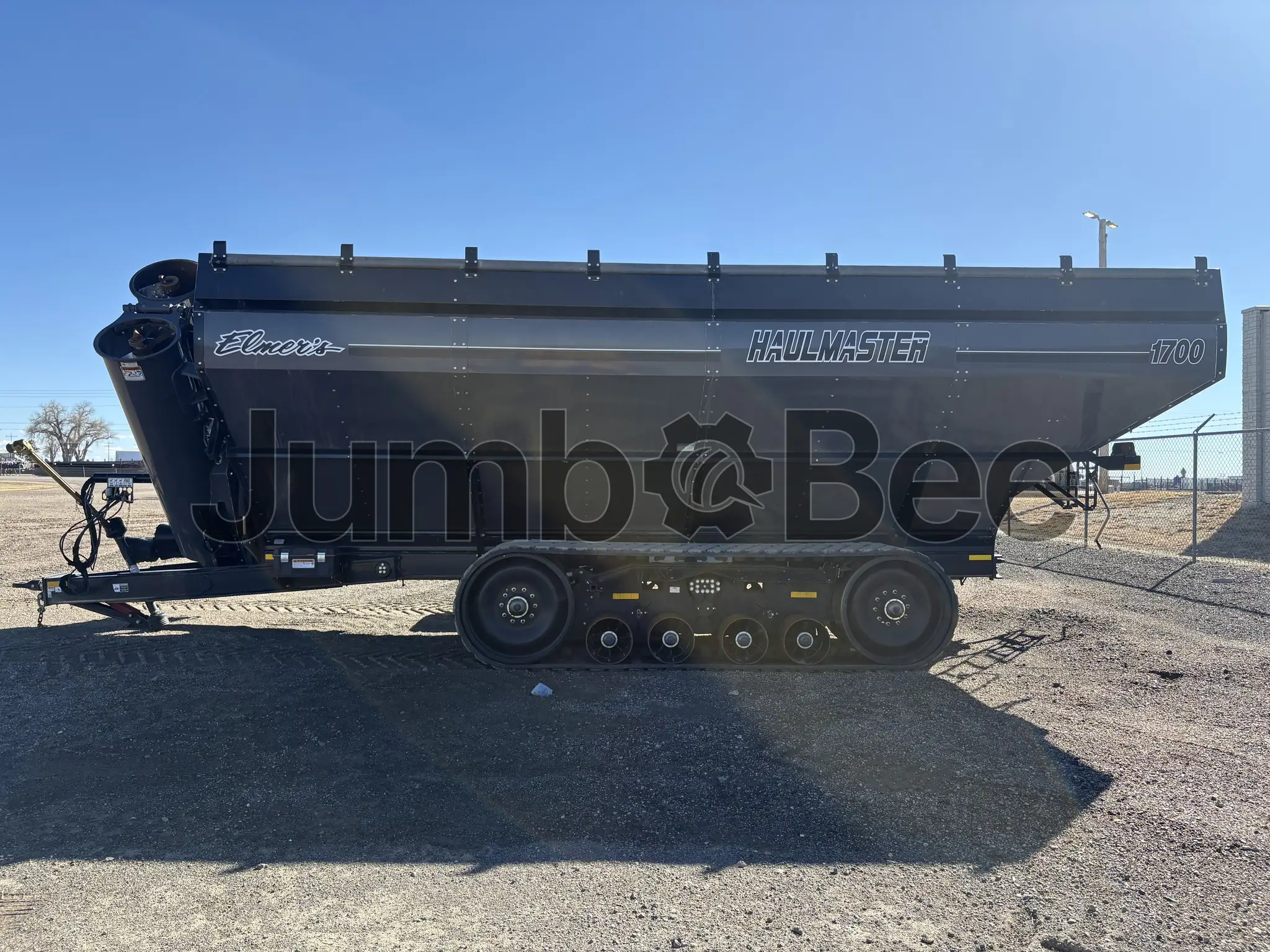

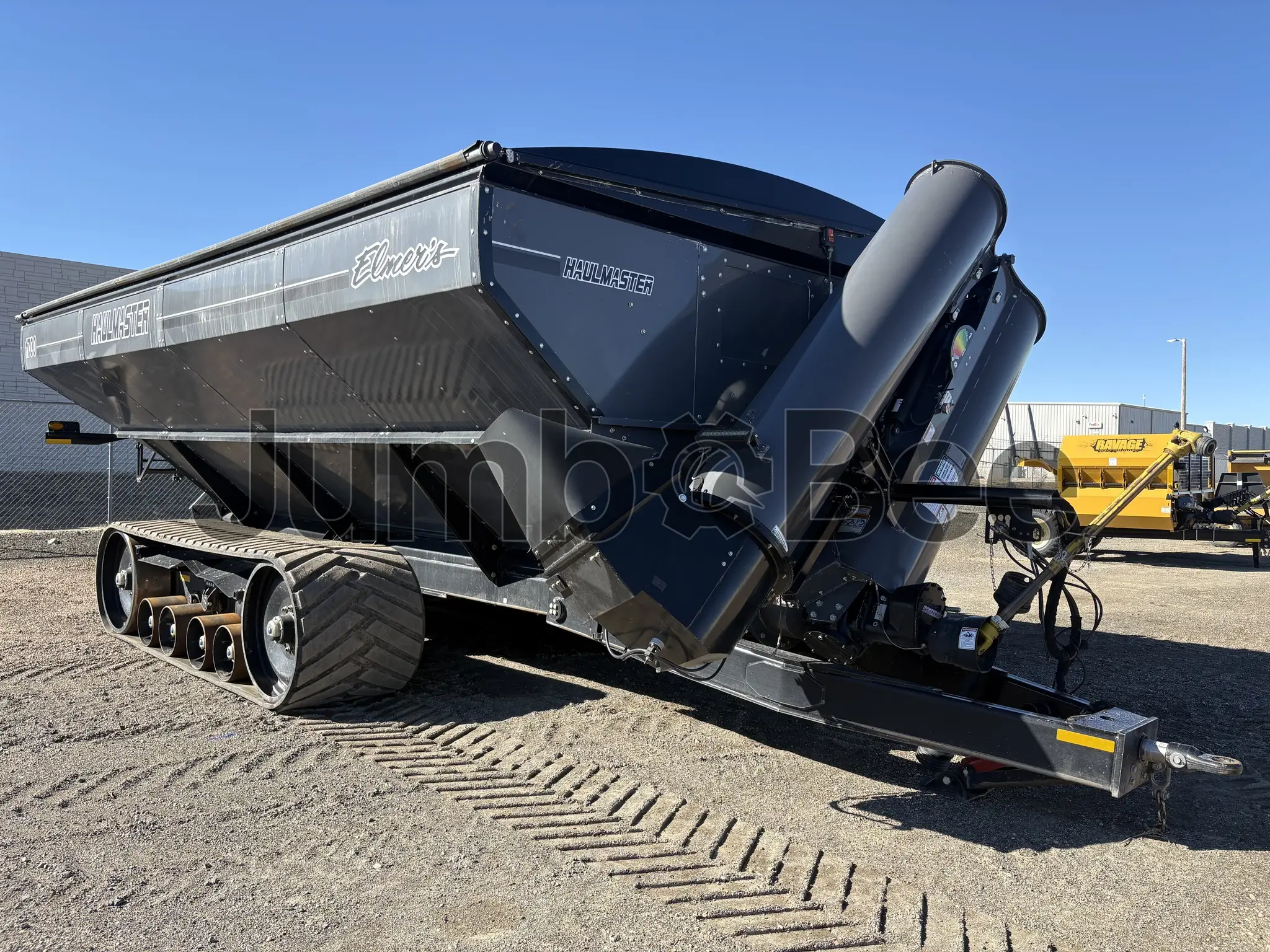

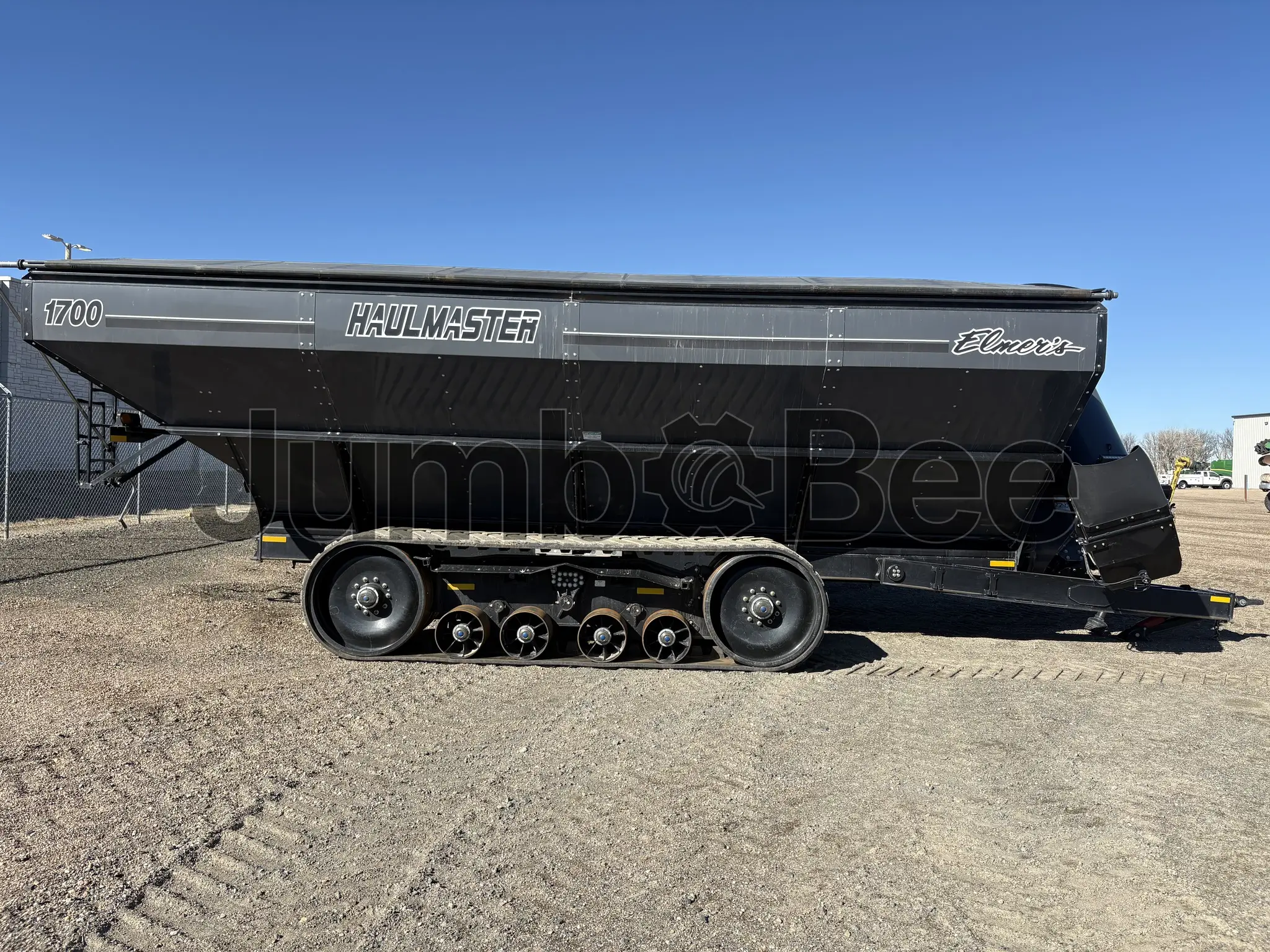

Elmers Haulmaster 1700 is a grain cart manufactured in Canada for moving harvested grain during field operations. It is designed for use with a tractor rated at 147 kW (200 hp) and requires 3 hydraulic remotes, giving it a clear tractor-compatibility profile for harvest-time grain handling.
The model uses a 1,000 rpm PTO and is equipped with a 559 mm (22 in) vertical auger and a 559 mm (22 in) horizontal auger for grain transfer. Its empty total weight is 11,793 kg (26,000 lb), with an empty hitch weight of 1,814 kg (4,000 lb), and it lists a track size of 914 mm (36 in).
Year
2021, 2022, 2023, 2024, 2025, 2026
Country of manufacturing
Canada
General specifications
Dimensions
Length
Height
Width
10,250 mm
~403.5 in
3,880 mm
~152.8 in
2,980 mm
~117.3 in
Unloading rate
300,000 L/min
Grain Cart Capacity
39,000 L
Required Engine Power
150 kW
Grain Cart Loaded Tongue Weight
1,800 kg
Grain Cart Empty Tongue Weight
1,800 kg
Grain Cart Auger Diameter
0.56 m
Flighting Thickness
12 mm
Hub Size/Spindle Diameter
100 mm spindle diameter
Hydraulic Remotes Required
1 hydraulic remote
Front/Rear Slopes
Front 35°, rear 35°
Hopper Length
6.91 m
Hopper Width
3.7 m
Auger Side Reach Max
3.2 m
Auger Side Reach Min
1.5 m
Grain Cart Overall Transport Length
9.86 m
Additional specifications
Power requirement
200 hp
Capacity Heaped
59,900 cu(m)
Track size
914 mm
Tractor hydraulics requirements
3 hydraulic remotes required
Total weight - empty
11,793 kg
Hitch weight - empty
1,814 kg
Vertical auger
559 mm
Horizontal auger
559 mm
PTO speed
1,000
Elmers Haulmaster 1700 Single Auger Listings
Looking for Elmers Haulmaster 1700 Single Auger?
See similar listingsCompare Elmers Haulmaster 1700 Single Auger to other single auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Elmers Haulmaster 1700 Single Auger
0.56 m
10250 mm × 2980 mm × 3880 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Elmers Haulmaster 1700?
No confirmed market price is supplied for the Elmers Haulmaster 1700. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Elmers Haulmaster 1700?
Listed features include 59,900 m³ (78,346.21 cu yd) heaped capacity, 559 mm (22 in) vertical and horizontal augers, 914 mm (36 in) tracks, and a 1,000 rpm PTO. It requires 149.1 kW (200 hp) and 3 hydraulic remotes.
What type of engine does the Haulmaster 1700 use?
The supplied specifications do not identify an engine. They list a tractor power requirement of 149.1 kW (200 hp).
How much horsepower does the Haulmaster 1700 have?
The Haulmaster 1700 has a listed tractor power requirement of 149.1 kW (200 hp).
What fuel does the Elmers Haulmaster 1700 use?
The supplied data does not specify a fuel type. The Haulmaster 1700 is listed with a tractor power requirement of 149.1 kW (200 hp).
What jobs is this Grain carts best suited for?
It is suited for grain-cart work where a high-capacity cart and PTO-driven augers are needed. The supplied data lists 59,900 m³ (78,346.21 cu yd) heaped capacity, 559 mm (22 in) augers, and a 1,000 rpm PTO, but does not identify specific crops or operating conditions.
What is the expected lifespan of the Haulmaster 1700?
The supplied data does not provide an expected service life. Inspect the cart’s structure, tracks, augers, PTO components, hydraulic system, and hitch condition to assess a particular unit.
What should a buyer check when purchasing a used Grain carts?
Check the cart body, hitch, tracks, augers, PTO driveline, hydraulic hoses and remotes for wear, damage, leaks, and proper operation. Confirm the tractor can provide 149.1 kW (200 hp), 3 hydraulic remotes, and a 1,000 rpm PTO.
