Demco 750 Gravity
Demco 750
Average price
$22,500
5+
sold in last year
General overview

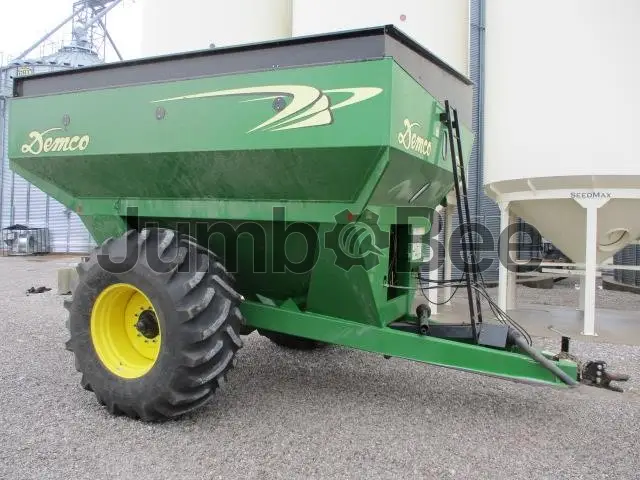

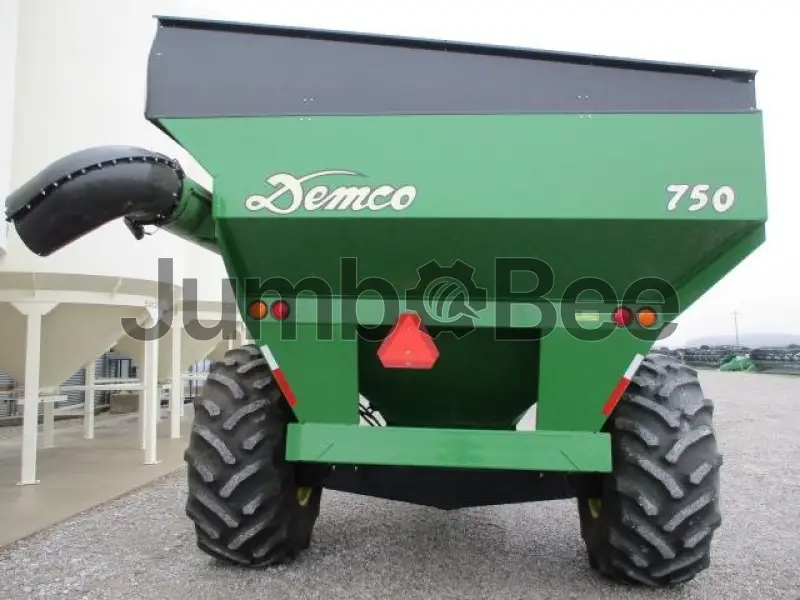

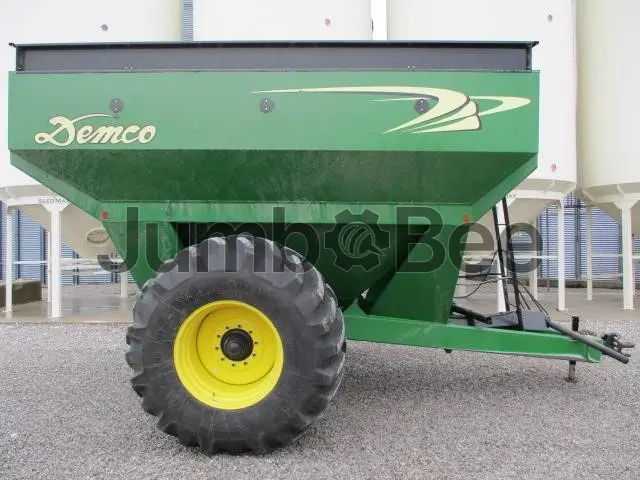

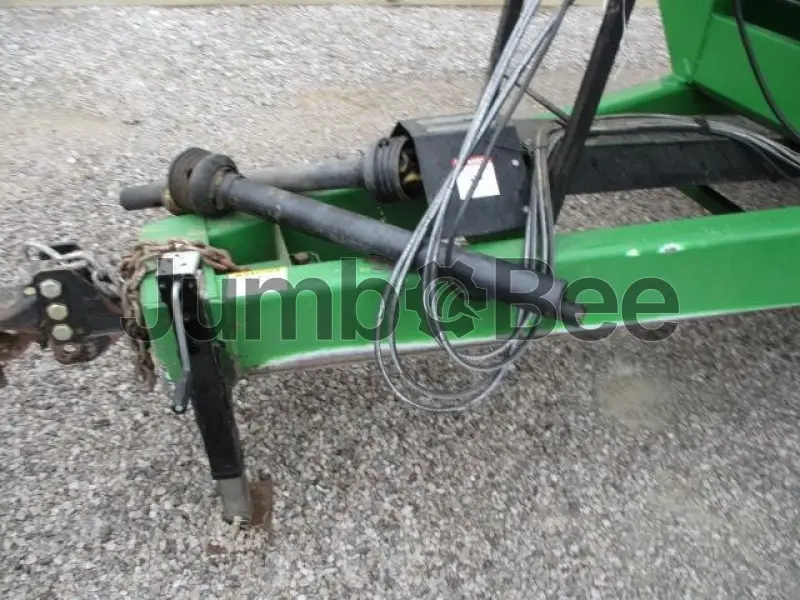

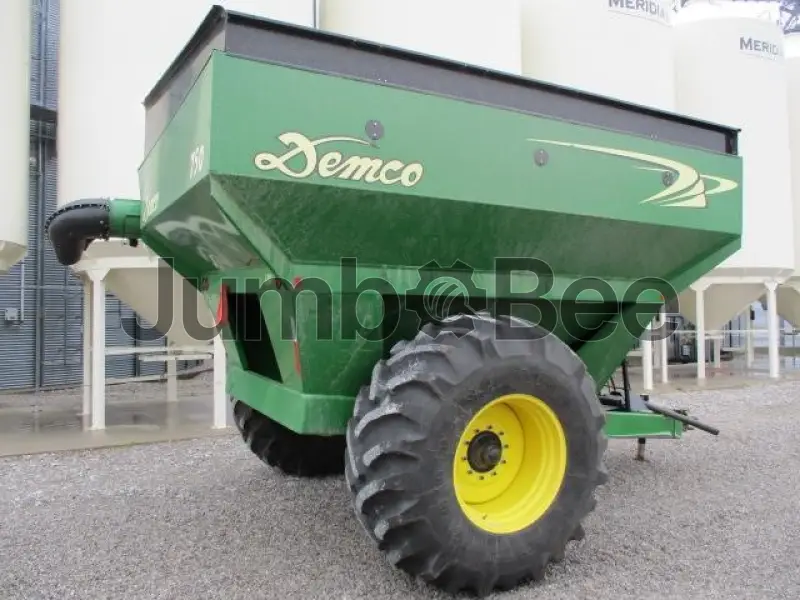

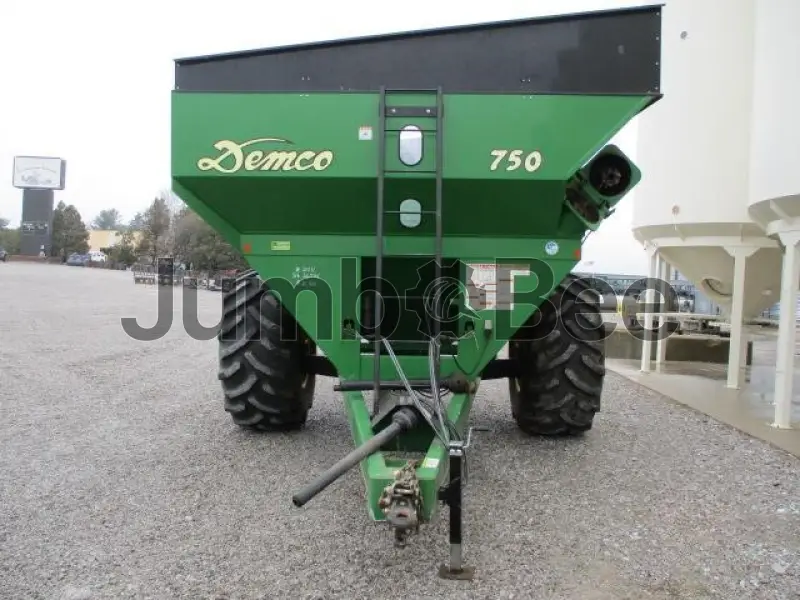

Demco 750 is a grain cart produced in the United States in 2011. It is used for harvest-time grain transfer in field operations, supporting movement of grain from harvesting equipment to other handling or transport equipment. The model is rated for 110 kW (150 hp) and is specified for 1,000 rpm PTO operation.
Its unloading system is built around a 355 mm (14 in) vertical auger and a peak unloading rate of 8,809 L/min (2,327.1 gpm). The empty cart weight is 3,728 kg (8,220 lb), with hitch weight listed at 562 kg (1,240 lb) empty and 1,315 kg (2,900 lb) loaded. It requires two hydraulic remotes; an optional adjustable spout adds another remote, and the optional hydraulic drive kit requires 15–25 GPM oil flow. The gearbox uses an automatic reset cut-out clutch with overrunning clutch and Posi-Drive connection.
Year
2011
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
6,096 mm
~240 in
3,810 mm
~150 in
mm
~ in
Power requirement
150 hp
Capacity Heaped
26,429 cu(m)
Tractor hydraulics requirements
Requires two hydraulic remotes; optional adjustable spout requires an additional hydraulic remote. Hydraulic drive kit (optional) requires an additional 15–25 GPM (≈56.8–94.6 L/min) oil flow.
Grain Cart Capacity
13,124.24 L
Hub Size/Spindle Diameter
10 bolt; 4 1/2 in spindle diameter
Front/Rear Slopes
Front slope and rear slope; gravity-flow hopper
Back Slope
35 deg
Door Width
0.76 m
Chute Height
14 ft auger clearance height
Unloading Time
180 s
Grain Cart Wheel Size
23.1-26 implement tires
Grain Cart Turning Radius
Tight turning radius; exact radius unknown
Additional specifications
Peak unloading rate
8,809 L/min
Track size
3,048 mm
Total weight - empty
3,728 kg
Hitch weight - empty
562 kg
Hitch weight - loaded
1,315 kg
Vertical auger
355 mm
Gearbox
Automatic reset cut-out clutch with overrunning clutch; Posi-Drive connection.
PTO speed
1,000
Demco 750 Gravity Listings
Compare Demco 750 Gravity to other gravity
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Demco 750?
No confirmed market price is supplied for the Demco 750. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Demco 750?
Listed features include 26,429 m³ (34,567.81 cu yd) heaped capacity, a peak unloading rate of 8,809 L/min (2,327.1 gpm), and a 355 mm (14 in) vertical auger. Its gearbox includes an automatic reset cut-out clutch, overrunning clutch, and Posi-Drive connection.
What type of engine does the 750 use?
The supplied specifications do not confirm an engine type for the Demco 750. They list a tractor power requirement of 111.9 kW (150 hp) and a PTO speed of 1,000 rpm.
How much horsepower does the 750 have?
The Demco 750 requires 111.9 kW (150 hp) of tractor power. The supplied data does not identify this as the grain cart's own engine output.
What fuel does the Demco 750 use?
The supplied information does not confirm a fuel type for the Demco 750. It specifies tractor power and PTO requirements rather than an onboard engine or fuel system.
What jobs is this Grain carts best suited for?
As a grain cart, the Demco 750 is suited to handling and unloading grain where tractor PTO and hydraulic connections are available. It requires two hydraulic remotes; an optional adjustable spout requires an additional remote. The optional hydraulic drive kit requires an additional 15–25 GPM (≈56.8–94.6 L/min) oil flow.
What is the expected lifespan of the 750?
The supplied data does not provide an expected service life for the Demco 750. Service life depends on maintenance, loading practices, operating conditions, and the condition of the auger, drivetrain, hitch, and hydraulic components.
What should a buyer check when purchasing a used Grain carts?
Inspect the auger, gearbox, automatic reset cut-out clutch, overrunning clutch, Posi-Drive connection, PTO components, hitch, and hydraulic hoses and remotes. Verify the cart's empty weight, hitch condition, track size, and that the tractor can meet the 111.9 kW (150 hp) and hydraulic requirements.
