Crustbuster 3400 AP DD 36X10 Grain Drills
Crustbuster 3400 AP DD 36X10
5+
sold in last yearGeneral overview

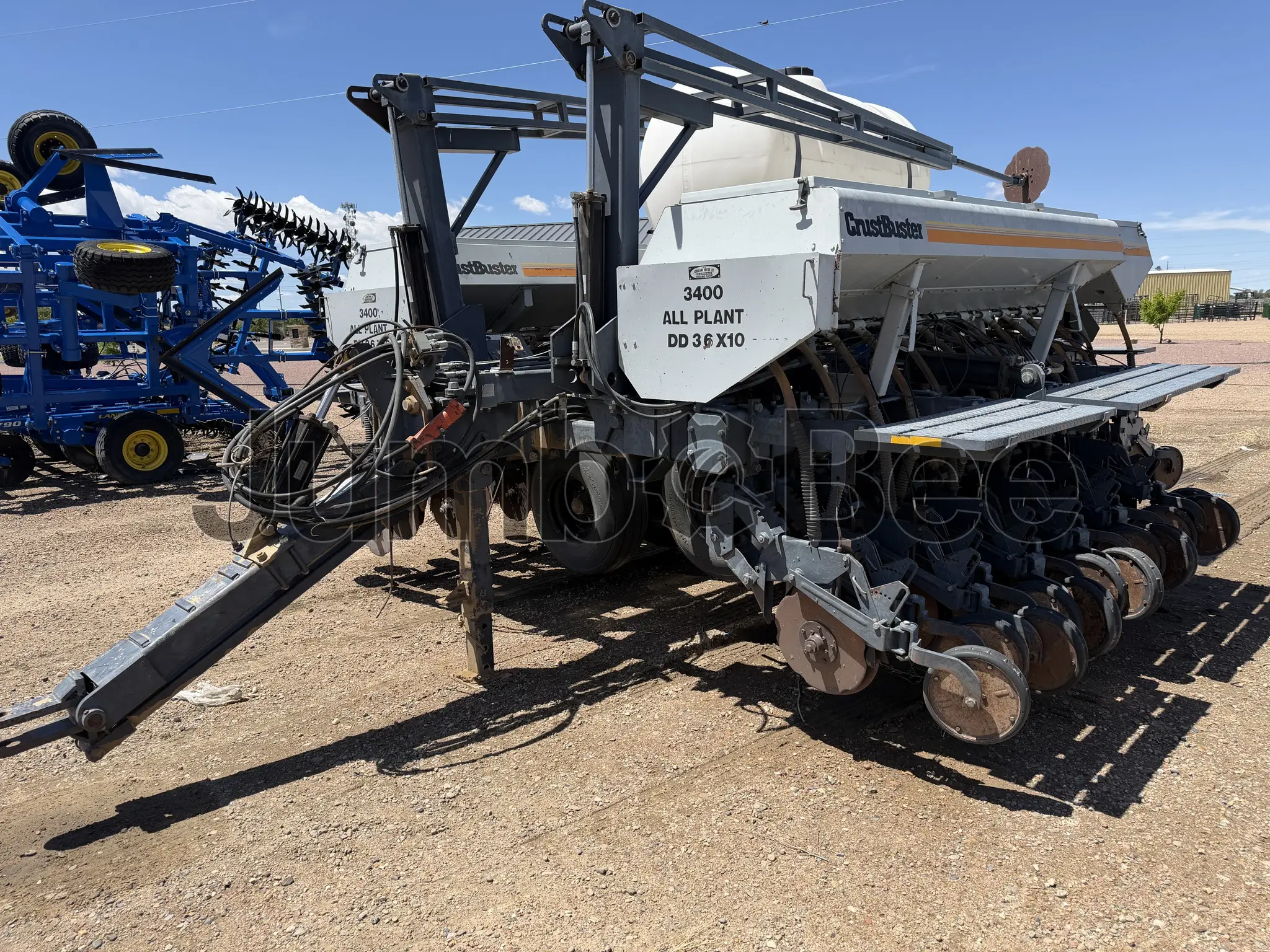

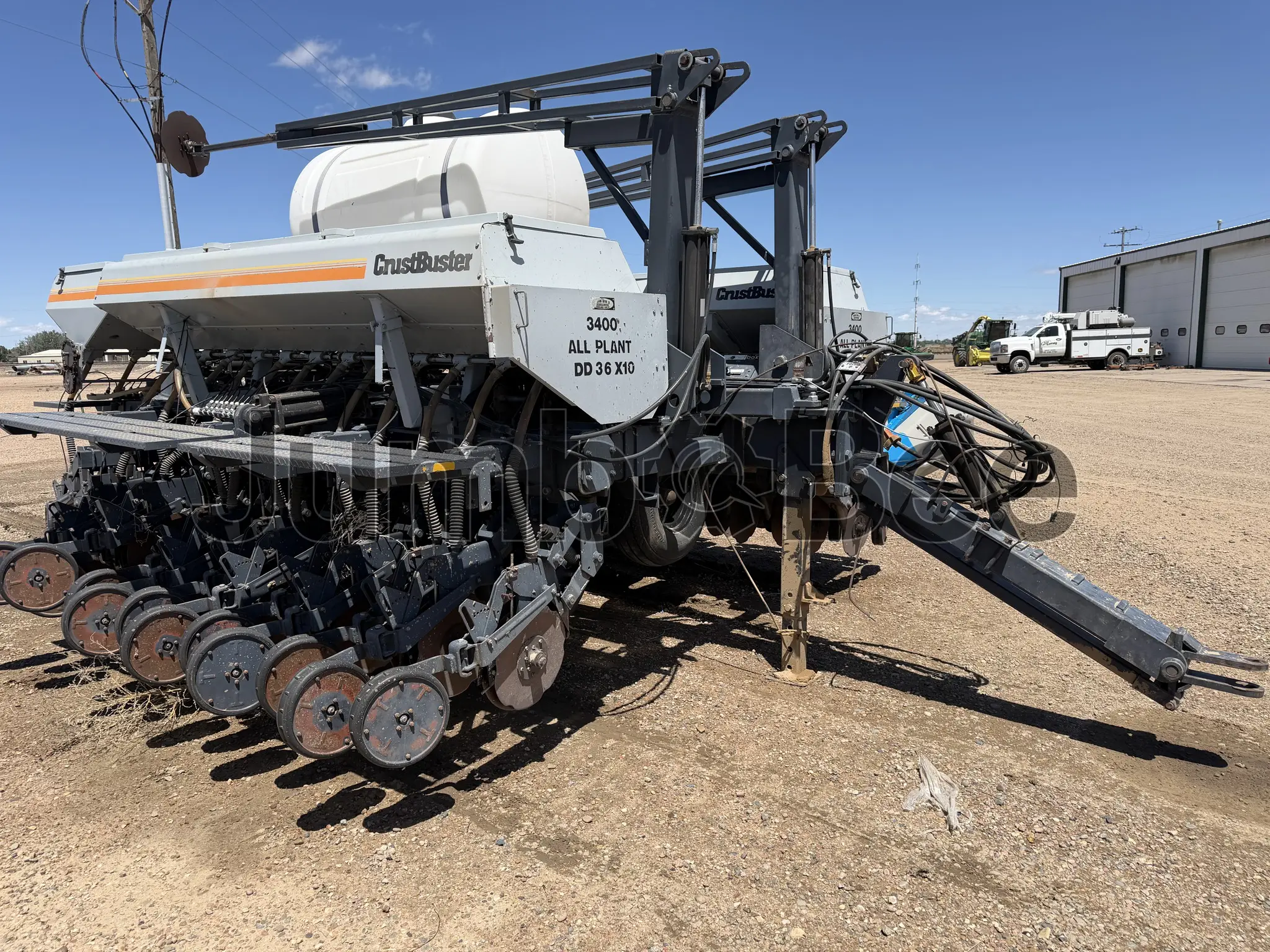

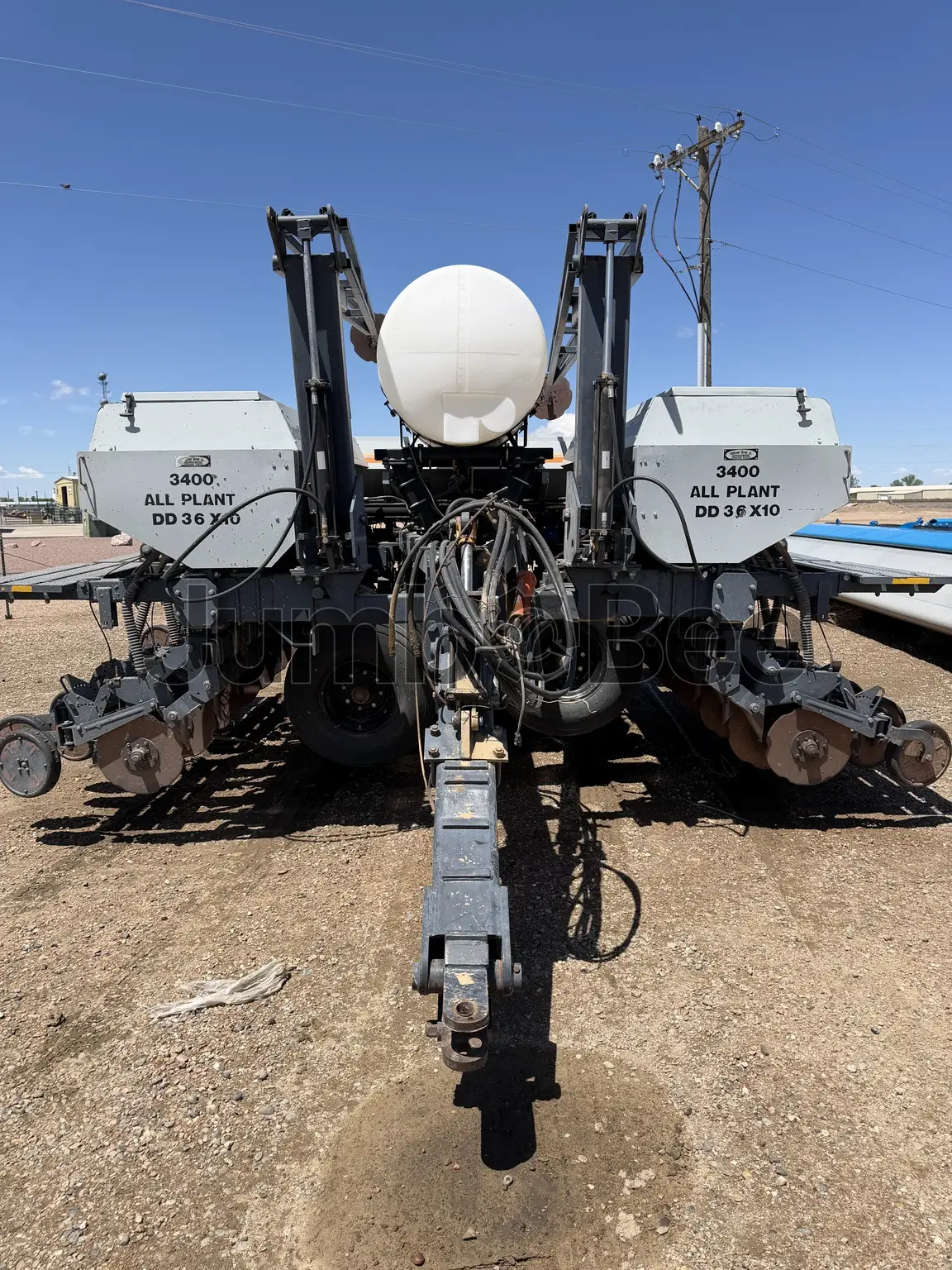

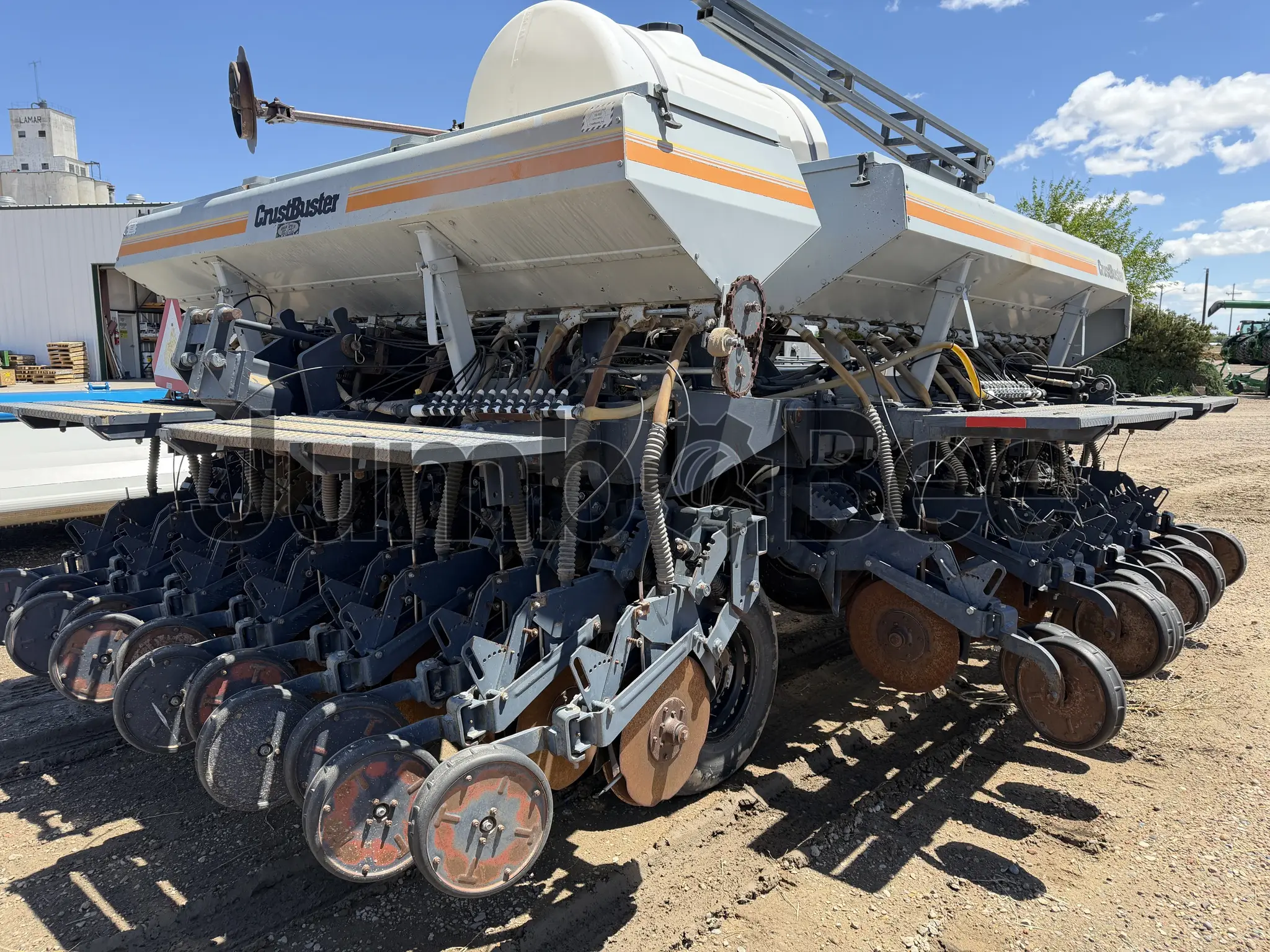

Crustbuster 3400 AP DD 36X10 is an air drill and seeder used for field planting operations in farm production. It features a Double Disc (DD) opener system and 36 openers, arranged across 3 ranks, for placing seed during seeding passes. The model is built with a folding configuration and a wide frame suited to broad-acre field work.
Key working specifications include Width: 10,973 mm (36 ft), Row Spacing: 254 mm (10 in), and Space between ranks: 762 mm (30 in). It also includes row markers and a liquid fertilizer system with electric pump, with No separate fertilizer openers. These features make the Crustbuster 3400 AP DD 36X10 a large-format seeding tool for coordinated seed placement and fertilizer application.
Year
1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
9,754 mm
~384 in
2,896 mm
~114 in
10,973 mm
~432 in
Seed-tank capacity
6,804 cu(m)
Grain drill spacing
10 in (estimated row spacing)
Grain/Fertilizer Capacity
5,350 L
Plain Grain Capacity
5,350 L
Press wheels
Rubber press wheels
Number of Openers
43
Disk
Double-disc openers, 13.5 in diameter
Down Pressure
Adjustable spring down pressure
Meters Type
Fluted feed cups
Additional specifications
Width
10,973 mm
Row Spacing
254 mm
Openers system
Double Disc (DD)
Standard features
Folding configuration; 10 inch (254 mm) spacing; liquid fertilizer system with electric pump; row markers
Number of openers
36
Number of ranks
3
Space between ranks
762 mm
Seed spacing
254 mm
Fertilizer spacing
254 mm
Seed openers
Double Disc
Fertilizer openers
No separate fertilizer openers; liquid fertilizer system via electric pump
Crustbuster 3400 AP DD 36X10 Grain Drills Listings
Looking for Crustbuster 3400 AP DD 36X10 Grain Drills?
See similar listingsCompare Crustbuster 3400 AP DD 36X10 Grain Drill to other grain drills
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Crustbuster 3400 AP DD 36X10 Grain Drill
6804 cu(m)
9754 mm × 10973 mm × 2896 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Crustbuster 3400 AP DD 36X10?
No confirmed market price is supplied for the Crustbuster 3400 AP DD 36X10. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Crustbuster 3400 AP DD 36X10?
Listed features include a folding configuration, 36 Double Disc openers, 10 inch (254 mm) row spacing, row markers, and a liquid fertilizer system with an electric pump. It has 3 ranks with 762 mm (30 in) between ranks.
What type of engine does the 3400 AP DD 36X10 use?
The supplied specifications do not confirm an engine type for the 3400 AP DD 36X10.
How much horsepower does the 3400 AP DD 36X10 have?
The supplied specifications do not confirm horsepower for the 3400 AP DD 36X10.
What fuel does the Crustbuster 3400 AP DD 36X10 use?
The supplied specifications do not confirm a fuel type for the Crustbuster 3400 AP DD 36X10.
What jobs is this Air Drills and Seeders best suited for?
The supplied information identifies this as an Air Drills and Seeders attachment with 36 Double Disc openers, 10 inch (254 mm) spacing, and liquid fertilizer delivery via an electric pump. Specific crop, soil, or field-condition suitability is not confirmed.
What is the expected lifespan of the 3400 AP DD 36X10?
The supplied information does not provide an expected lifespan. Inspect the Double Disc openers, folding components, row markers, electric pump, liquid fertilizer system, and seed-tank condition when evaluating a used unit.
What should a buyer check when purchasing a used Air Drills and Seeders?
Check the condition and operation of the Double Disc openers, folding configuration, row markers, electric pump, liquid fertilizer system, seed tank, and frame. Confirm that the 36 openers and 10 inch (254 mm) row spacing match the unit's intended use.
