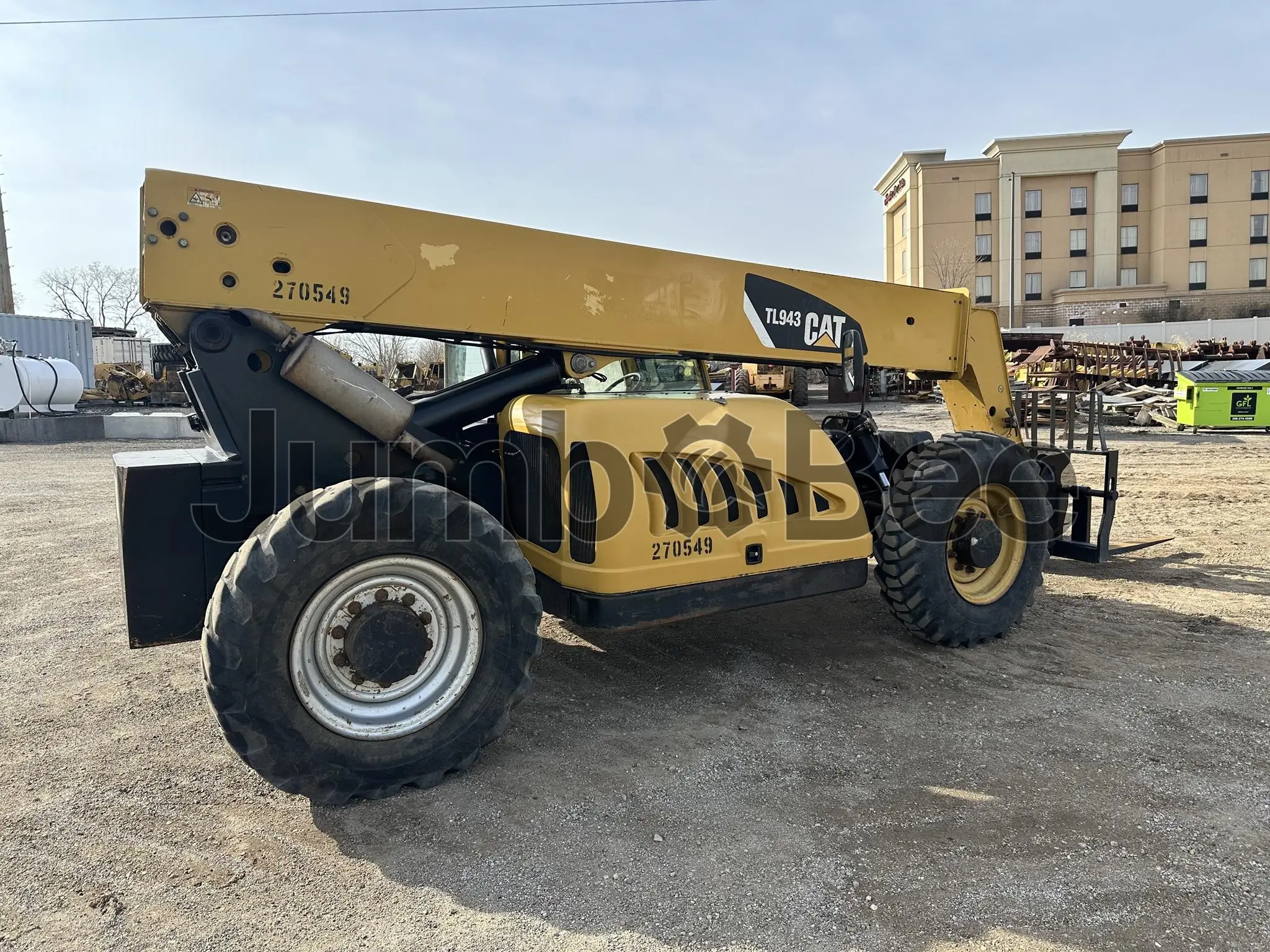

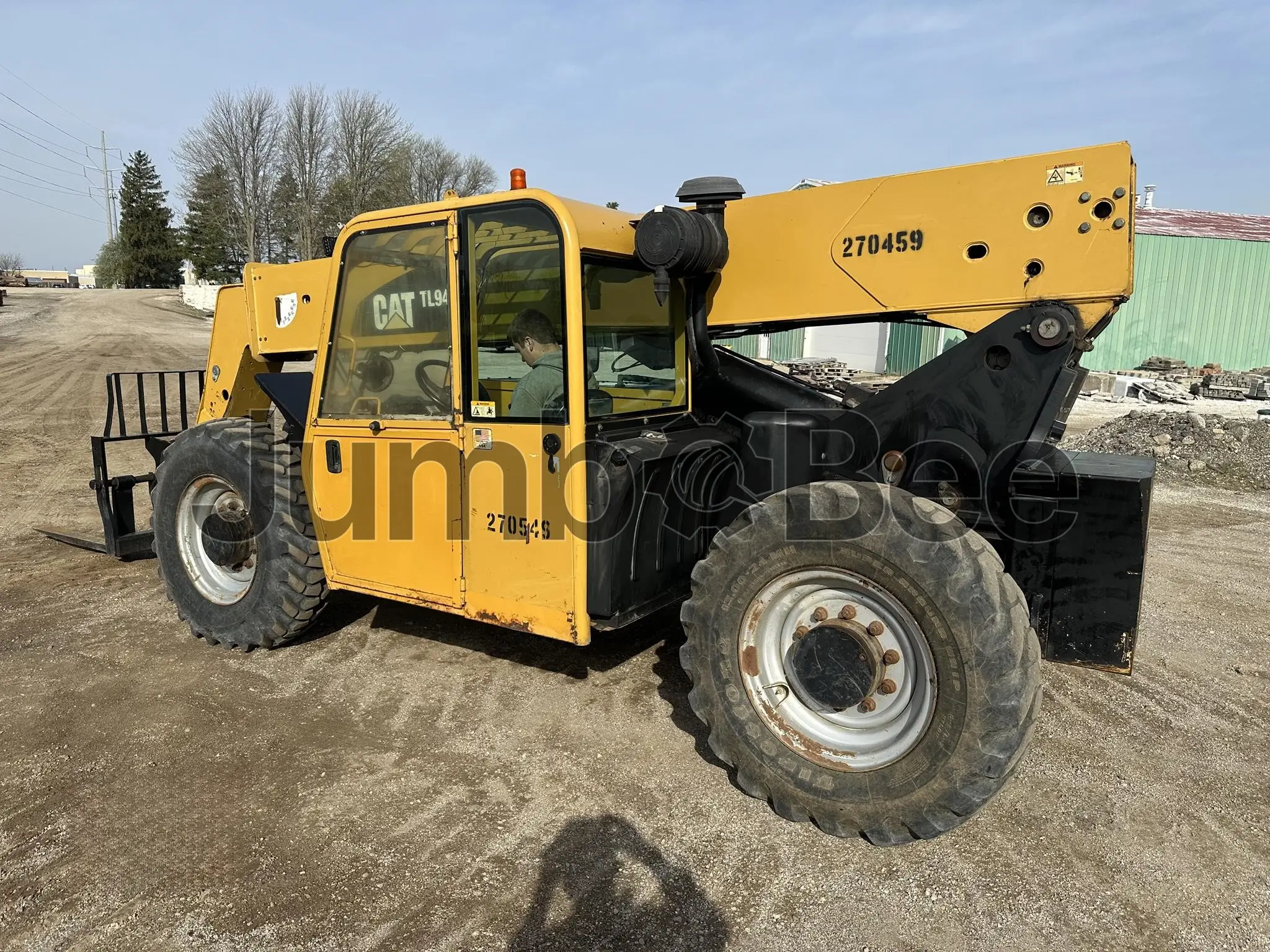

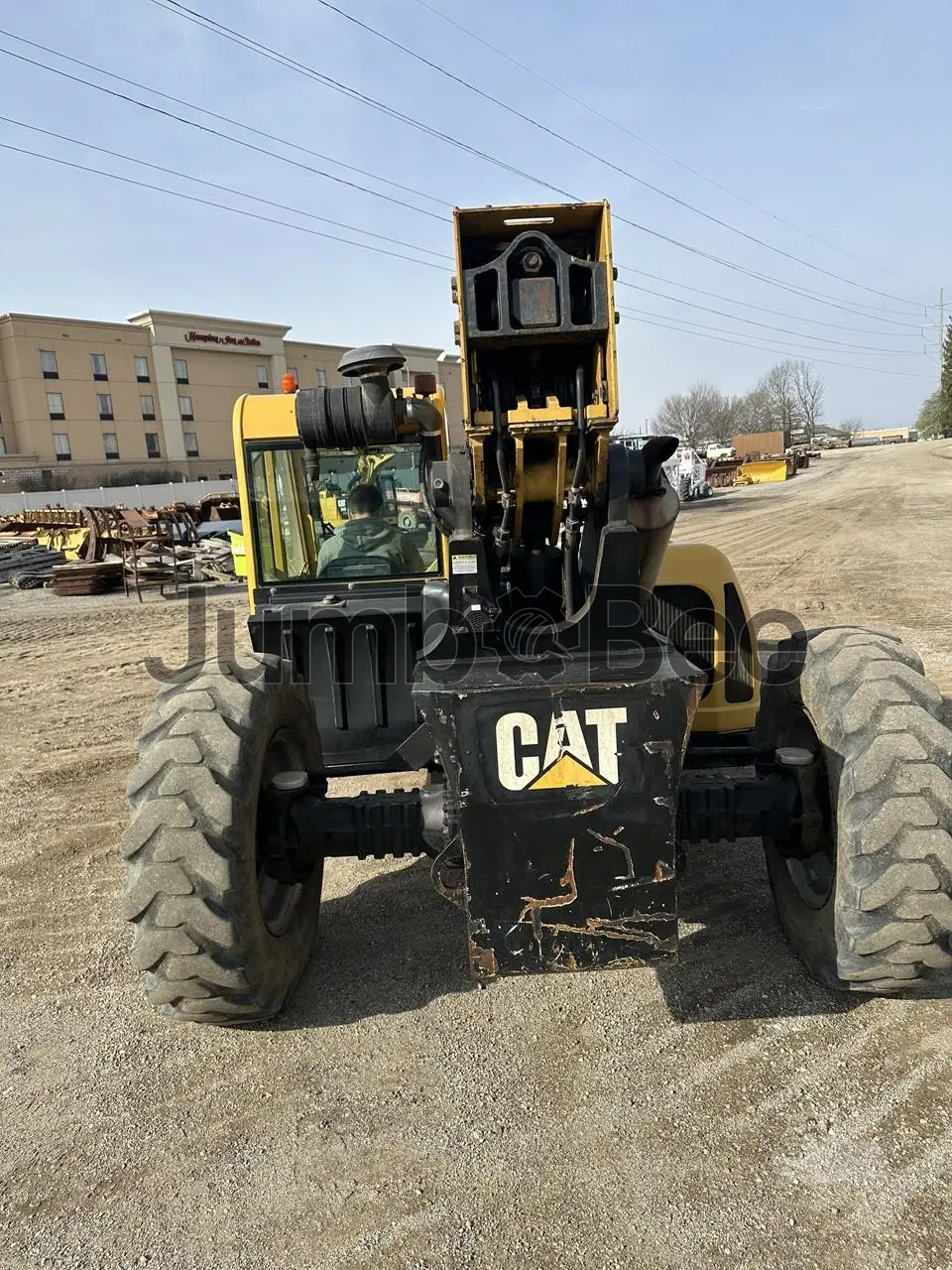

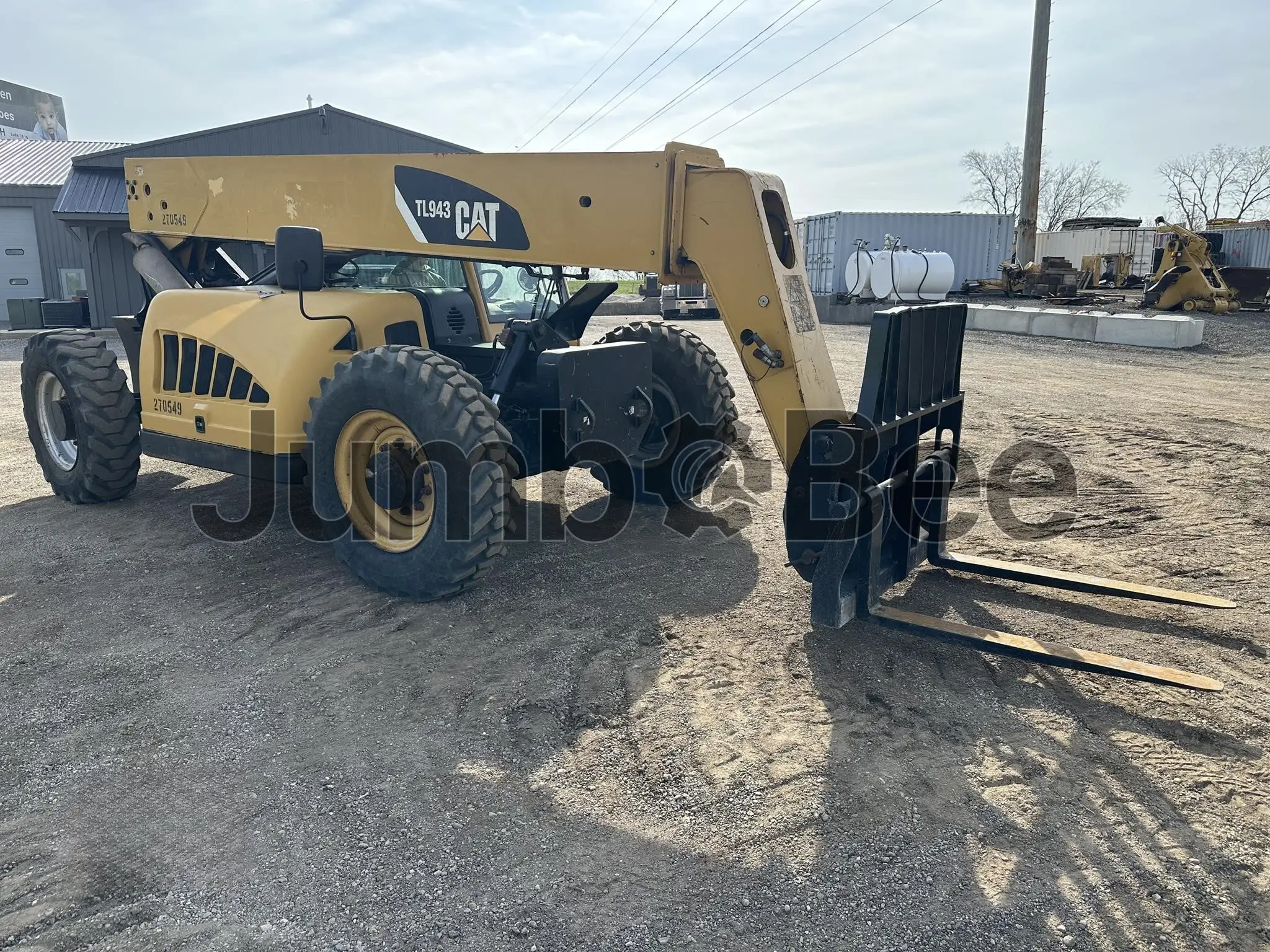

Caterpillar TL943 Telehandler
Caterpillar TL943
5+
sold in last yearGeneral overview
Caterpillar TL943 is a construction equipment model for use on construction sites and related work areas. It has an operating weight of 12,275 kg (27,060 lb) and a rated power of 73 kW (99 hp), placing it in a mid-sized class for general jobsite duties and support operations.
The machine uses a Cat 3054C four-cylinder engine with 4 L displacement and U.S. EPA Tier 4 Final emissions compliance. Net power is 69 kW (94 hp) under ISO 9249, and the powershift transmission supports repetitive operation. Hydraulic system capacity is 177 L (47 US gal), and the fuel tank holds 145 L (38 US gal) for jobsite support tasks.
Year
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
6,220 mm
~244.9 in
2,440 mm
~96.1 in
2,590 mm
~102 in
Operating Weight
12,275 kg
Power
99 hp
Boom Lift Capacity
4,082 kg
Maximum Lift Height
13.1 m
Additional specifications
Emission standard level
U.S. EPA Tier 4 Final
Displacement
4 cu(m)
Transmission type
Powershift transmission
Fuel tank
145 L
Engine Model
Cat 3,054C
Engine Oil
21 L
Power - Net
94 hp
Net Power (ISO 9249)
94 hp
Hydraulic System
177 L
Rated Operating Capacity
4,082 kg
Cylinders
4
Caterpillar TL943 Telehandler Listings
Looking for Caterpillar TL943 Telehandler?
See similar listingsCompare Caterpillar TL943 Telehandler to other telehandler
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Caterpillar TL943?
No confirmed market price is supplied for the Caterpillar TL943. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Caterpillar TL943?
Listed features include a Cat 3054C four-cylinder engine, 70.1 kW (94 hp) net power, a Powershift transmission, and U.S. EPA Tier 4 Final emissions level. Its fuel tank capacity is 145 L (38.3 US gal).
What type of engine does the TL943 use?
The TL943 uses a Cat 3054C engine with 4 cylinders. It is listed with a U.S. EPA Tier 4 Final emissions level.
How much horsepower does the TL943 have?
The TL943 is listed with 73.8 kW (99 hp) power and 70.1 kW (94 hp) net power.
What fuel does the Caterpillar TL943 use?
The supplied specifications list a 145 L (38.3 US gal) fuel tank but do not confirm the fuel type.
What jobs is this Other construction equipment best suited for?
The supplied data does not confirm specific recommended jobs for the Caterpillar TL943. Assess the required capacity, reach, attachment needs, site conditions, and applicable operating requirements before selecting a machine.
What is the expected lifespan of the TL943?
The supplied data does not provide an expected service-life estimate for the TL943. For a used machine, review maintenance records, operating condition, fluid leaks, and wear in major components.
What should a buyer check when purchasing a used Other construction equipment?
Check service records, overall operating condition, leaks, engine operation, transmission shifting, hydraulic functions, tire or undercarriage condition, controls, safety equipment, and signs of structural damage or repairs. Confirm that the machine’s configuration suits the intended work.
