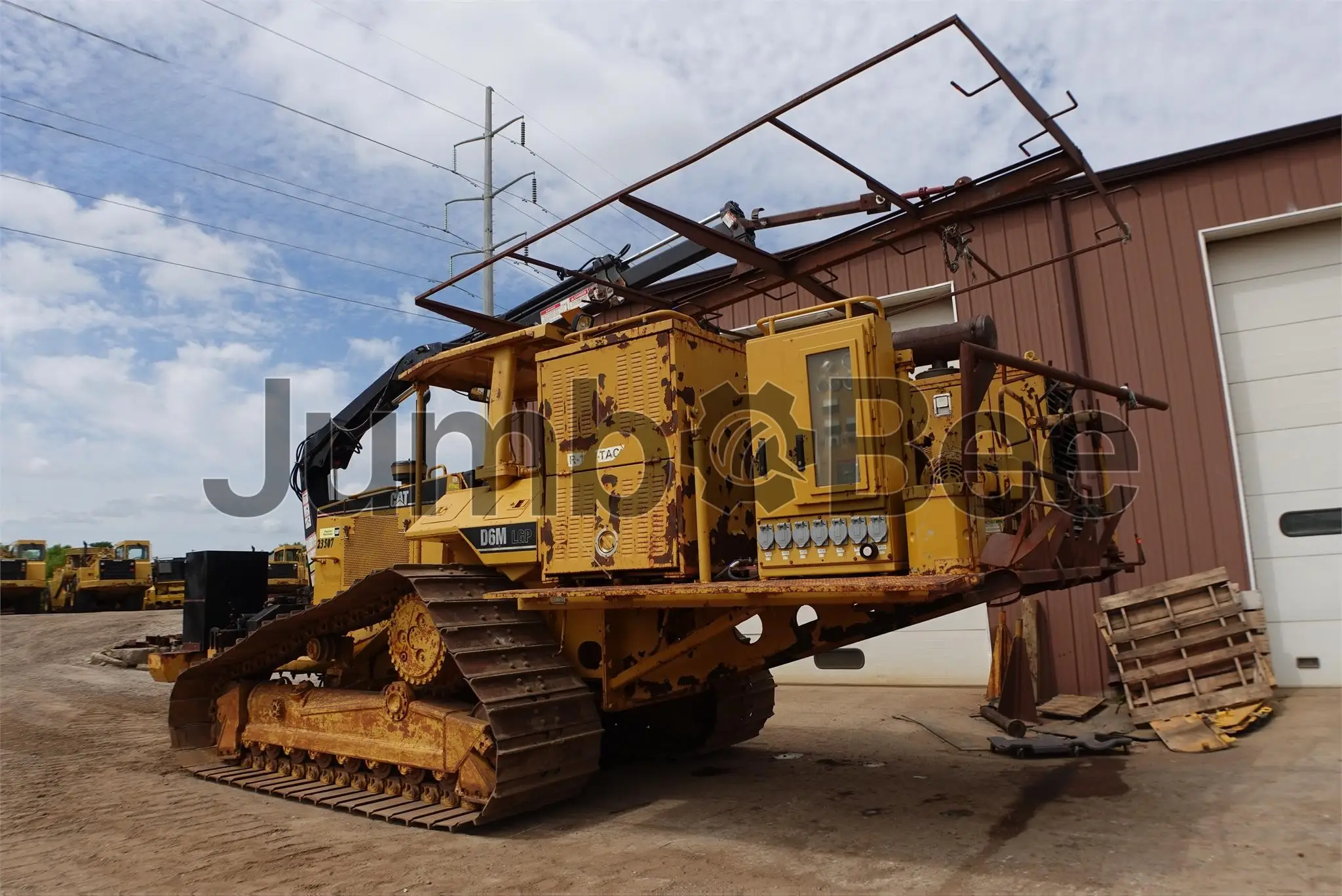

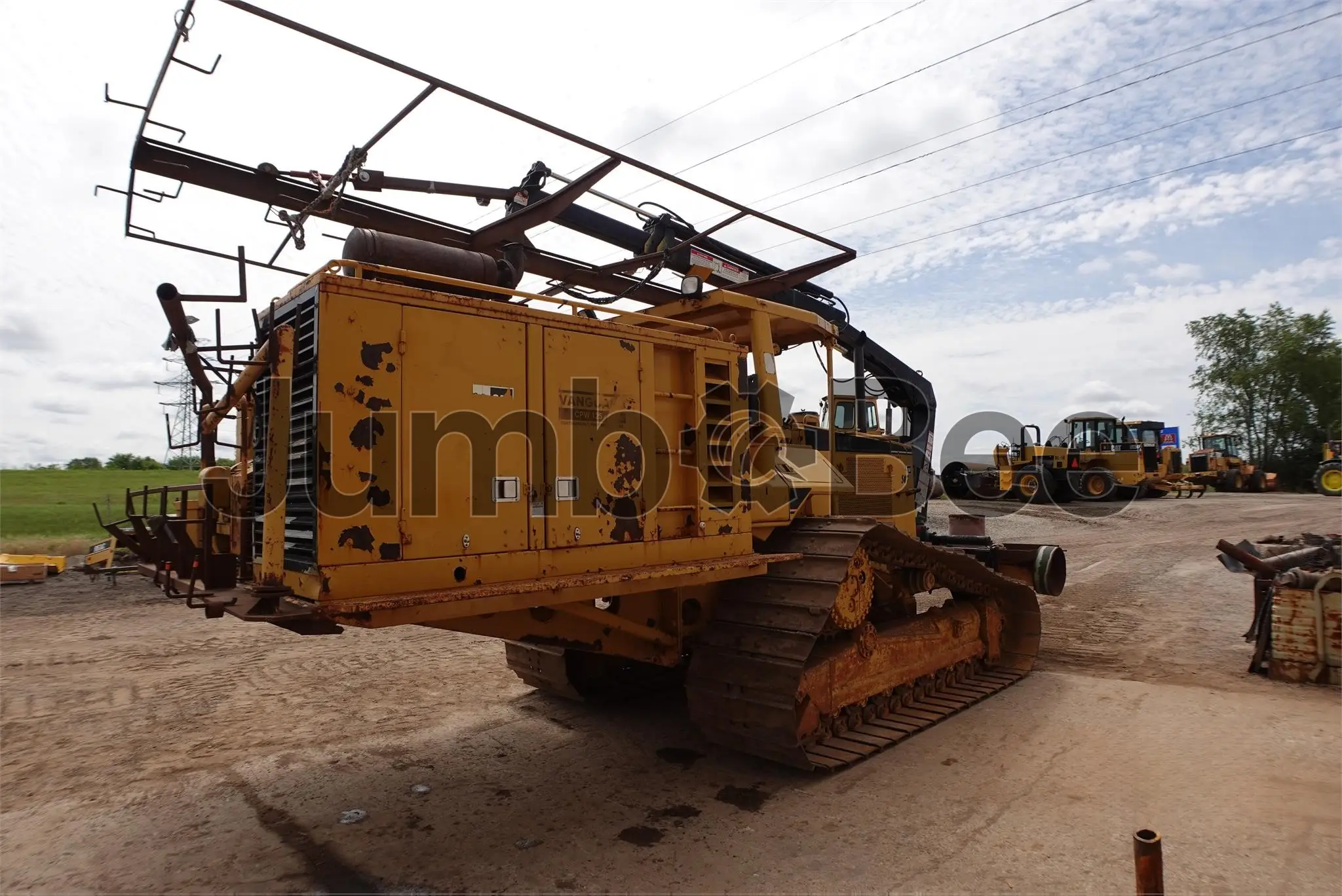

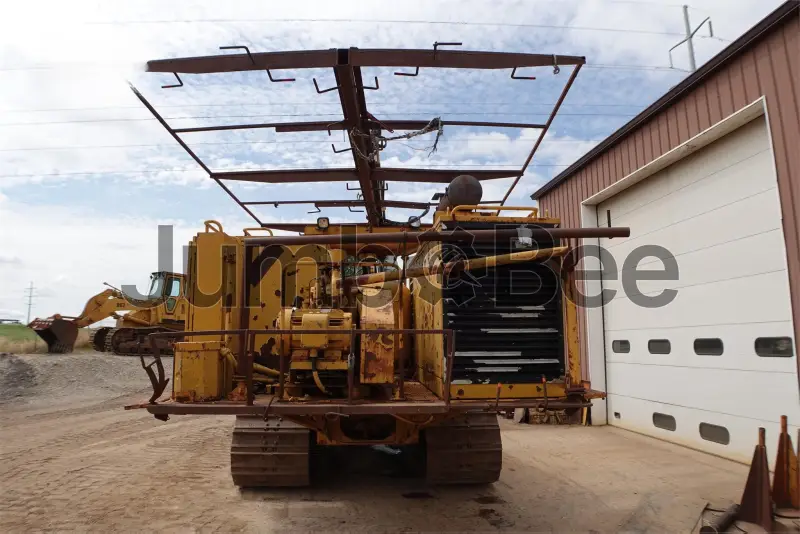

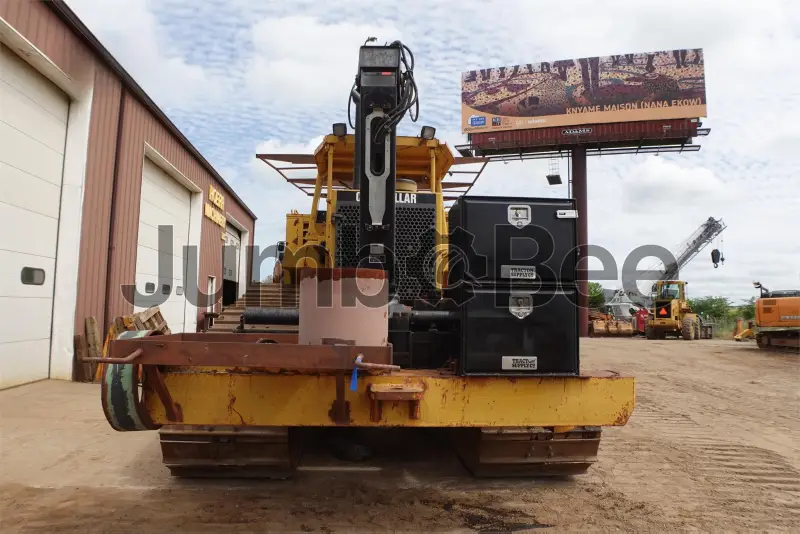

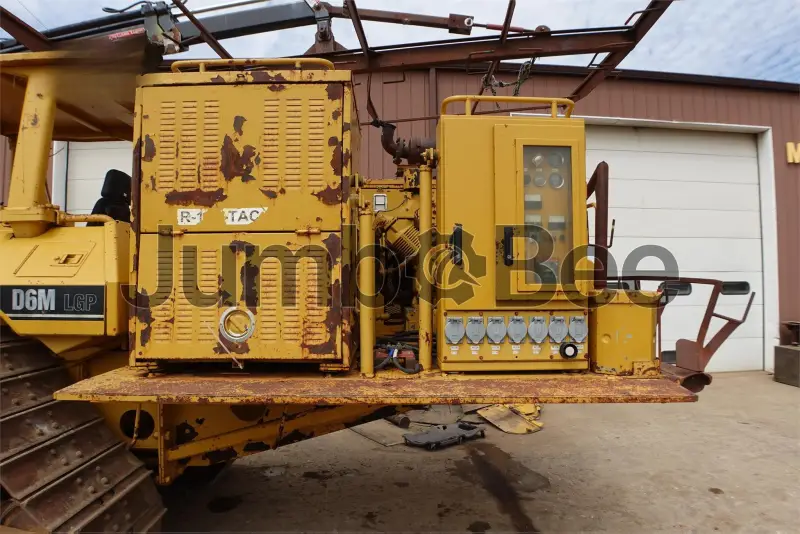

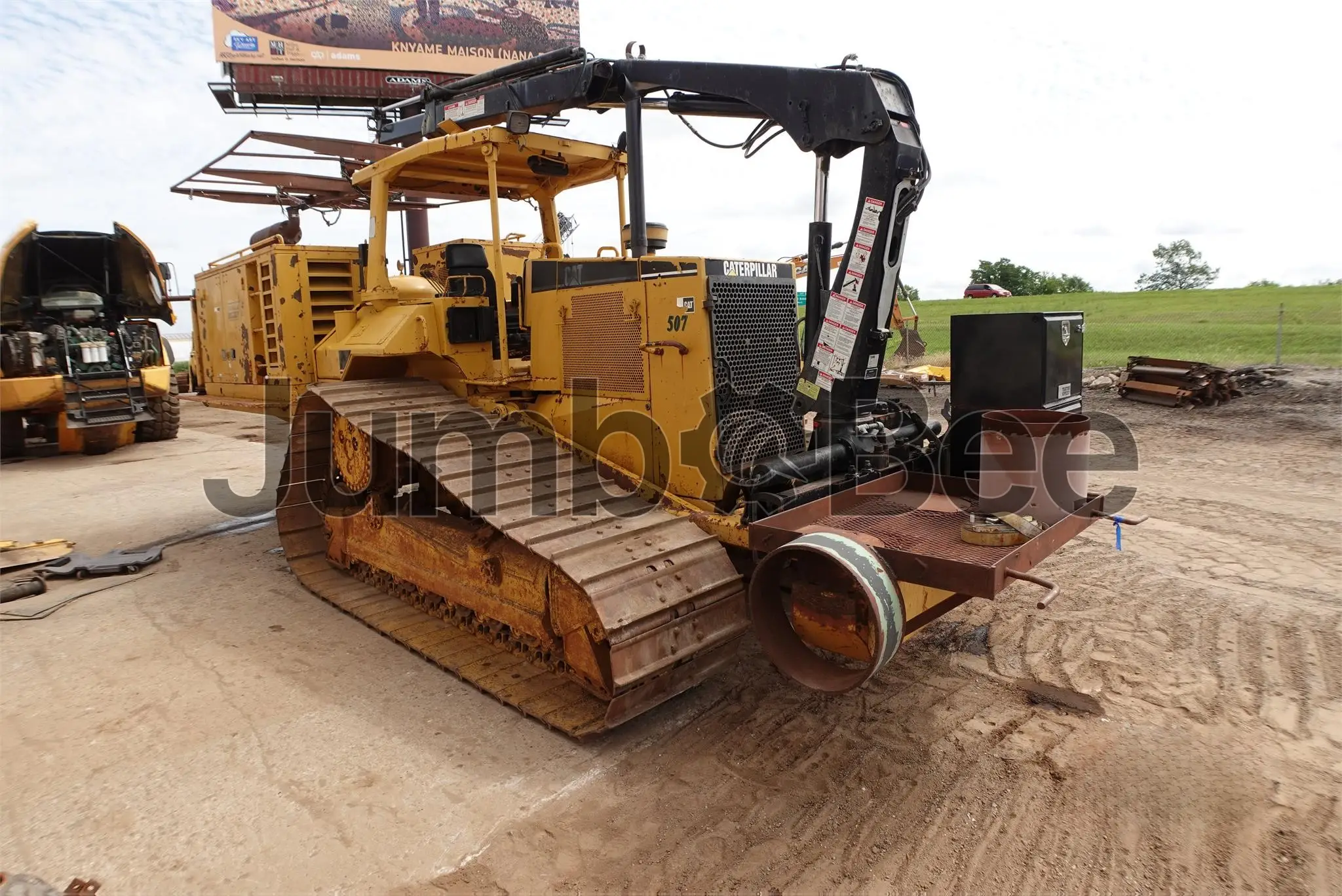

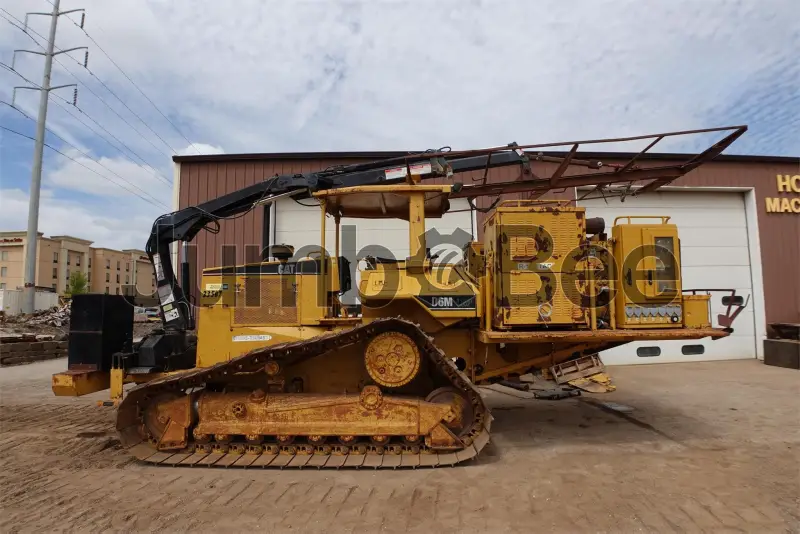

Caterpillar D6M LGP Crawler Dozer
Caterpillar D6M LGP
Average price
$39,500
5+
sold in last year
General overview
Caterpillar D6M LGP is a dozer used for earthmoving and site preparation in construction work. Produced in the United States from 1996 to 2003, it combines an operating weight of 16,511 kg (36,400 lb) with a Caterpillar 3116T engine rated at 103 kW (140 hp), giving it the mass and output needed for sustained pushing and grading tasks.
The model uses a power shift transmission and a six-cylinder, 6 L engine layout. Its hydraulic system is specified at 69 L (18 US gal) with pump flow of 119 L/min (31.4 gpm) and system relief pressure of 248.2 bar (3,600 psi), and it includes a 311 L (82 US gal) fuel tank and 24 V electrical system.
Year
1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
5,395 mm
~212.4 in
3,200 mm
~126 in
3,048 mm
~120 in
Engine Power
114.09 kW
Operating Weight
16,511 kg
Power
140 hp
Additional specifications
Displacement
6 cu(m)
Transmission type
Power shift
Fuel tank
311 L
Cooling system
48 L
Battery Voltage
24
Main Pumps
L/sec
System Relief Pressure
24,822 kPa
Engine Model
Caterpillar 3,116T
Blade Capacity
3.21 cu(m)
Engine Oil
26 L
Power - Net
140 hp
Net Power (ISO 9249)
140 hp
Pump Flow
119 L/min
Alternator Rating
70
Hydraulic System
69 L
Cylinders
6
Caterpillar D6M LGP Crawler Dozer Listings
Compare Caterpillar D6M LGP Crawler Dozer to other crawler dozer
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Caterpillar D6M LGP?
No confirmed market price is supplied for the Caterpillar D6M LGP. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Caterpillar D6M LGP?
The supplied specifications list 104.4 kW (140 hp) net power, a Power shift transmission, and an operating weight of 16,511 kg (36,400 lb). They also list a 311 L (82.2 US gal) fuel tank and 24 V battery voltage.
What type of engine does the D6M LGP use?
The D6M LGP uses a Caterpillar 3116T engine. The supplied specifications list 6 cylinders and 104.4 kW (140 hp) net power.
How much horsepower does the D6M LGP have?
The Caterpillar D6M LGP is listed with 104.4 kW (140 hp) power and 104.4 kW (140 hp) net power.
What fuel does the Caterpillar D6M LGP use?
The supplied data does not confirm the fuel type for the Caterpillar D6M LGP. It lists a fuel tank capacity of 311 L (82.2 US gal).
What jobs is this Other construction equipment best suited for?
The supplied data does not confirm specific job applications for the Caterpillar D6M LGP. Review the machine’s configuration and condition against the requirements of the intended work.
What is the expected lifespan of the D6M LGP?
The supplied data does not provide an expected service-life estimate for the D6M LGP. Inspect maintenance records, operating condition, fluid systems, transmission, and overall machine condition before purchase.
What should a buyer check when purchasing a used Other construction equipment?
Check maintenance records, overall machine condition, fluid leaks, engine operation, transmission operation, hydraulic-system function, and battery condition. Confirm the configuration matches the intended work and review the operating weight, power, and capacities against the supplied specifications.
