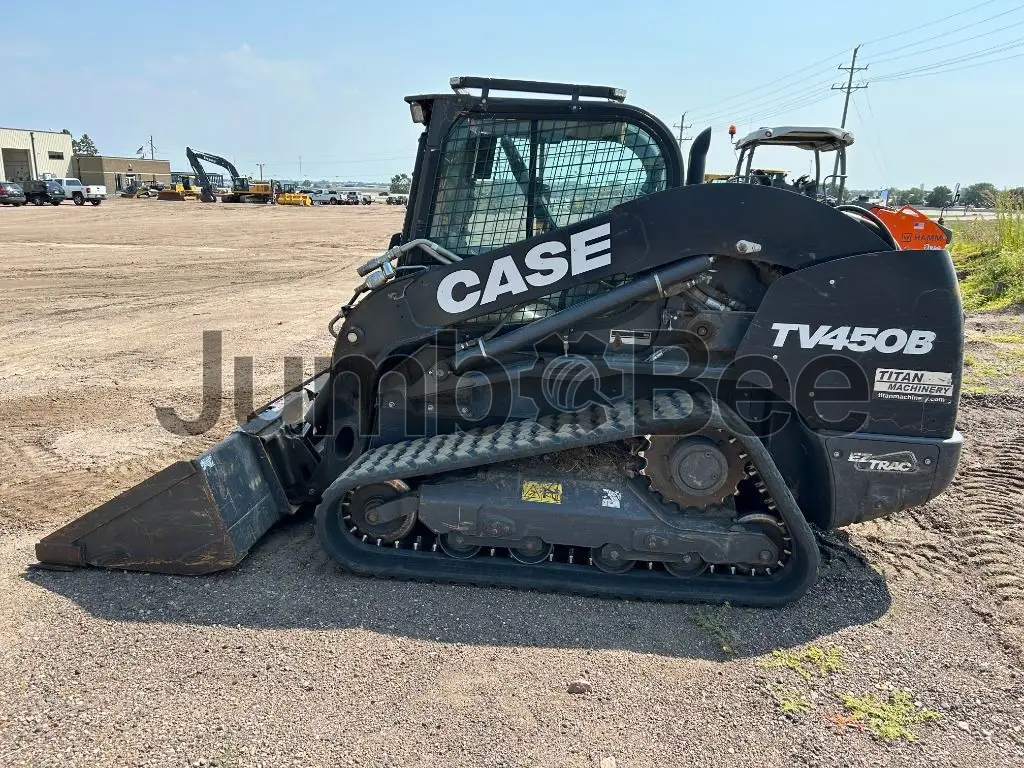

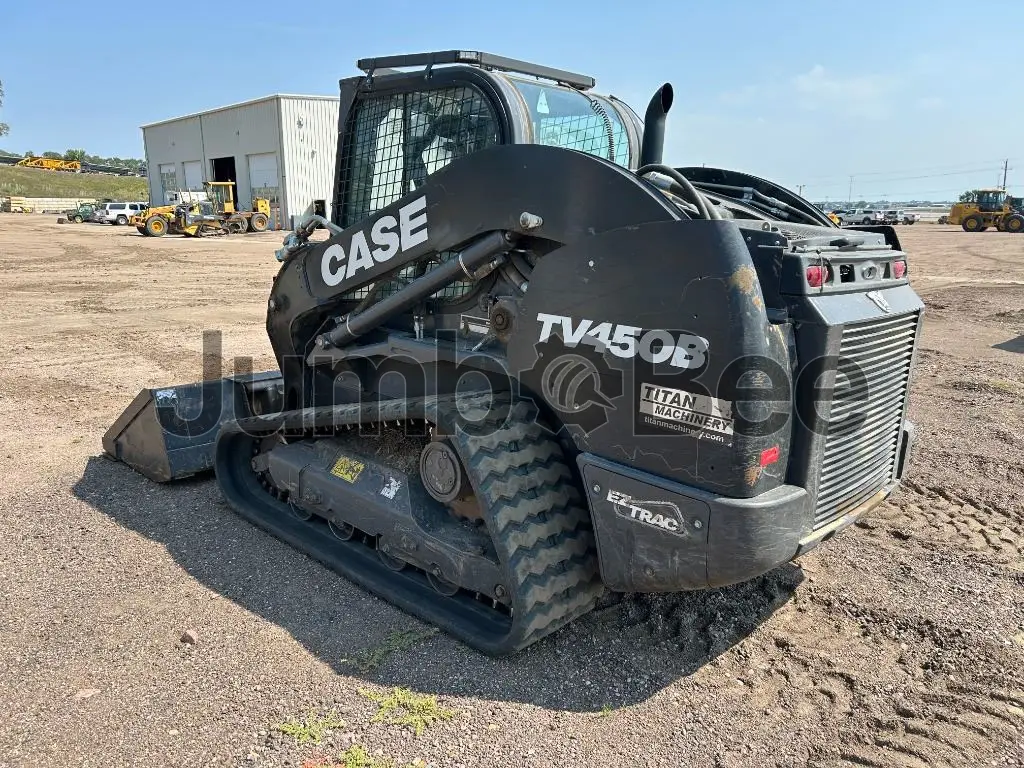

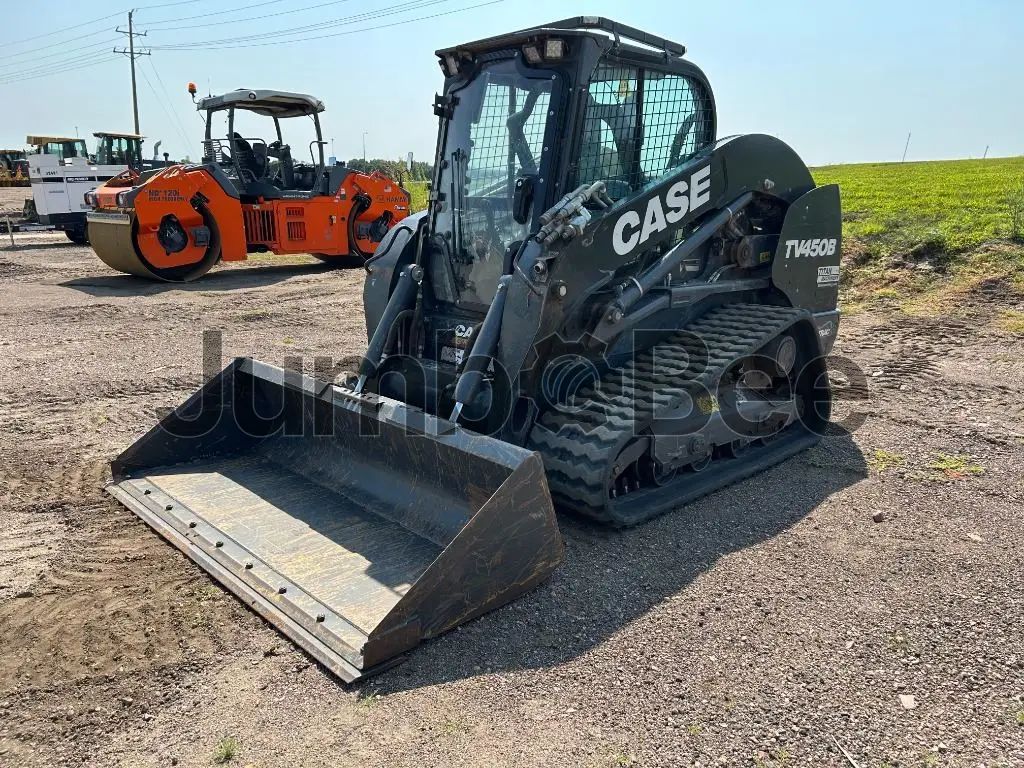

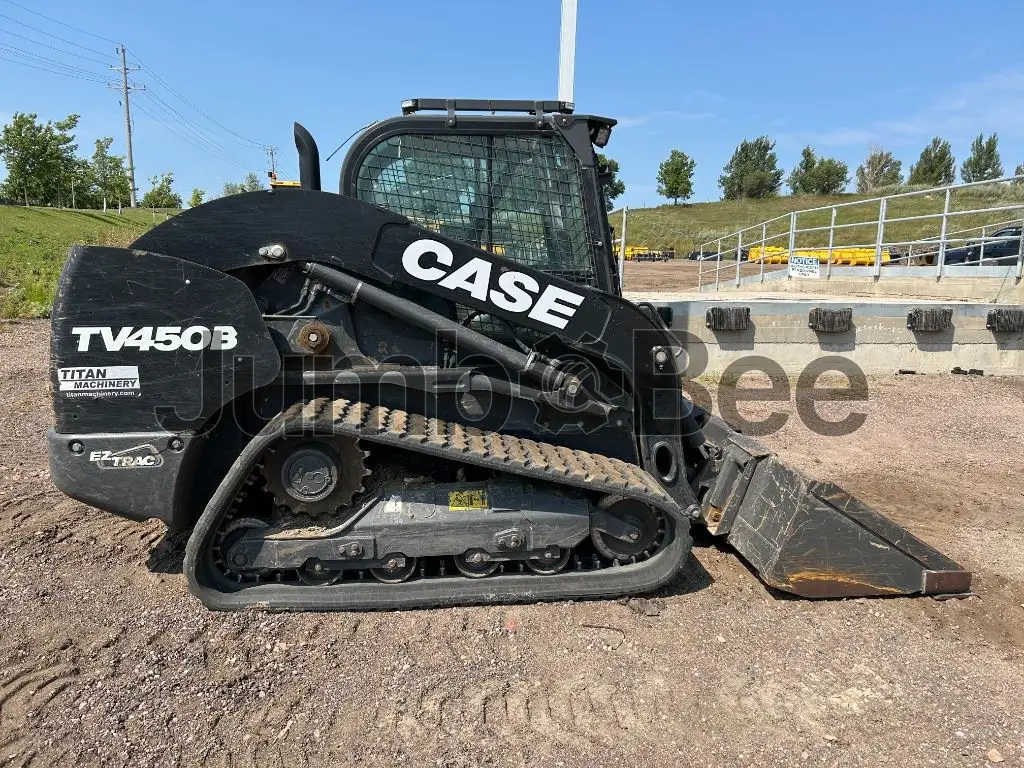

Case TV450B Skid Steer / CTL
Case TV450B
5+
sold in last yearGeneral overview
Year
2024
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
Weight
3,670 mm
~144.5 in
2,044 mm
~80.5 in
1,930 mm
~76 in
4,823 kg
~10,632.9 lb
Additional specifications
Engine Power
90 hp
Emission standard level
Tier 4 Final
Speeds
Low range 5.5 mph (8.9 kph); high range 8.0 mph (12.9 kph)
Operating Weight
4,823 kg
Final drive
Planetary gearbox w/ 2-speed motor
Manufacturer and Model
FPT F5B FL,413 D*C,009
Brakes
Spring-applied, hydraulic release multiple disc parking brake
Length With Foundry Bucket
3,670 mm
Height to Top of ROPS
2,044 mm
Height to Hinge Pin
3,340 mm
Dump Height With Foundry Bucket
2,650 mm
Tipping Load
4,091 kg
Rated Operating Capacity
2,045 kg
Dump Height
2,650 mm
Cylinders
4
Track Width
450 mm
Operating weight base machine
4,823 kg
Rated operating capacity standard
50% of tipping load
Undercarriage type
Compact track loader
