Case 821F Wheel Loaders
Case 821F
5+
sold in last yearGeneral overview

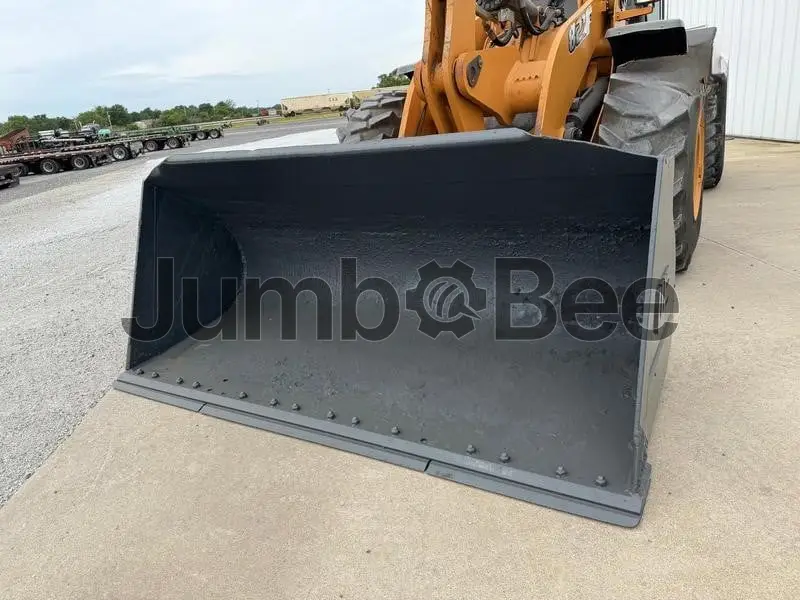

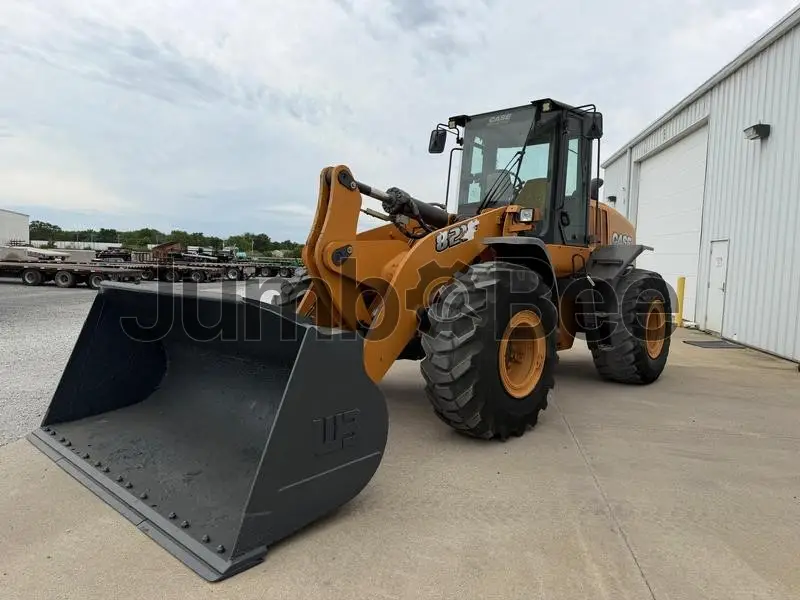

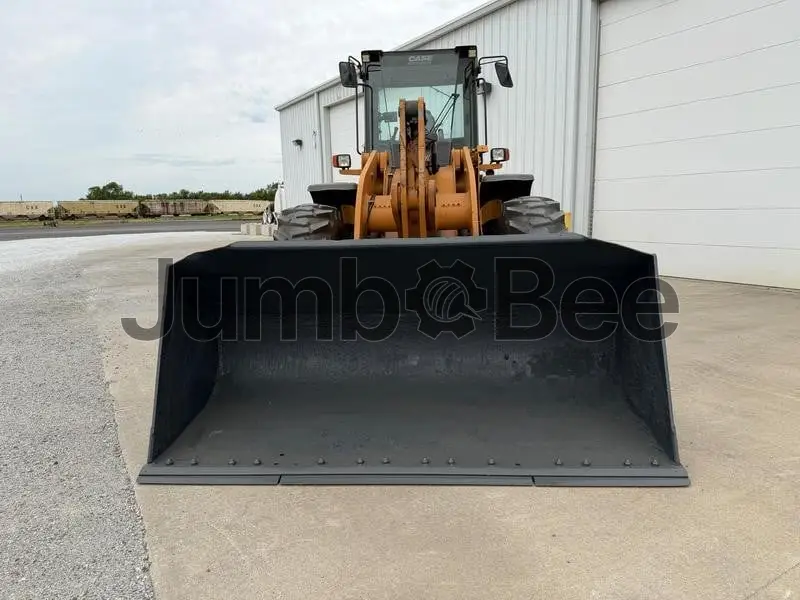

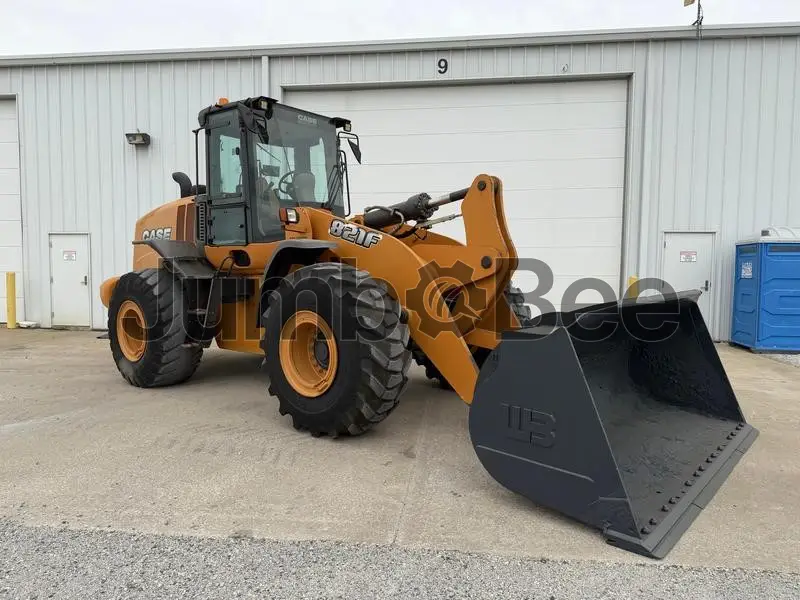

Case 821F is a wheel loader designed for loading, hauling, and material-handling work in construction and site-preparation settings. It is equipped with a 3 m³ (3.9 cu yd) heaped bucket and a 169 kW (230 hp) engine, placing it in a medium-to-large loader class for moving bulk material on job sites.
The model has an operating weight of 17,694 kg (39,010 lb) and uses an FPT F4HFE613 6-cylinder, 6 L engine with 151 kW (205 hp) net power and a Tier 3 emission standard. Travel speed reaches 36 km/h (22.4 mph), and the machine is configured with 24° articulation and steering angles for maneuvering in confined work areas.
Year
2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
7,859 mm
~309.4 in
3,450 mm
~135.8 in
2,887 mm
~113.7 in
Engine Power
230 hp
Operating Weight
17,694 kg
Bucket Capacity
3.42 cu(m)
Bucket Capacity - Heaped
3 cu(m)
Additional specifications
Emission standard level
Tier 3
Displacement
6 cu(m)
Fuel tank
288 L
Cooling system
40 L
Height to top of cab
3,450 mm
Wheelbase
2,985 mm
Number of Cylinders
6
Ground clearance with standard tires
1,103 mm
Battery Voltage
24
Width
2,887 mm
System Relief Pressure
25,000 kPa
Travel Speed Forward
36 km/h
Engine Model
FPT F4HFE,613
Engine Oil
15 L
Power - Net
205 hp
Net Power (ISO 9249)
205 hp
General Purpose
3 cu(m)
3rd Auxiliary Flow
120 L/min
Hydraulic Cycle Time - Lower, Float
2 s
Hydraulic Cycle Time - Lift
6 s
Hydraulic Cycle Time - Dump
1 s
Overall Length - With Bucket
7,859 mm
Reach at Maximum Dump Height
1,110 mm
Dig Depth
152 mm
Hinge Pin at Maximum Height
4,124 mm
Turning Radius - Over Bucket
7,315 mm
Width - Over Bucket
3,342 mm
Articulation Angle
24 deg
Steering Angle
24 deg
Hydraulic System
178 L
Turning Radius - Inside Tire
3,018 mm
Rated Operating Capacity
14,203 kg
Case 821F Wheel Loaders Listings
Looking for Case 821F Wheel Loaders?
See similar listingsCompare Case 821F Wheel Loader to other wheel loaders
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Case 821F?
No confirmed market price is supplied for the Case 821F. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Case 821F?
Supplied specifications include a 3 m³ (3.92 cu yd) heaped bucket capacity, 171.5 kW (230 hp) engine power, 36 km/h (22.4 mph) forward travel speed, and 120 L/min (31.7 gpm) third auxiliary flow.
What type of engine does the 821F use?
The Case 821F uses an FPT F4HFE613 engine with 6 cylinders and Tier 3 emissions level.
How much horsepower does the 821F have?
The Case 821F has 171.5 kW (230 hp) engine power. Its net power is 152.9 kW (205 hp), including Net Power (ISO 9249).
What fuel does the Case 821F use?
The supplied specifications do not confirm the fuel type for the Case 821F. They list a fuel tank capacity of 288 L (76.1 US gal).
What jobs is this Wheel Loaders best suited for?
The supplied data does not specify recommended job types. Its listed 3 m³ (3.92 cu yd) bucket capacity, 17,694 kg (39,009 lb) operating weight, and auxiliary hydraulic flow may be relevant when matching the machine to site requirements.
What is the expected lifespan of the 821F?
No expected service-life estimate is supplied for the Case 821F. For a used machine, inspect maintenance records, engine condition, hydraulic performance, articulation components, tires, bucket, and structural condition.
What should a buyer check when purchasing a used Wheel Loaders?
Check maintenance records, engine operation, hydraulic cycle performance, leaks, articulation and steering play, tire condition, bucket and linkage wear, cab controls, and structural damage. Confirm operating weight, bucket configuration, and auxiliary hydraulic requirements match the intended work.
