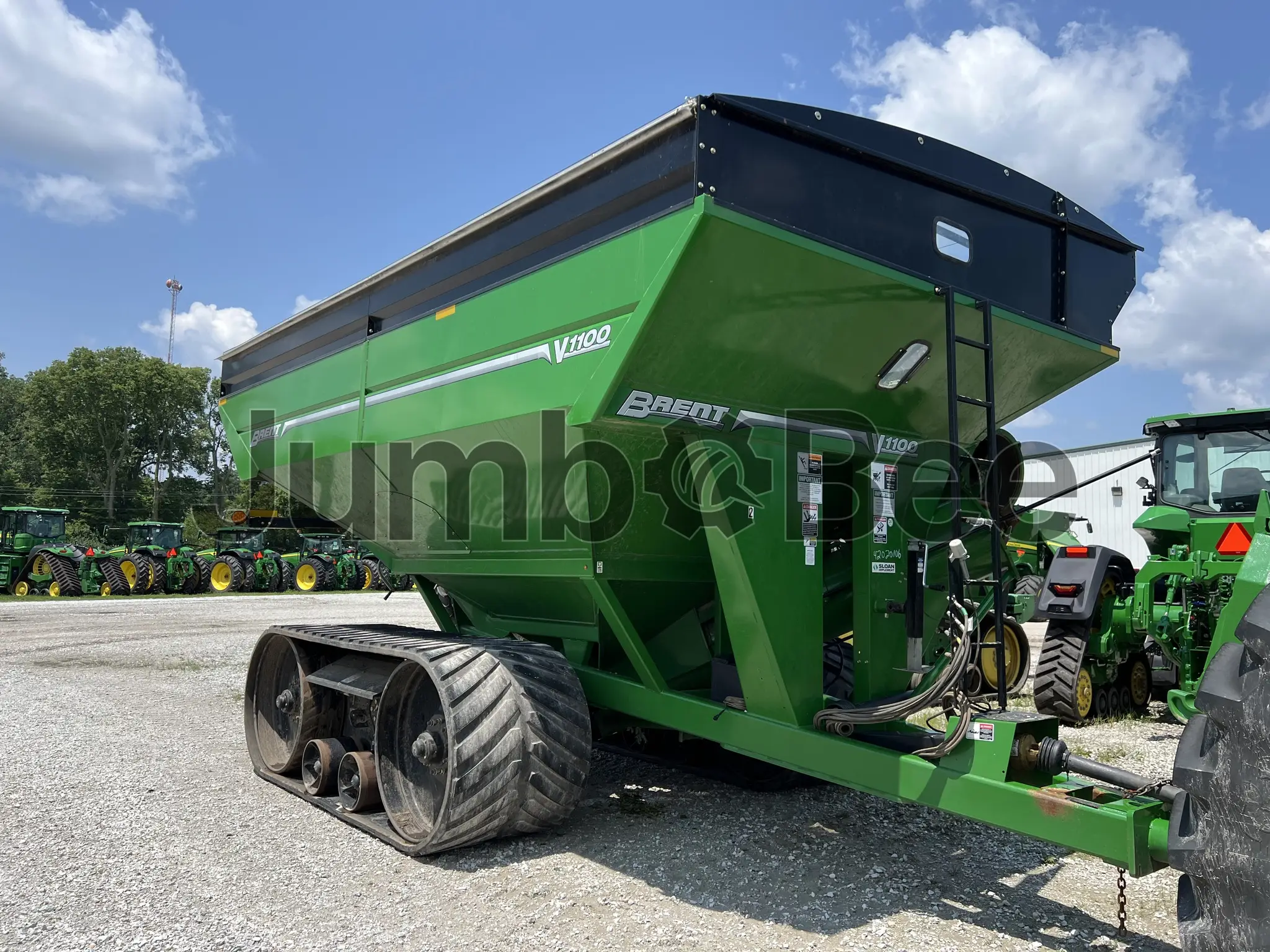

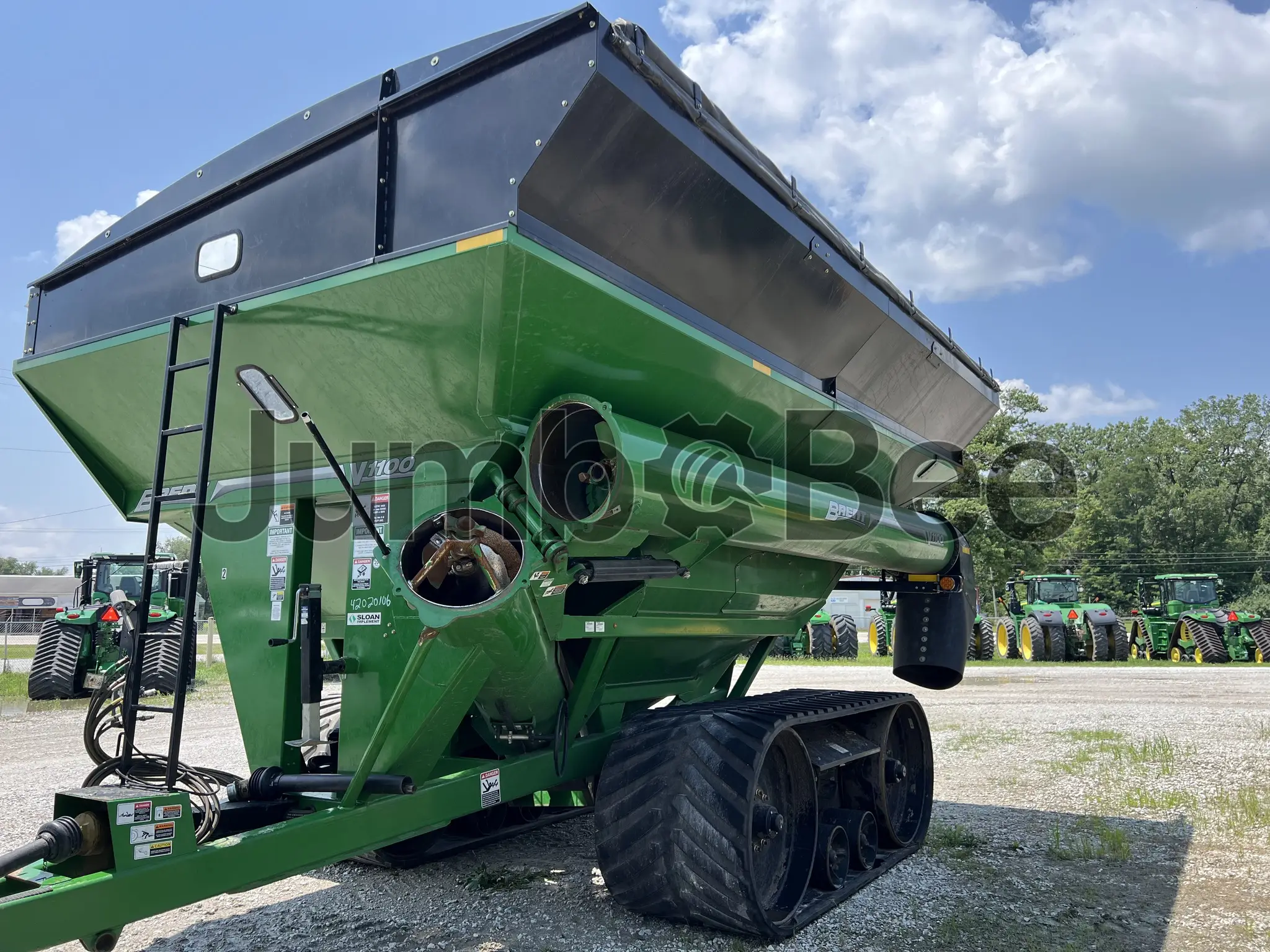

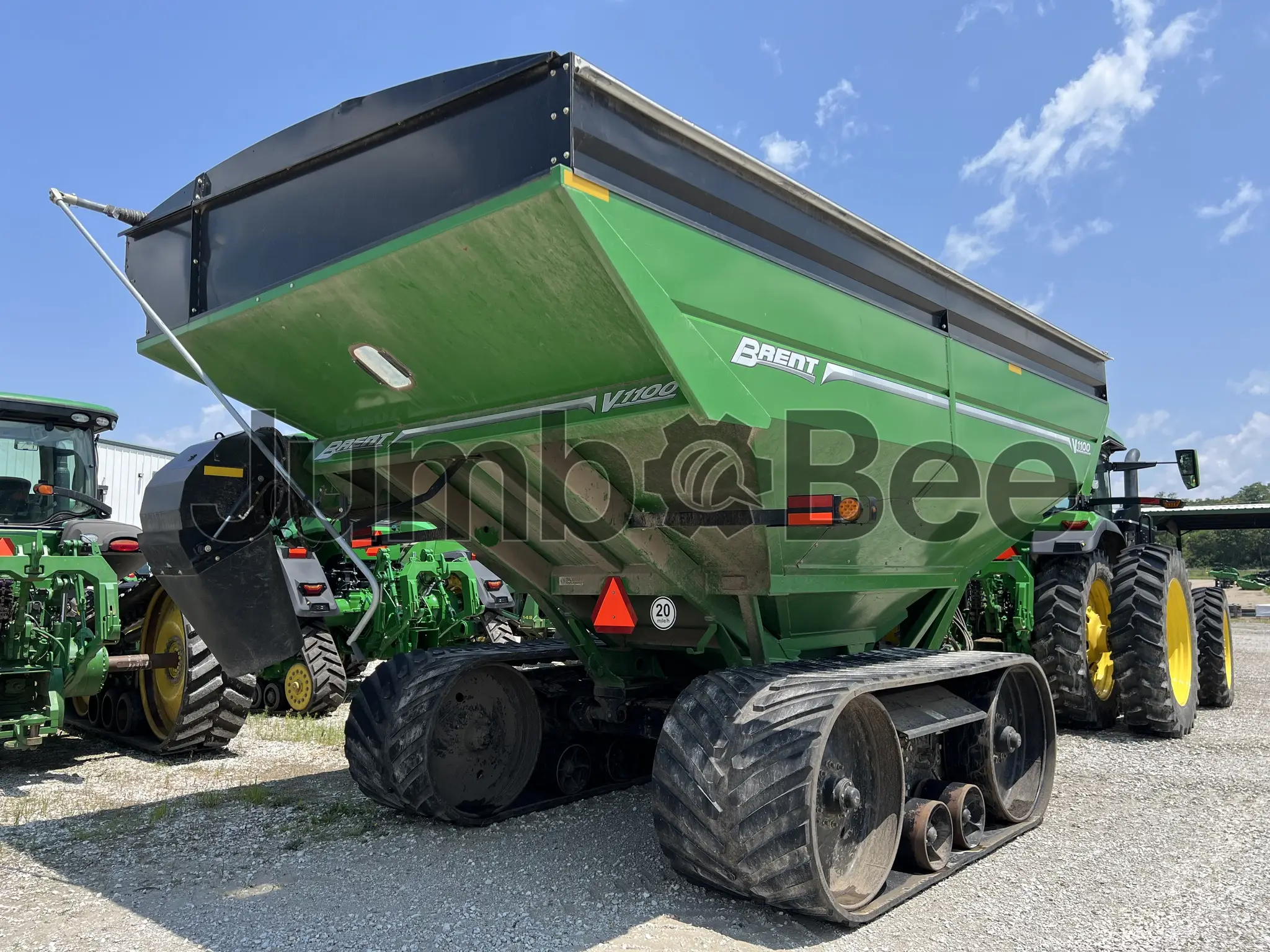

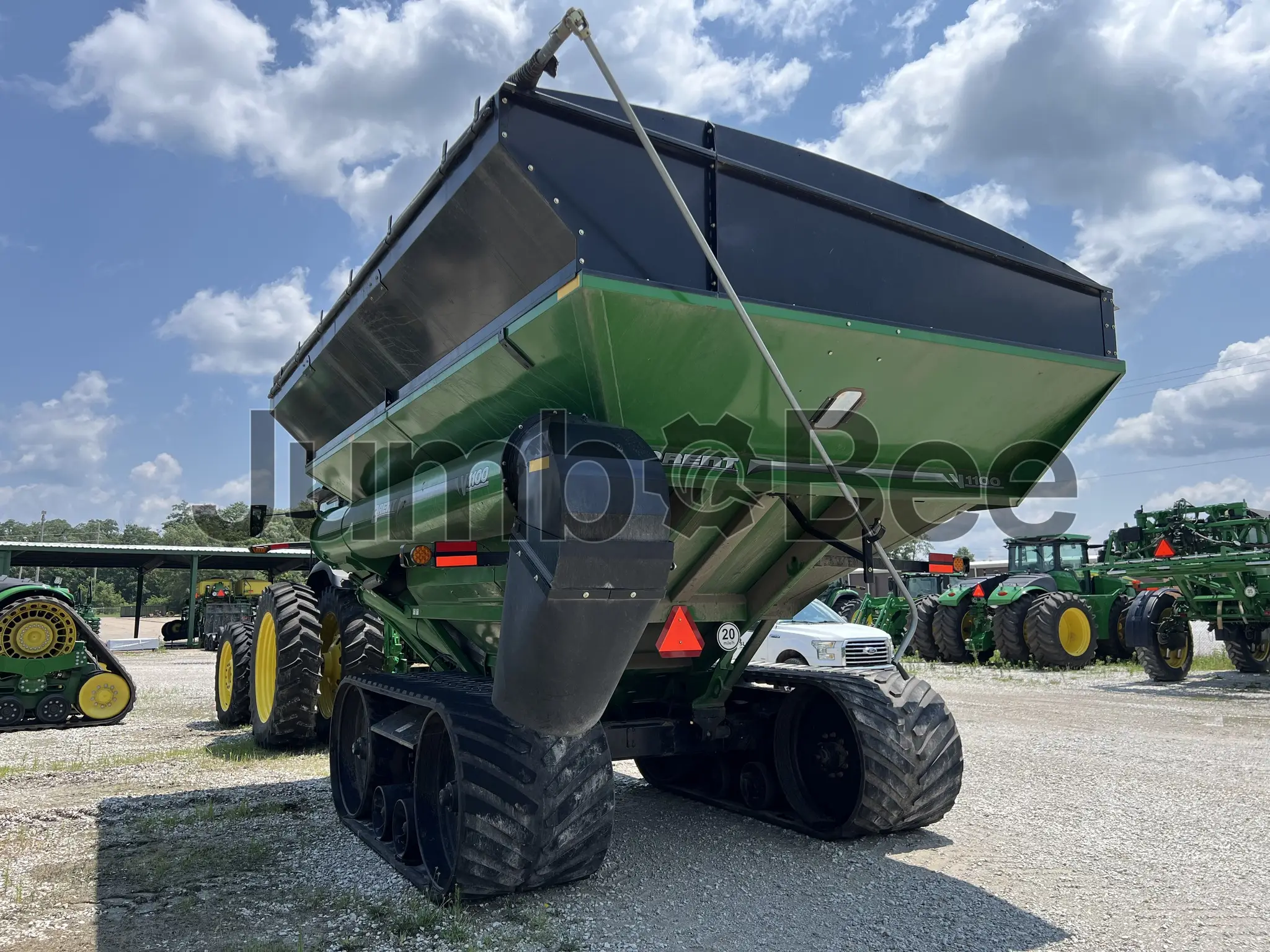

Brent V1100T Dual Auger
Brent V1100T
5+
sold in last yearGeneral overview
Brent V1100T is a grain cart manufactured in the United States for field harvest grain handling. It is used to receive grain from harvesting equipment and move it within the field during crop production work, with a heaped capacity of 38.76 m³ (50.7 cu yd). The model is intended for tractor operation and requires 1 SCV remote and a 1000 rpm PTO, so it is set up for controlled material transfer in harvest conditions and other grain-moving tasks.
Material flow is handled by 508 mm (20 in) vertical and horizontal augers, while a 90° dual-belt heavy-duty gearbox and dual 4-strand, spring-tensioned drive belts manage power delivery. The cart is specified for a 165 kW (225 hp) tractor and uses 914 mm × 3 327 mm Equalizer™ tracks, giving it a track-based running gear for field travel and unloading support across crop ground. Together, these features describe a grain-transfer setup built around capacity, power requirement, and in-field mobility.
Year
2022
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
4,927 mm
~194 in
4,064 mm
~160 in
7,925 mm
~312 in
7,121 kg
~15,699.1 lb
Unloading rate
98,220 L/min
Capacity Heaped
38.76 cu(m)
Grain Cart Capacity
38,746.99 L
Required Engine Power
167.78 kW
Grain Cart Loaded Tongue Weight
2,735.62 kg
Grain Cart Empty Tongue Weight
1,303.17 kg
Grain Cart Auger Diameter
0.51 m
Flighting Thickness
3/8" with 1/4" AR,400
Hub Size/Spindle Diameter
10-bolt/4.5"
Hydraulic Remotes Required
4
Front/Rear Slopes
40/30
Hopper Length
6.55 m
Hopper Width
4.06 m
Auger Side Reach Max
2.9 m
Auger Side Reach Min
1.78 m
Grain Cart Overall Transport Length
7.92 m
Additional specifications
Peak unloading rate
4,800 gpm
Power requirement
225 hp
PTO
1,000 rpm
Track size
914 mm × 3 327 mm Equalizer™ tracks
Tractor hydraulics requirements
1 SCV remote
Vertical auger
508 mm
Horizontal auger
508 mm
Gearbox
90° dual-belt heavy-duty; 2¼″ output shaft
Drive belts
Dual 4-strand, spring-tensioned
Brent V1100T Dual Auger Listings
Looking for Brent V1100T Dual Auger?
See similar listingsCompare Brent V1100T Dual Auger to other dual auger
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Brent V1100T?
No confirmed market price is supplied for the Brent V1100T. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Brent V1100T?
Listed features include 38.76 m³ (50.7 cu yd) heaped capacity, an 18,170 L/min (4,800 gpm) peak unloading rate, 508 mm (20 in) vertical and horizontal augers, and 914 mm × 3 327 mm Equalizer™ tracks. It also uses a 1000 rpm PTO and requires 1 SCV remote.
What type of engine does the V1100T use?
No engine specification is supplied for the V1100T. The listed power requirement is 167.8 kW (225 hp), indicating the required tractor power.
How much horsepower does the V1100T have?
The V1100T has a listed power requirement of 167.8 kW (225 hp). This is the tractor power requirement, not an onboard engine rating.
What fuel does the Brent V1100T use?
The supplied specifications do not confirm a fuel type for the Brent V1100T. No onboard engine information is provided.
What jobs is this Grain carts best suited for?
This grain cart is suited to grain-handling work that requires cart capacity and unloading support from a tractor. Its listed configuration includes 38.76 m³ (50.7 cu yd) heaped capacity, 1 SCV remote, and a 1000 rpm PTO requirement.
What is the expected lifespan of the V1100T?
The supplied data does not provide an expected lifespan for the V1100T. Service life depends on use, maintenance, storage, and the condition of the augers, belts, gearbox, PTO, hydraulics, and tracks.
What should a buyer check when purchasing a used Grain carts?
Inspect the cart body, augers, gearbox, dual drive belts, PTO components, hydraulic connections, and tracks for wear or damage. Confirm that unloading operates properly and that the tractor requirements match the cart: 167.8 kW (225 hp), 1 SCV remote, and 1000 rpm PTO.
