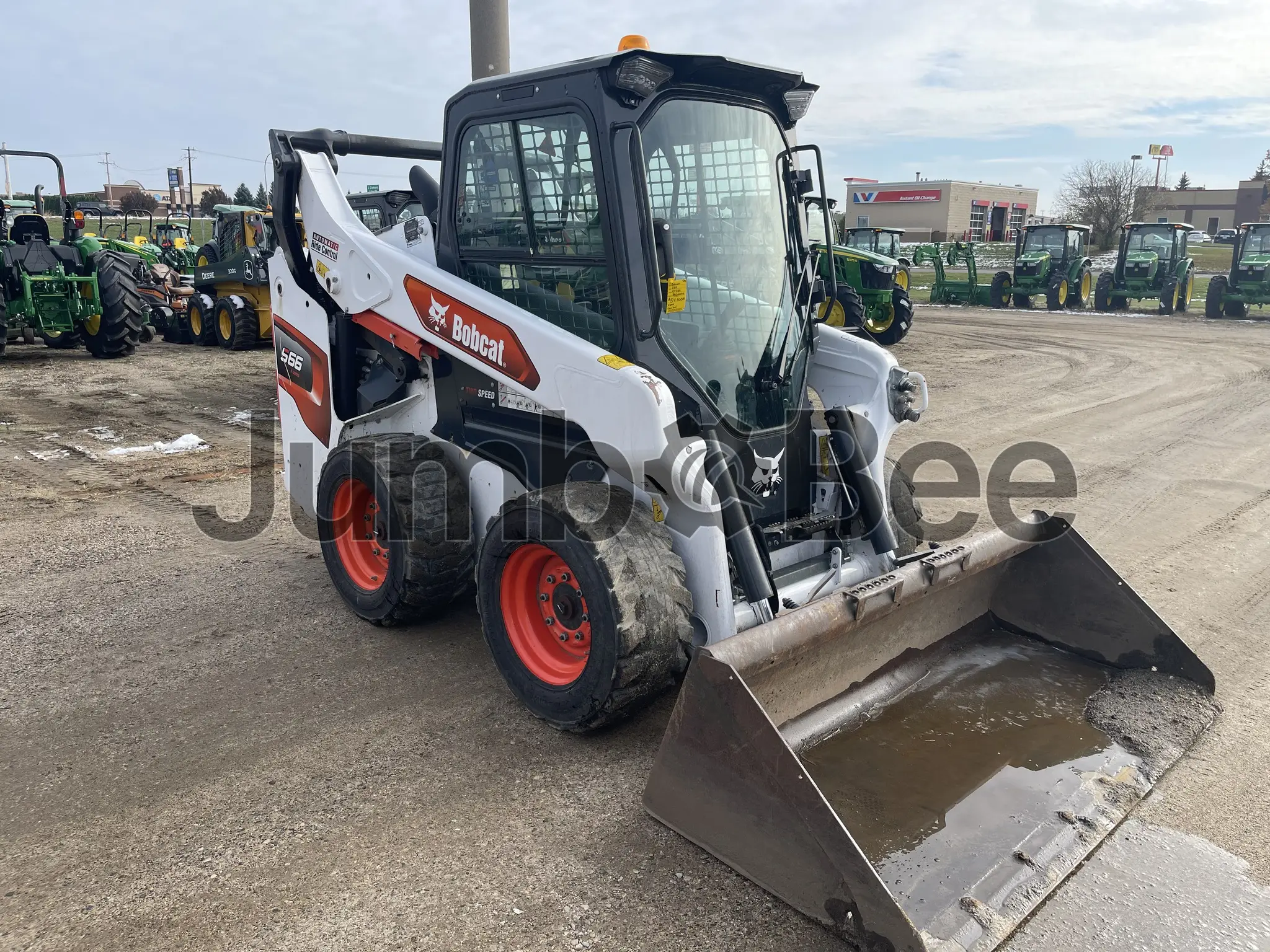

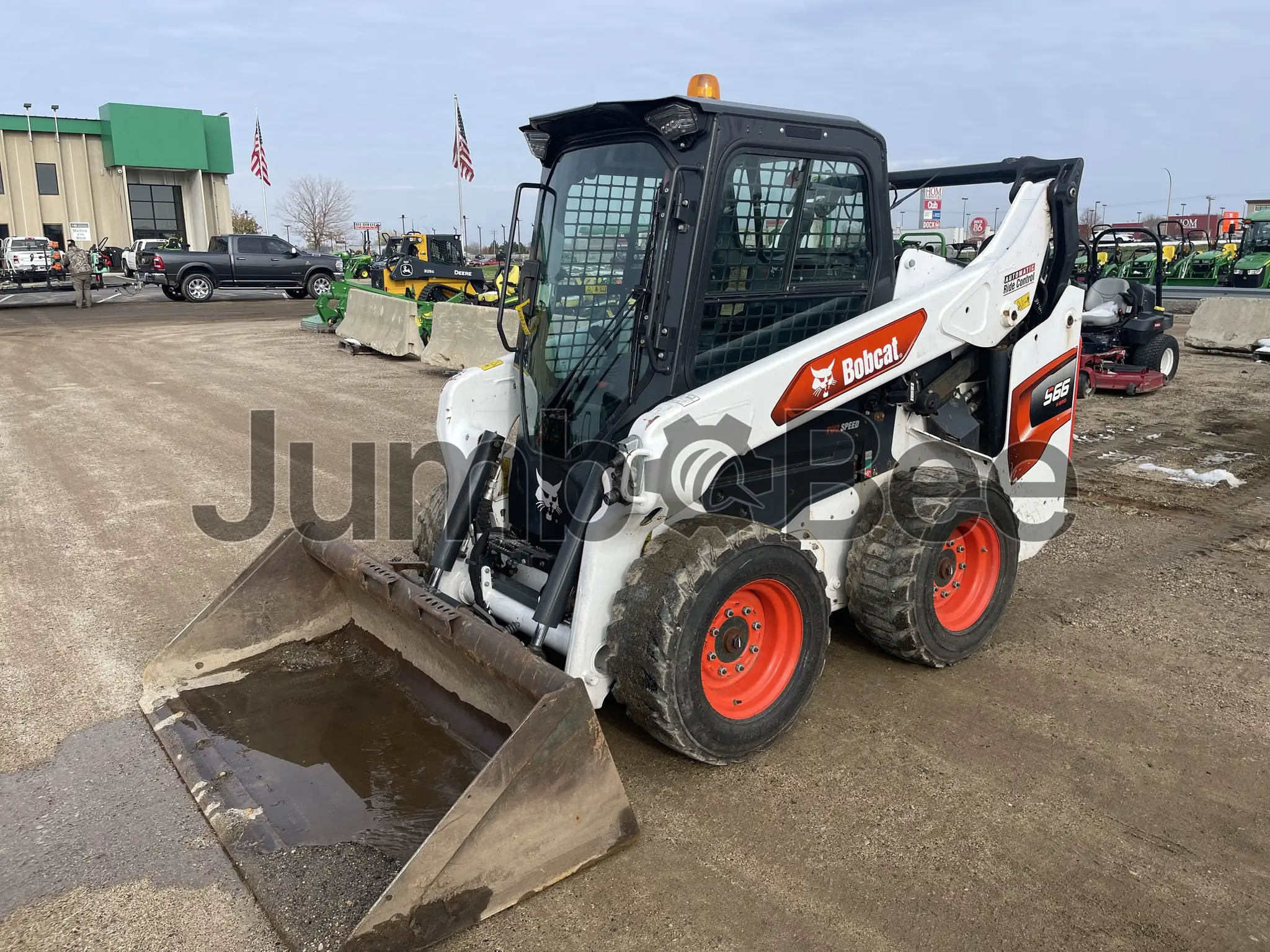

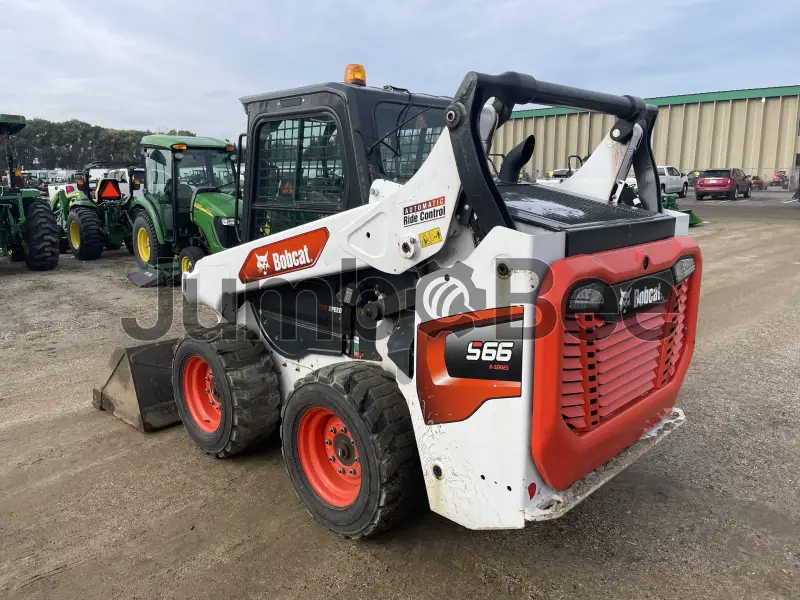

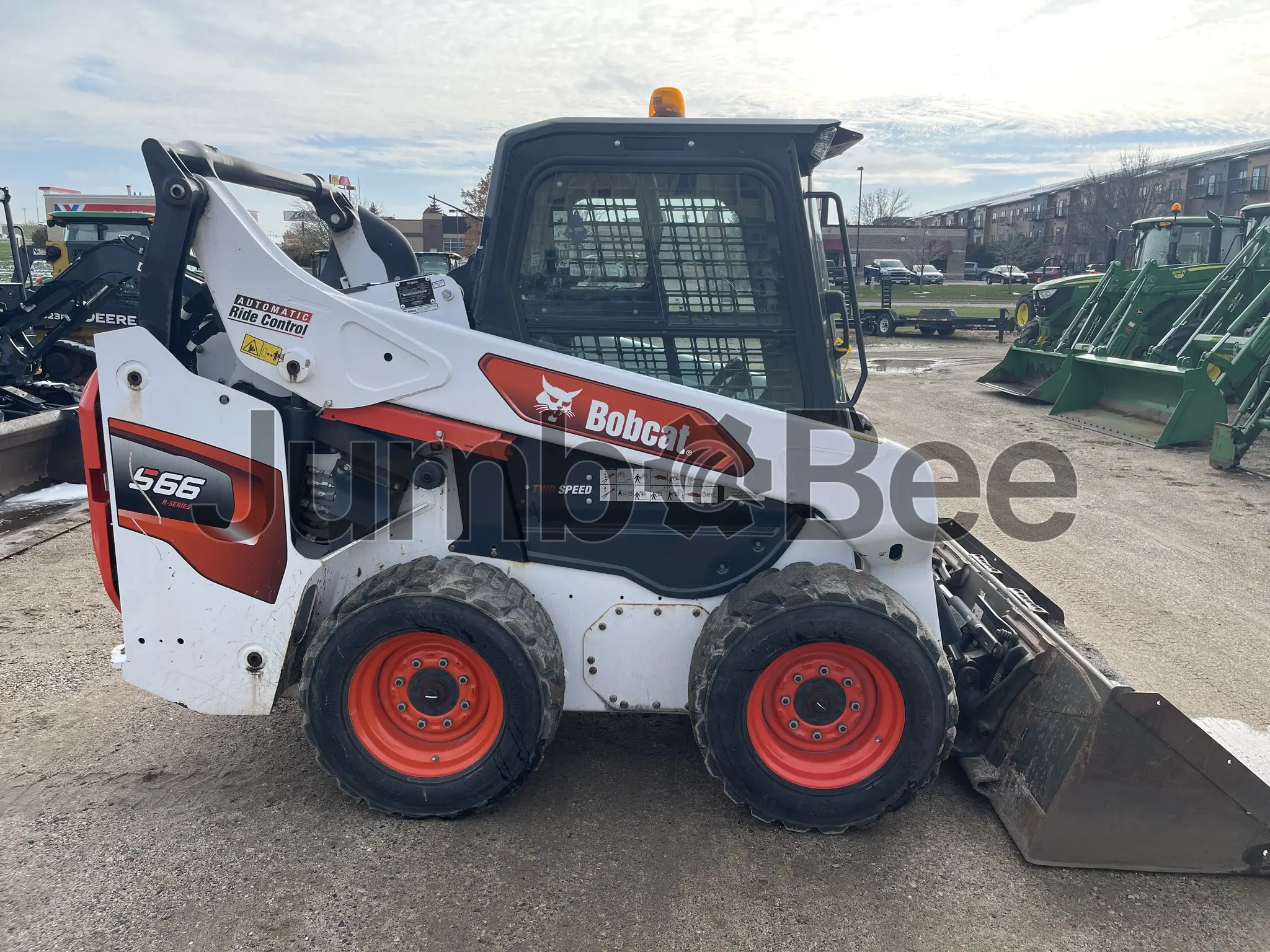

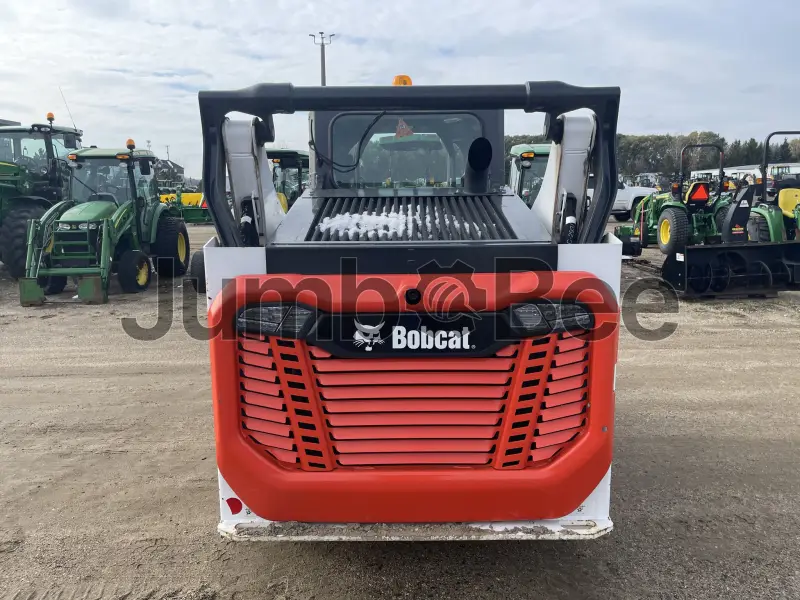

Bobcat S66 Skid Steer / CTL
Bobcat S66
Average price
$44,900
5+
sold in last year
General overview
The Bobcat S66 is a skid steer loader designed for loading, lifting, and material handling on construction sites and other confined work areas. Powered by a Bobcat 2.4L Turbo Diesel engine rated at 54 kW (74 hp), it is listed with EPA Tier 4 Final emission standard level.
With an operating weight of 3,245 kg (7,150 lb) and a rated operating capacity of 1,089 kg (2,400 lb), the S66 is positioned as a compact loader with defined lifting and carrying capacity. It uses hydraulic drive (hydrostatic), offers single-speed; optional 2-speed travel, and reaches 17 km/h (10.6 mph). Loader performance is supported by 66 L/min (17.4 gpm) pump flow and 241.3 bar (3,500 psi) system pressure at the couplers, with a dump height of 3,048 mm (10 ft).
Year
2020, 2021, 2022, 2023, 2024, 2025, 2026
Country of manufacturing
United States
General specifications
Dimensions
Height
Width
Length
2,045 mm
~80.5 in
1,702 mm
~67 in
3,429 mm
~135 in
Engine Power
74 hp
Operating Weight
3,271 kg
Rated Operating Capacity
1,089 kg
Dump Height
3,048 mm
Max. speed
17 km/h
Additional specifications
Emission standard level
EPA Tier 4 Final
Displacement
2 cu(m)
Speeds
Single-speed; optional 2-speed
Fuel tank
107 L
Wheelbase
1,133 mm
Manufacturer and Model
Bobcat 2.4L Turbo Diesel
Pump flow loader
66 L/min
2 Speed High
17 km/h
System Pressure at Couplers
24,132 kPa
Length Without Bucket
2,718 mm
Width Without Bucket
1,702 mm
Height to Top of ROPS
2,045 mm
Height to Hinge Pin
3,048 mm
Ground Clearance
230 mm
Angle of Departure
27 deg
Front Turn Radius With Foundry Bucket
2,035 mm
Tipping Load
2,177 kg
SAE Rated Operating Capacity With Counterweight
1,157 kg
Powertrain Type
Hydraulic drive (hydrostatic)
Operating Weight - Rear
3,245 kg
Standard features
10x16.5 10PR
Seed spacing
11 mm
Bobcat S66 Skid Steer / CTL Listings
$41,900
74 hp
Single-speed; optional 2-speed
11 mm
518 hours
Rogers, United States
Compare Bobcat S66 Skid Steer / CTL to other skid steer / ctl
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Bobcat S66?
No confirmed market price is supplied. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Bobcat S66?
Listed strengths include 55.2 kW (74 hp) engine power, a rated operating capacity of 1,089 kg (2,401 lb), 3,048 mm (120 in) dump height, hydraulic drive, and optional 2-speed travel.
What type of engine does the S66 use?
The Bobcat S66 uses a Bobcat 2.4L Turbo Diesel engine and is listed with EPA Tier 4 Final emissions compliance.
How much horsepower does the S66 have?
The S66 is rated at 74 hp (55.2 kW).
What fuel does the Bobcat S66 use?
The Bobcat S66 uses diesel fuel, based on its Bobcat 2.4L Turbo Diesel engine. Its listed fuel tank capacity is 107 L (28.3 US gal).
What jobs is this Skid Steer Loaders best suited for?
The supplied data does not identify specific job applications. Buyers can assess suitability using the listed rated operating capacity of 1,089 kg (2,401 lb), dump height of 3,048 mm (120 in), and hydraulic system specifications.
What is the expected lifespan of the S66?
No expected service life is supplied. Lifespan depends on operating conditions, maintenance history, attachment use, and the condition of the engine, hydraulic system, and structural components.
What should a buyer check when purchasing a used Skid Steer Loaders?
Check service records, engine operation, hydraulic leaks and coupler pressure, tire condition, lift-arm and attachment wear, ROPS condition, controls, and overall signs of damage or repairs. Confirm that the machine’s configuration matches the intended work.
