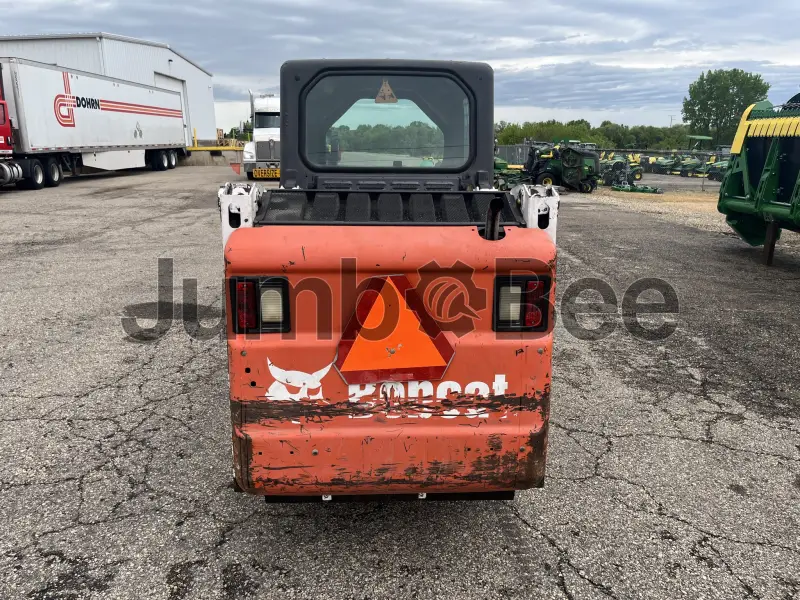

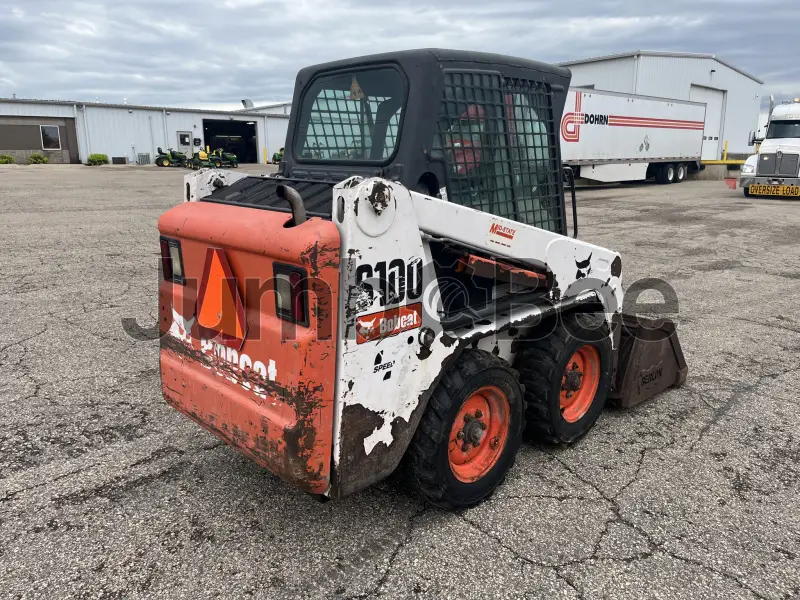

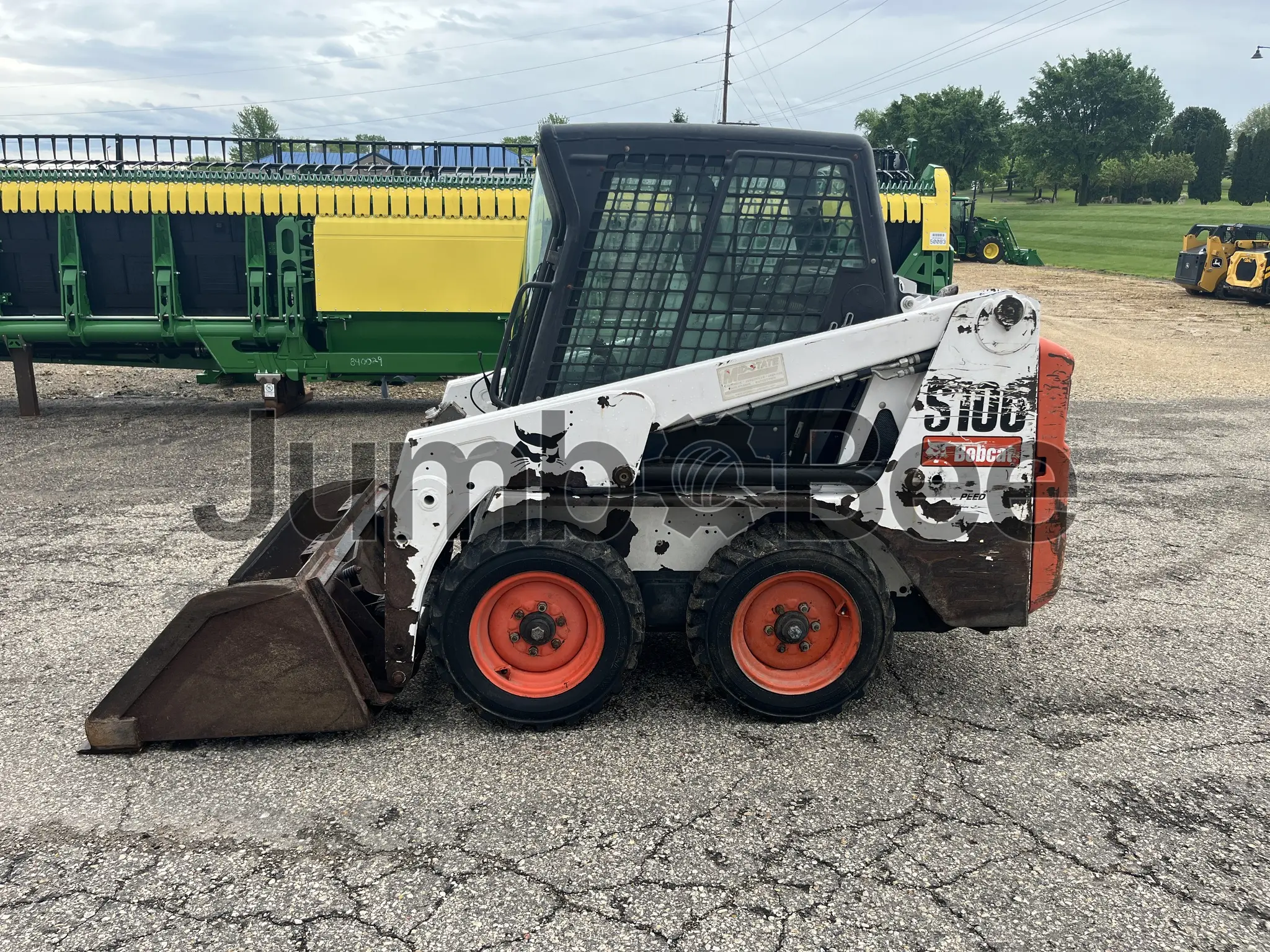

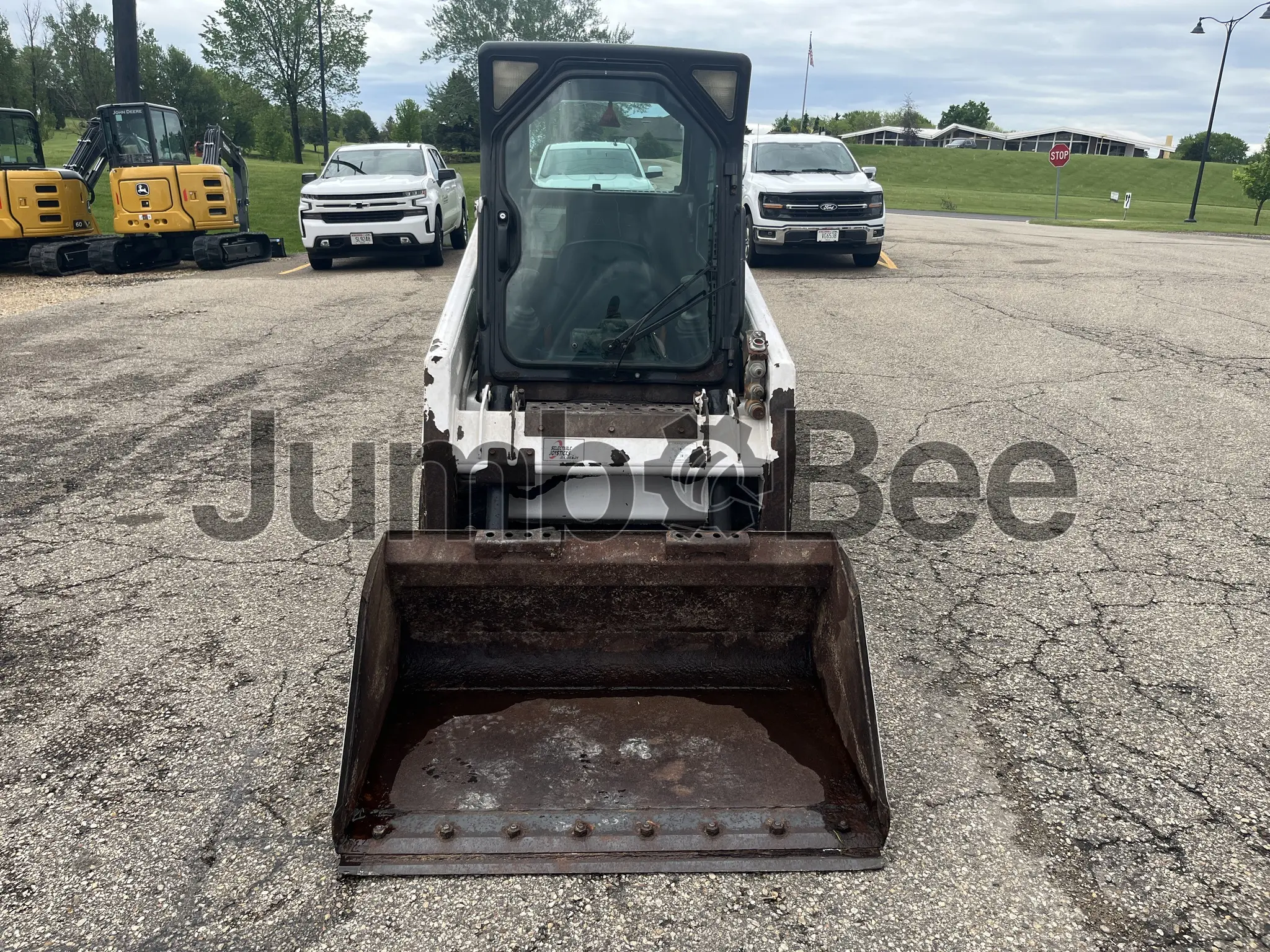

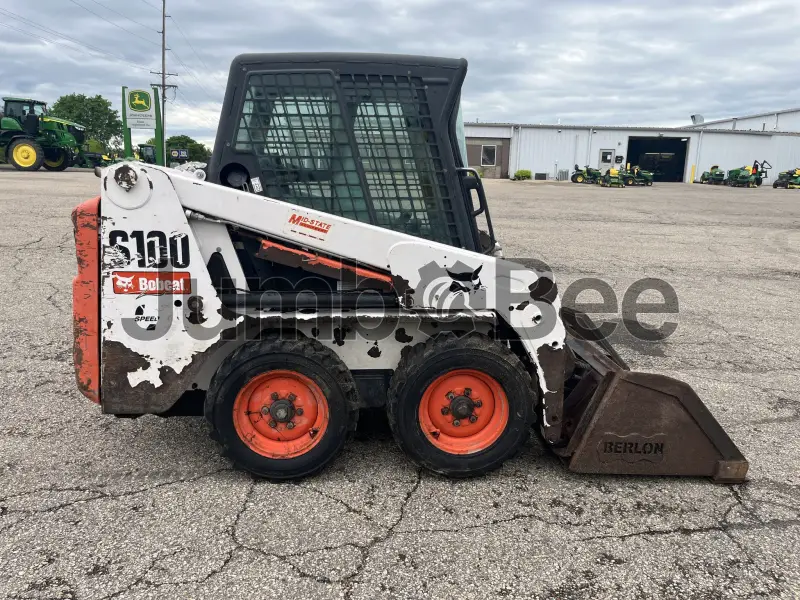

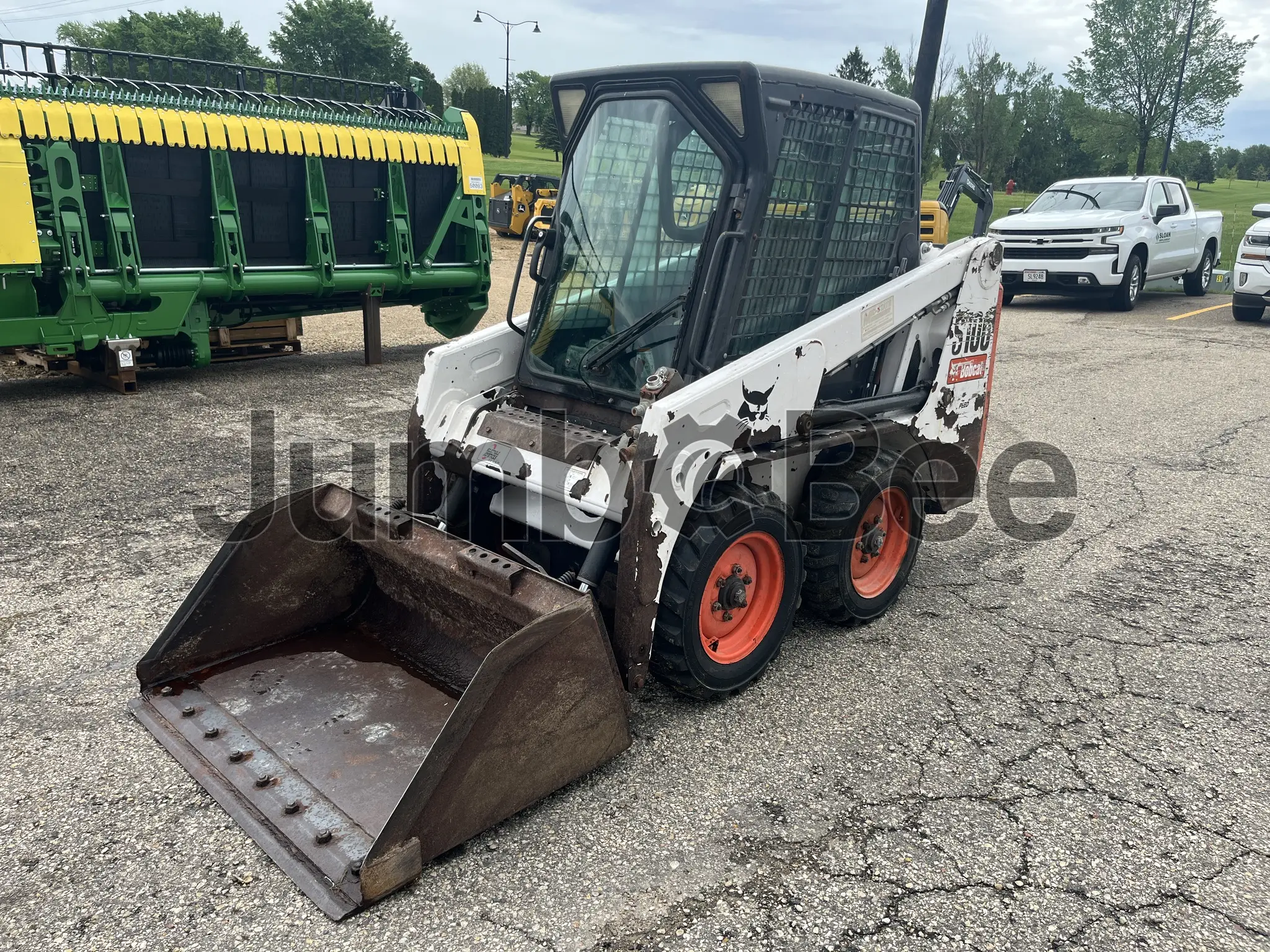

Bobcat S100 Skid Steer / CTL
Bobcat S100
Average price
$15,900
5+
sold in last year
General overview
Bobcat S100 is a skid steer loader designed for compact construction work, material handling, and loading tasks where a small footprint is important. It is powered by a Kubota V1505-E2B-BCZ (or V1505 variant) engine rated at 24 kW (33 hp) and meets EU Stage V / EPA Tier 4 Final emissions requirements. The machine’s rated operating capacity is 457 kg (1,010 lb), giving it a light-duty load class suited to confined job sites.
The S100 uses infinitely variable tandem hydrostatic piston pumps with two reversing hydrostatic motors, paired with hydrostatic final drive and a single-speed, infinitely variable hydrostatic setup. It has a maximum speed of 10 km/h (6.2 mph) and a dump height of 2,600 mm (8 ft 6 in). Key size and stability figures include an operating weight of 1,860 kg (4,100 lb), a width without bucket of 1,168 mm (3 ft 10 in), and a tipping load of 915 kg (2,020 lb).
Year
2011, 2021, 2022, 2023, 2024, 2025, 2026
Country of manufacturing
Czech Republic
General specifications
Dimensions
Length
Height
Width
2,262 mm
~89.1 in
1,878 mm
~73.9 in
1,270 mm
~50 in
Engine Power
33 hp
Operating Weight
1,860 kg
Rated Operating Capacity
457 kg
Dump Height
2,600 mm
Bucket volume
229 cu(m)
Max. speed
10 km/h
Additional specifications
Emission standard level
EU Stage V / EPA Tier 4 Final
Displacement
1 cu(m)
Speeds
Single-speed; infinitely variable tandem hydrostatic
Fuel tank
45 L
Number of batteries
1
Wheelbase
991 mm
Axles
Hydrostatic motors
Battery Voltage
12
Final drive
Hydrostatic
Battery Capacity
45
Net Power (ISO 9249)
33 hp
Manufacturer and Model
Kubota V1,505-E2B-BCZ (or V1,505 variant)
Alternator Rating
60
Pump flow loader
50 L/min
2 Speed High
10 km/h
Brakes
Parking brake
System Pressure at Couplers
20,700 kPa
Length Without Bucket
2,262 mm
Width Without Bucket
1,168 mm
Height to Top of ROPS
1,878 mm
Height to Hinge Pin
2,600 mm
Ground Clearance
167 mm
Angle of Departure
25 deg
Bucket Rollback (ground level)
40 deg
Tipping Load
915 kg
Powertrain Type
Infinitely variable tandem hydrostatic piston pumps, two reversing hydrostatic motors
Operating Weight - Rear
1,860 kg
Standard features
27x8.50-15 6-ply Bobcat heavy duty
Seed spacing
10 mm
Cylinders
4
Bobcat S100 Skid Steer / CTL Listings
$15,900
33 hp
457 kg
2600 mm
2709 hours
Mount Horeb, United States
Compare Bobcat S100 Skid Steer / CTL to other skid steer / ctl
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Bobcat S100?
No confirmed market price is supplied for the Bobcat S100. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Bobcat S100?
Listed strengths include a 457 kg (1,008 lb) rated operating capacity, compact 1,168 mm (46 in) width without bucket, 2,600 mm (102.4 in) dump height, and hydrostatic drive. The engine is rated at 24.6 kW (33 hp).
What type of engine does the S100 use?
The S100 is listed with a Kubota V1505-E2B-BCZ (or V1505 variant) engine. It has 4 cylinders, 24.6 kW (33 hp) net power under ISO 9249, and EU Stage V / EPA Tier 4 Final emissions compliance.
How much horsepower does the S100 have?
The S100 has 24.6 kW (33 hp) of engine power. Its net power is also listed as 24.6 kW (33 hp) under ISO 9249.
What fuel does the Bobcat S100 use?
The supplied specifications do not confirm the fuel type for the Bobcat S100. They list a 45 L (11.9 US gal) fuel tank.
What jobs is this Skid Steer Loaders best suited for?
The supplied data does not specify particular jobs. Its 457 kg (1,008 lb) rated operating capacity, 1,168 mm (46 in) width without bucket, and 2,600 mm (102.4 in) dump height are useful specifications for assessing suitability for a planned task.
What is the expected lifespan of the S100?
The supplied data does not provide an expected service life for the S100. When evaluating one, review maintenance records, operating condition, hydraulic operation, engine condition, tires, and signs of structural damage or leakage.
What should a buyer check when purchasing a used Skid Steer Loaders?
Check maintenance records, engine starting and operation, hydraulic drive and loader functions, leakage, tires, brakes, safety equipment, structural damage, and the condition of attachments and couplers. Confirm that the machine’s capacity and dimensions suit the intended work.
