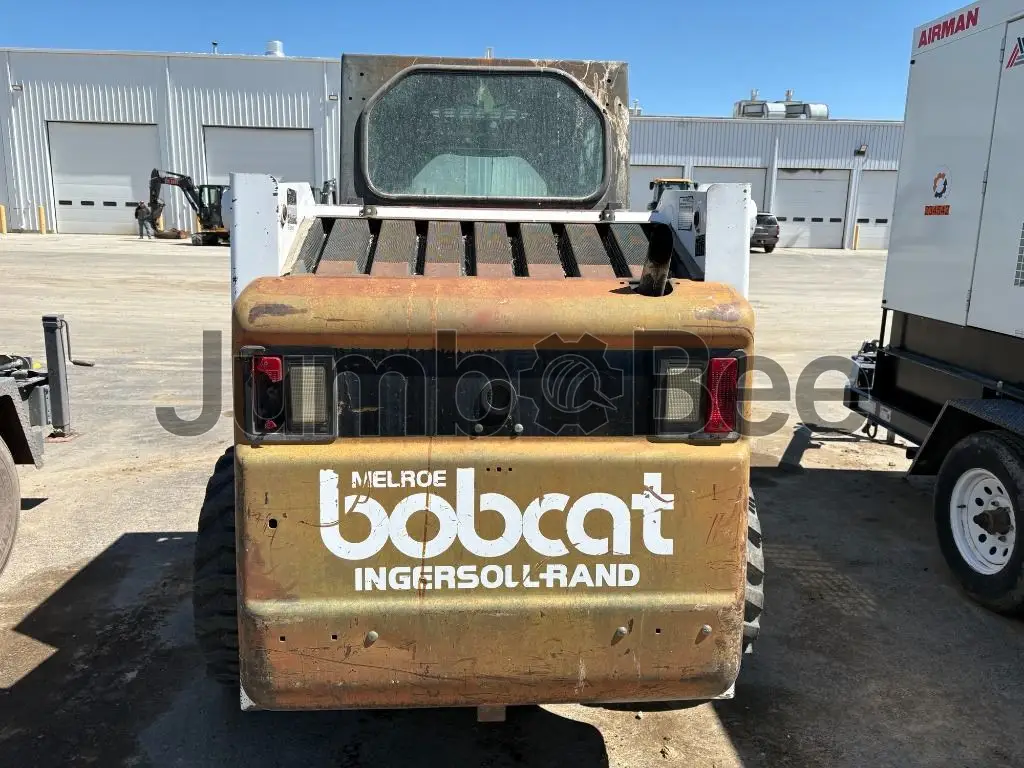

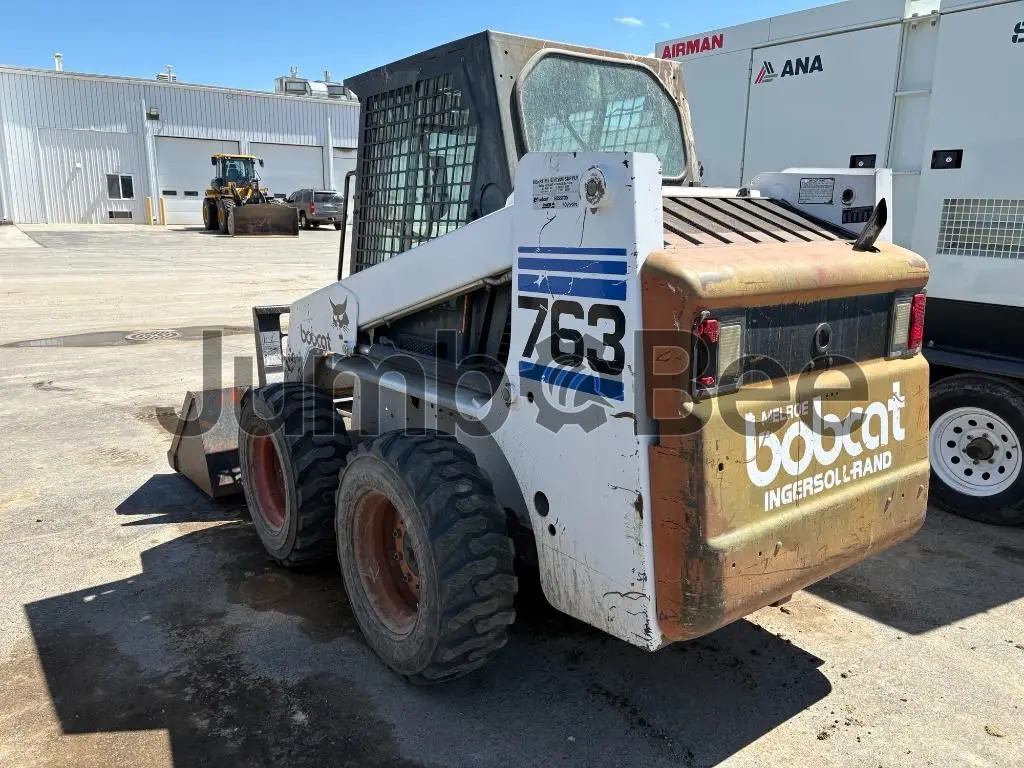

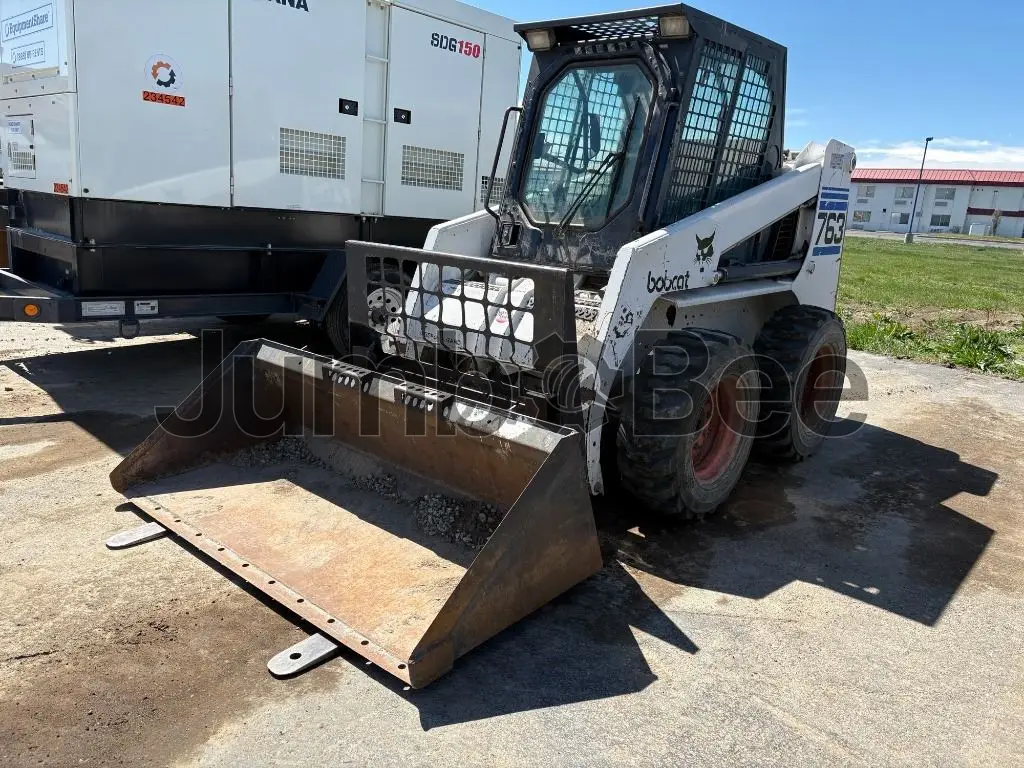

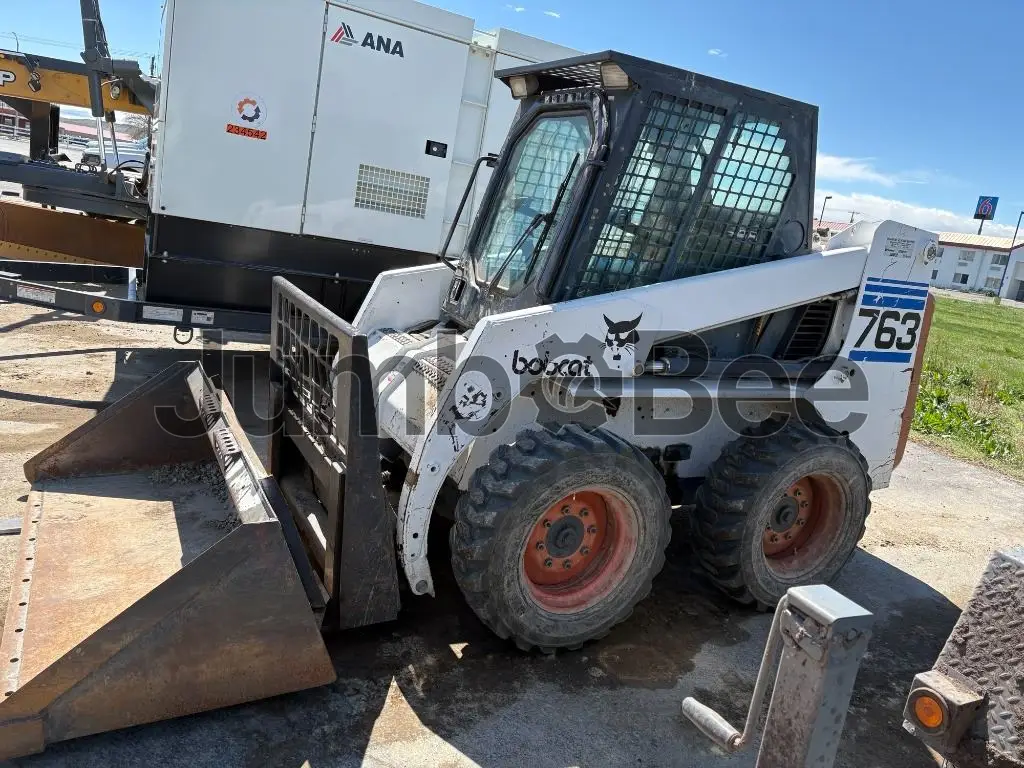

Bobcat 763 Skid Steer / CTL
Bobcat 763
5+
sold in last yearGeneral overview
The Bobcat 763 is a skid steer loader built for loading, lifting, and moving material in construction and site-preparation work. Bobcat manufactured this model in the United States from 1995 to 1999, and it is powered by a 34 kW (46 hp) Kubota V2203-E / V2203-EB diesel engine. Its compact loader format is intended for work where maneuverability and frequent bucket cycles matter.
This model is rated at 2,454 kg (5,410 lb) operating weight with a 700 kg (1,540 lb) rated operating capacity and 1,452 kg (3,200 lb) tipping load. It features 2 speeds, a maximum travel speed of 18 km/h (11.2 mph), loader pump flow of 56 L/min (14.8 gpm), and system pressure at couplers of 206.8 bar (3,000 psi). Dump height is 2,195 mm (7 ft 2 in), and height to hinge pin is 2,908 mm (9 ft 6 in).
Year
1995, 1996, 1997, 1998, 1999
Country of manufacturing
United States
General specifications
Dimensions
Length
Height
Width
3,300 mm
~129.9 in
1,941 mm
~76.4 in
1,524 mm
~60 in
Engine Power
46 hp
Operating Weight
2,434.6 kg
Rated Operating Capacity
700 kg
Dump Height
2,195 mm
Bucket volume
460 cu(m)
Max. speed
18 km/h
Additional specifications
Emission standard level
Tier 1
Displacement
2 cu(m)
Speeds
2 speeds
Fuel tank
53 L
Number of batteries
1
Wheelbase
1,080 mm
Battery Voltage
12
Battery Capacity
45
Net Power (ISO 9249)
46 hp
Manufacturer and Model
Kubota V2,203-E / V2,203-EB
Alternator Rating
40
Pump flow loader
56 L/min
Maximum Axle Torque
142 Nm
Tractive Effort
25 kN
System Pressure at Couplers
20,684 kPa
Hydraulic Horsepower Flow
10 hp
Length Without Bucket
3,304 mm
Height to Top of ROPS
1,941 mm
Height to Hinge Pin
2,908 mm
Ground Clearance
200 mm
Angle of Departure
26 deg
Dump Angle (full lift height)
44 deg
Bucket Rollback (ground level)
25 deg
Tipping Load
1,452 kg
SAE Rated Operating Capacity With Counterweight
726 kg
Boom Breakout Force With Foundry Bucket
12 kg
Boom Breakout Force With Construction Bucket
12 kg
Bucket Breakout Force With Foundry Bucket
13 kg
Bucket Breakout Force With Construction Bucket
13 kg
Powertrain Type
Diesel
Operating Weight - Rear
2,454 kg
Standard features
10.0x16.5 / 10-16.5
Seed spacing
11 mm
Cylinders
4
Bobcat 763 Skid Steer / CTL Listings
Looking for Bobcat 763 Skid Steer / CTL?
See similar listingsCompare Bobcat 763 Skid Steer / CTL to other skid steer / ctl
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Bobcat 763?
No confirmed market price is supplied. Check current listings and compare machine condition, location, hours, attachments, and configuration.
What are the key advantages of the Bobcat 763?
Key listed specifications include 34.3 kW (46 hp) of engine power, a rated operating capacity of 700 kg (1,543 lb), 2-speed travel, 56 L/min (14.8 gpm) loader pump flow, and a 53 L (14 US gal) fuel tank.
What type of engine does the 763 use?
The Bobcat 763 uses a Kubota V2203-E / V2203-EB diesel engine. It has 4 cylinders, 2 m³ (2.62 cu yd) displacement, and a Tier 1 emission standard level.
How much horsepower does the 763 have?
The Bobcat 763 has 34.3 kW (46 hp) of engine power. Its net power under ISO 9249 is also listed as 34.3 kW (46 hp).
What fuel does the Bobcat 763 use?
The Bobcat 763 uses diesel fuel. Its listed fuel tank capacity is 53 L (14 US gal).
What jobs is this Skid Steer Loaders best suited for?
Its listed 700 kg (1,543 lb) rated operating capacity, 2,195 mm (86.4 in) dump height, and 56 L/min (14.8 gpm) loader pump flow support assessment for loading and material-handling work. Suitability depends on the attachment, material, and site requirements.
What is the expected lifespan of the 763?
The supplied data does not confirm an expected service life. For a used machine, assess maintenance records, operating hours, engine condition, hydraulic performance, tires, controls, and structural wear.
What should a buyer check when purchasing a used Skid Steer Loaders?
Check maintenance records, engine starting and operation, hydraulic leaks and coupler pressure, loader-arm and bucket-pivot wear, tire condition, ROPS condition, controls, battery, and fuel system. Confirm that the machine’s capacity, lift height, and attachments match the intended work.
