Apache AS1230 Self-Propelled Sprayers
Apache AS1230
Average price
$135,000
5+
sold in last year
General overview
Apache AS1230 is a farm sprayer used for crop protection and other liquid applications in field operations. The Apache AS1230 is powered by a 6.7 L (408 cu in) six-cylinder engine rated at 300 kW (408 hp) and meets Tier 4 Final emissions requirements, giving it a clearly defined high-power operating class for agricultural spraying. It was produced in the United States from 2017 to 2024.
Key operating features include a ZF Powershift transmission, Raven Hawkeye sprayer control, and an independent hydraulic suspension w/ 9 nitrogen accumulators. The machine is equipped with a 4,542 L (1,200 US gal) solution system, a Hypro centrifugal solution pump, and a 378.5 L (100 US gal) rinse tank. A 127 cm (4 ft 2 in) ground clearance supports routine field spraying tasks.
Year
2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
4,100 mm
~161.4 in
4,000 mm
~157.5 in
9,750 mm
~383.9 in
14,500 kg
~31,967.1 lb
Solution System Capacity
4,542 L
Length Options
18.3 m
Additional specifications
Emission standard level
Tier 4 Final
Displacement
408 cu(in)
Fuel tank
341 L
Number of Cylinders
6
Transport speed
56 psi
Rated power
300 kW
Rinse tank capacity
378.5 L
Boom sections
9
Type Drive
ZF Powershift transmission
Shifting
6

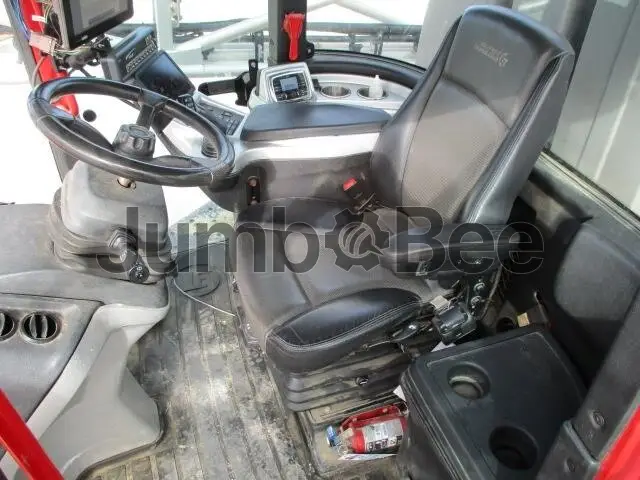

Operator seat description
Air-ride, leather
Sprayer control
Raven Hawkeye
Suspension
Independent hydraulic w/ 9 nitrogen accumulators
Ground clearance with standard tires
127 cm
Factory-installed
380/80 R38 front; 380/90 R46 rear
Tire Options
320/85 R38 front; 320/90 R50 rear
Solution pump
Hypro centrifugal
Apache AS1230 Self-Propelled Sprayers Listings
$135,000
Independent hydraulic w/ 9 nitrogen accumulators
4542 L
18.3 m
2201 hours
Stevensville, United States
Compare Apache AS1230 Self-Propelled Sprayer to other self-propelled sprayers
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Apache AS1230 Self-Propelled Sprayer
4542 L
14500 kg
9750 mm × 4100 mm × 4000 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of an Apache AS1230?
No confirmed market price is supplied for the Apache AS1230. Check current listings and compare machine condition, location, and configuration.
What are the key advantages of the Apache AS1230?
Listed features include a 4,542 L (1,199.9 US gal) solution system, Raven Hawkeye sprayer control, a Hypro centrifugal solution pump, independent hydraulic suspension with 9 nitrogen accumulators, and an air-ride leather operator seat.
What type of engine does the AS1230 use?
The supplied specifications do not identify the engine manufacturer or engine model. They list a 6-cylinder engine with 408 cu in displacement, Tier 4 Final emissions, and rated power of 300 kW (402.3 hp).
How much horsepower does the AS1230 have?
The AS1230 has rated power of 300 kW (402.3 hp).
What fuel does the Apache AS1230 use?
The supplied specifications do not confirm the fuel type for the Apache AS1230. They list a fuel tank capacity of 341 L (90.1 US gal).
What jobs is this Sprayers best suited for?
As a farm sprayer, the Apache AS1230 is suited to agricultural spraying work. Its listed 4,542 L (1,199.9 US gal) solution system, Raven Hawkeye control, and Hypro centrifugal solution pump are relevant to spray application operations.
What is the expected lifespan of the AS1230?
The supplied data does not provide an expected service-life estimate. Lifespan depends on maintenance, operating conditions, spray-system care, and inspection of the transmission, suspension, tires, pump, and controls.
What should a buyer check when purchasing a used Sprayers?
Inspect the solution tank, rinse tank, Hypro centrifugal pump, plumbing, booms, Raven Hawkeye controls, ZF Powershift transmission, suspension, tires, and operator seat. Check for leaks, corrosion, damage, uneven tire wear, and complete maintenance records.
