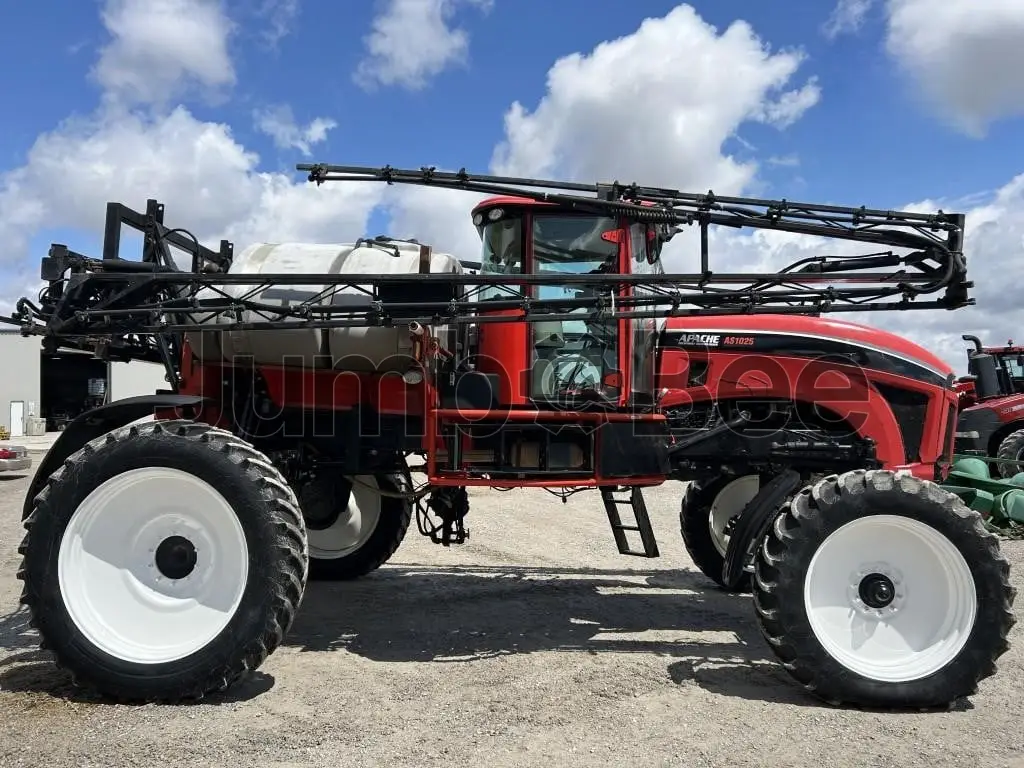

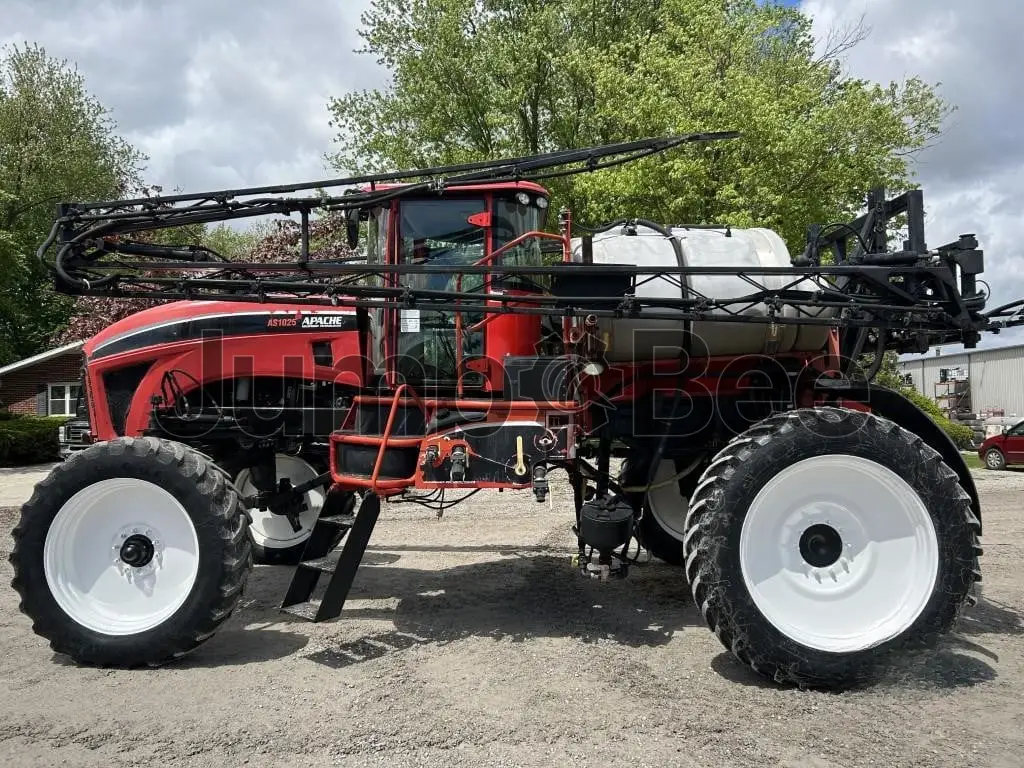

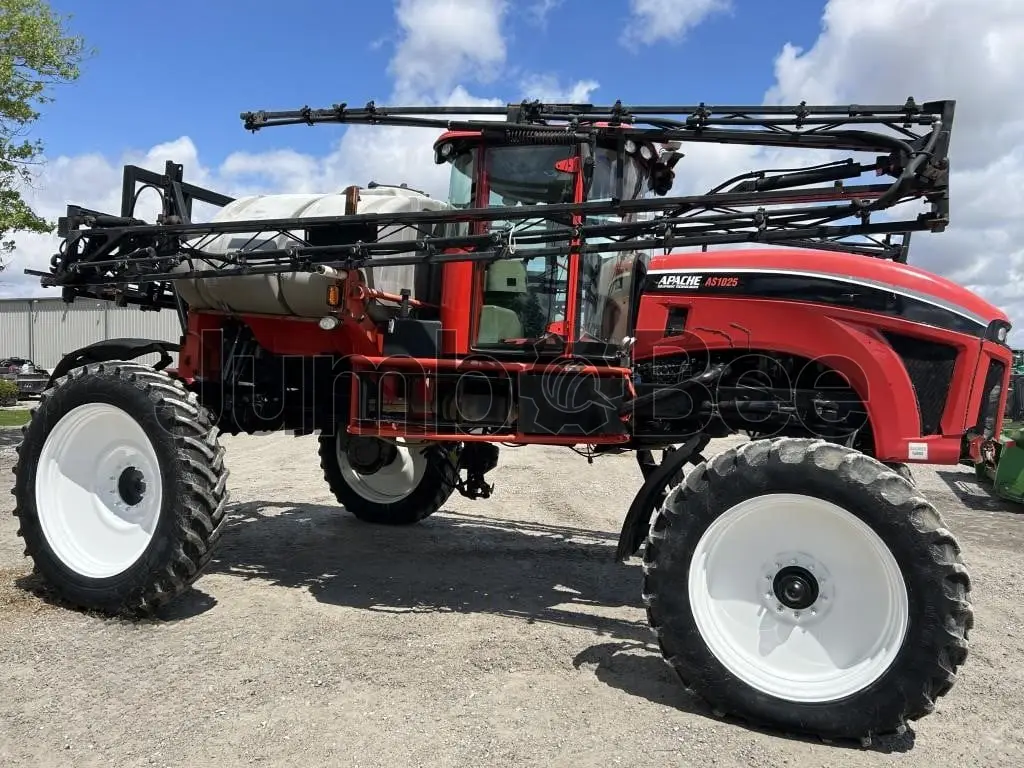

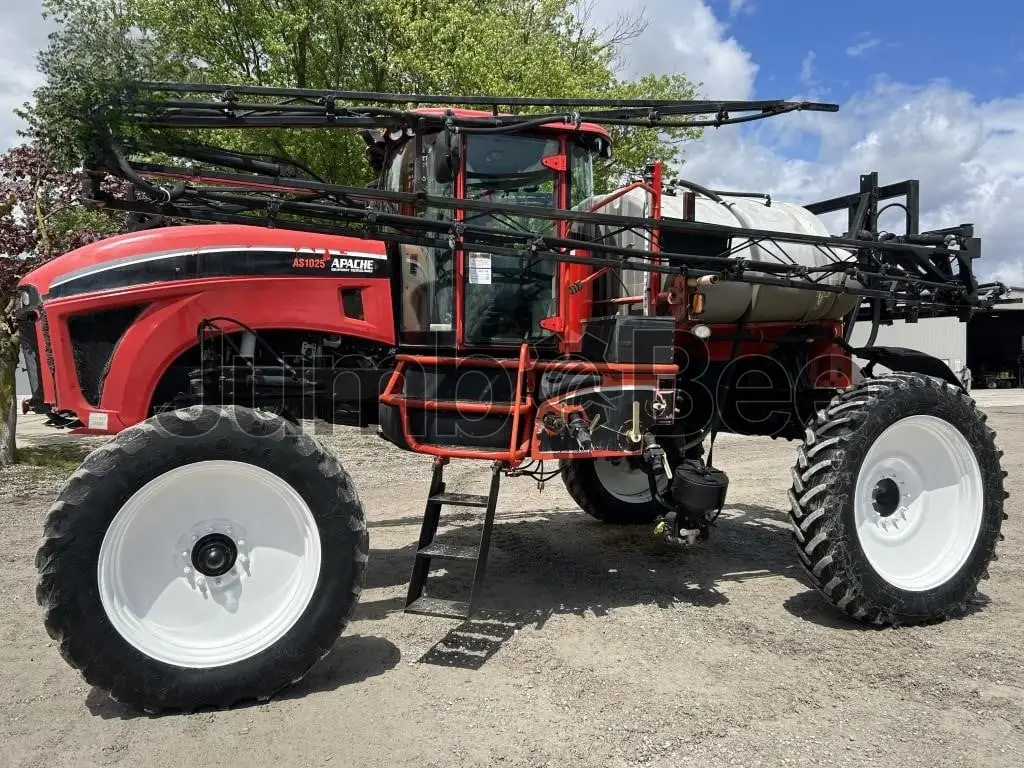

Apache AS1025 Self-Propelled Sprayers
Apache AS1025
5+
sold in last yearGeneral overview
Apache AS1025 is a self-propelled sprayer produced in the United States from 2012 to 2015. It is built for field spraying in crop production and is powered by a 6.7 L (408 cu in) six-cylinder engine rated at 173 kW (235 hp), with Tier 4 Interim emission standard level.
A ZF Powershift transmission, hydraulic suspension w/ nitrogen accumulators, and boom sections of 5, 8 or 10 define the model’s operating setup. The AS1025 carries a 3,785 L (1,000 US gal) solution system capacity, a 379 L (100 US gal) rinse tank capacity, and 107 cm (3 ft 6 in) ground clearance with standard tires. Sprayer control options include Raven SCS 5000, Envizio Pro II, Viper Pro, and Trimble CVX 750.
Year
2012, 2013, 2014, 2015
Country of manufacturing
United States
General specifications
Dimensions
Width
Height
Length
Weight
3,759 mm
~148 in
3,660 mm
~144.1 in
7,370 mm
~290.2 in
8,845 kg
~19,499.9 lb
Solution System Capacity
3,785 L
Length Options
24.4 m
Additional specifications
Emission standard level
Tier 4 Interim
Displacement
408 cu(in)
Fuel tank
379 L
Number of Cylinders
6
Transport speed
56 psi
Rated power
173 kW
Rinse tank capacity
379 L
Boom sections
5, 8 or 10
Type Drive
ZF Powershift transmission
Shifting
6
Sprayer control
Raven SCS 5,000, Envizio Pro II, Viper Pro, Trimble CVX 750
Suspension
Hydraulic, w/ nitrogen accumulators
Ground clearance with standard tires
107 cm
Factory-installed
380/80 R38 front; 380/90 R46 rear
Tire Options
320/85 R38 front; 320/90 R50 rear
Solution pump
Hypro 9,306C-HM1C
Maximum transport speed
Apache AS1025 Self-Propelled Sprayers Listings
Looking for Apache AS1025 Self-Propelled Sprayers?
See similar listingsCompare Apache AS1025 Self-Propelled Sprayer to other self-propelled sprayers
Not sure which equipment to choose? Use our comparison tool to easily compare equipment side by side based on key features.
Apache AS1025 Self-Propelled Sprayer
3785 L
8845 kg
7370 mm × 3759 mm × 3660 mm
Add model
Add model
No reviews yet
Be the first to review this model.
Leave a review. Get a promo code
Leave a review and receive a promo code for your next purchase.
No questions yet
Be the first to ask a question about this model and help other buyers learn more.
Heavy equipment insights from JumboBee
Got Questions?
Our FAQ section covers everything from shipping and listing to buying with confidence.
Can't find what you're looking for?
Sign up and talk to an expert.
Most popular
What is the average price of a Apache AS1025?
No confirmed market price is supplied for the Apache AS1025. Check current listings and compare condition, location, and configuration.
What are the key advantages of the Apache AS1025?
Listed features include a 3,785 L (999.9 US gal) solution system, 173 kW (232 hp) rated power, hydraulic suspension with nitrogen accumulators, and multiple sprayer-control options.
What type of engine does the AS1025 use?
The supplied data does not identify the engine make or model. It lists 6 cylinders, 408 cu in displacement, and a Tier 4 Interim emission standard level.
How much horsepower does the AS1025 have?
The Apache AS1025 has a rated power of 173 kW (232 hp).
What fuel does the Apache AS1025 use?
The supplied data does not confirm the fuel type. It lists a fuel tank capacity of 379 L (100.1 US gal).
What jobs is this Sprayers best suited for?
The Apache AS1025 is identified as farm equipment in the Sprayers category. The supplied information does not confirm specific crops, field sizes, or application jobs.
What is the expected lifespan of the AS1025?
No service-life estimate is supplied for the AS1025. Lifespan depends on maintenance, operating conditions, and the condition of the sprayer, pump, drivetrain, suspension, and controls.
What should a buyer check when purchasing a used Sprayers?
Inspect the solution system and Hypro 9306C-HM1C pump for leaks and operation. Check boom sections, hydraulic suspension, tires, ZF Powershift transmission, sprayer controls, rinse tank, and service records.
